JZS173-AEPSF (1999)
Toyota Crown/Crown Majesta

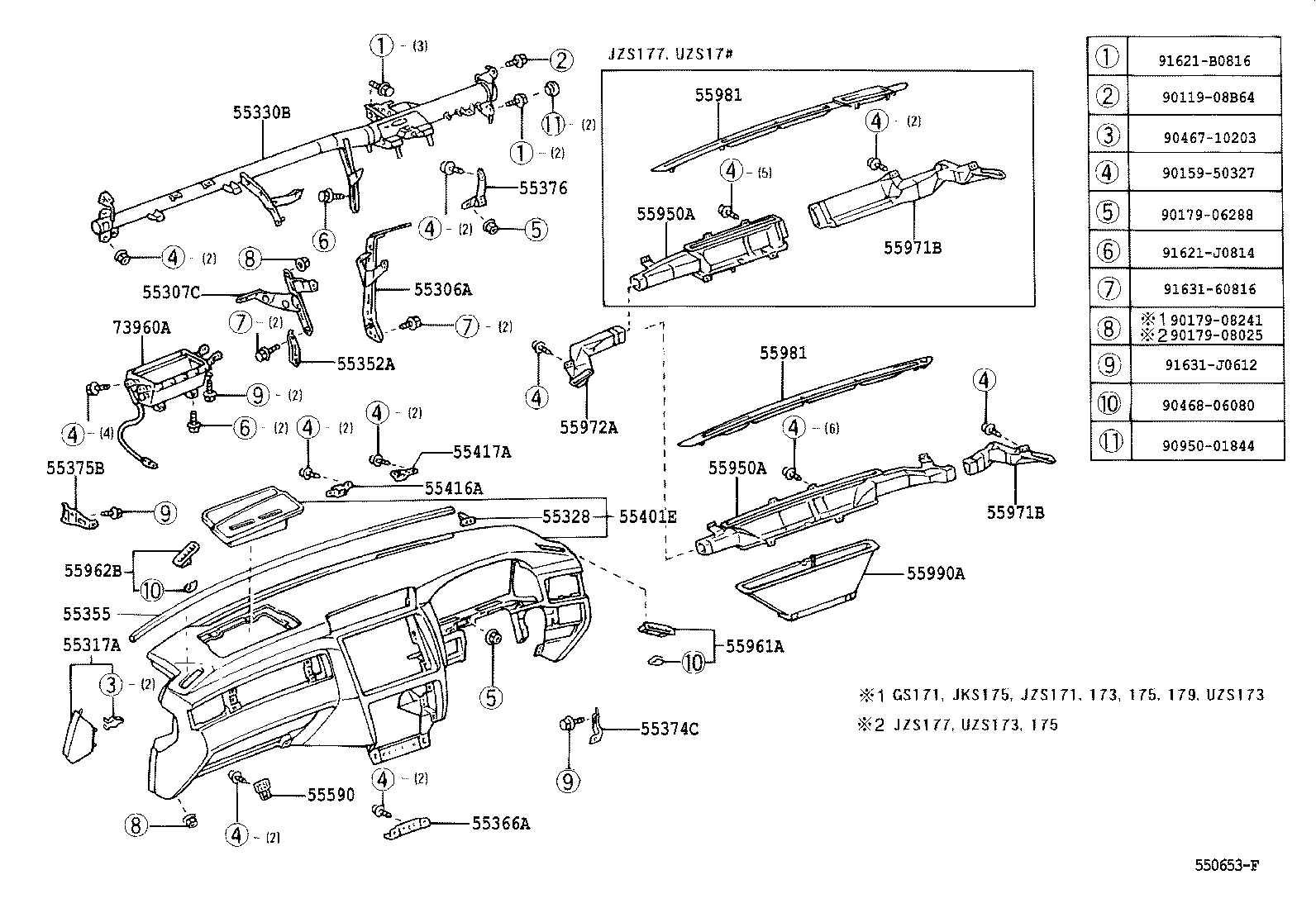

ILLUST NO. 1 OF 2(9909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-30310 |
JZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179 |
1 | ||
| 55306-30310 |
GS171,JZS171,173,175,179,UZS173 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-30320 |
GS171,JZS17#,UZS17# |
1 | ||
| 55307-30320 |
JZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179 |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-30030B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 55317-30030A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
1 | ||
| 55317-30030A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 55317-30030C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-51020 |
GS171,JKS175,JZS17#,UZS17# |
2 | ||
| 55328-51020 |
GS171,JZS171,173,175,179 |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-30240 |
GS171,JZS171,173,175,179 |
1 | ||
| 55330-30260 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 55352A - BRACE, INSTRUMENT PANEL TO FLOOR, NO.2 | ||||
| 55352-30260 |
JZS173,179..SED |
1 | ||
| 55352-30260 |
JZS173,179,UZS173 |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-30050 |
GS171,JZS171,173,175,179 |
2 | ||
| 55366A - BRACKET, RADIO MOUNTING, NO.1 | ||||
| 55366-30250 |
GS171,JZS17#,UZS17# |
1 | ||
| 55366-30250 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 | ||||
| 55374-30230 |
GS171,JZS171,173,175,179 |
1 | ||
| 55374-30230 |
JZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179 |
1 | ||
| 55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2 | ||||
| 55375-30120 |
JZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179 |
1 | ||
| 55375-30120 |
GS171,JZS171,173,175,179 |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-30170 |
GS171,JZS17#,UZS17# |
1 | ||
| 55376-30170 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-30600B0 |
GS171,JZS171,173,175,179..ROY,ROYEX,ROYG DK.CHARCOAL,TRIM1# |
1 | ||
| 55401-30600E0 |
GS171,JZS171,173,175,179 SANDAL WOOD,TRIM0# |
1 | ||
| 55401-30680B0 |
GS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG DK.CHARCOAL,TRIM1# |
1 | ||
| 55401-30610C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 55401-30610E0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),SANDAL WOOD,TRIM06 |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-30150 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 55416-30150 |
GS171,JZS17#,UZS17# |
1 | ||
| 55417A - RETAINER, METER HOOD, NO.2 | ||||
| 55417-30070 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 55417-30070 |
GS171,JZS17#,UZS17# |
1 | ||
| 55590 - PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER | ||||
| 55590-30030 |
GS171,JZS17#,UZS17# |
1 | ||
| 55590-30030 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-30150 |
GS171,JZS171,173,175,179 |
1 | ||
| 55950-30150 |
JZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179 |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-30150 |
GS171,JZS171,173,175,179 |
1 | ||
| 55950-30150 |
JZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179 |
1 | ||
| 55961A - NOZZLE, SIDE DEFROSTER, RH | ||||
| 55961-30130E0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),SANDAL WOOD,TRIM06 |
1 | ||
| 55961-30130B0 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG DK.CHARCOAL,TRIM1# |
1 | ||
| 55961-30130E0 |
GS171,JZS17#,UZS17# SANDAL WOOD,TRIM0# |
1 | ||
| 55961-30130C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 55962B - NOZZLE, SIDE DEFROSTER, LH | ||||
| 55962-30110C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 55962-30110E0 |
GS171,JZS17#,UZS17# SANDAL WOOD,TRIM0# |
1 | ||
| 55962-30110B0 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG DK.CHARCOAL,TRIM1# |
1 | ||
| 55962-30110E0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),SANDAL WOOD,TRIM06 |
1 | ||
| 55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-30150 |
JZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179 |
1 | ||
| 55971-30150 |
GS171,JZS171,173,175,179 |
1 | ||
| 55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-30150 |
JZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179 |
1 | ||
| 55971-30150 |
GS171,JZS171,173,175,179 |
1 | ||
| 55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-30150 |
JZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179 |
1 | ||
| 55972-30150 |
GS171,JZS17#,UZS17# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-30120B0 |
GS171,JZS171,173,175,179..ROY,ROYEX,ROYG DK.CHARCOAL,TRIM1# |
1 | ||
| 55981-30130C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 55981-30120B0 |
GS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG DK.CHARCOAL,TRIM1# |
1 | ||
| 55981-30120E0 |
GS171,JZS171,173,175,179 SANDAL WOOD,TRIM0# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-30120B0 |
GS171,JZS171,173,175,179..ROY,ROYEX,ROYG DK.CHARCOAL,TRIM1# |
1 | ||
| 55981-30130C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 55981-30120B0 |
GS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG DK.CHARCOAL,TRIM1# |
1 | ||
| 55981-30120E0 |
GS171,JZS171,173,175,179 SANDAL WOOD,TRIM0# |
1 | ||
| 55990A - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-30050 |
JZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179 |
1 | ||
| 55990-30050 |
GS171,JZS171,173,175,179 |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-30050 |
JZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179 |
1 | ||
| 73960-30050 |
GS171,JZS17#,UZS17# |
1 | ||
| Common parts | ||||
| 90119-08B64 | ||||
| 90159-50327 | ||||
| 90179-06288 | ||||
| 90179-08025 | ||||
| 90179-08241 | ||||
| 90467-10203 | ||||
| 90468-06080 | ||||
| 90950-01844 | ||||
| 91621-B0816 | ||||
| 91621-J0814 | ||||
| 91631-60816 | ||||
| 91631-J0612 | ||||

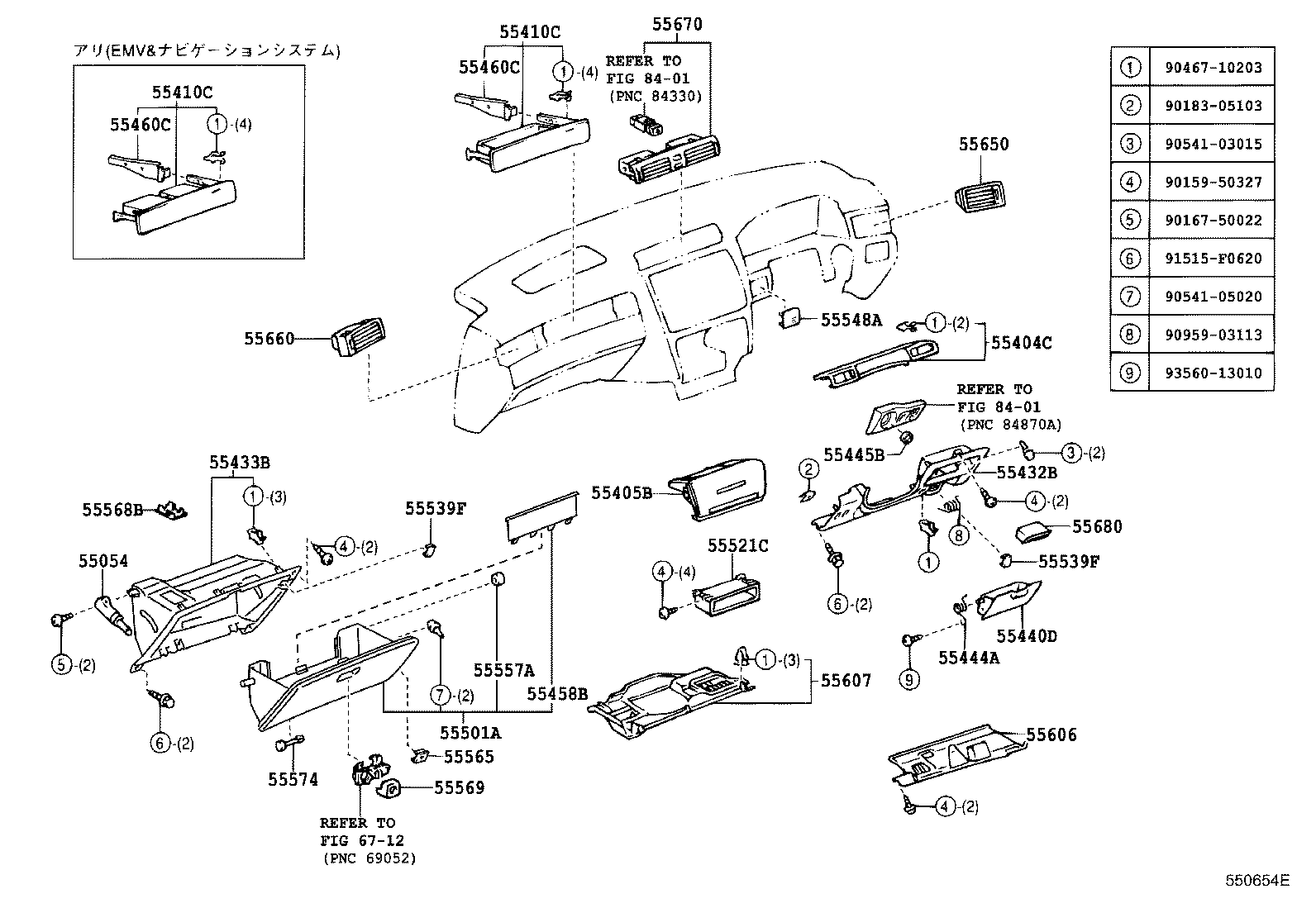

ILLUST NO. 2 OF 2(9909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-30010 |
JZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179 |
1 | ||
| 55054-30010 |
GS171,JZS17#,UZS17# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-30810 |
JZS173..SED;GS171,JZS171..D4,HTWC |
1 | ||
| 55404-30810 |
GS171,JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYEX |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-30380B1 |
GS171,JZS171,173,175,179..ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 55405-30380A0 |
GS171,JZS171,173,175,179 IVORY,TRIM0# |
1 | ||
| 55405-30380B2 |
GS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 55405-30410A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 55405-30410C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-30660A0 |
GS171,JZS17#,UZS17# ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ),IVORY,TRIM0# |
1 | ||
| 55410-30670A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
1 | ||
| 55410-30660B0 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 55410-30670B0 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 55410-30810A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A) & ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ),IVORY,TRIM06,23 |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-30660A0 |
GS171,JZS17#,UZS17# ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ),IVORY,TRIM0# |
1 | ||
| 55410-30670A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
1 | ||
| 55410-30660B0 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 55410-30670B0 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 55410-30810A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A) & ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ),IVORY,TRIM06,23 |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-30280C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 55432-30280B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 55432-30280A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
1 | ||
| 55432-30280A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-30140 |
GS171,JZS17#,UZS17# |
1 | ||
| 55433-30140 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 55440D - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-30100A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 55440-30100C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 55440-30100B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 55440-30100A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-22020 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 55444-22020 |
GS171,JZS17#,UZS17# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-30220A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
1 | ||
| 55445-30220A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 55445-30220C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 55445-30220B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 55458B - COVER, INSTRUMENT, LWR | ||||
| 55458-48010 |
GS171,JZS17#,UZS17# |
1 | ||
| 55460C - LOCK ASSY, INSTRUMENT PANEL BOX | ||||
| 55460-30030 |
JZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179 |
1 | ||
| 55460C - LOCK ASSY, INSTRUMENT PANEL BOX | ||||
| 55460-30030 |
JZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179 |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-30180A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
1 | ||
| 55501-30180B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 55501-30180A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 55501-30180C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-30170 |
JZS171..ROYEX;GS171,JKS175,JZS173..ATHE,ROY,ROYEX |
1 | ||
| 55521-30170 |
GS171,JZS171,173..ATHE,ROYEX |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55524-30030 |
JZS175..WG;JZS175..SED..ATHG;GS171,JZS171,173,179,UZS173 |
1 | ||
| 55524-30030 |
GS171,JZS179;JZS171,173..SED;JZS171..WG..TWT;JZS175..SED..ATHG |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55524-30030 |
JZS175..WG;JZS175..SED..ATHG;GS171,JZS171,173,179,UZS173 |
1 | ||
| 55524-30030 |
GS171,JZS179;JZS171,173..SED;JZS171..WG..TWT;JZS175..SED..ATHG |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-30140B1 |
GS171,JZS17#,UZS175..A,ROY,ROYEX ｱﾘ(ｴｱ ﾋﾟﾕﾘﾌｱｲﾔ),MD.CHARCOAL,TRIM1# |
1 | ||
| 55548-30130A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
1 | ||
| 55548-30130C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 55548-30130B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 55548-30140A0 |
GS171,JZS17#,UZS175..A,ATH,ATHE,ATHG,ATHV,ROY,ROYEX ｱﾘ(ｴｱ ﾋﾟﾕﾘﾌｱｲﾔ),IVORY,TRIM0# |
1 | ||
| 55548-30130A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-16010 |
GS171,JZS17#,UZS17# |
1 | ||
| 55557-16010 |
JZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179 |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-22020B9 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 55565-22020A1 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
1 | ||
| 55565-22020A1 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 55565-22020C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 55568B - PLATE, GLOVE COMPARTMENT DOOR FINISH | ||||
| 55568-24020 |
JZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179 |
1 | ||
| 55568-24020 |
GS171,JZS17#,UZS17# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-22030A1 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
1 | ||
| 55569-22030A1 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| 55569-22030B9 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 55569-22030C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
GS171,JZS17#,UZS17# |
2 | ||
| 55574-10010 |
JZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-30220 |
GS171,JZS17#,UZS17# |
1 | ||
| 55606-30220 |
JZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-30250 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 55607-30250 |
GS171,JZS17#,UZS17# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-30240B0 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 55650-30240A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
1 | ||
| 55650-30240A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06,23 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-30360B0 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 55660-30360A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
1 | ||
| 55660-30360A0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06,23 |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-30390B0 |
GS171,JZS171,173..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),DARK CHARCOAL,TRIM1# |
1 | ||
| 55670-30390B0 |
GS171,JZS171,173..ROYEX ﾘﾐﾃﾂﾄﾞ *(M),DK.CHARCOAL,TRIM11 |
1 | ||
| 55670-30380E0 |
GS171,JZS171,173..ATHE,ROYEX SANDAL WOOD,TRIM0# |
1 | ||
| 55670-30380B0 |
GS171,JZS171,173..ROYEX DK.CHARCOAL,TRIM1# |
1 | ||
| 55670-30380E0 |
JZS171..ROYEX;GS171,JKS175,JZS173..ATHE,ROY,ROYEX SANDAL WOOD,TRIM0# |
1 | ||
| 55670-30390E0 |
GS171,JZS171,173..ROYEX ﾘﾐﾃﾂﾄﾞ *(M),SANDAL WOOD,TRIM02 |
1 | ||
| 55670-30390B0 |
GS171,JZS171,173..ROYEX ｱﾘ(ｽｲﾝｸﾞ ｸﾞﾘﾙ),DK.CHARCOAL,TRIM1# |
1 | ||
| 55670-30390E0 |
GS171,JZS171,173..ROYEX ﾘﾐﾃﾂﾄﾞ *(L),SANDAL WOOD,TRIM0# |
1 | ||
| 55670-30390E0 |
GS171,JZS171,173..ROYEX ｱﾘ(ｽｲﾝｸﾞ ｸﾞﾘﾙ),SANDAL WOOD,TRIM0# |
1 | ||
| 55670-30380B0 |
JZS171..ROYEX;GS171,JKS175,JZS173..ROY,ROYEX DK.CHARCOAL,TRIM1# |
1 | ||
| 55670-30390E0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),SANDAL WOOD,TRIM06 |
1 | ||
| 55670-30390E0 |
JZS17#,UZS17#..A,ATH,ATHG,ATHV,C,ROY,ROYG ｱﾘ(ｽｲﾝｸﾞ ｸﾞﾘﾙ),SANDAL WOOD,TRIM0# |
1 | ||
| 55670-30390C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-22020B3 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 55680-22020A1 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
1 | ||
| 55680-22020C0 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23 |
1 | ||
| 55680-22020A1 |
JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),IVORY,TRIM06 |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90167-50022 | ||||
| 90183-05103 | ||||
| 90467-10203 | ||||
| 90541-03015 | ||||
| 90541-05020 | ||||
| 90959-03113 | ||||
| 91515-F0620 | ||||
| 93560-13010 | ||||
| Linked diagrams | ||||
| 6712 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
