JZS173-AEPSF (1999)
Toyota Crown/Crown Majesta
Production
Sep 1999
-
Dec 2003
Engine
1JZGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9909-0108)ROY,ROYEX,ROYG

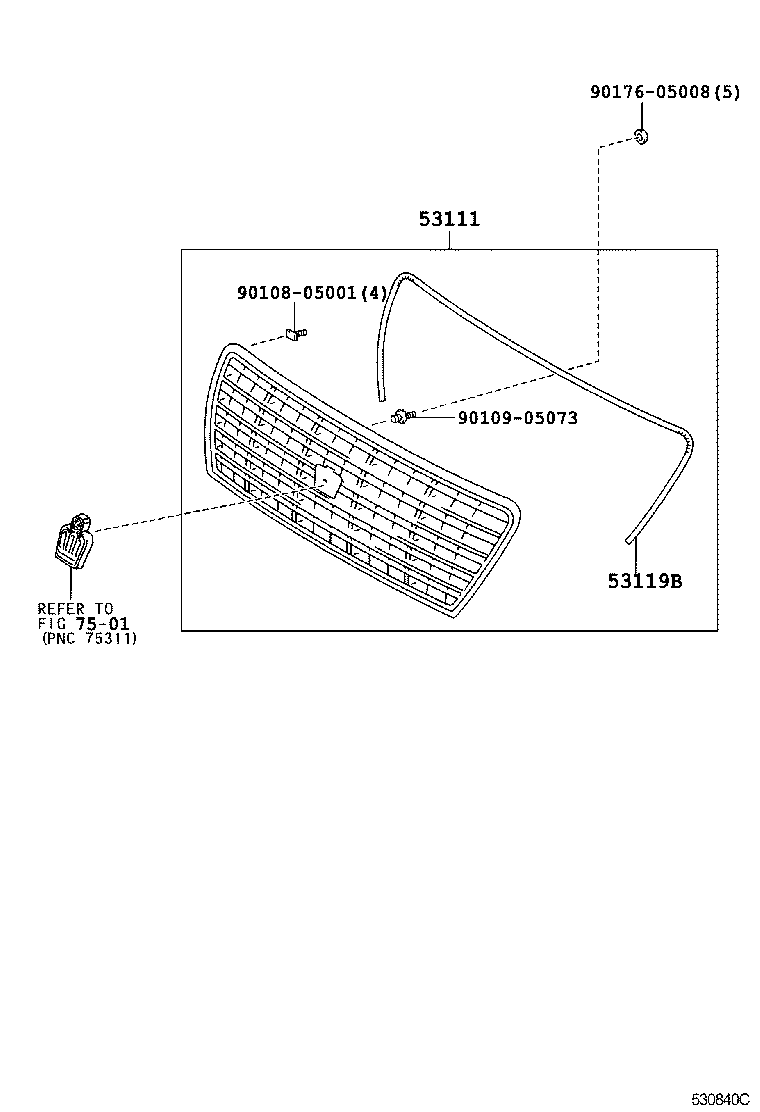

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53111-30820 |
GS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG |
1 | ||
| 53100-30180 |
GS171,JZS171,173,175,179..ROY,ROYEX,ROYG |
1 | ||
| 53119B - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-30160 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 53119-30160 |
GS171,JZS171,173,175,179 |
1 | ||
| Common parts | ||||
| 90108-05001 | ||||
| 90109-05073 | ||||
| 90176-05008 | ||||
| Linked diagrams | ||||
| 7501 | ||||
(0108- )A,C,ROY,ROYEX,ROYG

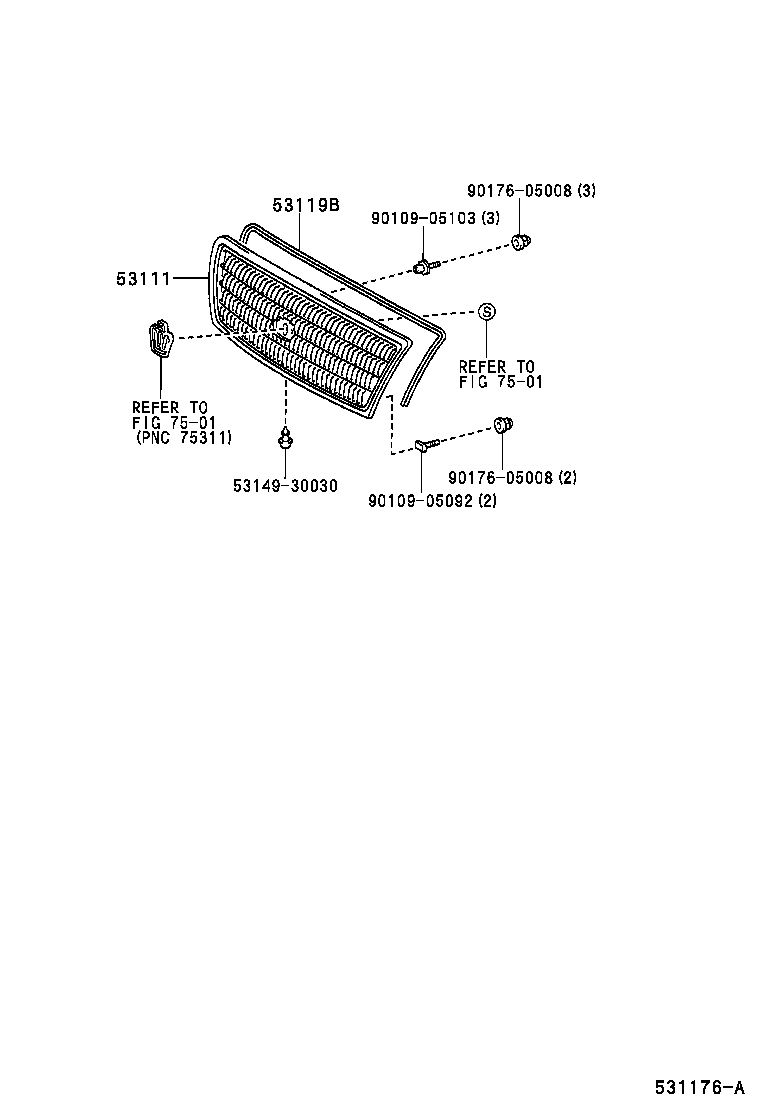

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53111-30820 |
GS171,JKS175,JZS171,173,175,179..ROY,ROYEX,ROYG |
1 | ||
| 53100-30180 |
GS171,JZS171,173,175,179..ROY,ROYEX,ROYG |
1 | ||
| 53119B - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-30160 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 53119-30160 |
GS171,JZS171,173,175,179 |
1 | ||
| Common parts | ||||
| 53149-30030 | ||||
| 90109-05092 | ||||
| 90109-05103 | ||||
| 90176-05008 | ||||
| Linked diagrams | ||||
| 7501 | ||||
