JZS173-AEPSF (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Dec 2003
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )JZS173,179

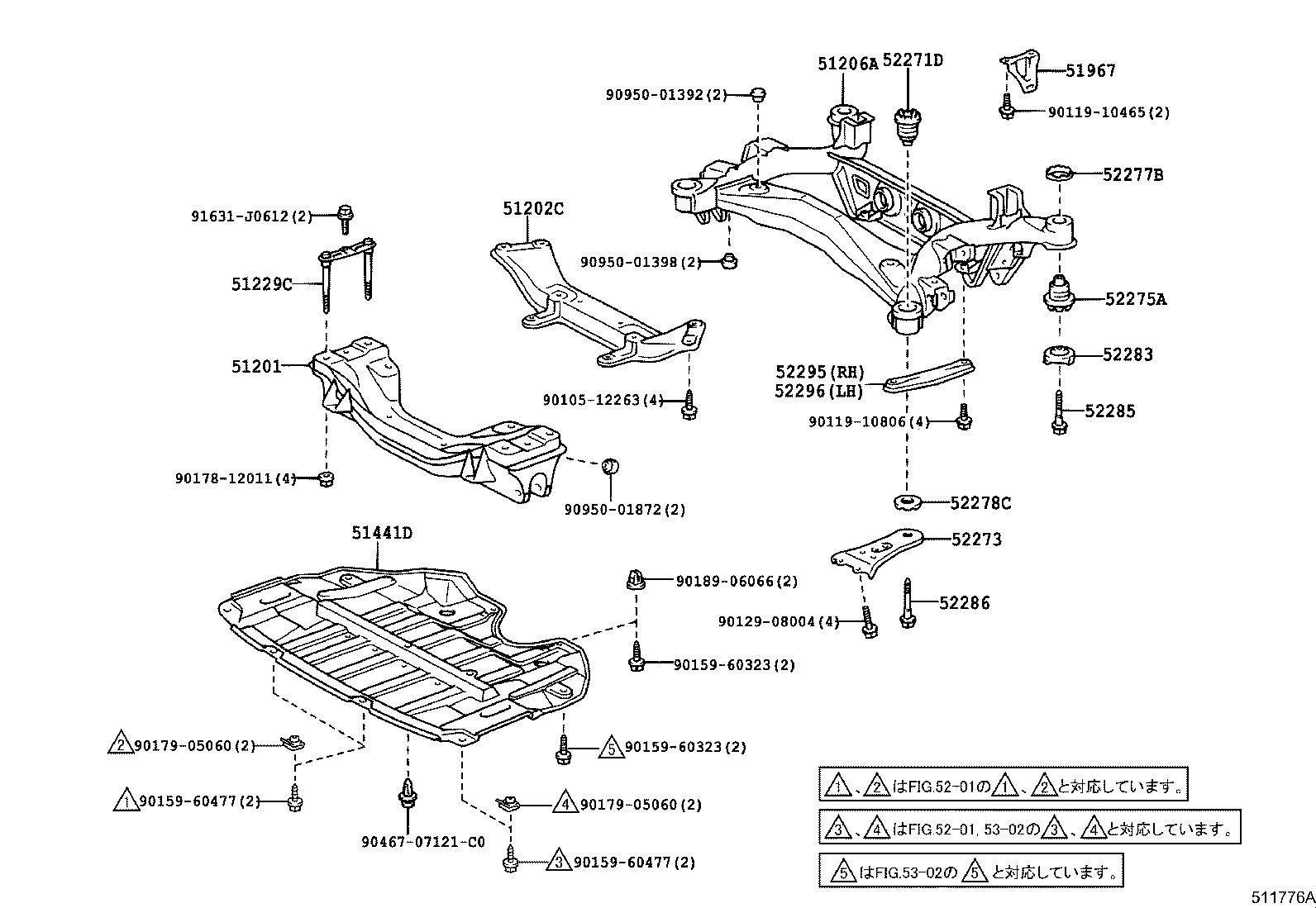

Click highlighted areas on diagram

diagram 51201 51202C 51206A 51229C 51441D 51967 52271D 52273 52275A 52277B 52278C 52283 52285 52286 52295 52296 9010512263 9011910465 9011910806 9012908004 9015960323 9015960323 9015960477 9015960477 9017812011 9017905060 9017905060 9018906066 9046707121C0 9095001392 9095001398 9095001872 91631J0612
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-22581

JZS173,179

 1
51201-22581

JZS173,179

 1
51201-22582

JZS173,179

 1
51202C - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION, LOWER
51202-22010

JZS173,179

 1
51202-22010

JZS173,179

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-51030

GS171,JZS171,173,175,179

 1
51206-51020

GS171,JZS171,173,175,179

 1
51206-51021

GS171,JZS171,173,175,179

 1
51229C - PLATE, SUSPENSION MEMBER SET
51229-30010

JZS173,179

 2
51229-30010

JZS173,179

 2
51441D - COVER, ENGINE UNDER
51441-30280

JZS173,179

 1
51441-30280

JZS173,179

 1
51967 - HOOK, TRANSPORT, REAR
51967-22070

GS171,JKS175,JZS171,173,175,179

 1
51967-22070

GS171,JZS171,173,175,179

 1
52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52271-51010

GS171,JKS175,JZS171,173,175,179

 2
52271-51010

GS171,JZS171,173,175,179

 2
52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER
52273-51010

JZS173;GS171,JKS175,JZS171,175,179..ROY,ROYEX,ROYG

 2
52273-51010

GS171,JZS171,173,175,179

 2
52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52275-30080

JZS175..ROY,ROYG;GS171,JZS171,173,179..4FC..(ATH,ROY,ROYEX)

 2
52275-30080

JZS173;GS171,JKS175,JZS171,175,179..ROY,ROYEX,ROYG

 2
52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER
52277-30020

GS171,JZS171,173,175,179

 2
52277-30020

GS171,JKS175,JZS171,173,175,179

 2
52278C - STOPPER, REAR SUSPENSION MEMBER, REAR LOWER
52278-51010

GS171,JKS175,JZS171,173,175,179

 2
52278-51010

GS171,JZS171,173,175,179

 2
52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER
52283-30050

GS171,JKS175,JZS17#,UZS17#

 2
52283-30050

GS171,JZS17#,UZS17#

 2
52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1
52285-30021

GS171,JZS17#,UZS17#

 2
52285-30021

GS171,JKS175,JZS17#,UZS17#

 2
52286 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2
52286-30010

GS171,JZS17#,UZS17#

 2
52295 - BRACE, REAR SUSPENSION MEMBER, RH
52295-50010

GS171,JZS171,173,175,179

 1
52295-50010

GS171,JKS175,JZS171,173,175,179

 1
52296 - BRACE, REAR SUSPENSION MEMBER, LH
52295-50010

GS171,JZS171,173,175,179

 1
52295-50010

GS171,JKS175,JZS171,173,175,179

 1
Common parts
90105-12263
90119-10465
90119-10806
90129-08004
90159-60323
90159-60477
90178-12011
90179-05060
90189-06066
90467-07121C0
90950-01392
90950-01398
90950-01872
91631-J0612
