JZS173-AEPSF (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Dec 2003
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )1JZGE,2JZGE

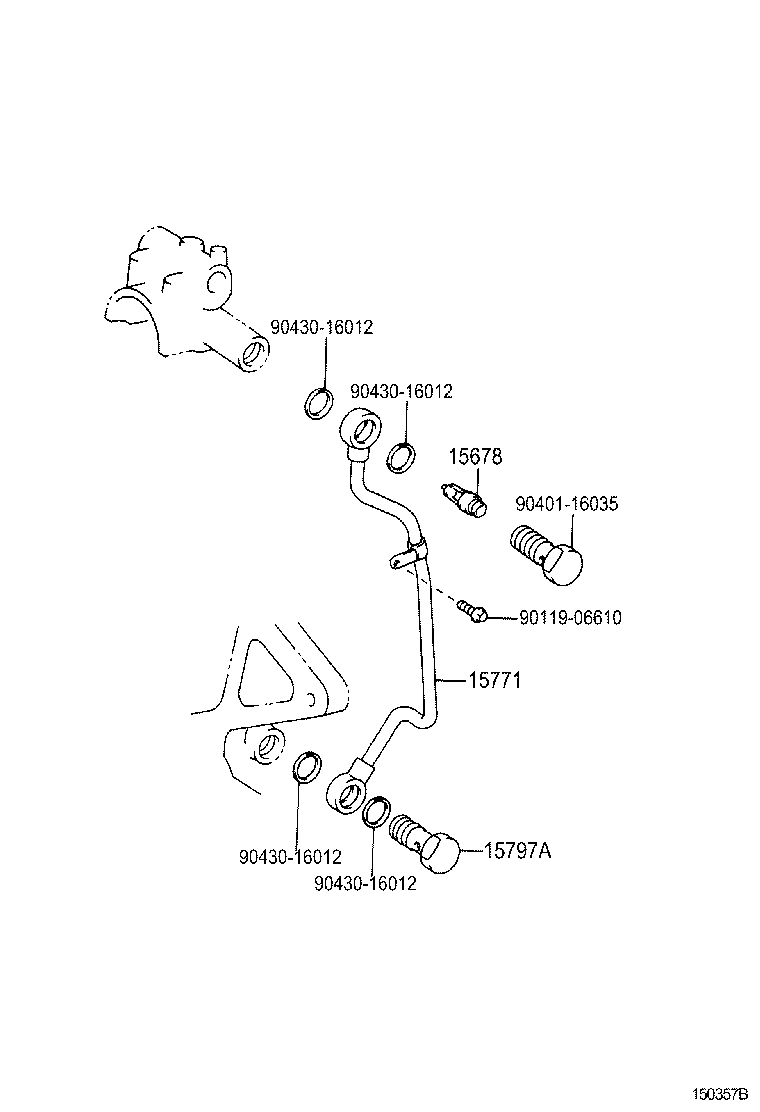

Click highlighted areas on diagram

diagram 15678 15771 15797A 9011906610 9040116035 9043016012 9043016012 9043016012 9043016012
Part # Description Qty Price
15678 - FILTER, OIL CONTROL VALVE
15678-46020

1JZGE,2JZ#..JZS17#

 1
15678-46020

1JZFSE,1JZGE,2JZ#..JKS175,JZS17#

 1
15771 - PIPE, OIL, NO.1
15771-46020

1JZGE..JZS171,173

 1
15771-46020

1JZGE..JZS173

 1
15797A - BOLT, OIL CHECK VALVE
15797-46010

1JZ#,2JZ#..JKS175,JZS17#

 1
15797-46010

1JZ#,2JZ#..JZS17#

 1
Common parts
90119-06610
90401-16035
90430-16012
