JZS171W-AWPQF (1999)

Toyota Crown/Crown Majesta

Production Dec 1999 - Aug 2001
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9912- )WG

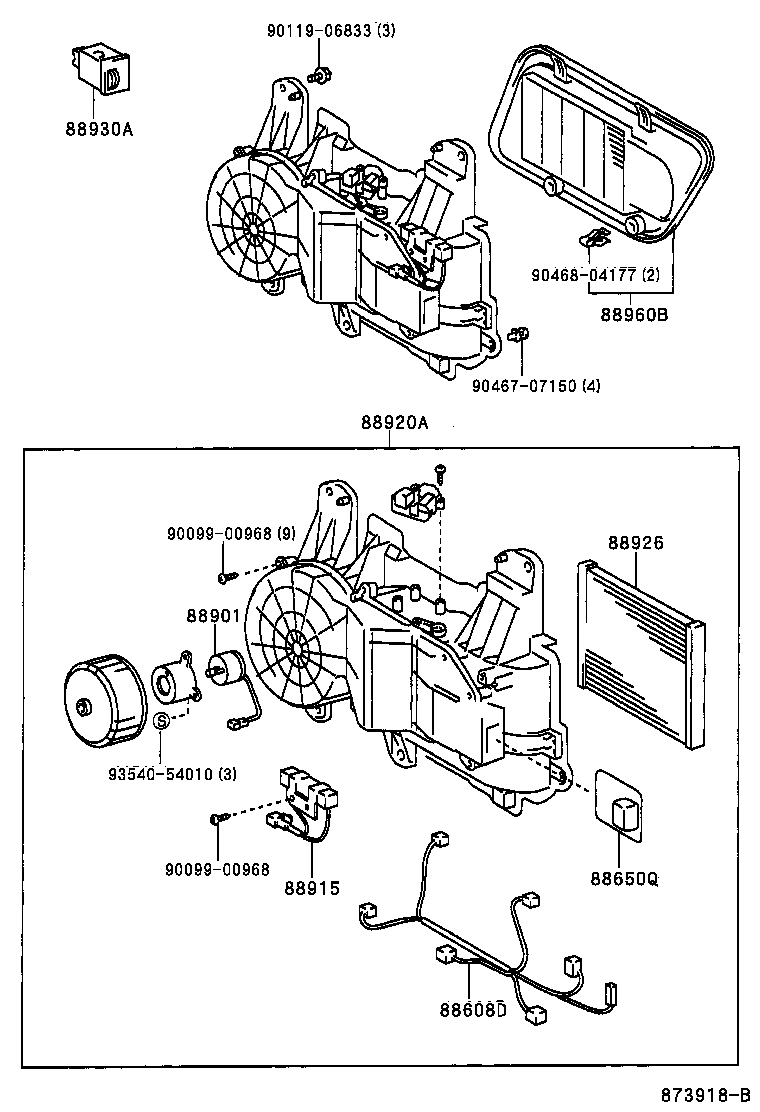

Click highlighted areas on diagram

diagram 88608D 88650Q 88901 88915 88920A 88926 88930A 88960B 9009900968 9009900968 9011906833 9046707150 9046804177 9354054010
Part # Description Qty Price
88608D - HARNESS SUB-ASSY, WIRING AIR INDICATER, NO.2
88608-3A100

JZS171,173,175..WG

 1
88650Q - AMPLIFIER ASSY, AIR CODITIONER
88650-3A270

JZS171,173,175..WG

 1
88901 - MOTOR SUB-ASSY, AIR PURIFIER
88901-30060

JZS171,173,175..WG

 1
88915 - RESISTOR, AIR PURIFIER
88915-22310

JZS171,173,175..WG

 1
88920A - PURIFIER ASSY, AIR
88920-30120

JZS171,173,175..WG

 1
88926 - FILTER, AIR PURIFIER
88926-43010

JZS171,173,175..WG

 1
88930A - SWITCH ASSY, AIR PURIFIER
88930-43010

JZS171,173,175..WG

 1
88960B - RESISTOR ASSY, AIR PURIFIRE
88960-30050A0

JZS171,173,175..WG

IVORY,TRIM0#

 1
88960-30050B1

JZS171,175..WG..ROY

MD.CHARCOAL,TRIM1#

 1
Common parts
90099-00968
90119-06833
90467-07150
90468-04177
93540-54010
