JZS171W-AWPQF (1999)

Toyota Crown/Crown Majesta

Production Dec 1999 - Aug 2001
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909-0108)JZS17#

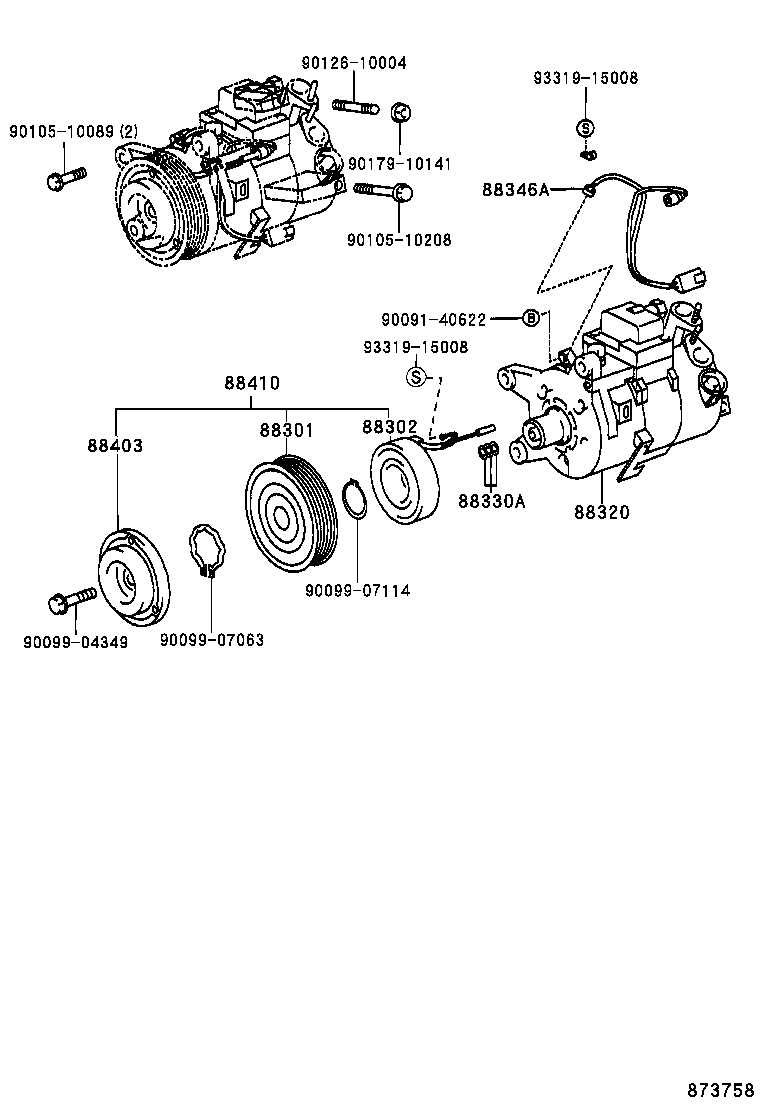

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88346A 88403 88410 9009140622 9009904349 9009907063 9009907114 9010510089 9010510208 9012610004 9017910141 9331915008 9331915008
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-2A030

JZS17#

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-2A030

JZS17#

 1
88320 - COMPRESSOR ASSY, COOLER
88320-2A050

JZS17#

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

GS171,JZS17#,UZS17#

 1
88346A - SENSOR, COMPRESSOR PICK UP
88346-2A010

JZS17#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-3A100

JZS17#,UZS17#

 1
88410 - CLUTCH ASSY, MAGNET
88410-3A220

JZS17#

 1
Common parts
90091-40622
90099-04349
90099-07063
90099-07114
90105-10089
90105-10208
90126-10004
90179-10141
93319-15008
