JZS171W-AWPQF (1999)

Toyota Crown/Crown Majesta

Production Dec 1999 - Aug 2001
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9912- )WG

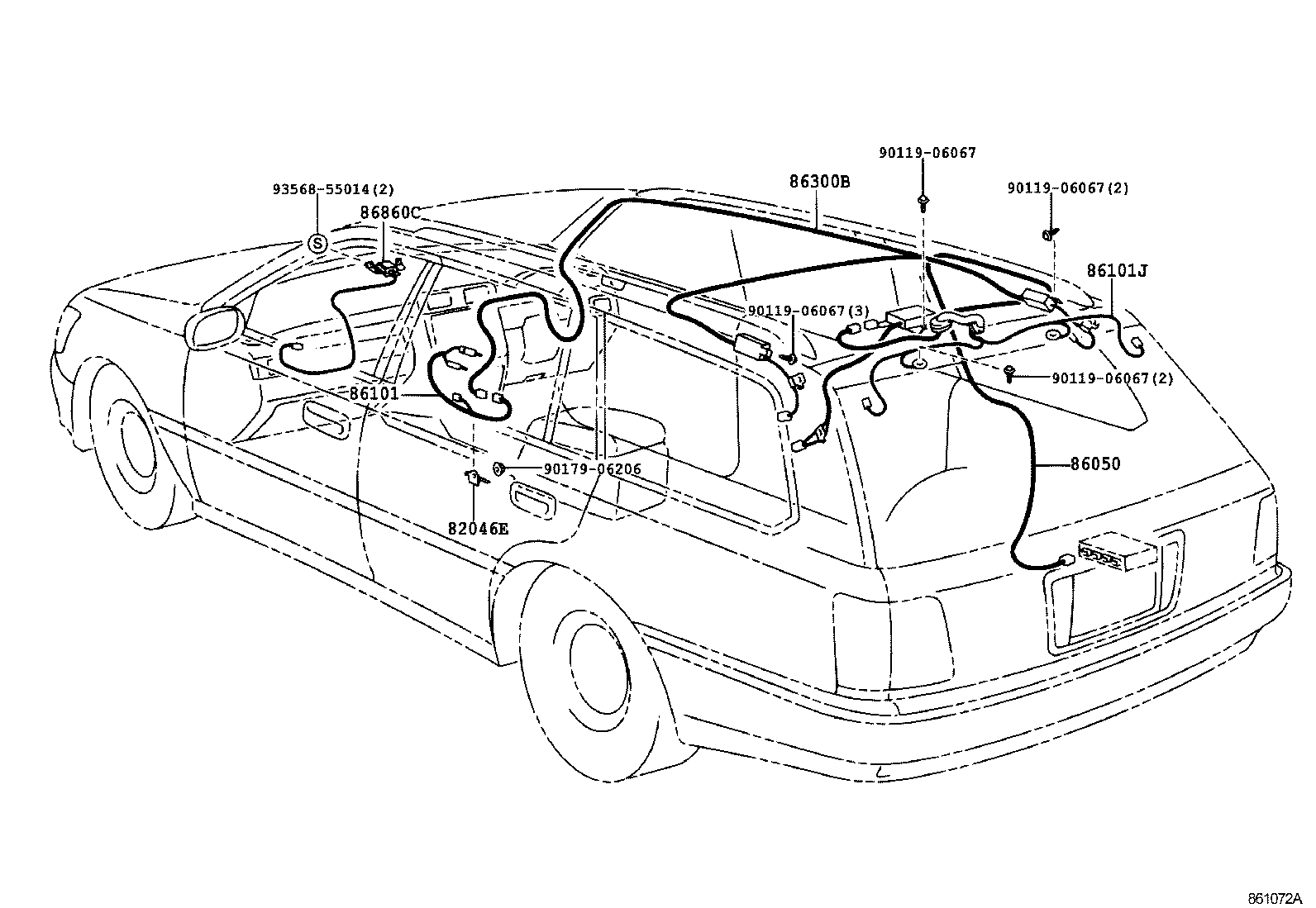

Click highlighted areas on diagram

diagram 82046E 86050 86101 86101J 86300B 86860C 9011906067 9011906067 9011906067 9011906067 9017906206 9356855014
Part # Description Qty Price
82046E - WIRE SUB-ASSY, BODY GROUND
82046-30090

GS171,JZS17#,UZS17#

 1
86050 - ANTENNA ASSY, TELEVISION
86050-31010

JZS171,173,175..WG

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-31060

JZS171,173,175..WG

 1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-31100

JZS171,173,175..WG

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-31110

JZS171,173,175..WG

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 1
86300-31100

JZS171,173,175..WG

 1
86860C - ANTENNA ASSY, NAVIGATION
86860-30141

GS171,JZS17#,UZS17#

 1
86860-30140

JZS17#,UZS17#

 1
Common parts
90119-06067
90179-06206
93568-55014
