JZS171W-AWPQF (1999)

Toyota Crown/Crown Majesta

Production Dec 1999 - Aug 2001
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9912- )WG

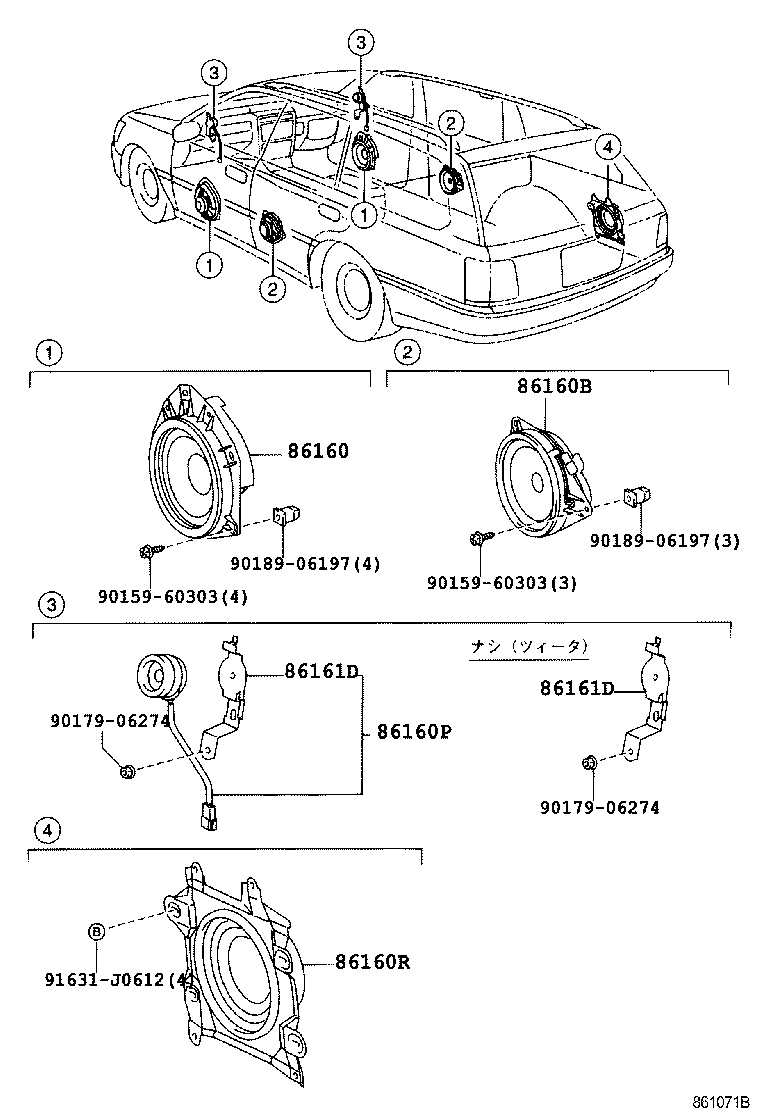

Click highlighted areas on diagram

diagram 86160 86160B 86160P 86160R 86161D 86161D 9015960303 9015960303 9017906274 9017906274 9018906197 9018906197 91631J0612
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-3A470

GS171,JZS17#,UZS17#

右側

 1
86160-3A480

GS171,JZS17#,UZS17#

左側

 1
86160B - SPEAKER ASSY, REAR
86160-3A490

GS171,JZS17#,UZS17#

右側

 1
86160-3A500

GS171,JZS17#,UZS17#

左側

 1
86160P - SPEAKER ASSY, FRONT NO.2
86160-3A530

GS171,JZS17#,UZS17#

左側

 1
86160-3A520

GS171,JZS17#,UZS17#

右側

 1
86160R - SPEAKER ASSY, STEREO COMPONENT
86160-31020

JZS171,173,175..WG

 1
86161D - BRACKET, SPEAKER MOUNTING, NO.1
86161-30060

GS171,JZS17#,UZS17#

右側

 1
86161-30070

GS171,JZS17#,UZS17#

左側

 1
86161D - BRACKET, SPEAKER MOUNTING, NO.1
86161-30060

GS171,JZS17#,UZS17#

右側

 1
86161-30070

GS171,JZS17#,UZS17#

左側

 1
Common parts
90159-60303
90179-06274
90189-06197
91631-J0612
