JZS171W-AWPQF (1999)

Toyota Crown/Crown Majesta

Production Dec 1999 - Aug 2001
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9912- )WG

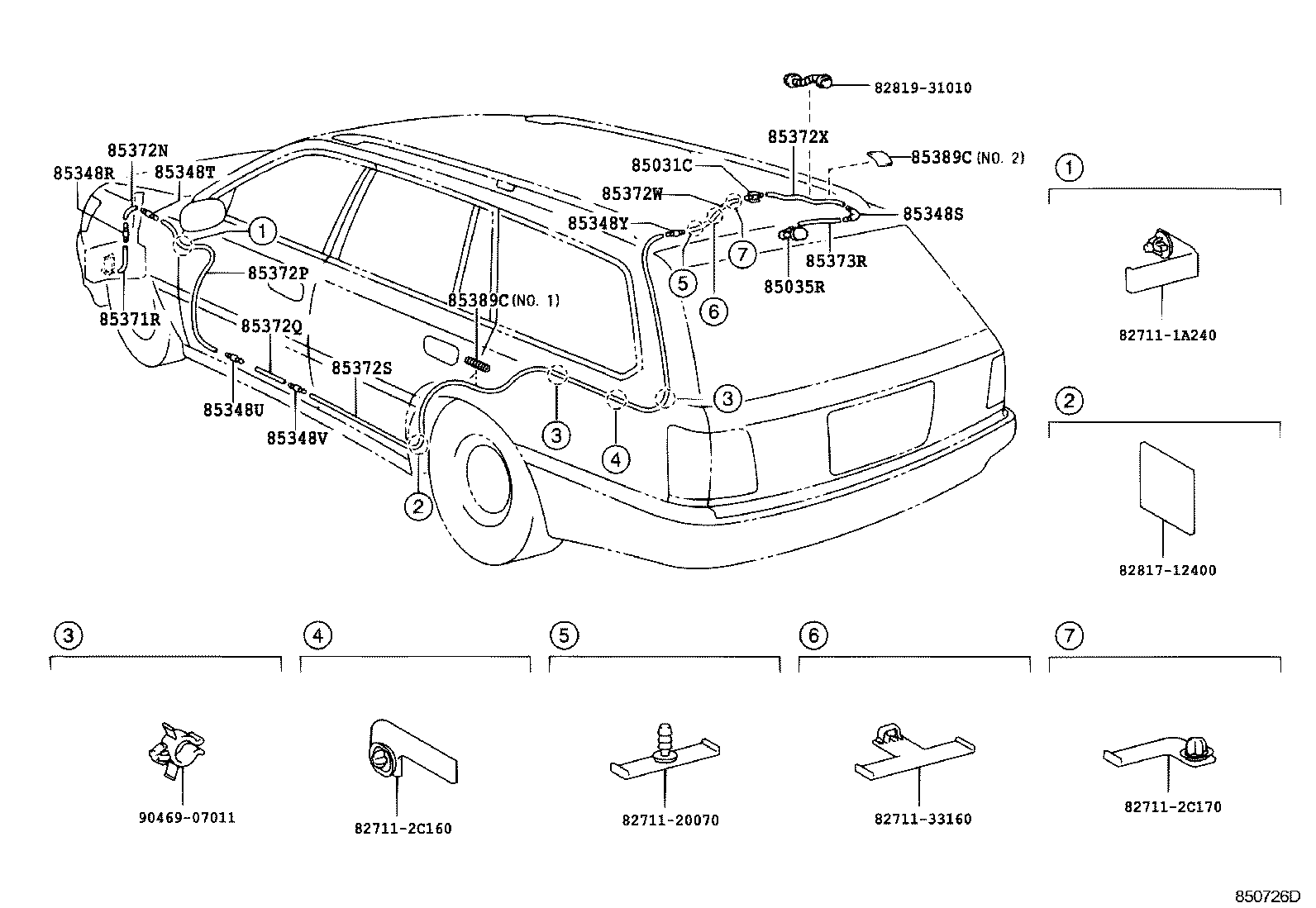

Click highlighted areas on diagram

diagram 827111A240 8271120070 827112C160 827112C170 8271133160 8281712400 8281931010 85031C 85035R 85348R 85348S 85348T 85348U 85348V 85348Y 85371R 85372N 85372P 85372Q 85372S 85372W 85372X 85373R 85389C 85389C 9046907011
Part # Description Qty Price
85031C - VALVE SUB-ASSY, WASHER
85321-26020

JZS171,173,175..WG

 1
85035R - NOZZLE SUB-ASSY, REAR WASHER
85391-31010G0

JZS171,173,175..WG

BLACKISH GREEN MC.CC,6R5

 1
85391-31010D0

JZS171,173,175..WG

RED MC.,3N1

 1
85391-31010J0

JZS171,173,175..WG

DK.BLUE MC.,8L4

 1
85391-31010A0

JZS171,173,175..WG

WHITE PEARL CS.,062 ,2FQ

 1
85391-31010J1

JZS171,173,175..WG

GRAYISH BLUE ME.,8N6

 1
85391-31010B0

JZS171,173,175..WG

SILVER ME.,1C0

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85375-10260

JZS171,173,175..WG

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20200

JZS171,173,175..WG

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85375-10260

JZS171,173,175..WG

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85375-10260

JZS171,173,175..WG

 1
85348V - JOINT, REAR WASHER HOSE, NO.4
85375-10260

JZS171,173,175..WG

 1
85348Y - JOINT, REAR WASHER HOSE, NO.5
85375-10260

JZS171,173,175..WG

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-07001

JZS171,173,175..WG

*H,L=440

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90099-33299

JZS171,173,175..WG

*H,L=40

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90446-06006

JZS171,173,175..WG

長さ=1010

 1
90446-06013

JZS171,173,175..WG

長さ=990

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90099-33299

JZS171,173,175..WG

*H,L=40

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90099-33658

JZS171,173,175..WG

*H,L=3680

 1
85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
90099-33299

JZS171,173,175..WG

*H,L=380

 1
85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
90099-33299

JZS171,173,175..WG

*H,L=440

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33299

JZS171,173,175..WG

*H,L=110

 1
85389C - PROTECTOR, WASHER
85389-31040

JZS171,173,175..WG

NO.2

 1
85389-31030

JZS171,173,175..WG

NO.1

 1
85389C - PROTECTOR, WASHER
85389-31040

JZS171,173,175..WG

NO.2

 1
85389-31030

JZS171,173,175..WG

NO.1

 1
Common parts
82711-1A240
82711-20070
82711-2C160
82711-2C170
82711-33160
82817-12400
82819-31010
90469-07011
