JZS171W-AWPQF (1999)
Toyota Crown/Crown Majesta
Production
Dec 1999
-
Aug 2001
Engine
1JZGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9912-0108)WG

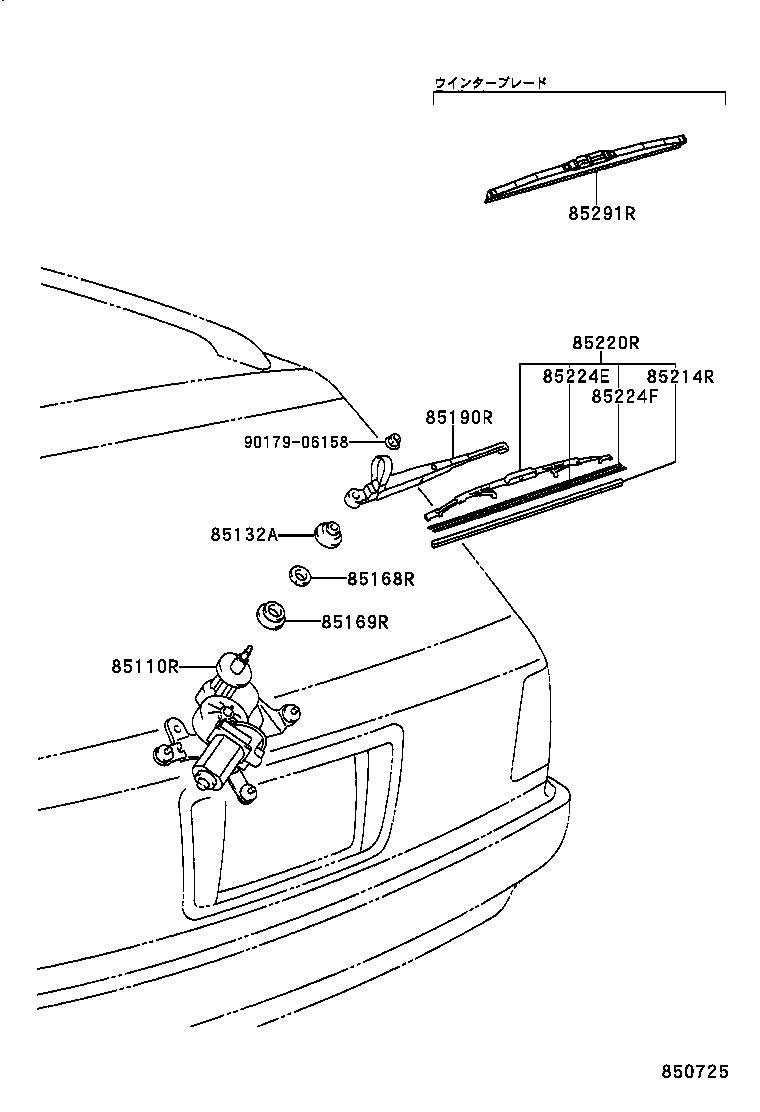

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110R - MOTOR ASSY, REAR WIPER | ||||
| 85130-31020 |
JZS171,173,175..WG |
1 | ||
| 85132A - COVER, REAR WIPER SHAFT | ||||
| 85132-31020 |
JZS171,173,175..WG |
1 | ||
| 85168R - NUT, REAR WIPER LINK PIVOT, NO.1 | ||||
| 90099-05157 |
JZS171,173,175..WG |
1 | ||
| 85169R - WASHER, REAR WIPER LINK PIVOT, NO.1 | ||||
| 85134-21030 |
JZS171,173,175..WG |
1 | ||
| 85190R - ARM ASSY, REAR WIPER | ||||
| 85241-31020 |
JZS171,173,175..WG |
1 | ||
| 85214R - RUBBER, REAR WIPER | ||||
| 85214-31010 |
JZS171,173,175..WG |
1 | ||
| 85220R - BLADE ASSY, REAR WIPER | ||||
| 85242-31011 |
JZS171,173,175..WG |
1 | ||
| 85224E - PLATE, REAR WIPER RUBBER BACKING, NO.1 | ||||
| 85224-31020 |
JZS171,173,175..WG |
1 | ||
| 85224F - PLATE, REAR WIPER RUBBER BACKING, NO.2 | ||||
| 85224-31020 |
JZS171,173,175..WG |
1 | ||
| 85291R - BLADE,REAR WIPER, WINTER | ||||
| 85291-33020 |
JZS171,173,175..WG |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
