JZS171W-AWPQF (1999)

Toyota Crown/Crown Majesta

Production Dec 1999 - Aug 2001
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

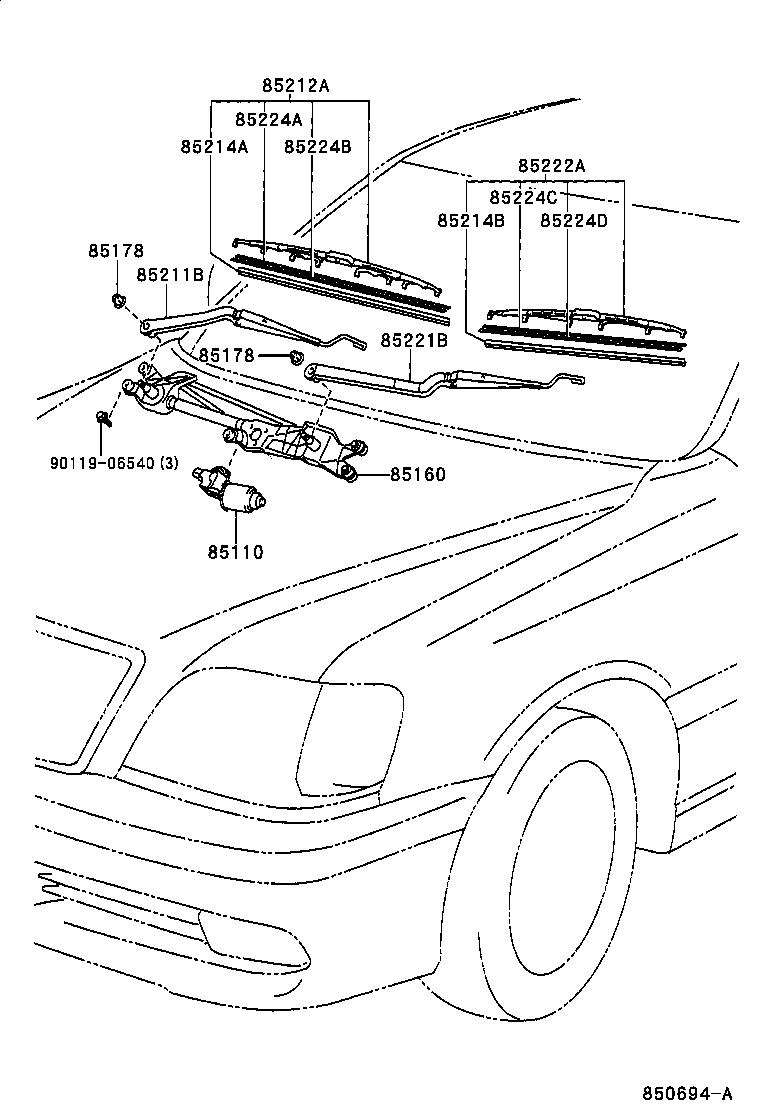

ILLUST NO. 1 OF 2(9909-0108)GS171,JZS171,173,175,179

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85211B 85212A 85214A 85214B 85221B 85222A 85224A 85224B 85224C 85224D 9011906540
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-30460

GS171,JZS171,173,175,179

 1
85110-30470

GS171,JZS171,173,175,179

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-30480

GS171,JZS171,173,175,179

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
85150-30470

GS171,JZS171,173,175,179

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-10005

GS171,JZS17#,UZS17#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-10005

GS171,JZS17#,UZS17#

 2
85211B - ARM, FRONT WIPER, RH
85211-30550

GS171,JZS171,173,175,179

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
85211-30540

GS171,JZS171,173,175,179

 1
85212A - BLADE, FR WIPER, RH
85212-30360

GS171,JZS17#,UZS17#

 1
85214A - RUBBER, WIPER, RH
85214-30350

GS171,JZS17#,UZS17#

 1
85214B - RUBBER, WIPER, LH
85214-30360

GS171,JZS171,173,175,179

 1
85221B - ARM, FRONT WIPER, LH
85221-30440

GS171,JZS171,173,175,179

 1
85221-30450

GS171,JZS171,173,175,179

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
85222A - BLADE, FR WIPER, LH
85222-30540

GS171,JZS171,173,175,179

 1
85224A - PLATE, WIPER RUBBER BACKING, NO.1
85224-33040

GS171,JZS17#,UZS17#

 1
85224B - PLATE, WIPER RUBBER BACKING, NO.2
85224-33040

GS171,JZS17#,UZS17#

 1
85224C - PLATE, WIPER RUBBER BACKING, NO.3
85224-20310

GS171,JZS171,173,175,179

 1
85224D - PLATE, WIPER RUBBER BACKING, NO.4
85224-20310

GS171,JZS171,173,175,179

 1
Common parts
90119-06540
