JZS171W-AWPQF (1999)
Toyota Crown/Crown Majesta
Production
Dec 1999
-
Aug 2001
Engine
1JZGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9912- )WG

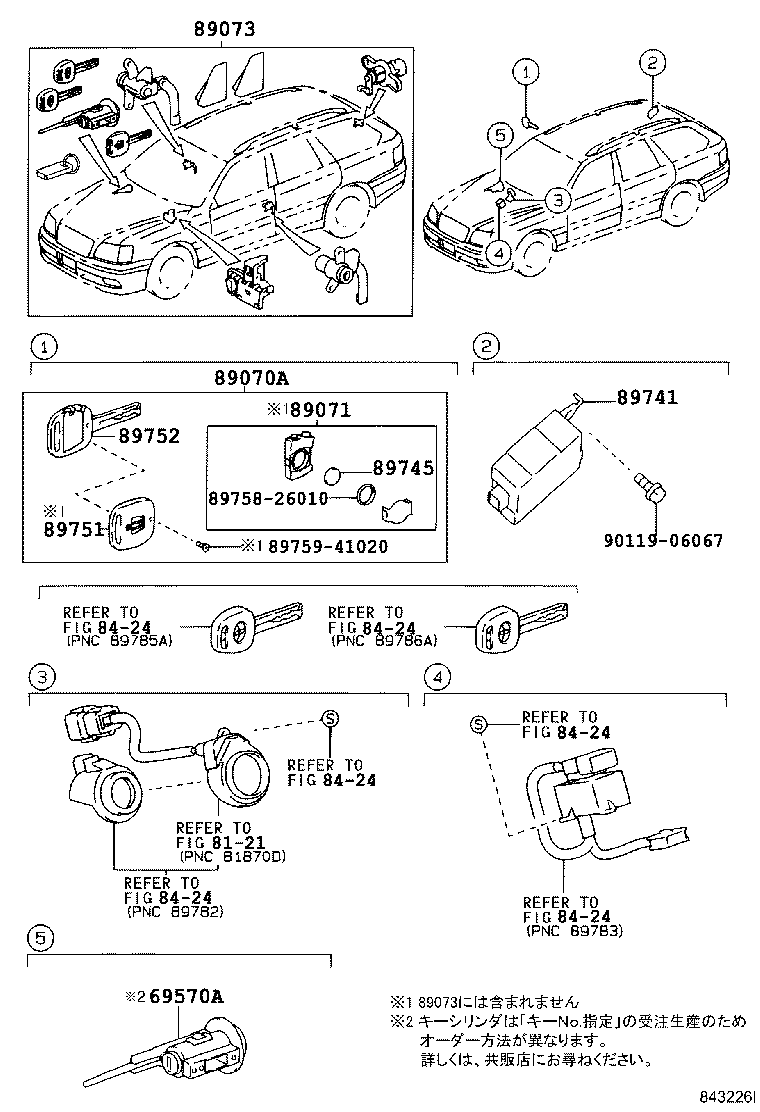

Click highlighted areas on diagram
ﾅｼ(ｲﾓﾋﾞﾗｲｻﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89070A - TRANSMITTER, DOOR CONTROL (CUT KEY) | ||||
| 89070-30280 |
JZS171,173,175..WG |
1 | ||
| 89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-26010 |
JZS171,173,175..WG |
1 | ||
| 89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE) | ||||
| 89073-30340 |
JZS171,173,175..WG |
1 | ||
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-30300 |
JZS171,173,175..WG |
1 | ||
| 89745 - BATTERY, TRANSMITTER | ||||
| 89745-26010 |
GS171,JZS17#,UZS17# |
1 | ||
| 89751 - COVER, TRANSMITTER HOUSING | ||||
| 89751-30010 |
JZS171,175 |
1 | ||
| Common parts | ||||
| 89758-26010 | ||||
| 89759-41020 | ||||
| 90119-06067 | ||||
| Linked diagrams | ||||
| 6712 | ||||
(9912- )WG

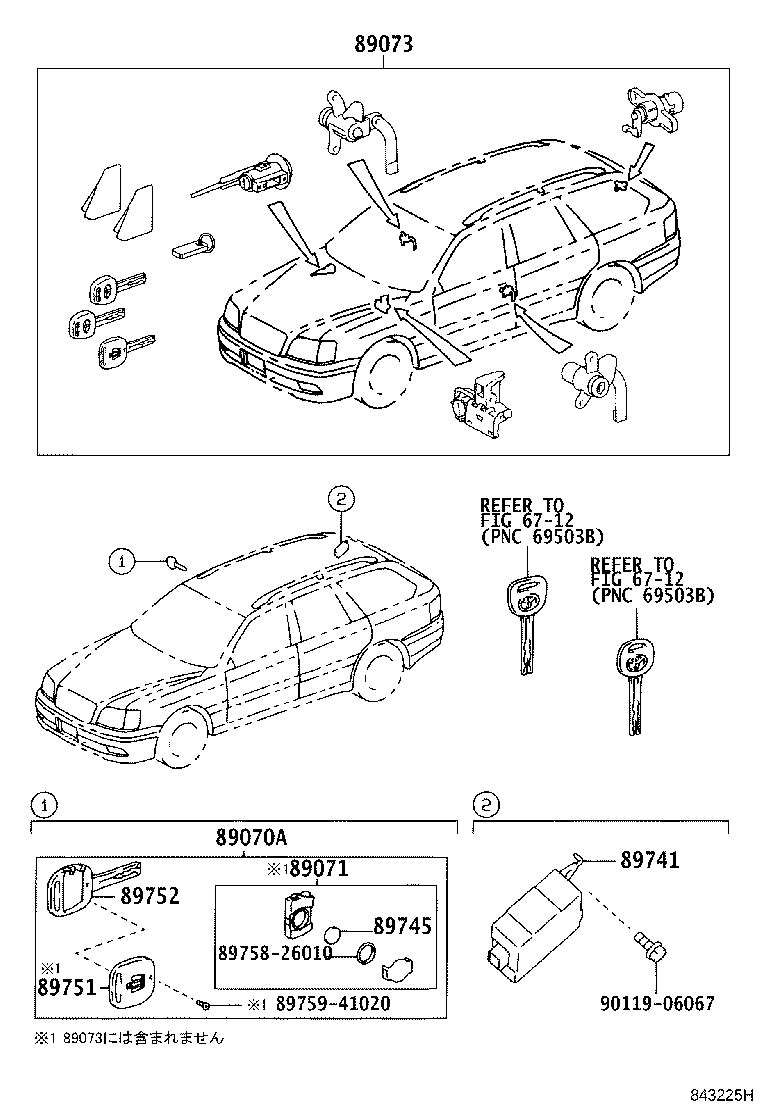

Click highlighted areas on diagram
ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89070A - TRANSMITTER, DOOR CONTROL (CUT KEY) | ||||
| 89070-30280 |
JZS171,173,175..WG |
1 | ||
| 89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-26010 |
JZS171,173,175..WG |
1 | ||
| 89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE) | ||||
| 89073-30340 |
JZS171,173,175..WG |
1 | ||
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-30300 |
JZS171,173,175..WG |
1 | ||
| 89745 - BATTERY, TRANSMITTER | ||||
| 89745-26010 |
GS171,JZS17#,UZS17# |
1 | ||
| 89751 - COVER, TRANSMITTER HOUSING | ||||
| 89751-30010 |
JZS171,175 |
1 | ||
| Common parts | ||||
| 89758-26010 | ||||
| 89759-41020 | ||||
| 90119-06067 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8424 | ||||
