JZS171W-AWPQF (1999)
Toyota Crown/Crown Majesta

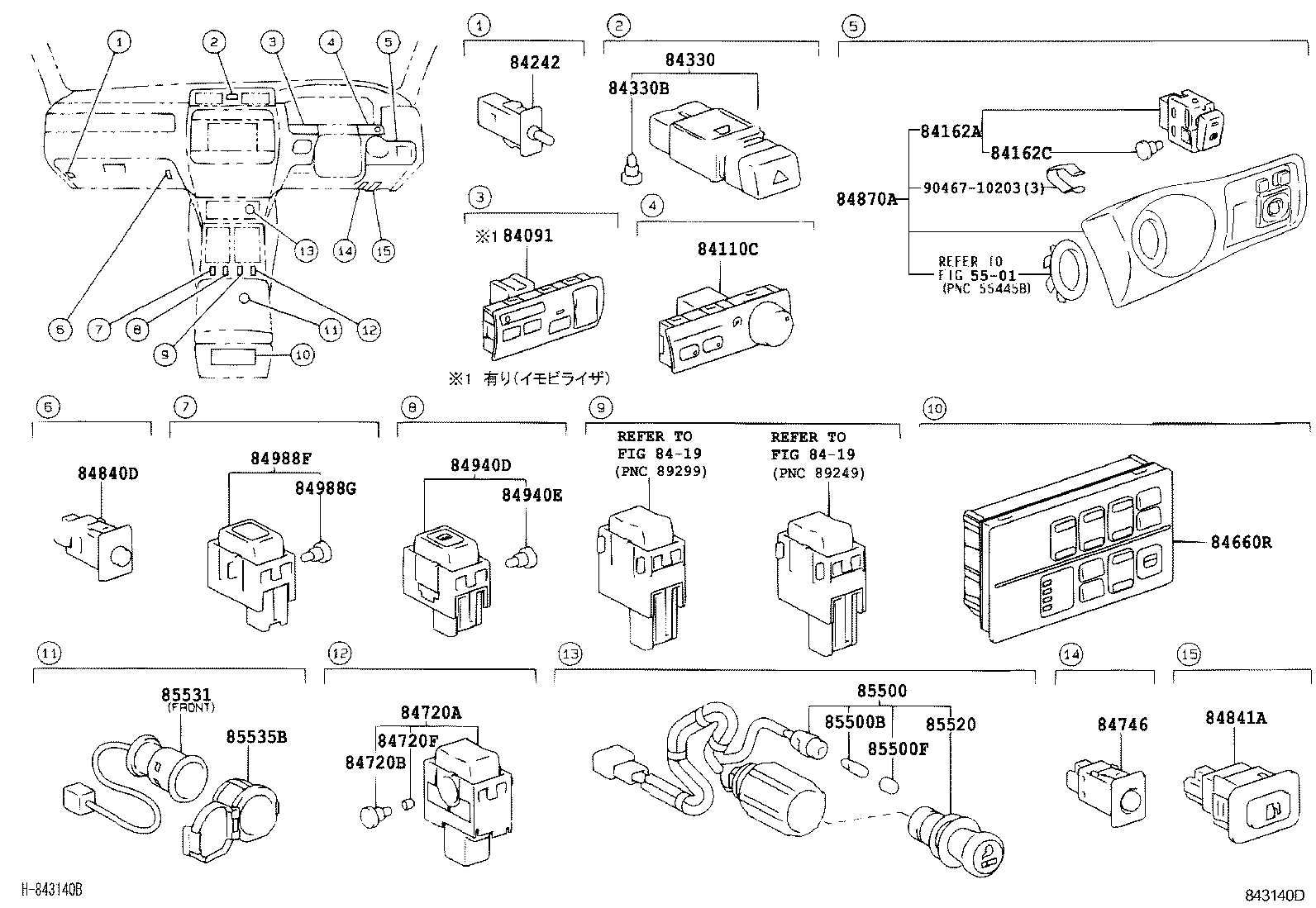

ILLUST NO. 4 OF 9(9909-0108)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110C - SWITCH ASSY, LIGHT CONTROL, NO.2 | ||||
| 84110-30101 |
GS171,JZS17#,UZS17# |
1 | ||
| 84110-30100 |
GS171,JZS17#,UZS17# |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-30040 |
GS171,JZS17#,UZS17# |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 84999-10540 |
GS171,JZS17#,UZS17# 14V 1.19W |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
GS171,JZS17#,UZS17# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-30280B0 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG DK.CHARCOAL,TRIM1# |
1 | ||
| 84332-30280E0 |
GS171,JZS17#,UZS17# SANDAL WOOD,TRIM0# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
GS171,JZS17#,UZS17# 14V 0.91W |
1 | ||
| 84720A - SWITCH ASSY, PATTERN SELECT, NO.1 | ||||
| 84720-30340 |
GS171,JZS17#,UZS17# |
1 | ||
| 84720B - BULB (FOR PATTERN SELECT SWITCH) | ||||
| 84999-10710 |
GS171,JZS17#,UZS17# 14V 0.56W |
1 | ||
| 84720F - CAP, PATTERN SELECT SWITCH | ||||
| 84998-10670 |
GS171,JZS17#,UZS17# |
1 | ||
| 84746 - SWITCH, TIRE PRESSURE WARNING | ||||
| 84746-30010 |
JZS171,175,177,UZS171,175..A,C,ROY,ROYEX,ROYG |
1 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-30040B3 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 84841-30040A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-30460A0 |
GS171,JZS17#,UZS17#..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ),IVORY,TRIM0# |
1 | ||
| 84870-30470A0 |
GS171,JZS171,173,175,179 ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ- & ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ),IVORY,TRIM0# |
1 | ||
| 84870-30480A0 |
JZS17#,UZS17#..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG IVORY,TRIM0# |
1 | ||
| 84870-30500A0 |
GS171,JZS171,173,175,179 ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),IVORY,TRIM0# |
1 | ||
| 84870-30470B1 |
GS171,JZS171,173,175,179..ROY,ROYEX,ROYG ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ- & ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ),MD.CHARCOAL,TRIM1# |
1 | ||
| 84870-30480B1 |
JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 84870-30500B1 |
GS171,JZS171,173,175,179..ROY,ROYEX,ROYG ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),MD.CHARCOAL,TRIM1# |
1 | ||
| 84870-30460B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ),MD.CHARCOAL,TRIM1# |
1 | ||
| 84988F - SWITCH, TRACTION CONTROL | ||||
| 84988-30090 |
JZS171,175,177,UZS171,175..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG |
1 | ||
| 84988G - BULB, TRACTION CONTROL SWITCH | ||||
| 90010-01039 |
JZS171,175,177,UZS171,175..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG 14V0.91W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30500 |
GS171,JZS17#,UZS17# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10440 |
GS171,JZS17#,UZS17# 14V 2.0W |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10530 |
GS171,JZS17#,UZS17# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-89101 |
GS171,JZS17#,UZS17# |
1 | ||
| 85531 - SOCKET, POWER OUTLET | ||||
| 85531-48010 |
JZS171,173,175..WG ﾘﾔ |
1 | ||
| 85531-30010 |
GS171,JZS17#,UZS17# ﾌﾛﾝﾄ |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 86831-30010 |
GS171,JZS17#,UZS17# |
1 | ||
| Common parts | ||||
| 90467-10203 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 8419 | ||||

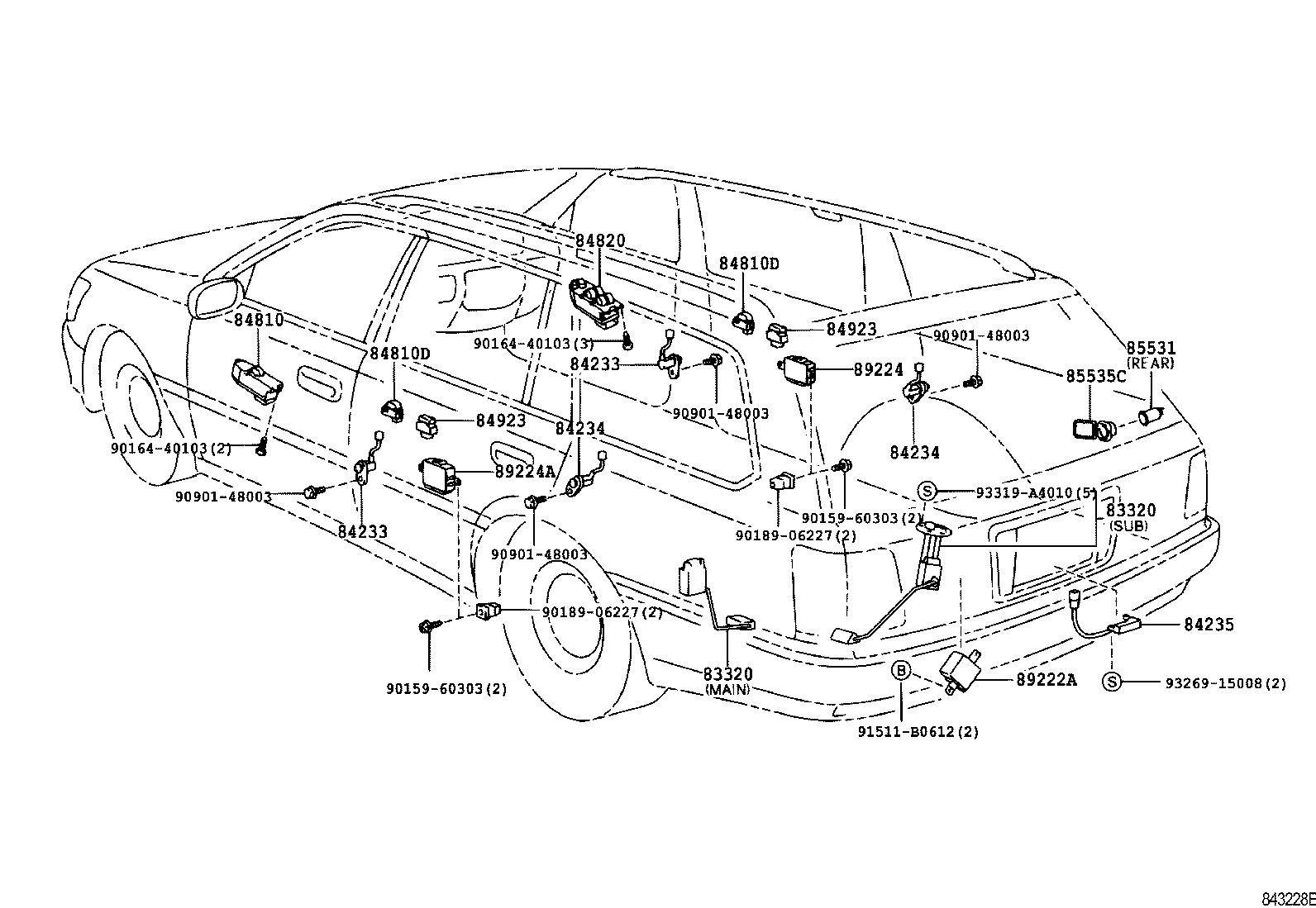

ILLUST NO. 7 OF 9(9912- )WG
ﾙ-ﾌ,ﾄﾞｱ,ｼ-ﾄ & ﾌﾛｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-51010 |
GS171,JZS171,173,175,179 ﾒｲﾝ |
1 | ||
| 83320-59095 |
GS171,JZS171,173,175,179 ｻﾌﾞ |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-51010 |
GS171,JZS171,173,175,179 ﾒｲﾝ |
1 | ||
| 83320-59095 |
GS171,JZS171,173,175,179 ｻﾌﾞ |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-30290 |
GS171,JZS17#,UZS17# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-30290 |
GS171,JZS17#,UZS17# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-30280 |
GS171,JZS17#,UZS17# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-30280 |
GS171,JZS17#,UZS17# |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-31010 |
JZS171,173,175..WG |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84030-30040 |
JZS171,173,175,179 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84030-30050 |
GS171,JZS171,173,175,179 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84030-30050 |
GS171,JZS171,173,175,179 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-30070 |
JZS171,173,175,179 |
1 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-31010 |
JZS171,173,175..WG |
2 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-31010 |
JZS171,173,175..WG |
2 | ||
| 85531 - SOCKET, POWER OUTLET | ||||
| 85531-48010 |
JZS171,173,175..WG ﾘﾔ |
1 | ||
| 85531-30010 |
GS171,JZS17#,UZS17# ﾌﾛﾝﾄ |
1 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-31010B1 |
JZS171,175..WG..ROY MD.CHARCOAL,TRIM1# |
1 | ||
| 85535-31010A0 |
JZS171,173,175..WG IVORY,TRIM0# |
1 | ||
| 89222A - COMPUTER, MULTIPLEX NETWORK DOOR | ||||
| 89222-31011 |
JZS171,173,175..WG |
1 | ||
| 89222-31010 |
JZS171,173,175..WG |
1 | ||
| 89224 - COMPUTER, MULTIPLEX NETWORK DOOR, REAR RH | ||||
| 89224-30020 |
GS171,JZS171,173,175,179 |
1 | ||
| 89224A - COMPUTER, MULTIPLEX NETWORK DOOR, REAR LH | ||||
| 89224-30020 |
GS171,JZS171,173,175,179 |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90164-40103 | ||||
| 90189-06227 | ||||
| 90901-48003 | ||||
| 91511-B0612 | ||||
| 93269-15008 | ||||
| 93319-A4010 | ||||
