JZS171W-AWPQF (1999)

Toyota Crown/Crown Majesta

Production Dec 1999 - Aug 2001
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

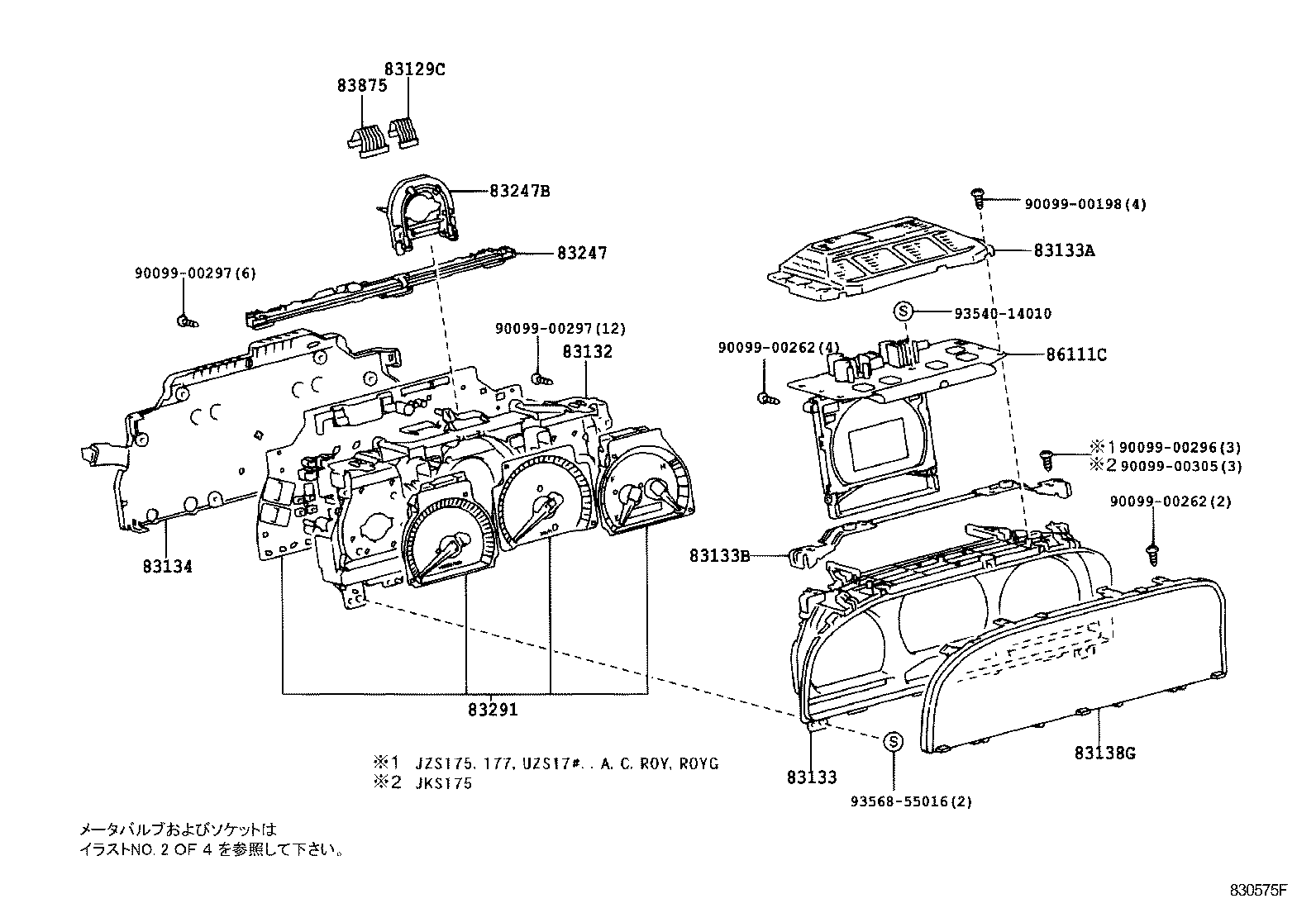

ILLUST NO. 1 OF 4(9909-0108)A,C,ROYG ; (0108- )JKS175,JZS175,177,UZS17#..A,C,ROY,ROYG

Click highlighted areas on diagram

ﾃﾞﾕｱﾙﾋﾞｼﾞﾖﾝ ｵﾌﾟﾃｲﾄﾛﾝ ﾒ-ﾀ

diagram 83129C 83132 83133 83133A 83133B 83134 83138G 83247 83247B 83291 83875 86111C 9009900198 9009900262 9009900262 9009900296 9009900297 9009900297 9009900305 9354014010 9356855016
Part # Description Qty Price
83132 - CASE, COMBINATION METER
83841-30830

GS171,JZS171,173,179..ROY,ROYEX

 1
83133 - PLATE, COMBINATION METER, NO.1
83811-30830

GS171,JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYEX

 1
83133A - PLATE, COMBINATION METER, NO.2
83812-30830

GS171,JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYEX

 1
83134 - COVER, COMBINATION METER, NO.1
83821-30830

GS171,JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYEX

 1
83138G - GLASS, COMBINATION METER
83852-30830

GS171,JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYEX

 1
83247 - PLATE, METER CIRCUIT
83861-30830

GS171,JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYEX

 1
83247B - PLATE, METER CIRCUIT, NO.2
83862-30830

GS171,JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYEX

 1
83291 - COMPUTER, COMBINATION METER
83801-30880

JZS171,173..ROY,ROYEX

DENSO

 1
Common parts
90099-00198
90099-00262
90099-00296
90099-00297
90099-00305
93540-14010
93568-55016

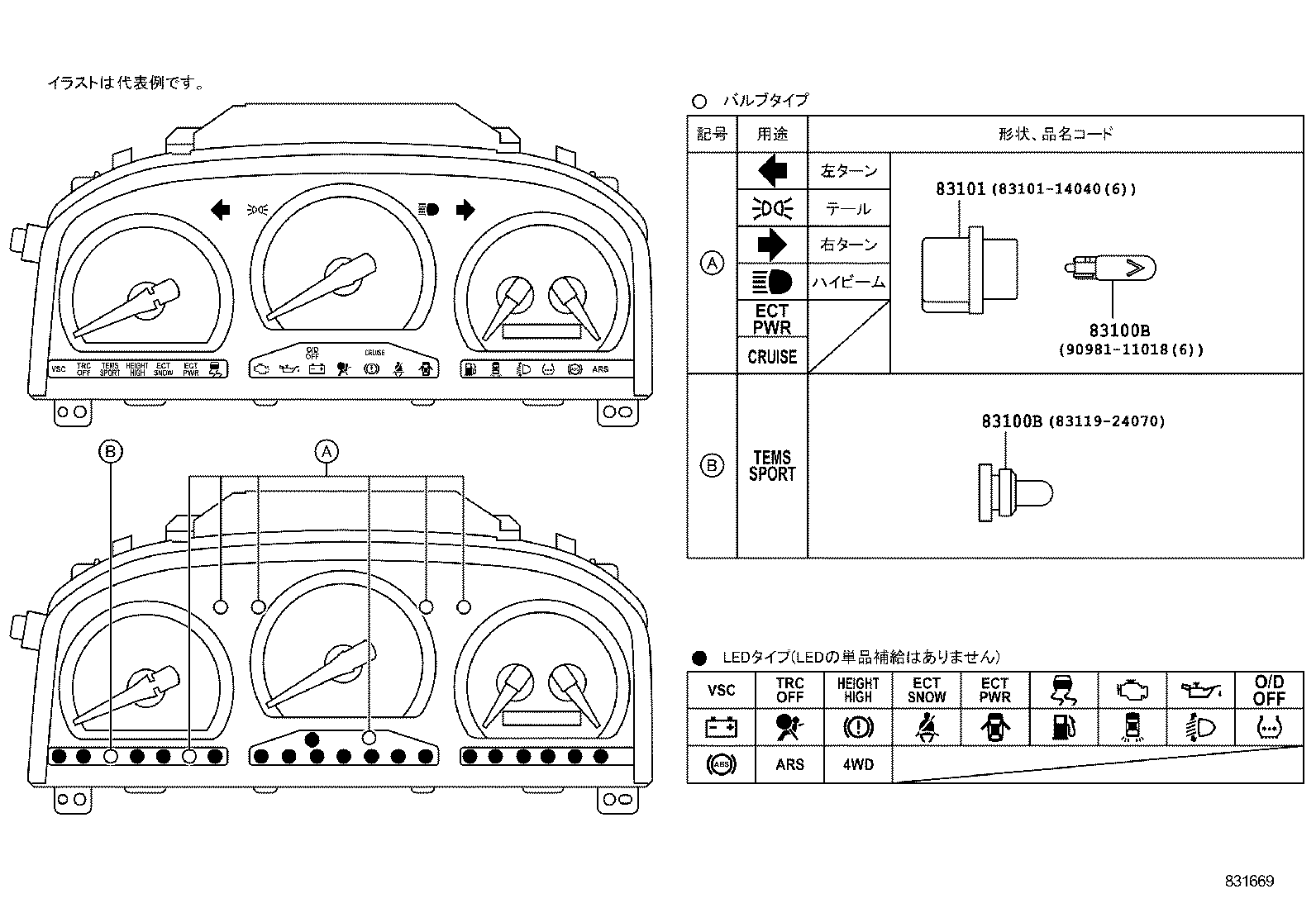

ILLUST NO. 2 OF 4(9909-0108)A,C,ROYG ; (0108- )JKS175,JZS175,177,UZS17#..A,C,ROY,ROYG

Click highlighted areas on diagram

ﾊﾞﾙﾌﾞ(ﾃﾞﾕｱﾙﾋﾞｼﾞﾖﾝ ｵﾌﾟﾃｲﾄﾛﾝ ﾒｰﾀ)

diagram 83100B 83100B 83101
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
83119-24690

JZS171,173,175,179..ATH,ATHG,ATHV,ROY,ROYEX

14V 0.84W,ｿｹｯﾄ付き

 1
83119-24070

GS171,JZS171,173,175,179

12V 1.4W ｿｹｯﾄ付き

 1
90981-11018

GS171,JZS17#,UZS17#

12V 1.2W ｿｹｯﾄ無し

 1
83119-24670

GS171,JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYEX

14V 1.12W ｿｹｯﾄ付き

 1
90010-03033

GS171,JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYEX

14V 3.0W,ｿｹｯﾄ付き

 1
83100B - BULB, COMBINATION METER, NO.1
83119-24690

JZS171,173,175,179..ATH,ATHG,ATHV,ROY,ROYEX

14V 0.84W,ｿｹｯﾄ付き

 1
83119-24070

GS171,JZS171,173,175,179

12V 1.4W ｿｹｯﾄ付き

 1
90981-11018

GS171,JZS17#,UZS17#

12V 1.2W ｿｹｯﾄ無し

 1
83119-24670

GS171,JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYEX

14V 1.12W ｿｹｯﾄ付き

 1
90010-03033

GS171,JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYEX

14V 3.0W,ｿｹｯﾄ付き

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040

GS171,JZS17#,UZS17#

 1
