JZS171W-AWPQF (1999)
Toyota Crown/Crown Majesta

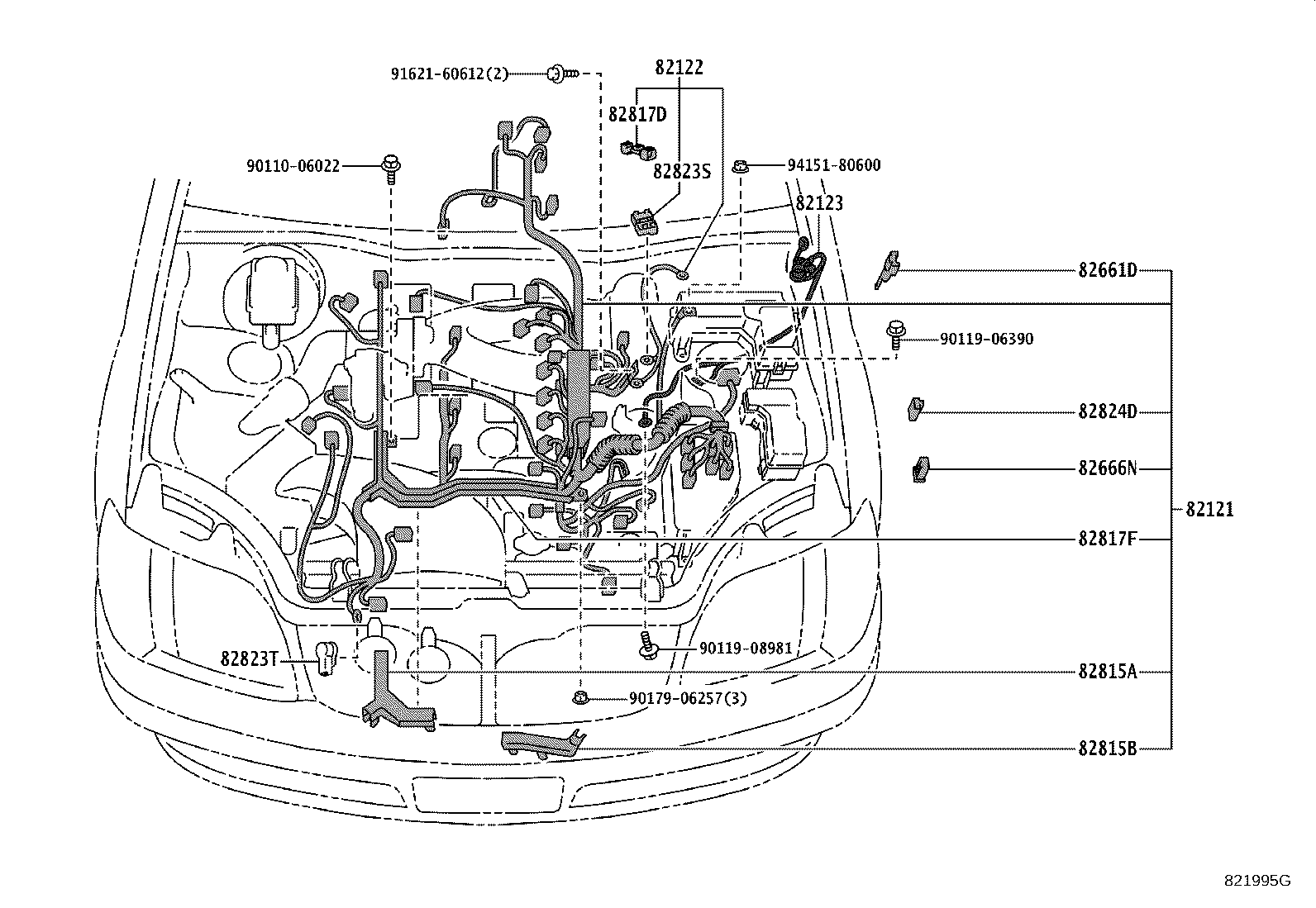

ILLUST NO. 2 OF 9(9909-0108)JZS171,173..TWC
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-3A450 |
JZS171..4FC..TWC |
1 | ||
| 82121-3A451 |
JZS171..4FC..TWC |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-30680 |
JZS171..TWC |
1 | ||
| 82122-30691 |
JZS171..TWC ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82122-30681 |
JZS171..TWC |
1 | ||
| 82122-30690 |
JZS171..WG..TWC ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-30400 |
JZS171..WG..ROY ｳｴﾙｷﾔﾌﾞ(ｼﾞﾖｼﾕｾｷ ｶｲﾃﾝ ｼ-ﾄ) OR ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 82123-30390 |
GS171,JZS171,175..D4,HTWC,TWC |
1 | ||
| 82661D - COVER, RELAY BLOCK, SIDE NO.1 | ||||
| 82661-30450 |
GS171,JZS171,173,175,179 |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-30670 |
GS171,JZS17#,UZS17# |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-22010 |
JZS171,173..TWC |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-51010 |
JZS171,173..TWC |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-3K670 |
GS171,JZS171,173,179 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-2A570 |
JZS171,173..TWC |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-30120 |
GS171,JZS17# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-24030 |
GS171,JZS171,173,175,179 |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-50110 |
GS171,JZS17# |
1 | ||
| Common parts | ||||
| 90110-06022 | ||||
| 90119-06390 | ||||
| 90119-08981 | ||||
| 90179-06257 | ||||
| 91621-60612 | ||||
| 94151-80600 | ||||

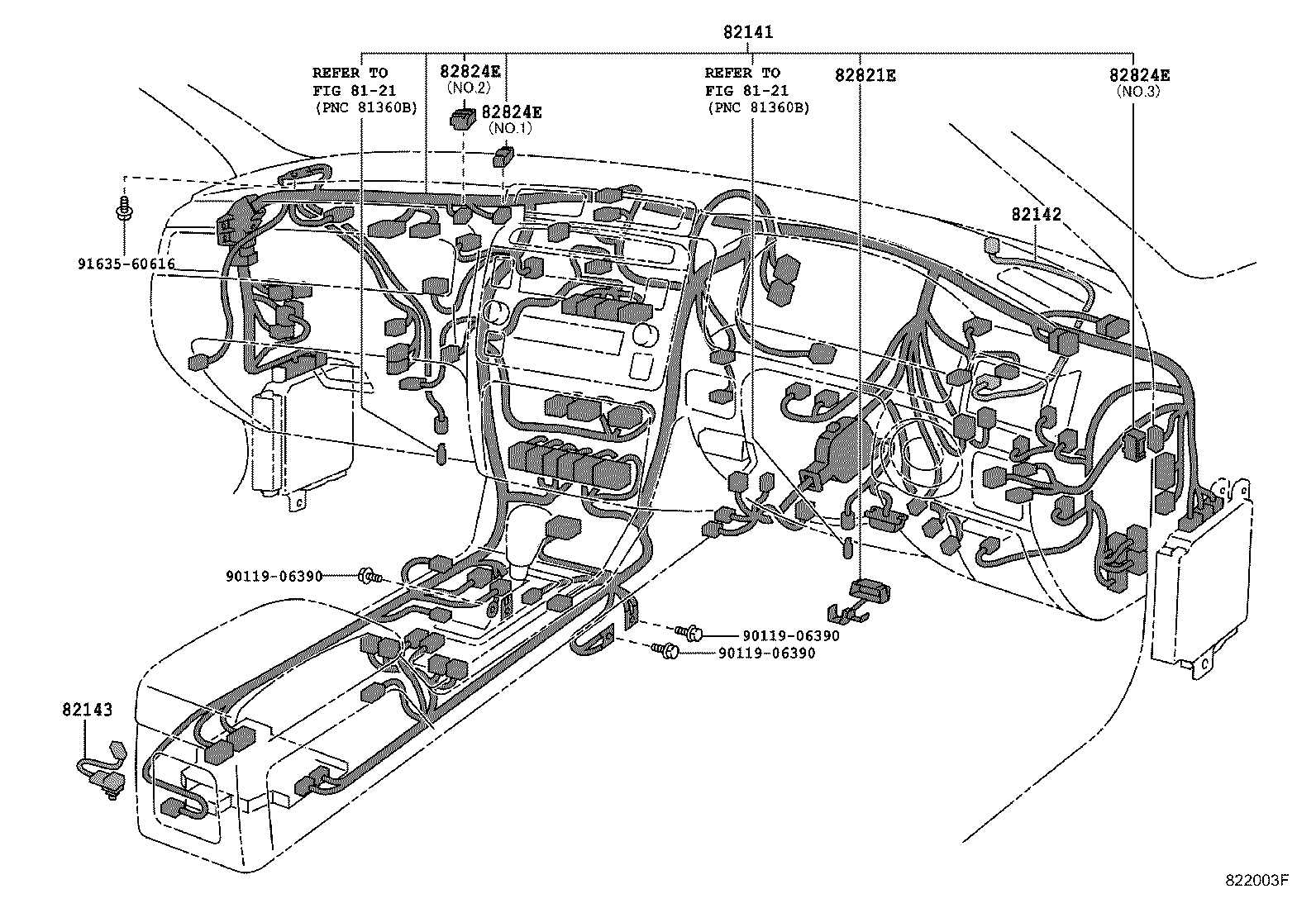

ILLUST NO. 3 OF 9(9909-0108)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-3F730 |
JZS171..WG..ROY ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ) OR ｱﾘ(ﾌｴﾝﾀﾞ-ﾐﾗ-) OR ｱﾘ(*80) |
1 | ||
| 82141-3F680 |
JZS171..ROY,ROYEX ｱﾘ(AM/FM ｶｾﾂﾄ CD & 6ｽﾋﾟ-ｶ & EMV & VSC) |
1 | ||
| 82141-3F700 |
JZS171..ROY ｱﾘ(AM/FM ｶｾﾂﾄ CDｵ-ﾄﾁｴﾝｼﾞﾔ & 7ｽﾋﾟ-ｶ & VSC) |
1 | ||
| 82141-3F710 |
JZS171..ROY ｱﾘ(AM/FM ｶｾﾂﾄ CDｵ-ﾄﾁｴﾝｼﾞﾔ & 7ｽﾋﾟ-ｶ) |
1 | ||
| 82141-3F270 |
JZS171..WG..ROY |
1 | ||
| 82141-3F690 |
GS171,JZS171..ROY,ROYEX ｱﾘ(AM/FM ｶｾﾂﾄ CD & 6ｽﾋﾟ-ｶ & EMV) |
1 | ||
| 82141-3F720 |
JZS171..ROY,ROYEX ｱﾘ(VSC) |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-30030 |
GS171,JZS171,173,175,179 |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-30010 |
JZS171,173,175..WG |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-20330 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
GS171,JZS17#,UZS17# NO.2 |
1 | ||
| 82824-22080 |
GS171,JKS175,JZS17#,UZS17# NO.1 |
1 | ||
| 82824-22070 |
GS171,JZS17#,UZS17# NO.3 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
GS171,JZS17#,UZS17# NO.2 |
1 | ||
| 82824-22080 |
GS171,JKS175,JZS17#,UZS17# NO.1 |
1 | ||
| 82824-22070 |
GS171,JZS17#,UZS17# NO.3 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
GS171,JZS17#,UZS17# NO.2 |
1 | ||
| 82824-22080 |
GS171,JKS175,JZS17#,UZS17# NO.1 |
1 | ||
| 82824-22070 |
GS171,JZS17#,UZS17# NO.3 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 91635-60616 | ||||
| Linked diagrams | ||||
| 8121 | ||||

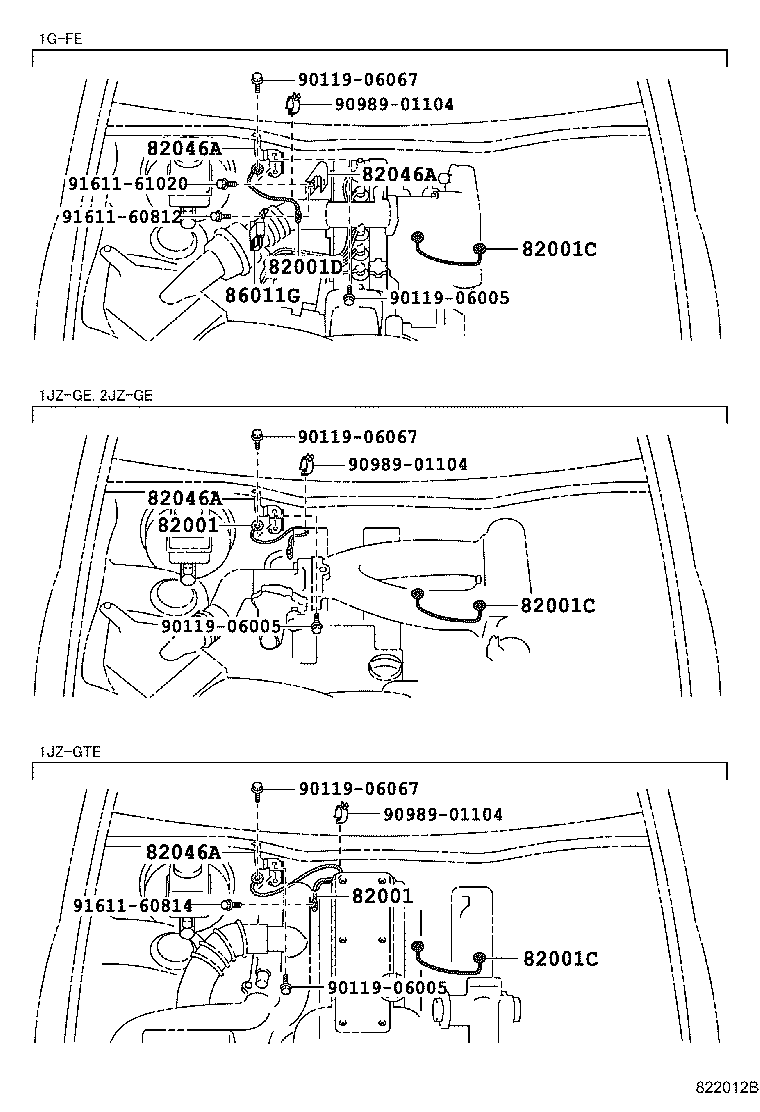

ILLUST NO. 8 OF 9(9909-0108)GS171,JZS171,173,179 ; (0108- )GS171,JZS171,173,179..HTWC,TWC,TWT
ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07338 |
JZS17# |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07338 |
JZS17# |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07356 |
GS171,JZS171,173,175,179 |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07356 |
GS171,JZS171,173,175,179 |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07356 |
GS171,JZS171,173,175,179 |
1 | ||
| 82046A - WIRE SUB-ASSY, BODY GROUND, NO.1 | ||||
| 82046-30070 |
JZS171,173,175..WG |
1 | ||
| 82046-30070 |
JZS171,173,175,179 |
1 | ||
| 82046A - WIRE SUB-ASSY, BODY GROUND, NO.1 | ||||
| 82046-30070 |
JZS171,173,175..WG |
1 | ||
| 82046-30070 |
JZS171,173,175,179 |
1 | ||
| 82046A - WIRE SUB-ASSY, BODY GROUND, NO.1 | ||||
| 82046-30070 |
JZS171,173,175..WG |
1 | ||
| 82046-30070 |
JZS171,173,175,179 |
1 | ||
| 82046A - WIRE SUB-ASSY, BODY GROUND, NO.1 | ||||
| 82046-30070 |
JZS171,173,175..WG |
1 | ||
| 82046-30070 |
JZS171,173,175,179 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06067 | ||||
| 90989-01104 | ||||
| 91611-60812 | ||||
| 91611-60814 | ||||
| 91611-61020 | ||||

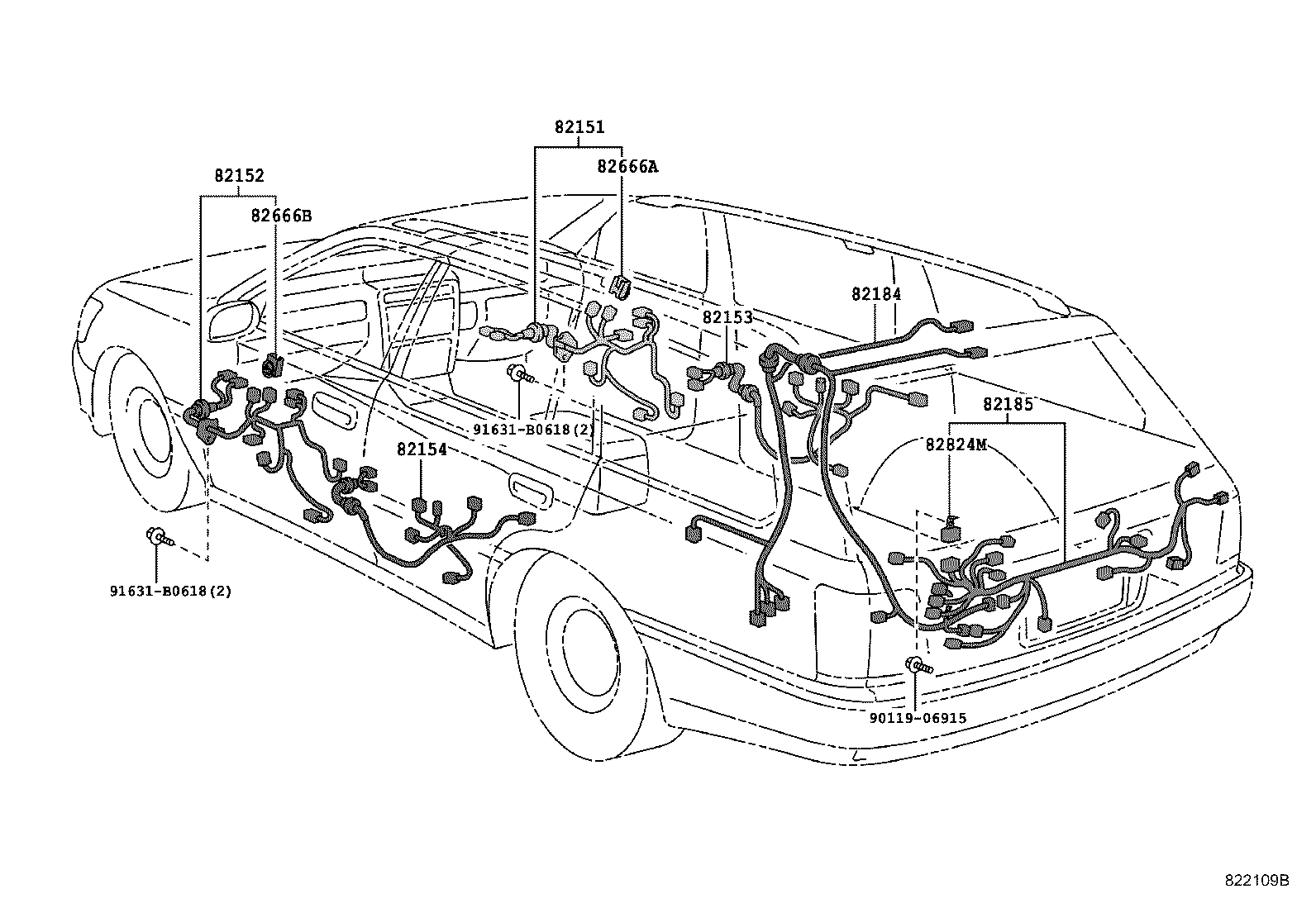

ILLUST NO. 4 OF 9(9912- )WG
ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-3A260 |
GS171,JZS171,173,177..A,ROYEX ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ- & AM/FM ｶｾﾂﾄ CD & 6ｽﾋﾟ-ｶ) |
1 | ||
| 82151-31010 |
JZS171,173,175..WG..(ATH,ATHG,ATHV,ROY) |
1 | ||
| 82151-31020 |
JZS171,173,175..WG..(ATH,ATHG,ATHV,ROY) ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-30870 |
JZS171,173,175,179..ATH,ATHG,ATHV,ROY,ROYG |
1 | ||
| 82152-30890 |
JZS171,173,175,179..ATH,ATHG,ATHV,ROY,ROYG ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-31020 |
JZS171,175..WG..(ATHG,ATHV,ROY) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-31020 |
JZS171,175..WG..(ATHG,ATHV,ROY) |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-31050 |
JZS171,173,175..WG |
1 | ||
| 82184-31060 |
JZS171,173,175..WG ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-31040 |
JZS171,173,175..WG |
1 | ||
| 82185-31050 |
JZS171,173,175..WG ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-22080 |
GS171,JZS17#,UZS17# |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-22080 |
GS171,JZS17#,UZS17# |
1 | ||
| 82824M - CONNECTOR, WIRING HARNESS | ||||
| 82824-20130 |
JZS171,173,175..WG |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91631-B0618 | ||||

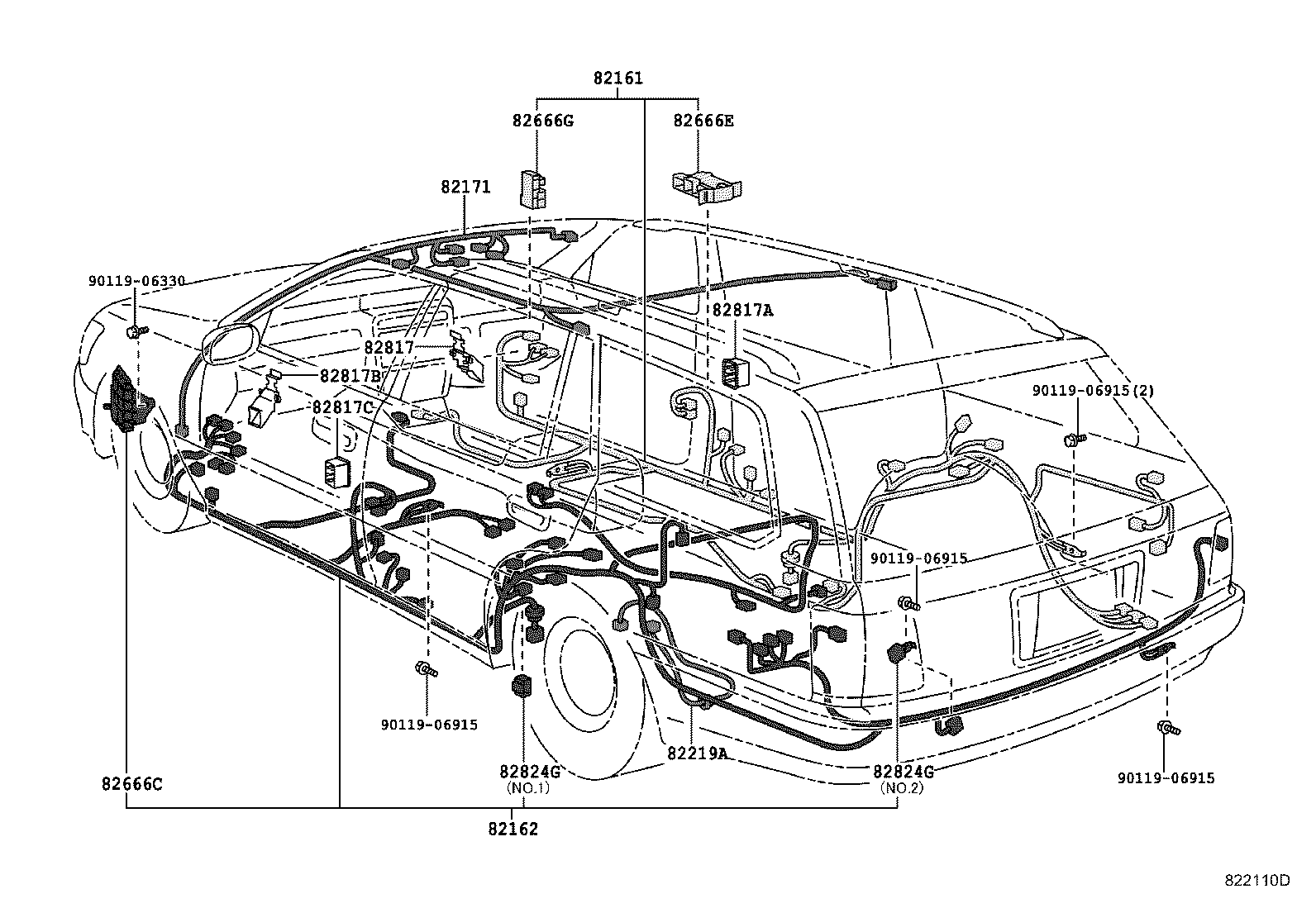

ILLUST NO. 5 OF 9(9912- )WG
ﾙ-ﾌ & ﾌﾛｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-31130 |
JZS171,175..WG ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ & *80) |
1 | ||
| 82161-31150 |
JZS171,175..WG ｱﾘ(*80) |
1 | ||
| 82161-31140 |
JZS171,175..WG ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 82161-31131 |
JZS171,175..WG ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ & *80) |
1 | ||
| 82161-31151 |
JZS171,175..WG ｱﾘ(*80) |
1 | ||
| 82161-31201 |
JZS171..WG..ROY ｱﾘ(AM/FM ｶｾﾂﾄ CDｵ-ﾄﾁｴﾝｼﾞﾔ & 7ｽﾋﾟ-ｶ) |
1 | ||
| 82161-31211 |
JZS171..WG..ROY |
1 | ||
| 82161-31200 |
JZS171..WG..ROY ｱﾘ(AM/FM ｶｾﾂﾄ CDｵ-ﾄﾁｴﾝｼﾞﾔ & 7ｽﾋﾟ-ｶ) |
1 | ||
| 82161-31141 |
JZS171,175..WG ｱﾘ(EMV & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ) |
1 | ||
| 82161-31210 |
JZS171..WG..ROY |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-31180 |
JZS171,175..WG ｱﾘ(*80) |
1 | ||
| 82162-31190 |
JZS171..WG..ROY ｳｴﾙｷﾔﾌﾞ(ｼﾞﾖｼﾕｾｷ ｶｲﾃﾝ ｼ-ﾄ) OR ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) OR ｱﾘ(*80) |
1 | ||
| 82162-31220 |
JZS171..WG..ROY |
1 | ||
| 82162-31181 |
JZS171,175..WG ｱﾘ(*80) |
1 | ||
| 82162-31191 |
JZS171..WG..ROY ｳｴﾙｷﾔﾌﾞ(ｼﾞﾖｼﾕｾｷ ｶｲﾃﾝ ｼ-ﾄ) OR ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) OR ｱﾘ(*80) |
1 | ||
| 82162-31221 |
JZS171..WG..ROY |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-31030 |
JZS171,173,175..WG ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 82171-31020 |
JZS171,173,175..WG |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-30710 |
GS171,JZS171,173,175,179 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-30690 |
GS171,JZS171,173,175,179 |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-30720 |
GS171,JZS17#,UZS17# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-3K580 |
GS171,JZS17#,UZS17# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-51020 |
GS171,JZS17#,UZS17# |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-3K580 |
GS171,JZS17#,UZS17# |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-51020 |
GS171,JZS17#,UZS17# |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-20110 |
JZS171,173,175..WG NO.1 |
1 | ||
| 82824-20130 |
JZS171,173,175..WG NO.2 |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-20110 |
JZS171,173,175..WG NO.1 |
1 | ||
| 82824-20130 |
JZS171,173,175..WG NO.2 |
1 | ||
| Common parts | ||||
| 90119-06330 | ||||
| 90119-06915 | ||||
