JZS171W-AWPQF (1999)

Toyota Crown/Crown Majesta

Production Dec 1999 - Aug 2001
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9912- )WG

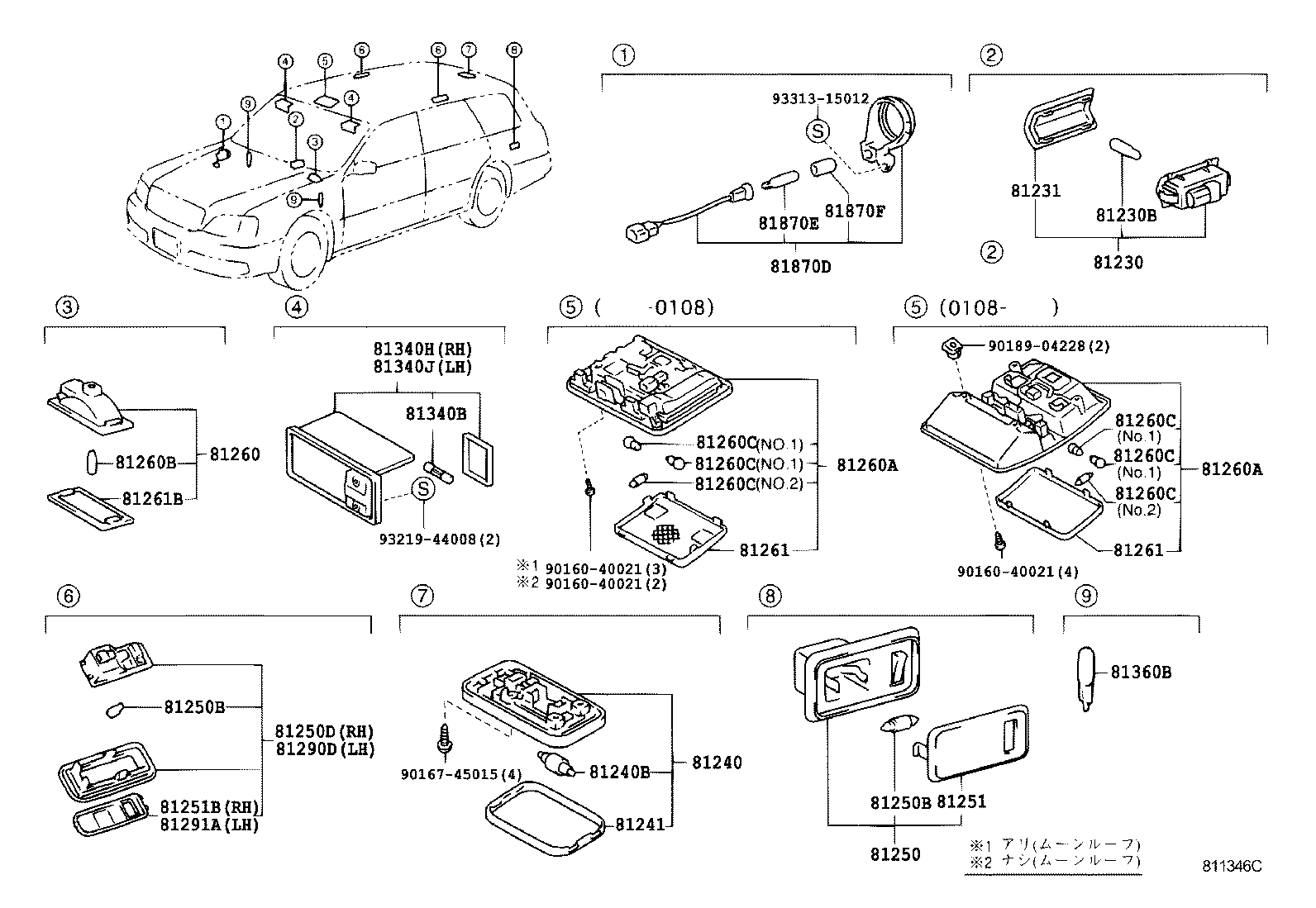

Click highlighted areas on diagram

diagram 81230 81230B 81231 81240 81240B 81241 81250 81250B 81250B 81250D 81251 81251B 81260 81260A 81260A 81260B 81260C 81260C 81260C 81260C 81260C 81260C 81261 81261 81261B 81290D 81291A 81340B 81340H 81340J 81360B 81870D 81870E 81870F 9016040021 9016040021 9016040021 9016745015 9018904228 9321944008 9331315012
Part # Description Qty Price
81230 - LAMP ASSY, COURTESY
81230-30160

GS171,JZS17#,UZS17#

 4
81230B - BULB(FOR COURTESY LAMP)
90981-11020

GS171,JZS17#,UZS17#

12V 3.8W

 4
81231 - LENS, COURTESY LAMP
81231-50050

GS171,JZS17#,UZS17#

 4
81240 - LAMP ASSY, ROOM, NO.1
81240-51010A0

JZS171,173,175..WG

IVORY,TRIM0#

 1
81240-51010B1

JZS171,173,175..WG

MD.CHARCOAL,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14004

JZS171,173,175..WG

12V 8W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-51010

JZS171,173,175..WG

 1
81250 - LAMP ASSY, ROOM, NO.2
81250-12030B3

JZS171,175..WG..ROY

MD.CHARCOAL,TRIM1#

 1
81250-12030A0

JZS171,173,175..WG

IVORY,TRIM0#

 1
81250B - BULB, ROOM LAMP, NO.2
99132-13050

JZS171,173,175..WG

12V 5W,ｸｵｰﾀ ﾄﾘﾑ

 1
99132-12050

JZS171,173,175..WG

12V 5W,ﾙｰﾌ側

 2
81250B - BULB, ROOM LAMP, NO.2
99132-13050

JZS171,173,175..WG

12V 5W,ｸｵｰﾀ ﾄﾘﾑ

 1
99132-12050

JZS171,173,175..WG

12V 5W,ﾙｰﾌ側

 2
81250D - LAMP ASSY, REAR ROOM, RH
81250-30130A0

GS171,JZS17#,UZS175..A,ATH,ATHE,ATHG,ATHV,ROY,ROYEX

IVORY,TRIM0#

 1
81250-30130B2

GS171,JZS17#,UZS175..A,ATH,ATHE,ATHG,ATHV,ROY,ROYEX

MD.CHARCOAL,TRIM1#

 1
81251 - LENS, ROOM LAMP, NO.2
81251-12030

JZS171,173,175..WG

 1
81251B - LENS, REAR ROOM LAMP, RH
81251-30120

GS171,JZS17#,UZS175..A,ATH,ATHE,ATHG,ATHV,ROY,ROYEX

 1
81260 - LAMP ASSY, GLOVE BOX
81260-50010

GS171,JZS17#,UZS17#

 1
81260A - LAMP ASSY, MAP
81260-30200B2

GS171,JZS17#,UZS17#

MD.CHARCOAL,TRIM1#

 1
81260-30200A0

GS171,JZS17#,UZS17#

IVORY,TRIM0#

 1
81260-30210B2

JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM1#

 1
81260-30210A0

JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#

 1
81260A - LAMP ASSY, MAP
81260-30200B2

GS171,JZS17#,UZS17#

MD.CHARCOAL,TRIM1#

 1
81260-30200A0

GS171,JZS17#,UZS17#

IVORY,TRIM0#

 1
81260-30210B2

JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM1#

 1
81260-30210A0

JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

GS171,JZS17#,UZS17#

12V 1.2W ｿｹｯﾄ無し

 1
81260C - BULB(FOR MAP LAMP)
90981-14004

GS171,JZS17#,UZS17#

12V 8W,NO.2

 1
90981-12005

GS171,JZS17#,UZS17#

12V 8W,NO.1

 2
81260C - BULB(FOR MAP LAMP)
90981-14004

GS171,JZS17#,UZS17#

12V 8W,NO.2

 1
90981-12005

GS171,JZS17#,UZS17#

12V 8W,NO.1

 2
81260C - BULB(FOR MAP LAMP)
90981-14004

GS171,JZS17#,UZS17#

12V 8W,NO.2

 1
90981-12005

GS171,JZS17#,UZS17#

12V 8W,NO.1

 2
81260C - BULB(FOR MAP LAMP)
90981-14004

GS171,JZS17#,UZS17#

12V 8W,NO.2

 1
90981-12005

GS171,JZS17#,UZS17#

12V 8W,NO.1

 2
81260C - BULB(FOR MAP LAMP)
90981-14004

GS171,JZS17#,UZS17#

12V 8W,NO.2

 1
90981-12005

GS171,JZS17#,UZS17#

12V 8W,NO.1

 2
81260C - BULB(FOR MAP LAMP)
90981-14004

GS171,JZS17#,UZS17#

12V 8W,NO.2

 1
90981-12005

GS171,JZS17#,UZS17#

12V 8W,NO.1

 2
81261 - LENS AND COVER, MAP LAMP
81261-50060

GS171,JZS17#,UZS17#

 1
81261-50070

JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 1
81261 - LENS AND COVER, MAP LAMP
81261-50060

GS171,JZS17#,UZS17#

 1
81261-50070

JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 1
81261B - LENS,GLOVE BOX LAMP
81261-50010

GS171,JZS17#,UZS17#

 1
81290D - LAMP ASSY, REAR ROOM, LH
81290-30140B2

GS171,JZS17#,UZS175..A,ATH,ATHE,ATHG,ATHV,ROY,ROYEX

MD.CHARCOAL,TRIM1#

 1
81290-30140A0

GS171,JZS17#,UZS175..A,ATH,ATHE,ATHG,ATHV,ROY,ROYEX

IVORY,TRIM0#

 1
81291A - LENS, REAR ROOM LAMP, LH
81251-30120

GS171,JZS17#,UZS175..A,ATH,ATHE,ATHG,ATHV,ROY,ROYEX

 1
81340B - BULB (FOR VANITY LAMP)
90981-14007

GS171,JZS17#,UZS17#

12V 3W

 2
81340H - LAMP ASSY, VANITY, RH
81350-30050A0

GS171,JZS17#,UZS17#

IVORY,TRIM0#

 1
81350-30050B0

GS171,JZS17#,UZS17#

MD.CHARCOAL,TRIM1#

 1
81340J - LAMP ASSY, VANITY, LH
81340-30090B0

GS171,JZS17#,UZS17#

MD.CHARCOAL,TRIM1#

 1
81340-30090A0

GS171,JZS17#,UZS17#

IVORY,TRIM0#

 1
81360B - BULB, STEP OR SPOT LAMP
90981-11041

GS171,JZS17#,UZS17#

14V 1.4W

 2
81870D - LAMP ASSY, KEY CYLINDER
81870-30120

GS171,JZS171,173,175,179

 1
81870E - BULB, KEY CYLINDER LAMP
90981-11014

GS171,JZS17#,UZS17#

14V 1.4W

 1
81870F - CAP, KEY CYLINDER LAMP BULB
84998-10070

GS171,JZS17#,UZS17#

 1
Common parts
90160-40021
90167-45015
90189-04228
93219-44008
93313-15012
