JZS171W-AWPQF (1999)

Toyota Crown/Crown Majesta

Production Dec 1999 - Aug 2001
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9912- )WG

Click highlighted areas on diagram

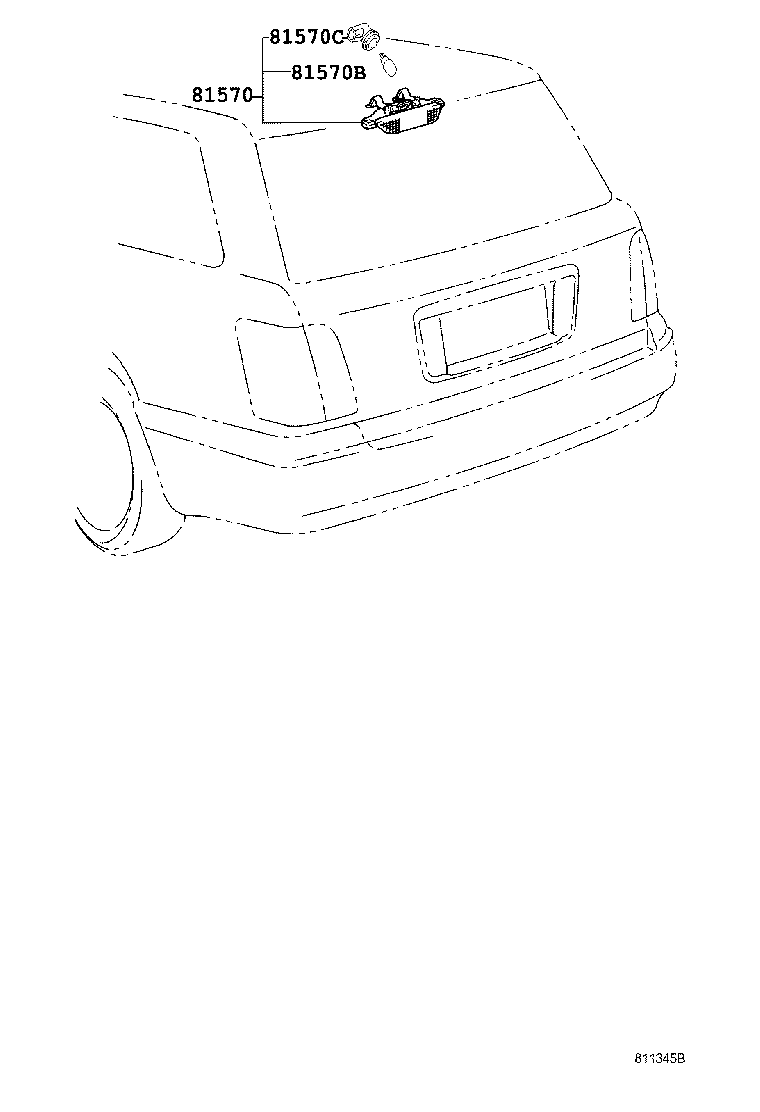

diagram 81570 81570B 81570C
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-48010

JZS171,173,175..WG

 1
81570B - BULB (FOR CENTER STOP LAMP)
90981-11059

JZS171,173,175..WG

12V 16W

 1
81570C - SOCKET, CENTER STOP LAMP
90075-99005

GS171,JZS17#,UZS17#

 1
