JZS171W-AWPQF (1999)

Toyota Crown/Crown Majesta

Production Dec 1999 - Aug 2001
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9912-0108)WG

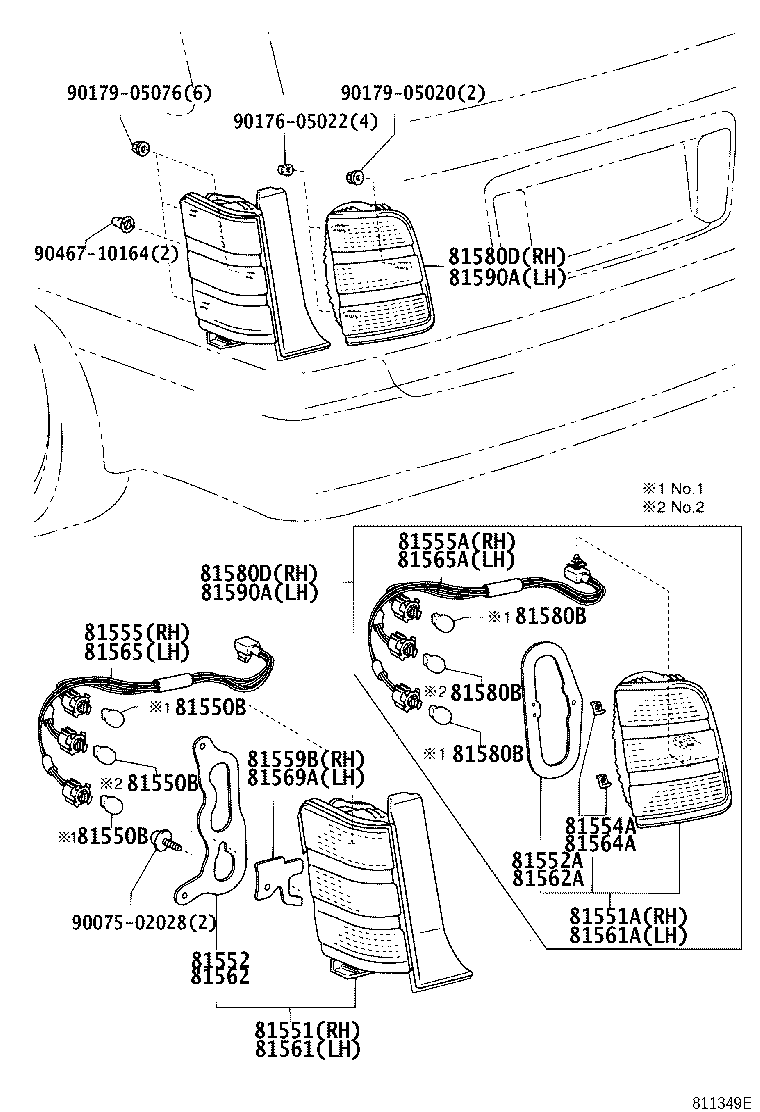

Click highlighted areas on diagram

diagram 81550B 81550B 81550B 81551 81551A 81552 81552A 81554A 81555 81555A 81559B 81561 81561A 81562 81562A 81564A 81565 81565A 81569A 81580B 81580B 81580B 81580D 81580D 81590A 81590A 9007502028 9017605022 9017905020 9017905076 9046710164
Part # Description Qty Price
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13043

JZS171,173,175..WG

12V 21W,NO.2

 2
90981-13044

JZS171,173,175..WG

12V 21/5W,NO.1

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13043

JZS171,173,175..WG

12V 21W,NO.2

 2
90981-13044

JZS171,173,175..WG

12V 21/5W,NO.1

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13043

JZS171,173,175..WG

12V 21W,NO.2

 2
90981-13044

JZS171,173,175..WG

12V 21/5W,NO.1

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-31110

JZS171,173,175..WG

 1
81551A - LENS, REAR COMBINATION LAMP, RH
81581-31030

JZS171,173,175..WG

ｶﾝﾚｲﾁ ｼﾖｳ

 1
81581-31020

JZS171,173,175..WG

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-31110

JZS171,173,175..WG

 1
81552A - GASKET, REAR COMBINATION LAMP, RH
81584-31020

JZS171,173,175..WG

 1
81554A - GASKET, REAR COMBINATION LAMP BODY, NO.1 RH
81558-24040

JZS171,173,175..WG

 2
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-31110

JZS171,173,175..WG

 1
81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81585-31020

JZS171,173,175..WG

 1
81585-31030

JZS171,173,175..WG

ｶﾝﾚｲﾁ ｼﾖｳ

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-31100

JZS171,173,175..WG

 1
81561A - LENS, REAR COMBINATION LAMP, LH
81591-31030

JZS171,173,175..WG

ｶﾝﾚｲﾁ ｼﾖｳ

 1
81591-31020

JZS171,173,175..WG

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-31110

JZS171,173,175..WG

 1
81562A - GASKET, REAR COMBINATION LAMP, LH
81584-31020

JZS171,173,175..WG

 1
81564A - GASKET, REAR COMBINATION LAMP BODY, NO.1 LH
81558-24040

JZS171,173,175..WG

 2
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-31110

JZS171,173,175..WG

 1
81565-31100

JZS171,173,175..WG

 1
81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81585-31030

JZS171,173,175..WG

ｶﾝﾚｲﾁ ｼﾖｳ

 1
81585-31020

JZS171,173,175..WG

 1
81580B - BULB (FOR REAR LAMP)
90981-13043

JZS171,173,175..WG

12V 21W,NO.2

 2
90981-13044

JZS171,173,175..WG

12V 21/5W,NO.1

 4
81580B - BULB (FOR REAR LAMP)
90981-13043

JZS171,173,175..WG

12V 21W,NO.2

 2
90981-13044

JZS171,173,175..WG

12V 21/5W,NO.1

 4
81580B - BULB (FOR REAR LAMP)
90981-13043

JZS171,173,175..WG

12V 21W,NO.2

 2
90981-13044

JZS171,173,175..WG

12V 21/5W,NO.1

 4
Common parts
90075-02028
90176-05022
90179-05020
90179-05076
90467-10164
