JZS171W-AWPQF (1999)

Toyota Crown/Crown Majesta

Production Dec 1999 - Aug 2001
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909-0108)ROY,ROYEX,ROYG ; (0108- )GS171,JKS175,JZS171,173..ROY,ROYEX

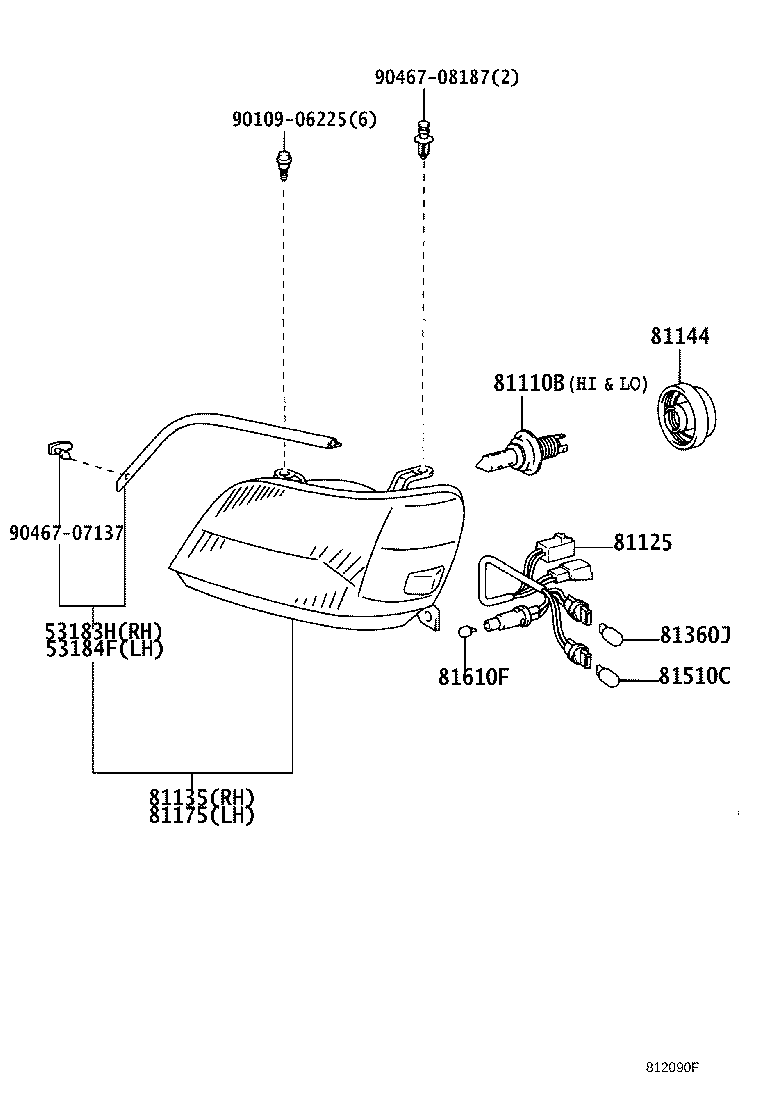

Click highlighted areas on diagram

diagram 53183H 53184F 81110B 81125 81135 81144 81175 81360J 81510C 81610F 9010906225 9046707137 9046708187
Part # Description Qty Price
53183H - SEAL, HEADLAMP COVER, RH
53183-30110

GS171,JZS171,173,175,179

 1
53184F - SEAL, HEADLAMP COVER, LH
53184-30080

GS171,JZS171,173,175,179

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-22004

GS171,JZS171,173,175,179..ROY,ROYEX,ROYG

12V 60/55W,*HAL *WH

 2
90981-20001

JZS171,173,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C

85V 35W

 2
90981-13055

GS171,JZS171,173,175,179..ROY,ROYEX,ROYG

12V 60/55W,ﾊﾛｹﾞﾝ

 2
81125 - CORD, HEADLAMP
81125-3A550

GS171,JZS171,173,175,179..ROY,ROYEX,ROYG

 2
81125-3A551

GS171,JZS171,173,175,179..ROY,ROYEX,ROYG

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-3A550

GS171,JZS171,173,175,179..ROY,ROYEX,ROYG

 1
81144 - COVER, HEADLAMP, NO.1
90075-65002

GS171,JZS171,173,175,179..ROY,ROYEX,ROYG

 2
81175 - UNIT ASSY, HEADLAMP, LH
81170-3A670

GS171,JZS171,173,175,179..ROY,ROYEX,ROYG

 1
81360J - BULB, CORNERING LAMP
90981-13043

GS171,JZS171,173,175,179..ROY,ROYEX,ROYG

12V 21W

 2
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15011

GS171,JZS171,173,175,179

12V 21W,ｱﾝﾊﾞｰ

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

GS171,JZS171,173,175,179..ROY,ROYEX,ROYG

12V 5W

 2
Common parts
90109-06225
90467-07137
90467-08187
