JZS171W-AWPQF (1999)

Toyota Crown/Crown Majesta

Production Dec 1999 - Aug 2001
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9912- )WG

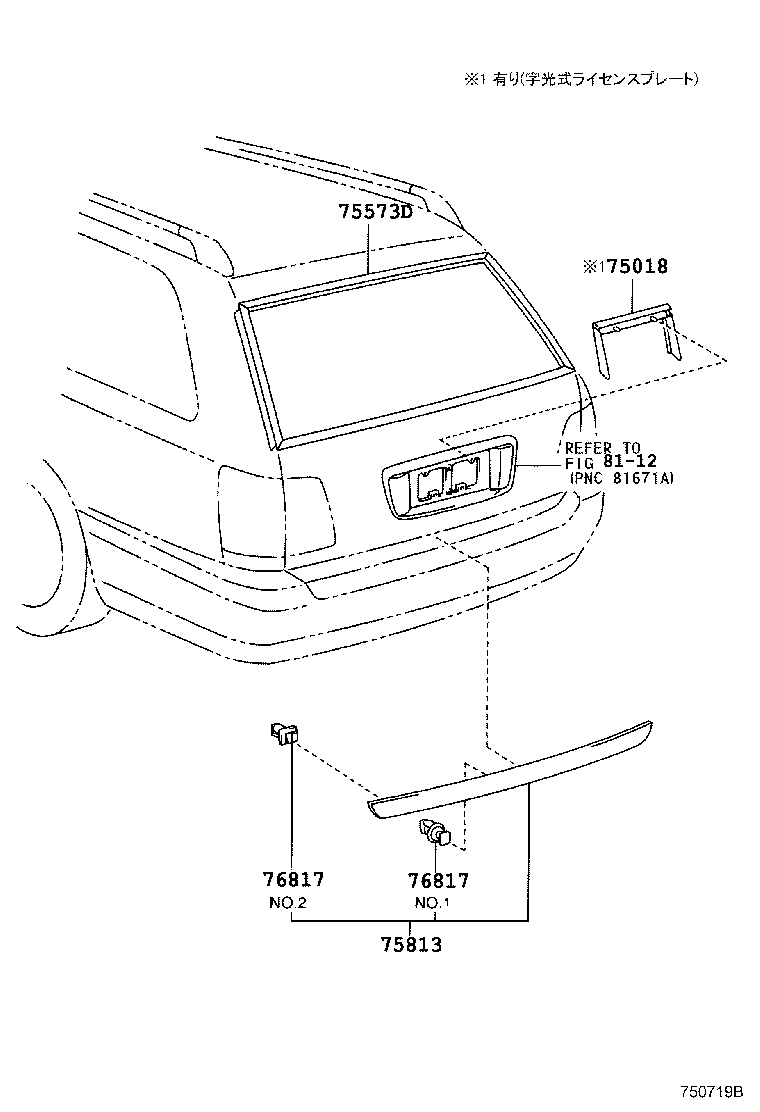

Click highlighted areas on diagram

diagram 75018 75573D 75813 76817 76817 8112
Part # Description Qty Price
75018 - FRAME SUB-ASSY, REAR LICENSE PLATE
75010-33030

JZS171,173,175..WG

ｱﾘ(ｼﾞｺｳｼｷ ﾗｲｾﾝｽ ﾌﾟﾚ-ﾄ)

 1
75573D - MOULDING, BACK WINDOW, OUTSIDE
75573-31010

JZS171,173,175..WG

 1
75813 - MOULDING, BACK DOOR
75813-31020A0

JZS171,173,175..WG

WHITE PEARL CS.,062

 1
75813-31020B1

JZS171,173,175..WG

SILVER ME.,2FQ

 1
75813-31020B0

JZS171,173,175..WG

SILVER ME.,1C0

 1
75813-31020J1

JZS171,173,175..WG

GRAYISH BLUE ME.,8N6

 1
75813-31020G0

JZS171,173,175..WG

BLACKISH GREEN MC.CC,6R5

 1
75813-31020D0

JZS171,173,175..WG

RED MC.,3N1

 1
75813-31020J0

JZS171,173,175..WG

DK.BLUE MC.,8L4

 1
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-12050

JZS171,173,175..WG

NO.1

 4
76817-31010

JZS171,173,175..WG

NO.2

 2
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-12050

JZS171,173,175..WG

NO.1

 4
76817-31010

JZS171,173,175..WG

NO.2

 2
Linked diagrams
8112
