JZS171W-AWPQF (1999)
Toyota Crown/Crown Majesta
ILLUST NO. 2 OF 2(9909-0108)
| Part # | Description | Qty | Price |
|---|

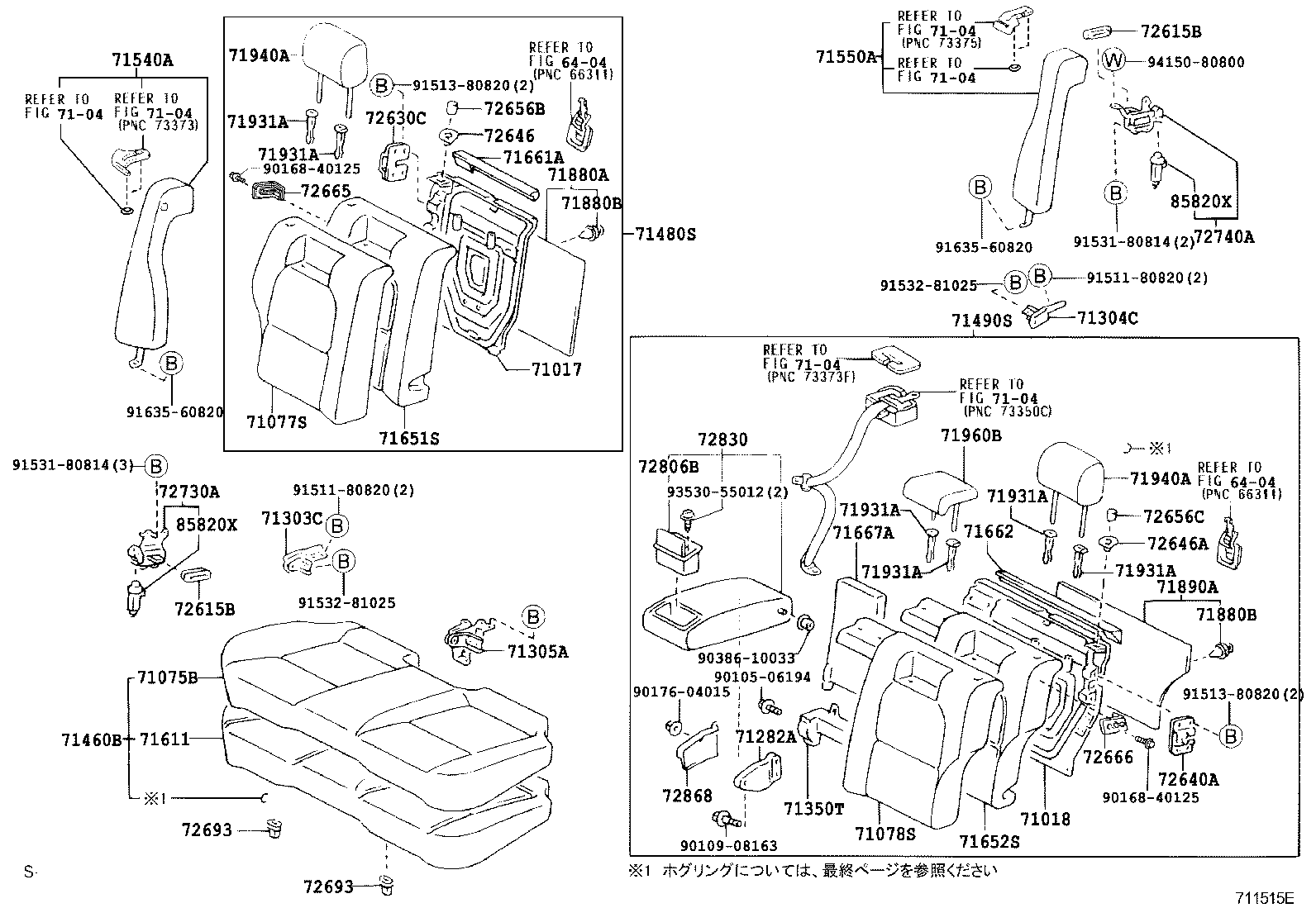

ILLUST NO. 1 OF 2(9912-0108)WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-31010 |
JZS171,173,175..WG |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-31020 |
JZS171,173,175..WG |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-31180A1 |
JZS171,175..WG..ROY ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71075-31180B1 |
JZS171,175..WG..ROY ｼ-ﾄ = TYPE C-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-31120A1 |
JZS171,175..WG..ROY ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71077-31120B1 |
JZS171,175..WG..ROY ｼ-ﾄ = TYPE C-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-31050B1 |
JZS171,175..WG..ROY ｼ-ﾄ = TYPE C-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71078-31050A1 |
JZS171,175..WG..ROY ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71282A - HINGE, REAR SEAT CENTER ARMREST, LH | ||||
| 71282-31010 |
JZS171,173,175..WG |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-31010 |
JZS171,173,175..WG |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-31010 |
JZS171,173,175..WG |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-31020 |
JZS171,173,175..WG |
1 | ||
| 71350T - BACK ASSY, CENTER SEAT | ||||
| 71350-31010A1 |
JZS171,175..WG..ROY ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71350-31010B1 |
JZS171,175..WG..ROY ｼ-ﾄ = TYPE C-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-31180A0 |
JZS171,175..WG..ROY ***,ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71460-31180B0 |
JZS171,175..WG..ROY ***,ｼ-ﾄ = TYPE C-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71460-31180A1 |
JZS171,175..WG..ROY ***,ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71460-31180B1 |
JZS171,175..WG..ROY ***,ｼ-ﾄ = TYPE C-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-31220B0 |
JZS171,175..WG..ROY ***,ｼ-ﾄ = TYPE C-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71480-31220A0 |
JZS171,175..WG..ROY ***,ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71480-31220B4 |
JZS171,175..WG..ROY ***,ｼ-ﾄ = TYPE C-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71480-31220A1 |
JZS171,175..WG..ROY ***,ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-31060A1 |
JZS171,175..WG..ROY ***,ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71490-31060B4 |
JZS171,175..WG..ROY ***,ｼ-ﾄ = TYPE C-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71490-31060A2 |
JZS171,175..WG..ROY ***,ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71490-31060B5 |
JZS171,175..WG..ROY ***,ｼ-ﾄ = TYPE C-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-31070A1 |
JZS171,175..WG..ROY ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71540-31070B1 |
JZS171,175..WG..ROY ｼ-ﾄ = TYPE C-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-31060A1 |
JZS171,175..WG..ROY ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71550-31060B1 |
JZS171,175..WG..ROY ｼ-ﾄ = TYPE C-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-31030 |
JZS171,175..WG..(ATHG,ROY) |
1 | ||
| 71503-31030 |
JZS171,175..WG..(ATHG,ATHV,ROY) |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-31010 |
JZS171,175..WG..(ATHG,ROY) |
1 | ||
| 71651-31010 |
JZS171,175..WG..(ATHG,ATHV,ROY) |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-31010 |
JZS171,175..WG..(ATHG,ROY) |
1 | ||
| 71652-31010 |
JZS171,175..WG..(ATHG,ATHV,ROY) |
1 | ||
| 71661A - PAD, REAR SEAT BACK, UPPER A | ||||
| 71661-31010 |
JZS171,173,175..WG |
1 | ||
| 71662 - PAD, REAR SEAT BACK, UPPER B | ||||
| 71662-31010 |
JZS171,173,175..WG |
1 | ||
| 71667A - PAD, REAR SEAT BACK, CENTER A | ||||
| 71667-31010 |
JZS171,173,175..WG |
1 | ||
| 71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH | ||||
| 71880-31010A0 |
JZS171,173,175..WG IVORY,TRIM0# |
1 | ||
| 71880-31010B0 |
JZS171,175..WG..ROY MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71880B - CLIP(FOR REAR SEAT BACK CARPET) | ||||
| 90467-10168 |
JZS171,173,175..WG |
5 | ||
| 71880B - CLIP(FOR REAR SEAT BACK CARPET) | ||||
| 90467-10168 |
JZS171,173,175..WG |
5 | ||
| 71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH | ||||
| 71890-31010A0 |
JZS171,173,175..WG IVORY,TRIM0# |
1 | ||
| 71890-31010B0 |
JZS171,175..WG..ROY MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-13030A0 |
GS171,JZS17#,UZS17#..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931-12040A5 |
GS171,JZS17#,UZS17#..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-13030A0 |
GS171,JZS17#,UZS17#..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931-12040A5 |
GS171,JZS17#,UZS17#..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-13030A0 |
GS171,JZS17#,UZS17#..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931-12040A5 |
GS171,JZS17#,UZS17#..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-13030A0 |
GS171,JZS17#,UZS17#..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931-12040A5 |
GS171,JZS17#,UZS17#..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-13030A0 |
GS171,JZS17#,UZS17#..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931-12040A5 |
GS171,JZS17#,UZS17#..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-13030A0 |
GS171,JZS17#,UZS17#..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931-12040A5 |
GS171,JZS17#,UZS17#..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-31060A1 |
JZS171,175..WG..ROY ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
2 | ||
| 71940-31060B1 |
JZS171,175..WG..ROY ｼ-ﾄ = TYPE C-*104,MEDIUM CHARCOAL,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-31060A1 |
JZS171,175..WG..ROY ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
2 | ||
| 71940-31060B1 |
JZS171,175..WG..ROY ｼ-ﾄ = TYPE C-*104,MEDIUM CHARCOAL,TRIM1# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-31010A1 |
JZS171,175..WG..ROY ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71960-31010B1 |
JZS171,175..WG..ROY ｼ-ﾄ = TYPE C-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 72615B - COVER, REAR SEAT LOCK STRIKER, RH | ||||
| 72615-31010A0 |
JZS171,173,175..WG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
2 | ||
| 72615-31010B1 |
JZS171,175..WG..ROY MD.CHARCOAL,TRIM1# |
2 | ||
| 72615B - COVER, REAR SEAT LOCK STRIKER, RH | ||||
| 72615-31010A0 |
JZS171,173,175..WG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
2 | ||
| 72615-31010B1 |
JZS171,175..WG..ROY MD.CHARCOAL,TRIM1# |
2 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-31010 |
JZS171,173,175..WG |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-31010 |
JZS171,173,175..WG |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33020A0 |
JZS171,173,175..WG IVORY,TRIM0# |
1 | ||
| 72646-33020B3 |
JZS171,175..WG..ROY MD.CHARCOAL,TRIM1# |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33020B3 |
JZS171,175..WG..ROY MD.CHARCOAL,TRIM1# |
1 | ||
| 72646-33020A0 |
JZS171,173,175..WG IVORY,TRIM0# |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-13030B3 |
JZS171,175..WG..ROY MD.CHARCOAL,TRIM1# |
1 | ||
| 72661-13030A0 |
JZS171,173,175..WG IVORY,TRIM0# |
1 | ||
| 72656C - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-13030A0 |
JZS171,173,175..WG IVORY,TRIM0# |
1 | ||
| 72661-13030B3 |
JZS171,175..WG..ROY MD.CHARCOAL,TRIM1# |
1 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-31010B1 |
JZS171,175..WG..ROY MD.CHARCOAL,TRIM1# |
1 | ||
| 72665-31010A0 |
JZS171,173,175..WG IVORY,TRIM0# |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72666-31010A0 |
JZS171,173,175..WG IVORY,TRIM0# |
1 | ||
| 72666-31010B1 |
JZS171,175..WG..ROY MD.CHARCOAL,TRIM1# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-14050 |
GS171,JZS171,173,175,179 |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-14050 |
GS171,JZS171,173,175,179 |
2 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-31010 |
JZS171,173,175..WG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-31010 |
JZS171,173,175..WG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 72806B - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP | ||||
| 72806-31010A1 |
JZS171,175..WG..ROY ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 72806-31010B1 |
JZS171,175..WG..ROY ｼ-ﾄ = TYPE C-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-31050B1 |
JZS171,175..WG..ROY ｼ-ﾄ = TYPE C-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 72830-31050A1 |
JZS171,175..WG..ROY ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 72868 - COVER, CENTER ARMREST HINGE, RH | ||||
| 72868-31010B1 |
JZS171,175..WG..ROY MD.CHARCOAL,TRIM1# |
1 | ||
| 72868-31010A0 |
JZS171,173,175..WG IVORY,TRIM0# |
1 | ||
| 85820X - MOTOR ASSY, POWER SEAT | ||||
| 85820-30730 |
JZS171,173..WG;JZS171..SED..ROY;JZS175,177,179,UZS17# |
2 | ||
| 85820-30730 |
JZS171,173..WG;JZS175,177,179,UZS17#;JZS171..SED..(ATHV,ROY) |
2 | ||
| 85820X - MOTOR ASSY, POWER SEAT | ||||
| 85820-30730 |
JZS171,173..WG;JZS171..SED..ROY;JZS175,177,179,UZS17# |
2 | ||
| 85820-30730 |
JZS171,173..WG;JZS175,177,179,UZS17#;JZS171..SED..(ATHV,ROY) |
2 | ||
| Common parts | ||||
| 90105-06194 | ||||
| 90109-08163 | ||||
| 90168-40125 | ||||
| 90176-04015 | ||||
| 90386-10033 | ||||
| 91511-80820 | ||||
| 91513-80820 | ||||
| 91531-80814 | ||||
| 91532-81025 | ||||
| 91635-60820 | ||||
| 93530-55012 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 6404 | ||||
| 7104 | ||||
