JZS171W-AWPQF (1999)
Toyota Crown/Crown Majesta
ILLUST NO. 3 OF 3(9909-0108)
| Part # | Description | Qty | Price |
|---|

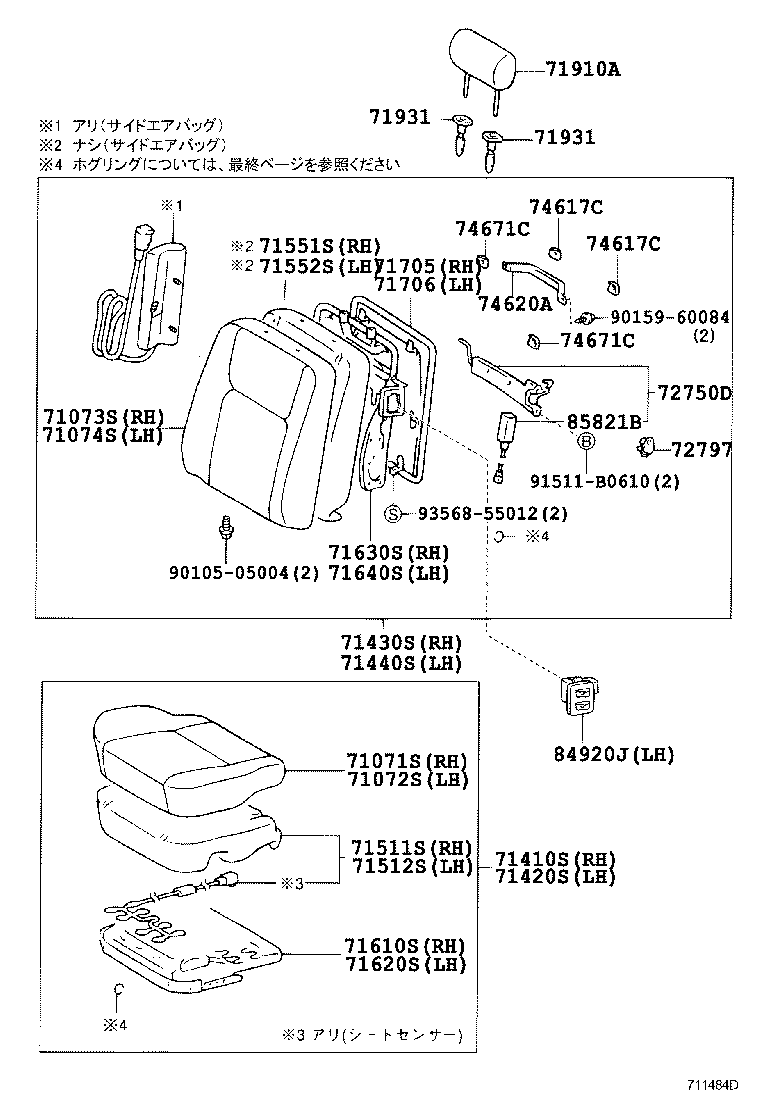

ILLUST NO. 1 OF 3(9909-0108)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3K190B0 |
GS171,JZS171,173,175,179..ROY,ROYEX,ROYG ｼ-ﾄ = TYPE C-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71071-3K190A0 |
GS171,JZS17#..A,ROY,ROYEX,ROYG ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-3F510A0 |
GS171,JZS171,173,175,179..ROY,ROYEX,ROYG ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71072-3F510B0 |
GS171,JZS171,173,175,179..ROY,ROYEX,ROYG ｼ-ﾄ = TYPE C-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3F720A0 |
GS171,JZS171,173,175,179..ROY,ROYEX ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F670A0 |
GS171,JZS171,173,175,179..ROY,ROYEX,ROYG ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F720B0 |
GS171,JZS171,173,175,179..ROY,ROYEX ｼ-ﾄ = TYPE C-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71073-3F670B0 |
GS171,JZS171,173,175,179..ROY,ROYEX,ROYG ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE C-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-3F720B0 |
GS171,JZS171,173,175,179..ROY,ROYEX ｼ-ﾄ = TYPE C-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71074-3F160A0 |
GS171,JZS171,173,175,179..ROY,ROYEX,ROYG ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71073-3F720A0 |
GS171,JZS171,173,175,179..ROY,ROYEX ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71074-3F160B0 |
GS171,JZS171,173,175,179..ROY,ROYEX,ROYG ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE C-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-3K450B0 |
GS171,JZS171,173,175,179..ROY,ROYEX,ROYG ***,ｼ-ﾄ = TYPE C-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71410-3K450A0 |
GS171,JZS171,173,175,179..ROY,ROYEX,ROYG ***,ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-3F650A0 |
GS171,JZS171,173,175,179..ROY,ROYEX,ROYG ***,ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71420-3F650B0 |
GS171,JZS171,173,175,179..ROY,ROYEX,ROYG ***,ｼ-ﾄ = TYPE C-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71040-30310A0 |
GS171,JZS171,173,175,179..ROY,ROYEX,ROYG ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71040-30310B0 |
GS171,JZS171,173,175,179..ROY,ROYEX,ROYG ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE C-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71040-30370A0 |
GS171,JZS171,173,175,179..ROY,ROYEX ***,ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71040-30370B0 |
GS171,JZS171,173,175,179..ROY,ROYEX ***,ｼ-ﾄ = TYPE C-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71070-30120A0 |
JZS171,175,179..ROY,ROYG ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼｰﾄ) & ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71070-30130B0 |
GS171,JZS171,173..ROY,ROYEX ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE C-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71070-30120B0 |
JZS171,175,179..ROY,ROYG ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼｰﾄ) & ｼ-ﾄ = TYPE C-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71070-30130A0 |
GS171,JZS171,173..ROY,ROYEX ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71070-30180A0 |
JZS171,175,179..ROY ***,ｼ-ﾄ = TYPE C-*104 & ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71070-30190B0 |
GS171,JZS171,173..ROY,ROYEX ***,ｼ-ﾄ = TYPE C-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71070-30180B0 |
JZS171,175,179..ROY ***,ｼ-ﾄ = TYPE C-*104 & ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71070-30190A0 |
GS171,JZS171,173..ROY,ROYEX ***,ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-3A080 |
GS171,JZS17#,UZS17#..A,ATHG,ATHV,C,ROY,ROYEX,ROYG ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 |
1 | ||
| 71511-3A080 |
JZS17#,UZS17#..A,ATHG,C,ROY,ROYEX,ROYG ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-30070 |
GS171,JZS17#,UZS17#..A,ATHG,ATHV,C,ROY,ROYEX,ROYG ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 |
1 | ||
| 71052-30070 |
JZS17#,UZS17#..A,ATHG,C,ROY,ROYEX,ROYG ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-3A060 |
JZS17#..A,ATHG,C,ROY,ROYEX ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 |
1 | ||
| 71551-3A060 |
GS171,JZS17#..A,ATHG,ATHV,C,ROY,ROYEX ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-30560 |
JZS171,175,177,179..A,ATHG,C,ROY ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 & ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71552-30570 |
GS171,JZS171,173,177..A,ROY,ROYEX ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 |
1 | ||
| 71552-30560 |
JZS171,175,177,179..A,ATHG,ATHV,C,ROY ｼ-ﾄ = TYPE A OR TYPE B OR TYPE C OR TYPE E-*104 & ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-30760 |
GS171,JZS17#,UZS17# |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-30400 |
GS171,JZS17#,UZS17# |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-3A270 |
GS171,JZS171,173,175,179 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-3A080 |
JZS175..ATHG;GS171,JZS171,173,177..A,ATH,ATHE,ATHV,ROY,ROYEX |
1 | ||
| 71640-3A070 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-30630B0 |
GS171,JZS171,173,175,179..ROY,ROYEX,ROYG ｼ-ﾄ = TYPE C-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71705-30630A0 |
GS171,JZS171,173,175,179..ROY,ROYEX,ROYG ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-30630B0 |
GS171,JZS171,173,175,179..ROY,ROYEX,ROYG ｼ-ﾄ = TYPE C-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71705-30630A0 |
GS171,JZS171,173,175,179..ROY,ROYEX,ROYG ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3A160B0 |
JZS171,179..ROY;JZS175..SED..ROY ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE C-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71910-3A160A0 |
GS171,JZS171,173,175,179..ROY,ROYEX,ROYG ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
2 | ||
| 71910-3A160A0 |
JZS171,179..ROY;JZS175..SED..ROY ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71910-3A160B0 |
GS171,JZS171,173,175,179..ROY,ROYEX,ROYG ｼ-ﾄ = TYPE C-*104,MEDIUM CHARCOAL,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-30110A0 |
GS171,JZS17#,UZS17# ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-30110B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ﾛｯｸ付,MD.CHARCOAL,TRIM1# |
2 | ||
| 71931-30030A0 |
GS171,JZS17#,UZS17# ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71931-30030B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ﾛｯｸ無,MD.CHARCOAL,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-30110A0 |
GS171,JZS17#,UZS17# ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-30110B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ﾛｯｸ付,MD.CHARCOAL,TRIM1# |
2 | ||
| 71931-30030A0 |
GS171,JZS17#,UZS17# ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71931-30030B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG ﾛｯｸ無,MD.CHARCOAL,TRIM1# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30230 |
GS171,JZS171,173,175,179 |
1 | ||
| 72797 - SPACER, LUMBAR SUPPORT | ||||
| 72797-30020 |
GS171,JZS171,173,175,179 |
1 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-30040A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
4 | ||
| 74617-30040B0 |
JZS175..SED..ROY;JZS171,177..A,ROY ｳｴﾙｷﾔﾌﾞ,MEDIUM CHARCOAL,TRIM1# |
2 | ||
| 74617-30040B0 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MEDIUM CHARCOAL,TRIM1# |
4 | ||
| 74617-30040A0 |
JZS175..SED..ROY;JZS171,177..A,ROY ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
2 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-30040A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
4 | ||
| 74617-30040B0 |
JZS175..SED..ROY;JZS171,177..A,ROY ｳｴﾙｷﾔﾌﾞ,MEDIUM CHARCOAL,TRIM1# |
2 | ||
| 74617-30040B0 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MEDIUM CHARCOAL,TRIM1# |
4 | ||
| 74617-30040A0 |
JZS175..SED..ROY;JZS171,177..A,ROY ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
2 | ||
| 74620A - GRIP ASSY, ASSIST, REAR | ||||
| 74620-30070A0 |
JZS175..SED..ROY;JZS171,177..A,ROY ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 74620-30070A0 |
GS171,JZS17#,UZS17# IVORY,TRIM0# |
2 | ||
| 74620-30070B1 |
JZS175..SED..ROY;JZS171,177..A,ROY ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM1# |
1 | ||
| 74620-30070B1 |
GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG MD.CHARCOAL,TRIM1# |
2 | ||
| 74671C - SUPPORT, ASSIST GRIP | ||||
| 74671-30010 |
GS171,JZS17#,UZS17# |
4 | ||
| 74671-30010 |
JZS171..WG..ROY ｳｴﾙｷﾔﾌﾞ |
2 | ||
| 74671C - SUPPORT, ASSIST GRIP | ||||
| 74671-30010 |
GS171,JZS17#,UZS17# |
4 | ||
| 74671-30010 |
JZS171..WG..ROY ｳｴﾙｷﾔﾌﾞ |
2 | ||
| 84920J - SWITCH ASSY, POWER SEAT | ||||
| 84920-30221A0 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG IVORY,TRIM0# |
1 | ||
| 84920-30221B1 |
JZS171,175,177,179,UZS17#..A,C,ROY,ROYG MD.CHARCOAL,TRIM1# |
1 | ||
| 85821B - MOTOR ASSY, POWER SEAT | ||||
| 85820-30700 |
GS171,JZS171,173,175,179 |
1 | ||
| Common parts | ||||
| 90105-05004 | ||||
| 90159-60084 | ||||
| 91511-B0610 | ||||
| 93568-55012 | ||||
