Toyota Crown/crown majesta JZS171 LOCK CYLINDER SET

JZS171W-AWPQF (1999)

Toyota Crown/Crown Majesta

Production Dec 1999 - Aug 2001

Engine 1JZGE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

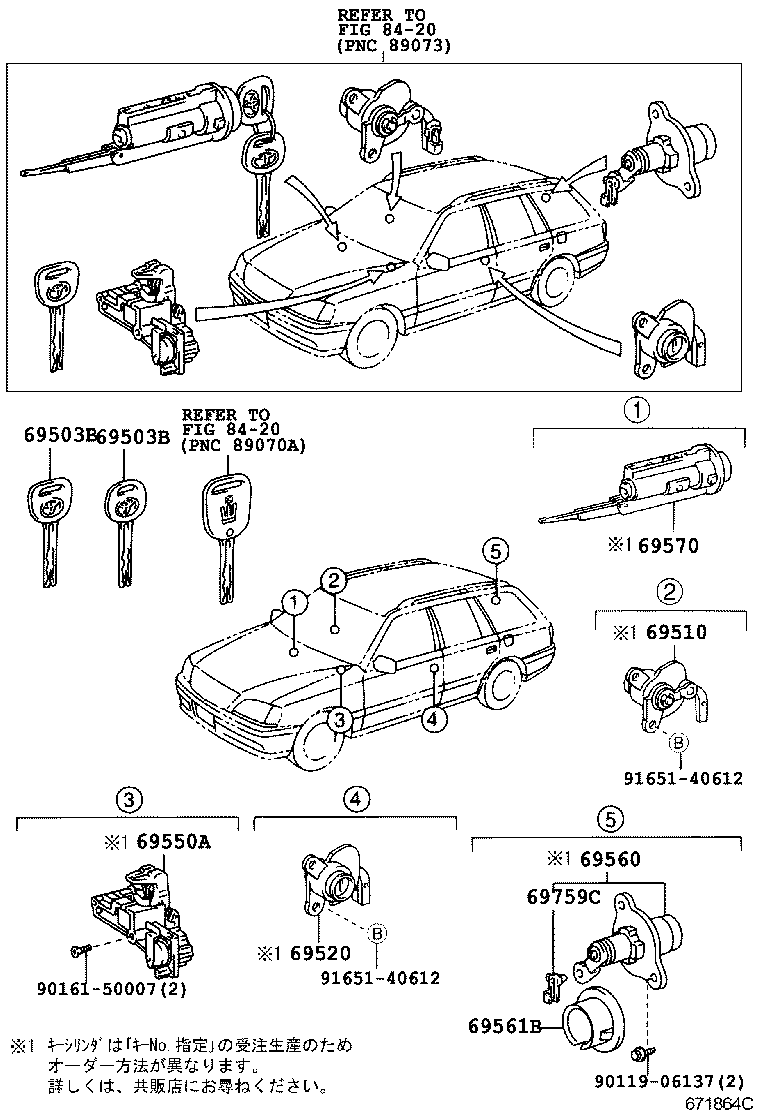

ﾅｼ(ｲﾓﾋﾞﾗｲｻﾞ)

Part #	Description	Period	Qty
69503B - KEY, CUT
69516-30120	GS171,JZS171,173,175,179 ｻﾌﾞｷｰ	09/1999 - 08/2001	1
69515-30220	GS171,JZS171,173,175,179 ﾏｽﾀｰｷｰ	09/1999 - 08/2001	1
69503B - KEY, CUT
69516-30120	GS171,JZS171,173,175,179 ｻﾌﾞｷｰ	09/1999 - 08/2001	1
69515-30220	GS171,JZS171,173,175,179 ﾏｽﾀｰｷｰ	09/1999 - 08/2001	1
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-30250	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH
69520-30220	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
69550A - CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK
69550-30140	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
69560 - CYLINDER ASSY, BACK DOOR LOCK
69560-31080	JZS171,173,175..WG	12/1999 - 08/2001	1
69561B - RETAINER, BACK DOOR LOCK CYLINDER
69561-31010D0	JZS171,173,175..WG RED MC.,3N1	12/1999 - 08/2001	1
69561-31010J1	JZS171,173,175..WG GRAYISH BLUE ME.,8N6	12/1999 - 08/2001	1
69561-31010B0	JZS171,173,175..WG SILVER ME.,1C0	12/1999 - 08/2001	1
69561-31010G0	JZS171,173,175..WG BLACKISH GREEN MC.CC,6R5	12/1999 - 08/2001	1
69561-31010A0	JZS171,173,175..WG WHITE PEARL CS.,062 ,2FQ	12/1999 - 08/2001	1
69561-31010J0	JZS171,173,175..WG DK.BLUE M.M.,8L4	12/1999 - 08/2001	1
69570 - CYLINDER ASSY, IGNITION SWITCH LOCK
69570-30220	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
69759C - SNAP, BACK DOOR LOCK CYLINDER
69759-24080	JZS171,173,175..WG	12/1999 - 08/2001	1
Common parts
90119-06137
90161-50007
91651-40612
Linked diagrams
8420

Click highlighted areas on diagram

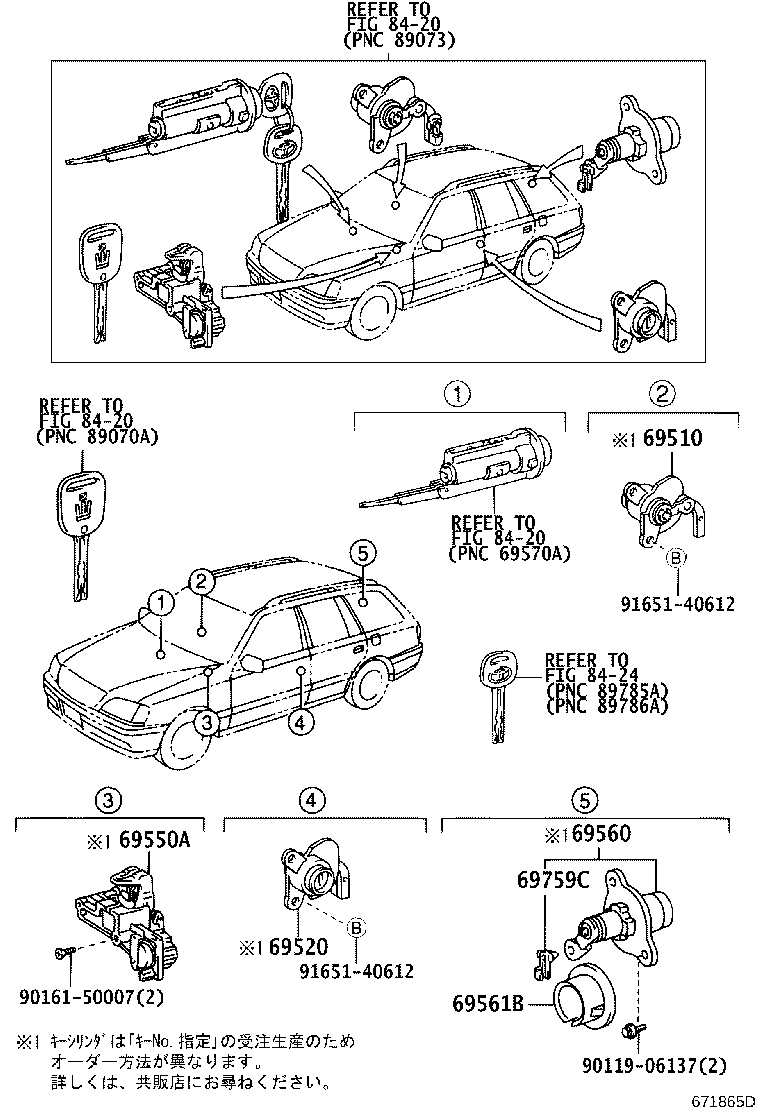

ｱﾘ(ｲﾓﾋﾞﾗｲｻﾞ)

Part #	Description	Period	Qty
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-30250	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH
69520-30220	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
69550A - CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK
69550-30140	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
69560 - CYLINDER ASSY, BACK DOOR LOCK
69560-31080	JZS171,173,175..WG	12/1999 - 08/2001	1
69561B - RETAINER, BACK DOOR LOCK CYLINDER
69561-31010D0	JZS171,173,175..WG RED MC.,3N1	12/1999 - 08/2001	1
69561-31010J1	JZS171,173,175..WG GRAYISH BLUE ME.,8N6	12/1999 - 08/2001	1
69561-31010B0	JZS171,173,175..WG SILVER ME.,1C0	12/1999 - 08/2001	1
69561-31010G0	JZS171,173,175..WG BLACKISH GREEN MC.CC,6R5	12/1999 - 08/2001	1
69561-31010A0	JZS171,173,175..WG WHITE PEARL CS.,062 ,2FQ	12/1999 - 08/2001	1
69561-31010J0	JZS171,173,175..WG DK.BLUE M.M.,8L4	12/1999 - 08/2001	1
69759C - SNAP, BACK DOOR LOCK CYLINDER
69759-24080	JZS171,173,175..WG	12/1999 - 08/2001	1
Common parts
90119-06137
90161-50007
91651-40612
Linked diagrams
8420
8424
