JZS171W-AWPQF (1999)

Toyota Crown/Crown Majesta

Production Dec 1999 - Aug 2001
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9912- )WG

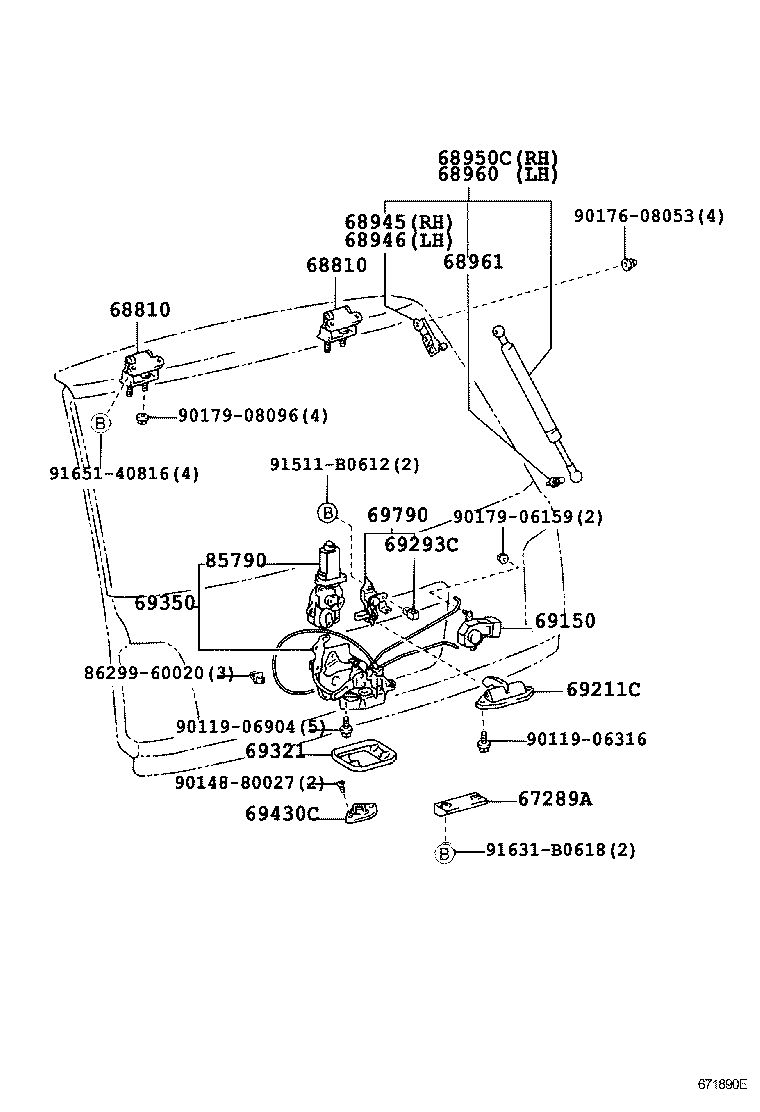

Click highlighted areas on diagram

diagram 67289A 68810 68810 68945 68946 68950C 68960 68961 69150 69211C 69293C 69321 69350 69430C 69790 85790 8629960020 9011906316 9011906904 9014880027 9017608053 9017906159 9017908096 91511B0612 91631B0618 9165140816
Part # Description Qty Price
67289A - DAMPER, BACK DOOR
67372-31010

JZS171,173,175..WG

 1
68810 - HINGE ASSY, BACK DOOR, UPPER
68810-44010

JZS171,173,175..WG

 2
68810 - HINGE ASSY, BACK DOOR, UPPER
68810-44010

JZS171,173,175..WG

 2
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-31020

JZS171,173,175..WG

 1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68946-31020

JZS171,173,175..WG

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-39345

JZS171,173,175..WG

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-39185

JZS171,173,175..WG

 1
68961 - BOLT, BACK DOOR STAY
68961-33010

JZS171,173,175..WG

 2
69150 - ACTUATOR ASSY, BACK DOOR LOCK
69150-31010

JZS171,173,175..WG

 1
69211C - HANDLE, BACK DOOR OUTSIDE
69023-31010

JZS171,173,175..WG

 1
69293C - SNAP, BACK DOOR HANDLE
69293-30030

JZS171,173,175..WG

 1
69321 - COVER, BACK DOOR LOCK
69321-31010

JZS171,173,175..WG

 1
69350 - LOCK ASSY, BACK DOOR
69350-31020

JZS171,173,175..WG

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-31020

JZS171,173,175..WG

 1
69790 - CONTROL ASSY, BACK DOOR LOCK
69790-31050

JZS171,173,175..WG

 1
85790 - MOTOR ASSY, BACK DOOR CLOSER
85790-31010

JZS171,173,175..WG

 1
Common parts
86299-60020
90119-06316
90119-06904
90148-80027
90176-08053
90179-06159
90179-08096
91511-B0612
91631-B0618
91651-40816
