JZS171W-AWPQF (1999)

Toyota Crown/Crown Majesta

Production Dec 1999 - Aug 2001
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

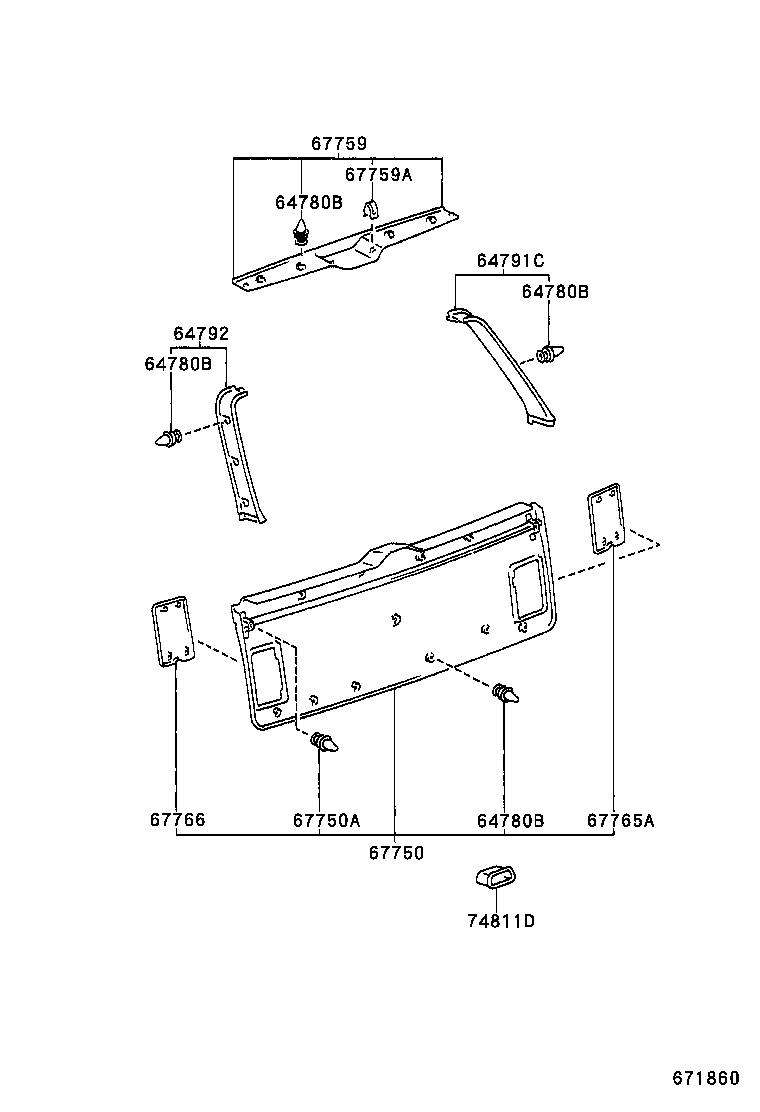

ILLUST NO. 1 OF 2(9912- )WG

Click highlighted areas on diagram

diagram 64780B 64780B 64780B 64780B 64791C 64792 67750 67750A 67759 67759A 67765A 67766 74811D
Part # Description Qty Price
64780B - CLIP(FOR BACK DOOR TRIM PANEL)
90467-10161

JZS171,173,175..WG

 18
64780B - CLIP(FOR BACK DOOR TRIM PANEL)
90467-10161

JZS171,173,175..WG

 18
64780B - CLIP(FOR BACK DOOR TRIM PANEL)
90467-10161

JZS171,173,175..WG

 18
64780B - CLIP(FOR BACK DOOR TRIM PANEL)
90467-10161

JZS171,173,175..WG

 18
64791C - COVER, BACK DOOR TRIM, RH
64791-31030E0

JZS171,173,175..WG

SANDAL WOOD,TRIM0#

 1
64791-31030B0

JZS171,173,175..WG

DK.CHARCOAL,TRIM1#

 1
64792 - COVER, BACK DOOR TRIM, LH
64792-31010B0

JZS171,173,175..WG

DK.CHARCOAL,TRIM1#

 1
64792-31010E0

JZS171,173,175..WG

SANDAL WOOD,TRIM0#

 1
67750 - BOARD ASSY, BACK DOOR TRIM
67750-31010E0

JZS171,173,175..WG

SANDAL WOOD,TRIM0#

 1
67750-31010B0

JZS171,175..WG..ROY

DK.CHARCOAL,TRIM1#

 1
67750A - CLIP(FOR BACK DOOR TRIM)
90467-10188

JZS171,173,175..WG

 5
67759 - BOARD, BACK DOOR TRIM, UPPER
67759-31010B0

JZS171,173,175..WG

DK.CHARCOAL,TRIM1#

 1
67759-31010E0

JZS171,173,175..WG

SANDAL WOOD,TRIM0#

 1
67759A - CLIP(FOR BACK DOOR TRIM BOARD)
90468-04147

JZS171,173,175..WG

 2
67765A - COVER, BACK DOOR SERVICE HOLE, NO.1
67765-31010B2

JZS171,175..WG..ROY

MEDIUM CHARCOAL,TRIM1#

 1
67765-31010A1

JZS171,173,175..WG

IVORY,TRIM0#

 1
67766 - COVER, BACK DOOR SERVICE HOLE, NO.2
67766-31030B2

JZS171,175..WG..ROY

MEDIUM CHARCOAL,TRIM1#

 1
67766-31030A1

JZS171,173,175..WG

IVORY,TRIM0#

 1
74811D - HANDLE, DOOR PULL
74811-13010C0

JZS171,173,175..WG

BLACK,TRIM0#,1#

 1

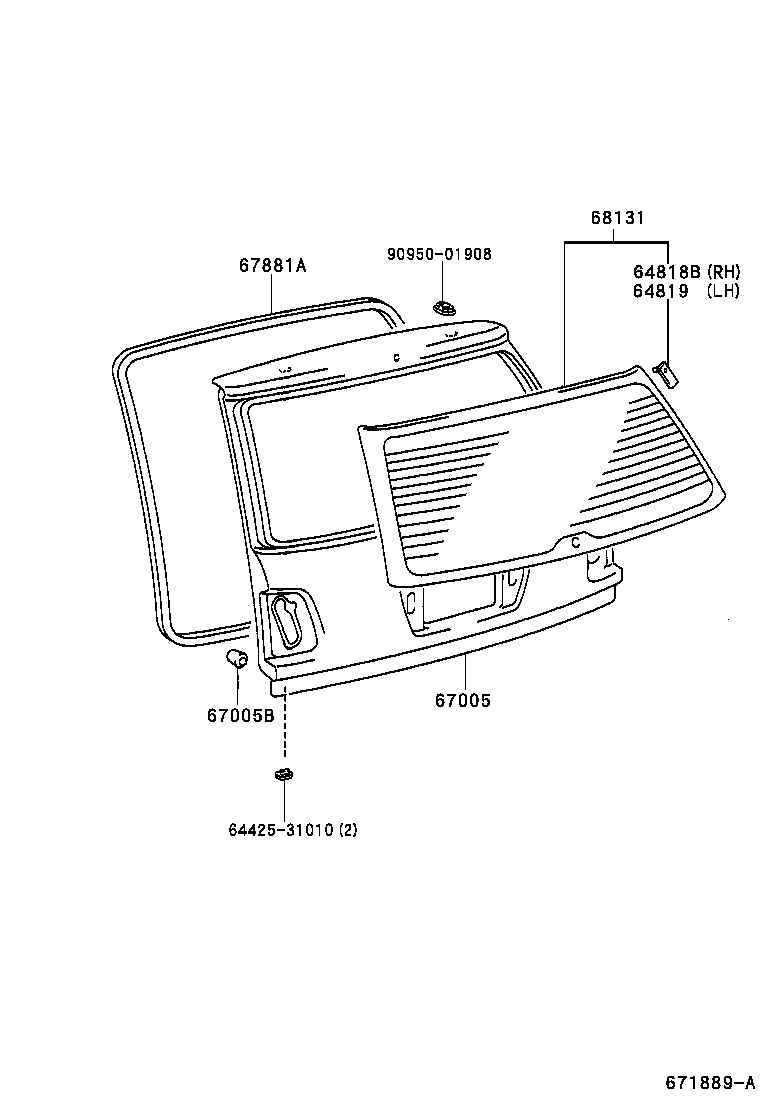

ILLUST NO. 2 OF 2(9912- )WG

Click highlighted areas on diagram

diagram 6442531010 64818B 64819 67005 67005B 67881A 68131 9095001908
Part # Description Qty Price
64818B - SPACER, BACK DOOR GLASS, NO.1
64818-31010

JZS171,173,175..WG

 1
64819 - SPACER, BACK WINDOW GLASS, NO.2
64819-31010

JZS171,173,175..WG

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-31100

JZS171,173,175..WG

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-09068

JZS171,173,175..WG

 2
67881A - WEATHERSTRIP, BACK DOOR
67881-31011

JZS171,173,175..WG

 1
67881-31010

JZS171,173,175..WG

 1
68131 - GLASS, BACK DOOR
68131-31050

JZS171,173,175..WG

*UVCEHT厚さ=3.5ﾀﾞｰｸｸﾞﾘｰﾝ

 1
68131-31030

JZS171,175..WG..(ATHE,ROY)

*UVCEHT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
68131-31060

JZS171,173,175..WG

*UVCEHT厚さ=3.5ﾀﾞｰｸｸﾞﾘｰﾝ,ｱﾘ(ﾃﾚﾋﾞ)

 1
68131-31040

JZS171,175..WG..(ATHE,ROY)

*UVCEHT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾃﾚﾋﾞ)

 1
Common parts
64425-31010
90950-01908
