JZS171W-AWPQF (1999)

Toyota Crown/Crown Majesta

Production Dec 1999 - Aug 2001
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(9909-0108)

Click highlighted areas on diagram

diagram
Part # Description Qty Price

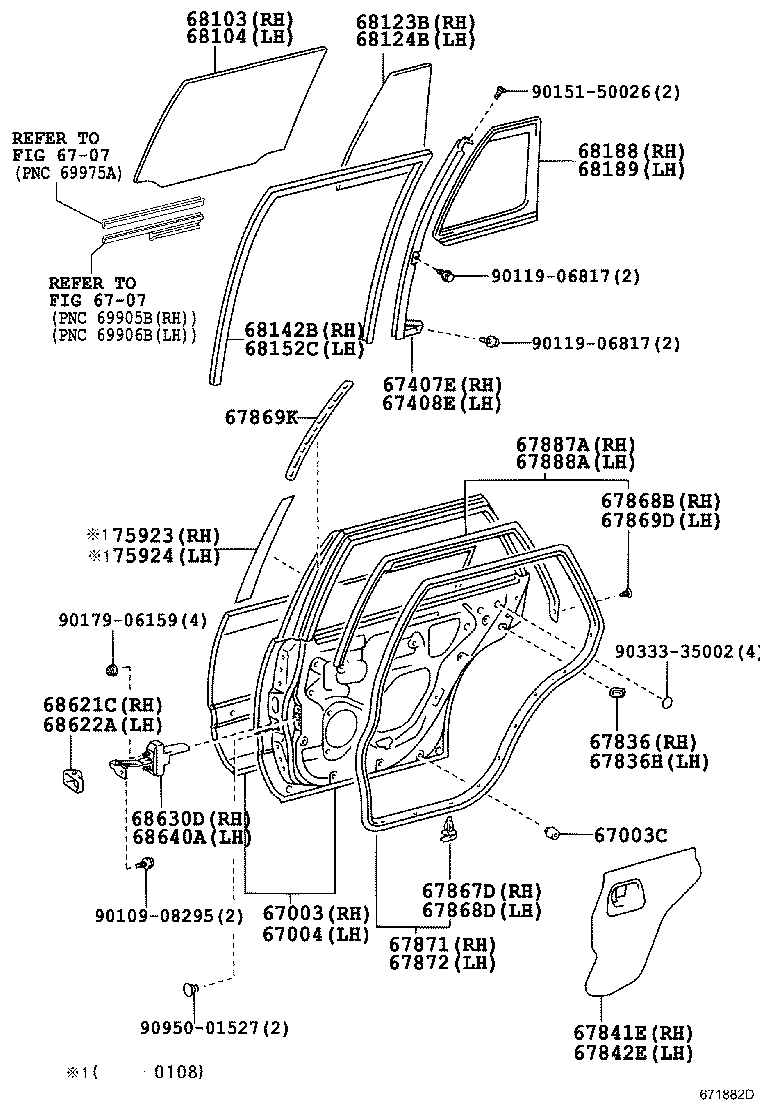

ILLUST NO. 1 OF 3(9912- )WG

Click highlighted areas on diagram

ﾄﾞｱﾊﾟﾈﾙ

diagram 67003 67003C 67004 6707 6707 67407E 67408E 67836 67836H 67841E 67842E 67867D 67868B 67868D 67869D 67869K 67871 67872 67887A 67888A 68103 68104 68123B 68124B 68142B 68152C 68188 68189 68621C 68622A 68630D 68640A 75923 75924 9010908295 9011906817 9011906817 9015150026 9017906159 9033335002 9095001527
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-31090

JZS171,173,175..WG

 1
67003C - CUSHION, REAR DOOR PANEL
90541-10027

GS171,JZS17#,UZS17#

 4
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-31090

JZS171,173,175..WG

 1
67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-31010

JZS171,173,175..WG

 1
67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-31010

JZS171,173,175..WG

 1
67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836-14010

GS171,JZS171,173,175,179

 1
67836-14010

JZS17#,UZS17#

 1
67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH
67836-14010

JZS17#,UZS17#

 1
67836-14010

GS171,JZS171,173,175,179

 1
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-30390

GS171,JZS17#,UZS17#

 1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67842-30250

GS171,JZS17#,UZS17#

 1
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-12150

GS171,JZS17#,UZS17#

ﾅﾁｭﾗﾙ

 16
67493-32010

GS171,JZS17#,UZS17#

ｲｴﾛｰ

 1
67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)
90467-05017C0

GS171,JZS171,173,175,179

BLACK,TRIM0#,1#

 1
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67867-12150

GS171,JZS17#,UZS17#

ﾅﾁｭﾗﾙ

 16
67493-32010

GS171,JZS17#,UZS17#

ｲｴﾛｰ

 1
67869D - CLIP, DOOR WEATHERSTRIP
90467-05017C0

GS171,JZS171,173,175,179

BLACK,TRIM0#,1#

 1
67869K - CLIP, DOOR WEATHERSTRIP, LH
67869-30080

GS171,JZS17#,UZS17#

 2
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-31021

JZS171,173,175..WG

 1
67871-31020

JZS171,173,175..WG

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-31021

JZS171,173,175..WG

 1
67872-31020

JZS171,173,175..WG

 1
67887A - WEATHERSTRIP, REAR DOOR, NO.2 RH
67887-31010

JZS171,173,175..WG

 1
67887-31011

JZS171,173,175..WG

 1
67888A - WEATHERSTRIP, REAR DOOR, NO.2 LH
67888-31010

JZS171,173,175..WG

 1
67888-31011

JZS171,173,175..WG

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68113-31030

JZS171,173,175..WG

*UVCT,厚さ=4.0,ﾀﾞｰｸｸﾞﾘｰﾝ

 1
68113-31020

JZS171,175..WG..(ATHE,ROY)

*UVCT,厚さ=4.0,ｸﾞﾘｰﾝ

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68114-31020

JZS171,175..WG..(ATHE,ROY)

*UVCT,厚さ=4.0,ｸﾞﾘｰﾝ

 1
68114-31030

JZS171,173,175..WG

*UVCT,厚さ=4.0,ﾀﾞｰｸｸﾞﾘｰﾝ

 1
68123B - GLASS, REAR DOOR QUARTER WINDOW, RH
68123-31020

JZS171,175..WG..(ATHE,ROY)

*UVCT,厚さ=4.0,ｸﾞﾘｰﾝ

 1
68123-31030

JZS171,173,175..WG

*UVCT,厚さ=4.0,ﾀﾞｰｸｸﾞﾘｰﾝ

 1
68124B - GLASS, REAR DOOR QUARTER WINDOW, LH
68124-31020

JZS171,175..WG..(ATHE,ROY)

*UVCT,厚さ=4.0,ｸﾞﾘｰﾝ

 1
68124-31030

JZS171,173,175..WG

*UVCT,厚さ=4.0,ﾀﾞｰｸｸﾞﾘｰﾝ

 1
68142B - RUN, REAR DOOR WINDOW, RH
68142-31011

JZS171,173,175..WG

 1
68142-31010

JZS171,173,175..WG

 1
68142-31010

JZS171,173,175..WG

 1
68152C - RUN, REAR DOOR GLASS, LH
68152-31011

JZS171,173,175..WG

 1
68152-31010

JZS171,173,175..WG

 1
68152-31010

JZS171,173,175..WG

 1
68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68188-31010

JZS171,173,175..WG

 1
68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68189-31010

JZS171,173,175..WG

 1
68621C - COVER, REAR DOOR CHECK, RH
68621-33010

GS171,JZS17#,UZS17#

 1
68622A - COVER, REAR DOOR CHECK, LH
68622-33010

GS171,JZS17#,UZS17#

 1
68630D - CHECK ASSY, REAR DOOR, RH
68630-30180

GS171,JZS17#,UZS17#

 1
68640A - CHECK ASSY, REAR DOOR, LH
68640-30080

GS171,JZS17#,UZS17#

 1
75923 - TAPE, BLACK OUT, NO.2 RH
75923-30011

GS171,JZS17#,UZS17#

 1
75923-30010

JZS17#,UZS17#

 1
75924 - TAPE, BLACK OUT, NO.2 LH
75924-30010

JZS17#,UZS17#

 1
75924-30011

GS171,JZS17#,UZS17#

 1
Common parts
90109-08295
90119-06817
90151-50026
90179-06159
90333-35002
90950-01527
Linked diagrams
6707
