JZS171W-AWPQF (1999)
Toyota Crown/Crown Majesta

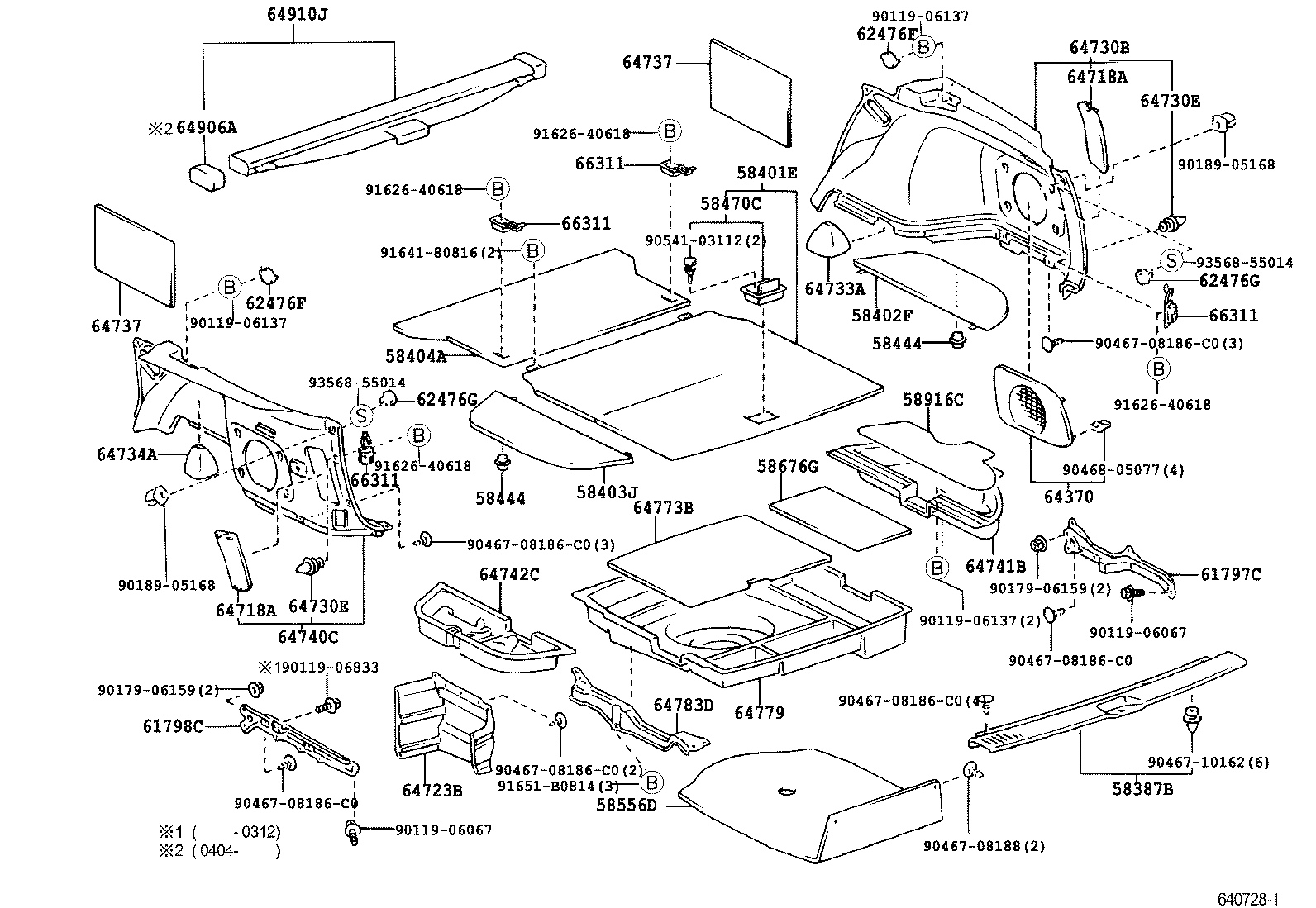

ILLUST NO. 1 OF 2(9912- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58387B - PLATE, REAR FLOOR FINISH | ||||
| 58387-31010A0 |
JZS171,173,175..WG IVORY,TRIM0# |
1 | ||
| 58387-31010B1 |
JZS171,175..WG..ROY MD.CHARCOAL,TRIM1# |
1 | ||
| 58401E - BOARD SUB-ASSY, DECK | ||||
| 58410-31020B0 |
JZS171,175..WG..ROY MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 58410-31020A0 |
JZS171,173,175..WG IVORY,TRIM0# |
1 | ||
| 58402F - BOARD SUB-ASSY, REAR FLOOR, NO.2 | ||||
| 58402-31010A0 |
JZS171,173,175..WG IVORY,TRIM0# |
1 | ||
| 58402-31010B0 |
JZS171,175..WG..ROY MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 58403J - BOARD SUB-ASSY, REAR FLOOR, NO.3 | ||||
| 58403-31010B0 |
JZS171,175..WG..ROY MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 58403-31010A0 |
JZS171,173,175..WG IVORY,TRIM0# |
1 | ||
| 58404A - BOARD SUB-ASSY, REAR FLOOR, NO.4 | ||||
| 58404-31010A0 |
JZS171,173,175..WG IVORY,TRIM0# |
1 | ||
| 58404-31010B0 |
JZS171,175..WG..ROY MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 58444 - CUSHION, DECK BOARD, NO.2 | ||||
| 58444-31010 |
JZS171,173,175..WG |
2 | ||
| 58444 - CUSHION, DECK BOARD, NO.2 | ||||
| 58444-31010 |
JZS171,173,175..WG |
2 | ||
| 58470C - HANDLE ASSY, DECK BOARD | ||||
| 58470-33010B3 |
JZS171,175..WG..ROY MD.CHARCOAL,TRIM1# |
1 | ||
| 58470-33010A0 |
JZS171,173,175..WG IVORY,TRIM0# |
1 | ||
| 58556D - SILENCER, REAR FLOOR | ||||
| 58556-31010 |
JZS171,173,175..WG |
1 | ||
| 58676G - PAD, REAR FLOOR SILENCER, NO.1 RH | ||||
| 58676-31010 |
JZS171,173,175..WG |
1 | ||
| 58916C - MAT, BOX BOTTOM | ||||
| 58916-31010 |
JZS171,173,175..WG |
1 | ||
| 61797C - STAY, REAR WHEEL OPENING, REAR RH | ||||
| 61797-31010 |
JZS171,173,175..WG |
1 | ||
| 61798C - STAY, REAR WHEEL OPENING, REAR LH | ||||
| 61798-31020 |
JZS171,173,175..WG ｱﾘ(ｴｱ ﾋﾟﾕﾘﾌｱｲﾔ) |
1 | ||
| 61798-31010 |
JZS171,173,175..WG |
1 | ||
| 62476F - CAP, ROOF SIDE INNER GARNISH, NO.1 | ||||
| 62476-31010B0 |
JZS171,173,175..WG DK.CHARCOAL,TRIM1# |
2 | ||
| 62476-31010E0 |
JZS171,173,175..WG SANDAL WOOD,TRIM0# |
2 | ||
| 62476F - CAP, ROOF SIDE INNER GARNISH, NO.1 | ||||
| 62476-31010B0 |
JZS171,173,175..WG DK.CHARCOAL,TRIM1# |
2 | ||
| 62476-31010E0 |
JZS171,173,175..WG SANDAL WOOD,TRIM0# |
2 | ||
| 62476G - CAP, ROOF SIDE INNER GARNISH, NO.2 | ||||
| 62476-31020B0 |
JZS171,173,175..WG DK.CHARCOAL,TRIM1# |
2 | ||
| 62476-31020E0 |
JZS171,173,175..WG SANDAL WOOD,TRIM0# |
2 | ||
| 62476G - CAP, ROOF SIDE INNER GARNISH, NO.2 | ||||
| 62476-31020B0 |
JZS171,173,175..WG DK.CHARCOAL,TRIM1# |
2 | ||
| 62476-31020E0 |
JZS171,173,175..WG SANDAL WOOD,TRIM0# |
2 | ||
| 64370 - GRILLE ASSY, REAR SPEAKER | ||||
| 64370-31010B0 |
JZS171,175..WG..ROY MEDIUM CHACOAL,TRIM1# |
1 | ||
| 64370-31010A0 |
JZS171,173,175..WG IVORY,TRIM0# |
1 | ||
| 64718A - COVER, DECK TRIM SERVICE HOLE | ||||
| 64718-31020A1 |
JZS171,173,175..WG IVORY,TRIM0#,右側 |
1 | ||
| 64718-31030A1 |
JZS171,173,175..WG IVORY,TRIM0#,左側 |
1 | ||
| 64718-31020B2 |
JZS171,175..WG..ROY MEDIUM CHARCOAL,TRIM1#,右側 |
1 | ||
| 64718-31030B2 |
JZS171,175..WG..ROY MEDIUM CHARCOAL,TRIM1#,左側 |
1 | ||
| 64718A - COVER, DECK TRIM SERVICE HOLE | ||||
| 64718-31020A1 |
JZS171,173,175..WG IVORY,TRIM0#,右側 |
1 | ||
| 64718-31030A1 |
JZS171,173,175..WG IVORY,TRIM0#,左側 |
1 | ||
| 64718-31020B2 |
JZS171,175..WG..ROY MEDIUM CHARCOAL,TRIM1#,右側 |
1 | ||
| 64718-31030B2 |
JZS171,175..WG..ROY MEDIUM CHARCOAL,TRIM1#,左側 |
1 | ||
| 64723B - COVER, LUGGAGE COMPARTMENT TRIM SIDE, LOWER | ||||
| 64723-31010 |
JZS171,173,175..WG |
1 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-31010B0 |
JZS171..WG..ROY DK.CHARCOAL,TRIM1# |
1 | ||
| 64730-31010E0 |
JZS171,173..WG SANDAL WOOD,TRIM0# |
1 | ||
| 64730-31020E0 |
JZS171,173,175..WG ｱﾘ(7 ｽﾋﾟ-ｶ),SANDAL WOOD,TRIM0# |
1 | ||
| 64730-31020B0 |
JZS171,175..WG..ROY ｱﾘ(7 ｽﾋﾟ-ｶ),DK.CHARCOAL,TRIM1# |
1 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-10161 |
JZS171,173,175..WG |
8 | ||
| 64730E - CLIP(FOR DECK TRIM SIDE BOARD) | ||||
| 90467-10161 |
JZS171,173,175..WG |
8 | ||
| 64733A - PAD, DECK TRIM SIDE, NO.1 | ||||
| 64733-31010 |
JZS171,173,175..WG |
1 | ||
| 64734A - PAD, DECK TRIM SIDE, NO.2 | ||||
| 64734-31010 |
JZS171,173,175..WG |
1 | ||
| 64737 - PAD, DECK TRIM SIDE SILENCER | ||||
| 64737-31010 |
JZS171,173,175..WG |
1 | ||
| 64737-31010 |
JZS171,173,175..WG ｱﾘ(ｴｱ ﾋﾟﾕﾘﾌｱｲﾔ & ｽﾋﾟ-ｶ) |
2 | ||
| 64737 - PAD, DECK TRIM SIDE SILENCER | ||||
| 64737-31010 |
JZS171,173,175..WG |
1 | ||
| 64737-31010 |
JZS171,173,175..WG ｱﾘ(ｴｱ ﾋﾟﾕﾘﾌｱｲﾔ & ｽﾋﾟ-ｶ) |
2 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-31050E0 |
JZS171,173,175..WG SANDAL WOOD,TRIM0# |
1 | ||
| 64740-31060E0 |
JZS171,173,175..WG ｱﾘ(ｴｱ ﾋﾟﾕﾘﾌｱｲﾔ),SANDAL WOOD,TRIM0# |
1 | ||
| 64740-31060B0 |
JZS171,175..WG..ROY ｱﾘ(ｴｱ ﾋﾟﾕﾘﾌｱｲﾔ),DK.CHARCOAL,TRIM1# |
1 | ||
| 64740-31050B0 |
JZS171,175..WG..ROY DK.CHARCOAL,TRIM1# |
1 | ||
| 64741B - BOX, DECK SIDE TRIM, RH | ||||
| 64741-31010 |
JZS171,173,175..WG |
1 | ||
| 64742C - BOX, DECK SIDE TRIM, LH | ||||
| 64742-31010 |
JZS171,173,175..WG |
1 | ||
| 64773B - PAD, SPARE WHEEL COVER, NO.2 | ||||
| 64773-31010 |
JZS171,173,175..WG |
1 | ||
| 64779 - TRAY, SPARE WHEEL COVER | ||||
| 64779-31010 |
JZS171,173,175..WG |
1 | ||
| 64783D - REINFORCEMENT, SPARE WHEEL COVER | ||||
| 64783-31010 |
JZS171,173,175..WG |
1 | ||
| 64910J - COVER ASSY, TONNEAU | ||||
| 64910-31021B0 |
JZS171,173,175..WG DK.CHARCOAL,TRIM1# |
1 | ||
| 64910-31021E0 |
JZS171,173,175..WG SANDAL WOOD,TRIM0# |
1 | ||
| 64910-31020E0 |
JZS171,173,175..WG SANDAL WOOD,TRIM0# |
1 | ||
| 64910-31020B0 |
JZS171,173,175..WG DK.CHARCOAL,TRIM1# |
1 | ||
| 66311 - HOOK, ROPE | ||||
| 66310-31010A0 |
JZS171,173,175..WG IVORY,TRIM0# |
6 | ||
| 66310-31010B1 |
JZS171,175..WG..ROY MD.CHARCOAL,TRIM1# |
6 | ||
| 66311 - HOOK, ROPE | ||||
| 66310-31010A0 |
JZS171,173,175..WG IVORY,TRIM0# |
6 | ||
| 66310-31010B1 |
JZS171,175..WG..ROY MD.CHARCOAL,TRIM1# |
6 | ||
| 66311 - HOOK, ROPE | ||||
| 66310-31010A0 |
JZS171,173,175..WG IVORY,TRIM0# |
6 | ||
| 66310-31010B1 |
JZS171,175..WG..ROY MD.CHARCOAL,TRIM1# |
6 | ||
| 66311 - HOOK, ROPE | ||||
| 66310-31010A0 |
JZS171,173,175..WG IVORY,TRIM0# |
6 | ||
| 66310-31010B1 |
JZS171,175..WG..ROY MD.CHARCOAL,TRIM1# |
6 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 90119-06137 | ||||
| 90119-06833 | ||||
| 90179-06159 | ||||
| 90189-05168 | ||||
| 90467-08186C0 | ||||
| 90467-08188 | ||||
| 90467-10162 | ||||
| 90468-05077 | ||||
| 90541-03112 | ||||
| 91626-40618 | ||||
| 91641-80816 | ||||
| 91651-B0814 | ||||
| 93568-55014 | ||||

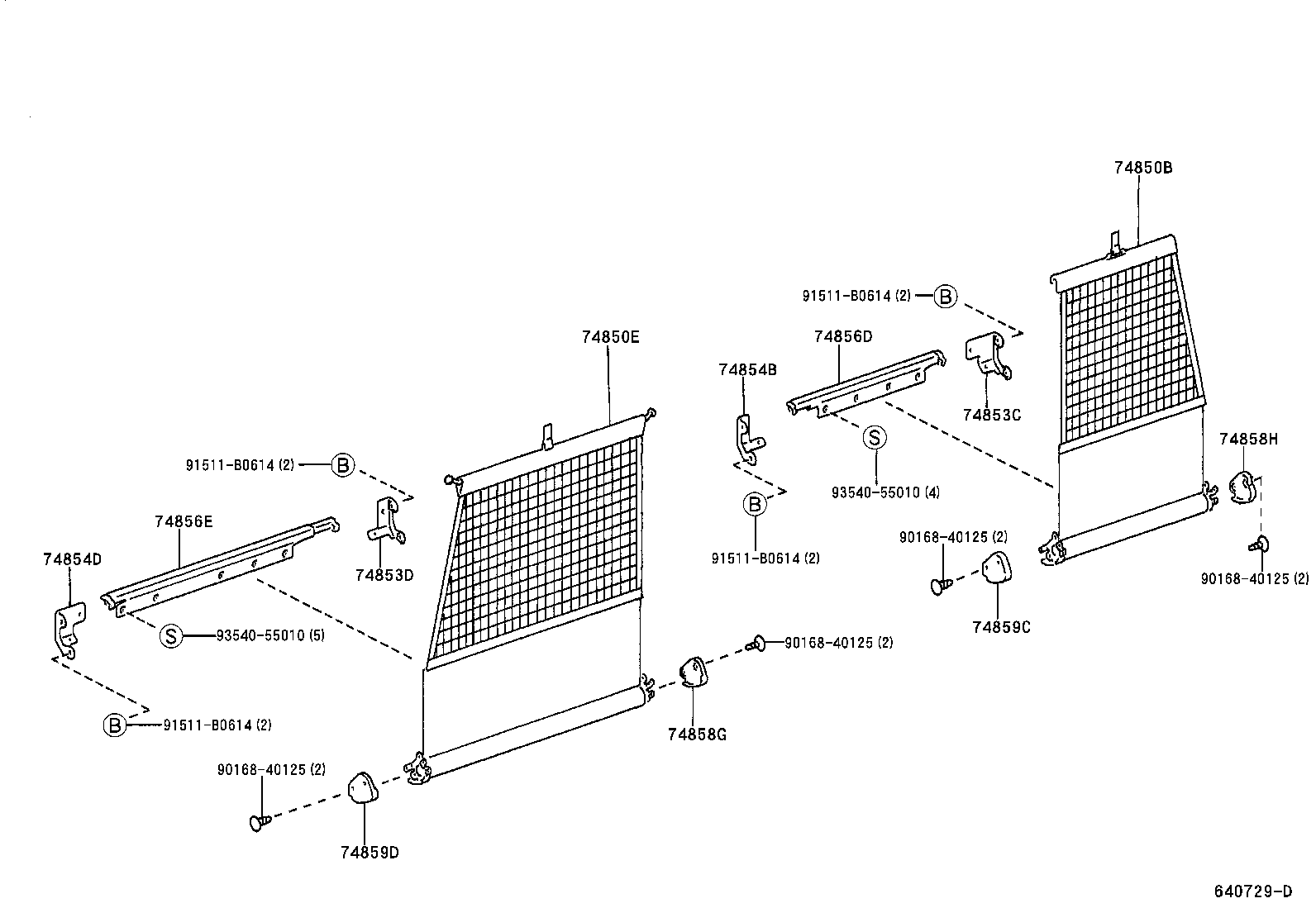

ILLUST NO. 2 OF 2(9912- )WG
ｱﾘ(ﾙ-ﾑﾊﾟ-ﾃｲｼﾖﾝ ﾈﾂﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74850B - SEPARATOR SUB-ASSY, REAR | ||||
| 74850-31010 |
JZS171,173,175..WG |
1 | ||
| 74850E - SEPARATOR ASSY, REAR | ||||
| 74850-31020 |
JZS171,173,175..WG |
1 | ||
| 74853C - BRACKET, SEPARATOR, LOWER RH | ||||
| 74853-31010 |
JZS171,173,175..WG |
1 | ||
| 74853D - BRACKET, SEPARATOR, LOWER RH | ||||
| 74853-31020 |
JZS171,173,175..WG |
1 | ||
| 74854B - BRACKET, SEPARATOR, LOWER LH | ||||
| 74854-31010 |
JZS171,173,175..WG |
1 | ||
| 74854D - BRACKET, SEPARATOR, LWR LH | ||||
| 74854-31020 |
JZS171,173,175..WG |
1 | ||
| 74856D - BAR, SEPARATOR, LWR | ||||
| 74856-31010 |
JZS171,173,175..WG ｱﾘ(ﾙ-ﾑﾊﾟ-ﾃ-ｼﾖﾝ ﾈﾂﾄ) |
1 | ||
| 74856E - BAR, SEPARATOR, LWR | ||||
| 74856-31020 |
JZS171,173,175..WG ｱﾘ(ﾙ-ﾑﾊﾟ-ﾃ-ｼﾖﾝ ﾈﾂﾄ) |
1 | ||
| 74858G - COVER, REAR SEPARATOR BAR, RH | ||||
| 74858-31010 |
JZS171,173,175..WG ｱﾘ(ﾙ-ﾑﾊﾟ-ﾃ-ｼﾖﾝ ﾈﾂﾄ) |
1 | ||
| 74858H - COVER, REAR SEPARATOR BAR, RH | ||||
| 74858-31020 |
JZS171,173,175..WG |
1 | ||
| 74859C - COVER, REAR SEPARATOR BAR, LH | ||||
| 74859-31010 |
JZS171,173,175..WG ｱﾘ(ﾙ-ﾑﾊﾟ-ﾃ-ｼﾖﾝ ﾈﾂﾄ) |
1 | ||
| 74859D - COVER, REAR SEPARATOR BAR, LH | ||||
| 74859-31020 |
JZS171,173,175..WG |
1 | ||
| Common parts | ||||
| 90168-40125 | ||||
| 91511-B0614 | ||||
| 93540-55010 | ||||
