JZS171W-AWPQF (1999)

Toyota Crown/Crown Majesta

Production Dec 1999 - Aug 2001
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9912- )WG

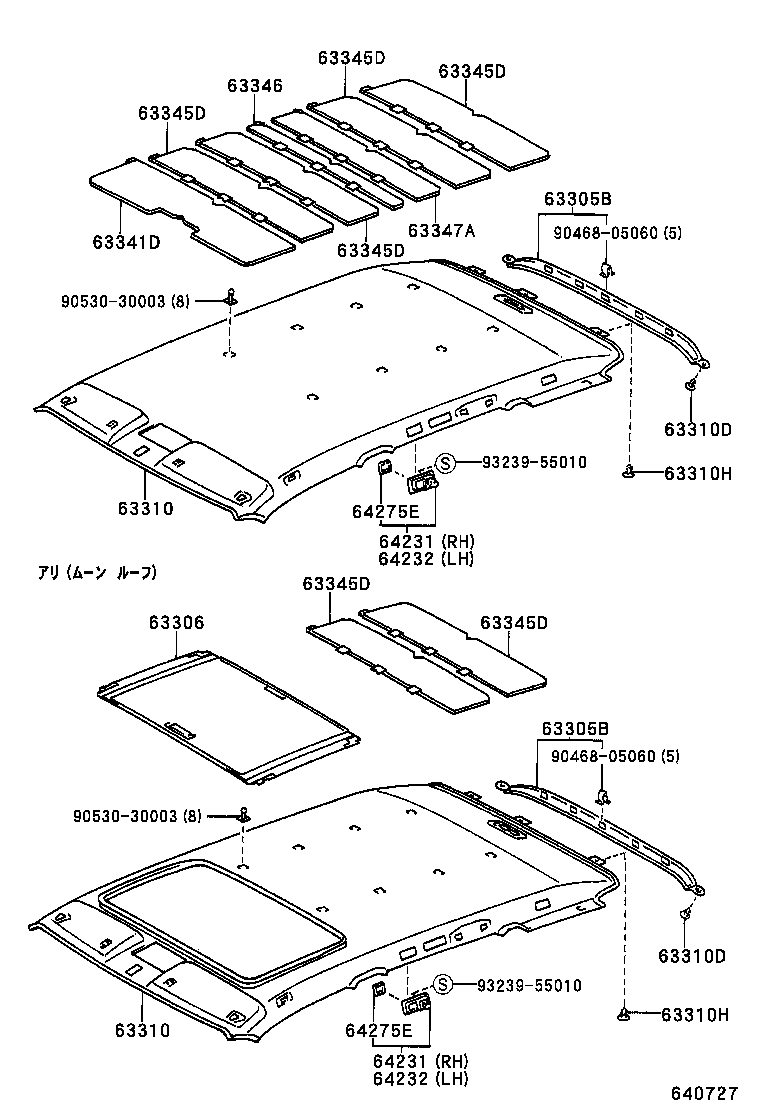

Click highlighted areas on diagram

diagram 63305B 63305B 63306 63310 63310 63310D 63310D 63310H 63310H 63341D 63345D 63345D 63345D 63345D 63345D 63345D 63346 63347A 64231 64231 64232 64232 64275E 64275E 9046805060 9046805060 9053030003 9053030003 9323955010 9323955010
Part # Description Qty Price
63305B - TRIM SUB-ASSY, ROOF HEADLINING, REAR
63305-31010A0

JZS171,173,175..WG

IVORY,TRIM0#

 1
63305-31010B0

JZS171,173,175..WG

MEDIUM CHACOAL,TRIM1#

 1
63305B - TRIM SUB-ASSY, ROOF HEADLINING, REAR
63305-31010A0

JZS171,173,175..WG

IVORY,TRIM0#

 1
63305-31010B0

JZS171,173,175..WG

MEDIUM CHACOAL,TRIM1#

 1
63306 - TRIM SUB-ASSY, SUNSHADE
63306-30080B5

JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYG

MEDIUM CHACOAL,TRIM1#

 1
63306-30080A1

JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYG

IVORY,TRIM0#

 1
63310 - HEADLINING ASSY, ROOF
63310-31070B0

JZS171,173,175..WG

MEDIUM CHACOAL,TRIM1#

 1
63310-31070A0

JZS171,173,175..WG

IVORY,TRIM0#

 1
63310-31080A0

JZS171,173,175..WG

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#

 1
63310-31080B0

JZS171,173,175..WG

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MEDIUM CHACOAL,TRIM1#

 1
63310 - HEADLINING ASSY, ROOF
63310-31070B0

JZS171,173,175..WG

MEDIUM CHACOAL,TRIM1#

 1
63310-31070A0

JZS171,173,175..WG

IVORY,TRIM0#

 1
63310-31080A0

JZS171,173,175..WG

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0#

 1
63310-31080B0

JZS171,173,175..WG

ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MEDIUM CHACOAL,TRIM1#

 1
63310D - CLIP, ROOF HEADLINING
90467-08186C0

JZS171,173,175..WG

BLACK,TRIM0#,1#

 2
63310D - CLIP, ROOF HEADLINING
90467-08186C0

JZS171,173,175..WG

BLACK,TRIM0#,1#

 2
63310H - CLIP(FOR ROOF HEADLINING)
90467-05027B3

JZS171,173,175..WG

LT.BLUISH GRAY,TRIM0#,1#

 3
63310H - CLIP(FOR ROOF HEADLINING)
90467-05027B3

JZS171,173,175..WG

LT.BLUISH GRAY,TRIM0#,1#

 3
63341D - PAD, ROOF SILENCER, FRONT
63341-30190

JZS171,173,175..WG

 1
63345D - PAD, ROOF SILENCER, CENTER
63345-30120

JZS171,173,175..WG

 4
63345-30120

JZS171,173,175..WG

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 2
63345D - PAD, ROOF SILENCER, CENTER
63345-30120

JZS171,173,175..WG

 4
63345-30120

JZS171,173,175..WG

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 2
63345D - PAD, ROOF SILENCER, CENTER
63345-30120

JZS171,173,175..WG

 4
63345-30120

JZS171,173,175..WG

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 2
63345D - PAD, ROOF SILENCER, CENTER
63345-30120

JZS171,173,175..WG

 4
63345-30120

JZS171,173,175..WG

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 2
63345D - PAD, ROOF SILENCER, CENTER
63345-30120

JZS171,173,175..WG

 4
63345-30120

JZS171,173,175..WG

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 2
63345D - PAD, ROOF SILENCER, CENTER
63345-30120

JZS171,173,175..WG

 4
63345-30120

JZS171,173,175..WG

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 2
63346 - PAD, ROOF SILENCER, NO.6
63346-31010

JZS171,173,175..WG

 1
63347A - PAD, ROOF SILENCER, NO.7
63347-31010

JZS171,173,175..WG

 1
64231 - HOOK, ROOM PARTITION NET, FRONT RH
64231-31010B0

JZS171,173,175..WG

MD.CHARCOAL,TRIM1#

 2
64231-31010A0

JZS171,173,175..WG

IVORY,TRIM0#

 2
64231 - HOOK, ROOM PARTITION NET, FRONT RH
64231-31010B0

JZS171,173,175..WG

MD.CHARCOAL,TRIM1#

 2
64231-31010A0

JZS171,173,175..WG

IVORY,TRIM0#

 2
64232 - HOOK, ROOM PARTITION NET, FRONT LH
64232-31010A0

JZS171,173,175..WG

IVORY,TRIM0#

 2
64232-31010B0

JZS171,173,175..WG

MD.CHARCOAL,TRIM1#

 2
64232 - HOOK, ROOM PARTITION NET, FRONT LH
64232-31010A0

JZS171,173,175..WG

IVORY,TRIM0#

 2
64232-31010B0

JZS171,173,175..WG

MD.CHARCOAL,TRIM1#

 2
64275E - COVER, ROOM PARTITION
64275-31010A0

JZS171,173,175..WG

IVORY,TRIM0#

 4
64275-31010B0

JZS171,173,175..WG

MD.CHARCOAL,TRIM1#

 4
64275E - COVER, ROOM PARTITION
64275-31010A0

JZS171,173,175..WG

IVORY,TRIM0#

 4
64275-31010B0

JZS171,173,175..WG

MD.CHARCOAL,TRIM1#

 4
Common parts
90468-05060
90530-30003
93239-55010
