JZS171W-AWPQF (1999)
Toyota Crown/Crown Majesta

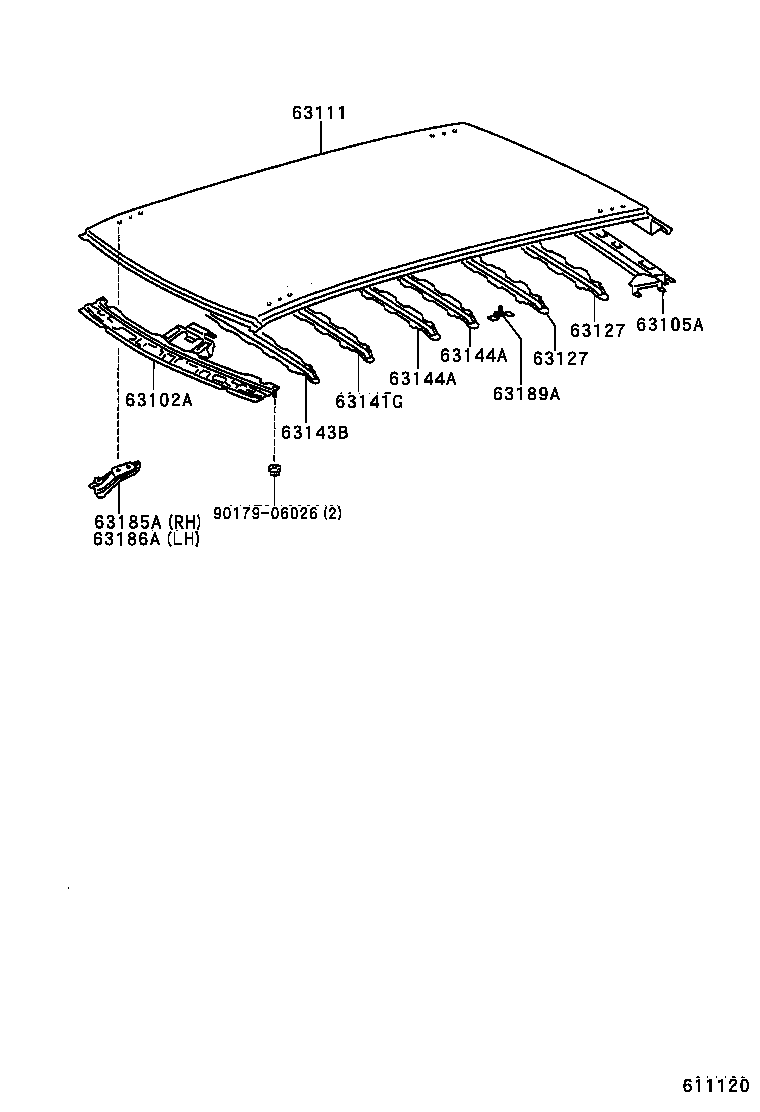

ILLUST NO. 1 OF 3(9912- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-31900 |
JZS171,173,175..WG |
1 | ||
| 63102-31901 |
JZS171,173,175..WG ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-31010 |
JZS171,173,175..WG |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-31020 |
JZS171,173,175..WG ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63111-31010 |
JZS171,173,175..WG |
1 | ||
| 63127 - REINFORCEMENT, ROOF PANEL, NO.5 | ||||
| 63127-31010 |
JZS171,173,175..WG |
2 | ||
| 63127 - REINFORCEMENT, ROOF PANEL, NO.5 | ||||
| 63127-31010 |
JZS171,173,175..WG |
2 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-30170 |
GS171,JZS171,173,175,179 |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-30210 |
GS171,JZS171,173,175,179 |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-30110 |
JZS171,173,175..WG |
2 | ||
| 63144-30110 |
JZS171,173,175..WG ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-30110 |
JZS171,173,175..WG |
2 | ||
| 63144-30110 |
JZS171,173,175..WG ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63185A - BRACKET, ROOF RACK, FRONT RH | ||||
| 63185-31010 |
JZS171,173,175..WG |
1 | ||
| 63186A - BRACKET, ROOF RACK, FRONT LH | ||||
| 63186-31010 |
JZS171,173,175..WG |
1 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63189-31010 |
JZS171,173,175..WG |
2 | ||
| Common parts | ||||
| 90179-06026 | ||||

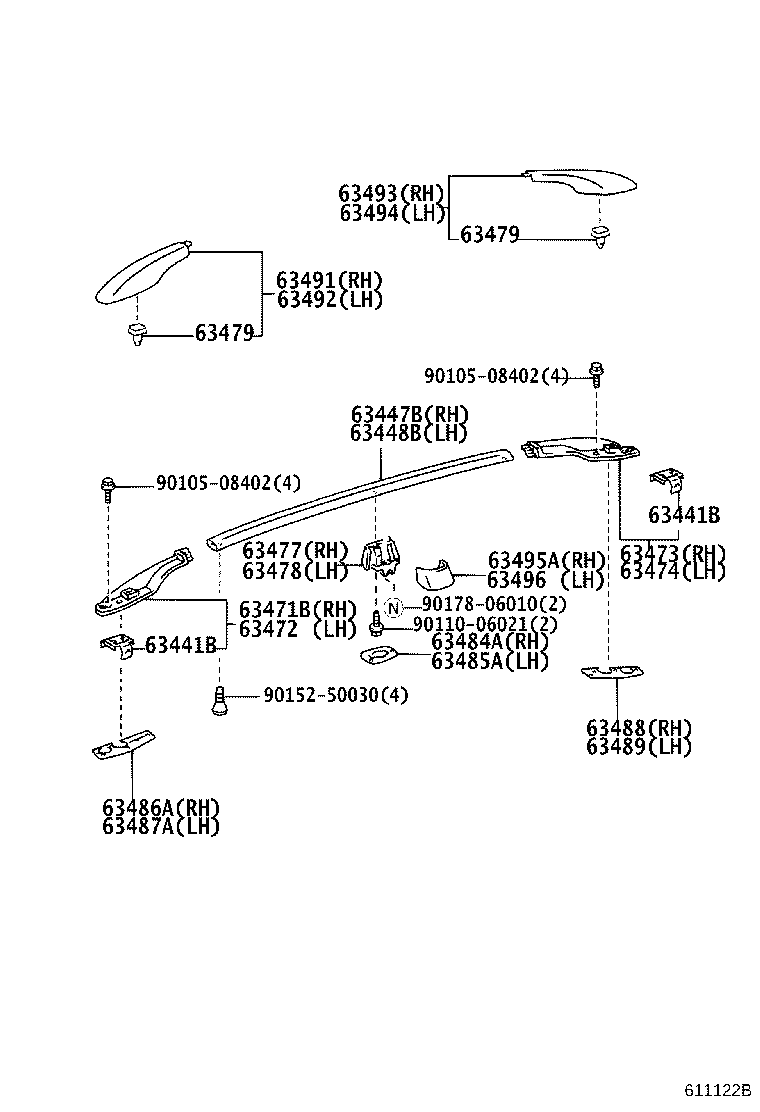

ILLUST NO. 3 OF 3(9912- )WG
ｱﾘ(ﾙ-ﾌﾚ-ﾙ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63441B - PLATE, ROOF RACK SUPPORT, NO.1 | ||||
| 63441-31020 |
JZS171,173,175..WG |
4 | ||
| 63441B - PLATE, ROOF RACK SUPPORT, NO.1 | ||||
| 63441-31020 |
JZS171,173,175..WG |
4 | ||
| 63447B - BAR, ROOF CARRIER, RH | ||||
| 63447-31020 |
JZS171,173,175..WG |
1 | ||
| 63448B - BAR, ROOF CARRIER, LH | ||||
| 63448-31010 |
JZS171,173,175..WG |
1 | ||
| 63471B - LEG, ROOF RACK, FRONT RH | ||||
| 63471-31010 |
JZS171,173,175..WG |
1 | ||
| 63472 - LEG, ROOF RACK, FRONT LH | ||||
| 63472-31010 |
JZS171,173,175..WG |
1 | ||
| 63473 - LEG, ROOF RACK, REAR RH | ||||
| 63473-31010 |
JZS171,173,175..WG |
1 | ||
| 63474 - LEG, ROOF RACK, REAR LH | ||||
| 63474-31010 |
JZS171,173,175..WG |
1 | ||
| 63477 - SUPPORT, ROOF RACK, CENTER RH | ||||
| 63477-31010 |
JZS171,173,175..WG |
1 | ||
| 63478 - SUPPORT, ROOF RACK, CENTER LH | ||||
| 63478-31010 |
JZS171,173,175..WG |
1 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-31010 |
JZS171,173,175..WG |
4 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-31010 |
JZS171,173,175..WG |
4 | ||
| 63484A - CUSHION, ROOF RACK LEG, CENTER RH | ||||
| 63484-31010 |
JZS171,173,175..WG |
1 | ||
| 63485A - CUSHION, ROOF RACK LEG, CENTER LH | ||||
| 63485-31010 |
JZS171,173,175..WG |
1 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63486-31010 |
JZS171,173,175..WG |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63487-31010 |
JZS171,173,175..WG |
1 | ||
| 63488 - CUSHION, ROOF RACK LEG, REAR RH | ||||
| 63488-31010 |
JZS171,173,175..WG |
1 | ||
| 63489 - CUSHION, ROOF RACK LEG, REAR LH | ||||
| 63489-31010 |
JZS171,173,175..WG |
1 | ||
| 63491 - COVER, ROOF RACK LEG, FRONT RH | ||||
| 63491-31010 |
JZS171,173,175..WG |
1 | ||
| 63492 - COVER, ROOF RACK LEG, FRONT LH | ||||
| 63492-31010 |
JZS171,173,175..WG |
1 | ||
| 63493 - COVER, ROOF RACK LEG, REAR RH | ||||
| 63493-31010 |
JZS171,173,175..WG |
1 | ||
| 63494 - COVER, ROOF RACK LEG, REAR LH | ||||
| 63494-31010 |
JZS171,173,175..WG |
1 | ||
| 63495A - COVER, ROOF RACK LEG, CENTER | ||||
| 63495-31010 |
JZS171,173,175..WG |
1 | ||
| 63496 - COVER, ROOF RACK LEG, CENTER LH | ||||
| 63496-31010 |
JZS171,173,175..WG |
1 | ||
| Common parts | ||||
| 90105-08402 | ||||
| 90110-06021 | ||||
| 90152-50030 | ||||
| 90178-06010 | ||||

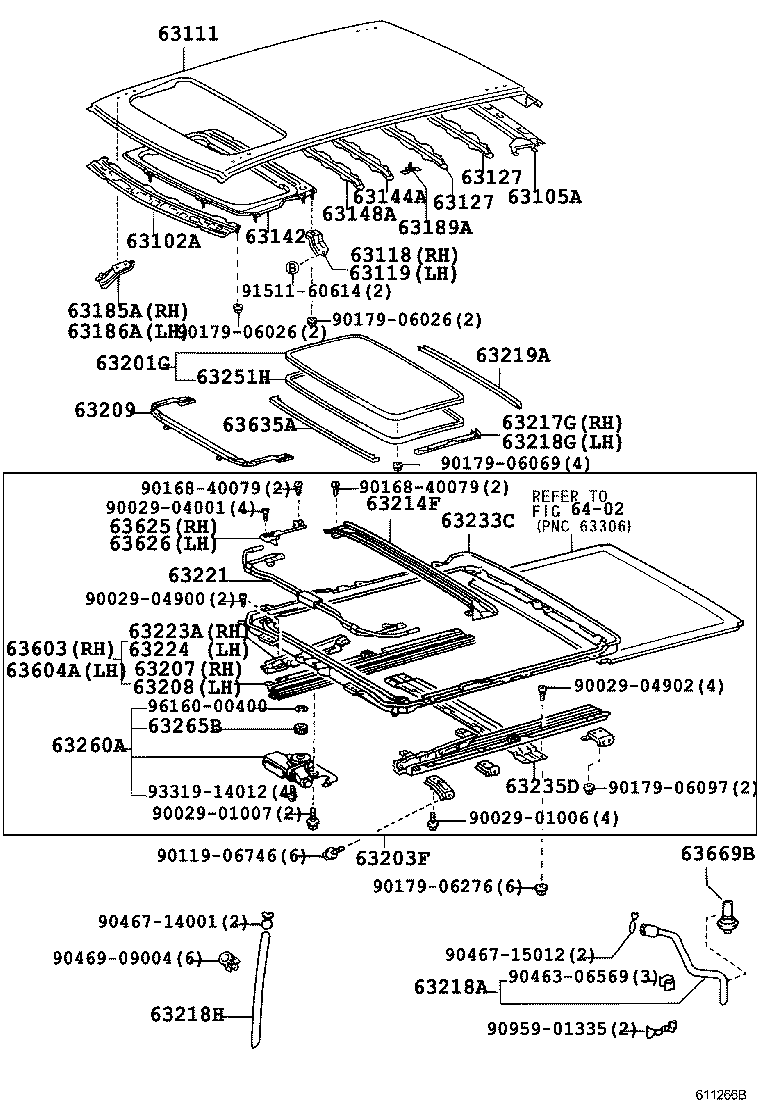

ILLUST NO. 2 OF 3(9912-0108)WG
ｱﾘ(ﾑ-ﾝﾙ-ﾌ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-31900 |
JZS171,173,175..WG |
1 | ||
| 63102-31901 |
JZS171,173,175..WG ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-31010 |
JZS171,173,175..WG |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-31020 |
JZS171,173,175..WG ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63111-31010 |
JZS171,173,175..WG |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-31010 |
JZS171,173,175..WG |
1 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63118-31010 |
JZS171,173,175..WG |
1 | ||
| 63127 - REINFORCEMENT, ROOF PANEL, NO.5 | ||||
| 63127-31010 |
JZS171,173,175..WG |
2 | ||
| 63127 - REINFORCEMENT, ROOF PANEL, NO.5 | ||||
| 63127-31010 |
JZS171,173,175..WG |
2 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-30110 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-30110 |
JZS171,173,175..WG |
2 | ||
| 63144-30110 |
JZS171,173,175..WG ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-30070 |
JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYG |
1 | ||
| 63185A - BRACKET, ROOF RACK, FRONT RH | ||||
| 63185-31010 |
JZS171,173,175..WG |
1 | ||
| 63186A - BRACKET, ROOF RACK, FRONT LH | ||||
| 63186-31010 |
JZS171,173,175..WG |
1 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63189-31010 |
JZS171,173,175..WG |
2 | ||
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-30110 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG *TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾘｰﾝ |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-31010 |
JZS171,173,175..WG |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-30100 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-30100 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-31010 |
JZS171,173,175..WG |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-50020 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-30080 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63247-31010 |
JZS171,173,175..WG 右側 |
1 | ||
| 63248-31010 |
JZS171,173,175..WG 左側 |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-30090 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63220-30060 |
JZS171,173,175..WG |
2 | ||
| 63219A - GARNISH, SLIDING ROOF, REAR | ||||
| 63219-30080 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-30100 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63223A - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-30060 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-30060 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63233C - PANEL, SLIDING ROOF HOUSING | ||||
| 63233-30100 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63235D - FRAME, SLIDING ROOF HOUSING, CENTER | ||||
| 63235-30040 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-30080 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-31010 |
JZS171,173,175..WG |
1 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-30020 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63603 - RAIL SUB-ASSY, SLIDING ROOF DRIVE, RH | ||||
| 63603-30100 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63604A - RAIL SUB-ASSY, SLIDING ROOF DRIVE, LH | ||||
| 63604-30030 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63625 - BLOCK, SLIDING ROOF GUIDE, RH | ||||
| 63625-30010 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63626 - BLOCK, SLIDING ROOF GUIDE, LH | ||||
| 63626-30010 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63635A - GARNISH, SLIDING ROOF, FRONT | ||||
| 63635-30060 |
JZS17#,UZS17#..A,ATH,ATHE,ATHG,ATHV,C,ROY,ROYG |
1 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-30010 |
JZS171,173,175,179..ATH,ATHE,ATHG,ATHV,ROY,ROYG |
2 | ||
| Common parts | ||||
| 90029-01006 | ||||
| 90029-01007 | ||||
| 90029-04001 | ||||
| 90029-04900 | ||||
| 90029-04902 | ||||
| 90119-06746 | ||||
| 90168-40079 | ||||
| 90179-06026 | ||||
| 90179-06069 | ||||
| 90179-06097 | ||||
| 90179-06276 | ||||
| 90463-06569 | ||||
| 90467-14001 | ||||
| 90467-15012 | ||||
| 90469-09004 | ||||
| 90959-01335 | ||||
| 91511-60614 | ||||
| 93319-14012 | ||||
| 96160-00400 | ||||
| Linked diagrams | ||||
| 6402 | ||||
