JZS171W-AWPQF (1999)
Toyota Crown/Crown Majesta

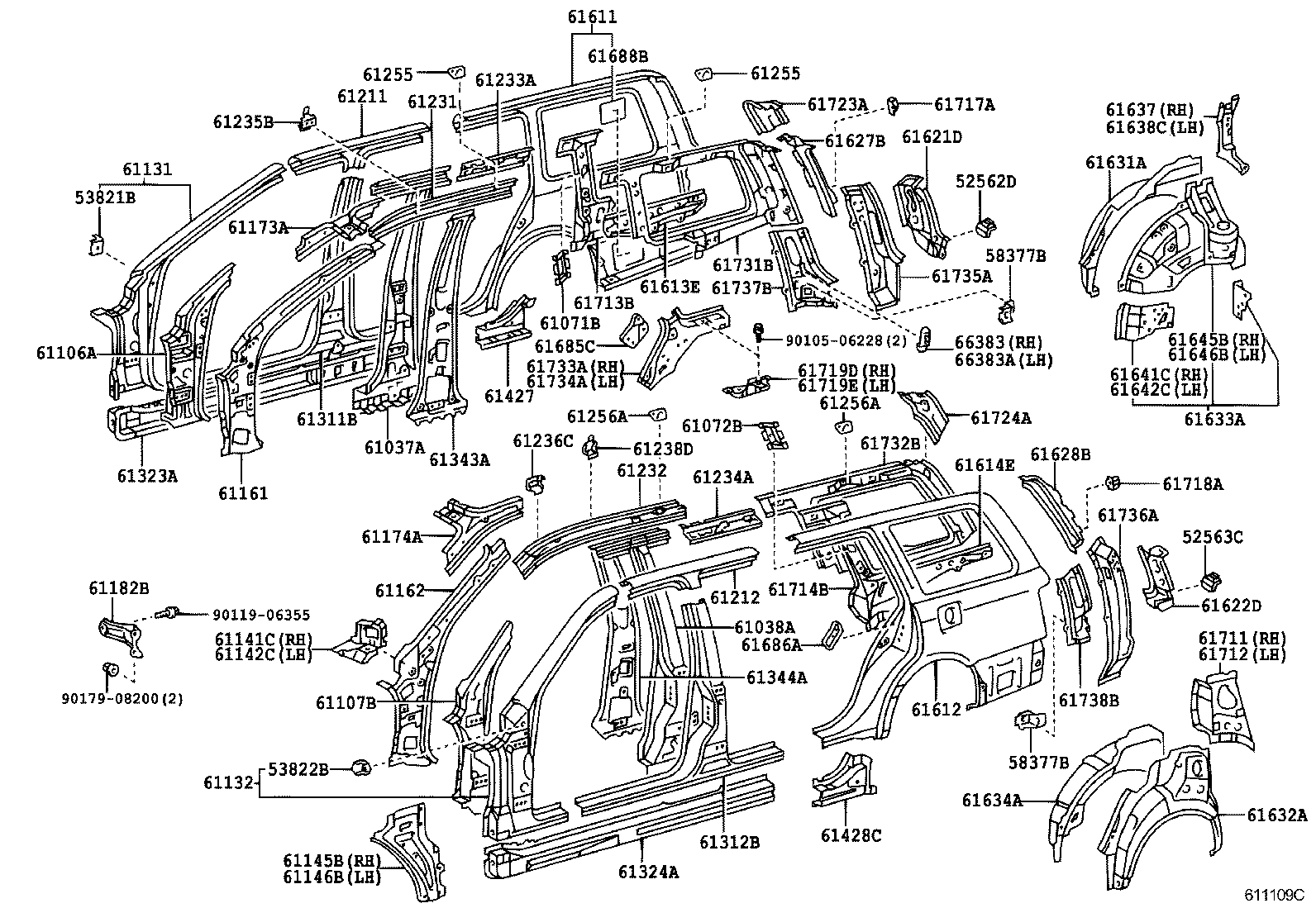

ILLUST NO. 1 OF 2(9912- )WG
ｻｲﾄﾞ ﾒﾝﾊﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52562D - RETAINER, REAR BUMPER, UPPER SIDE, RH | ||||
| 52562-22020 |
JZS171,173,175..WG |
1 | ||
| 52563C - RETAINER, REAR BUMPER, UPPER SIDE, LH | ||||
| 52562-22020 |
JZS171,173,175..WG |
1 | ||
| 53821B - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-16010 |
GS171,JZS171,173,175,179 |
1 | ||
| 53822B - BRACKET, FRONT FENDER, REAR LH | ||||
| 53821-16010 |
GS171,JZS171,173,175,179 |
1 | ||
| 58377B - RETAINER, LOWER BACK TRIM | ||||
| 58377-43020 |
JZS171,173,175..WG |
1 | ||
| 58377B - RETAINER, LOWER BACK TRIM | ||||
| 58377-43020 |
JZS171,173,175..WG |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61047-31900 |
JZS171,173,175..WG |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61048-31900 |
JZS171,173,175..WG |
1 | ||
| 61071B - PANEL SUB-ASSY, ROOF SIDE, INNER REAR RH | ||||
| 61071-31010 |
JZS171,173,175..WG |
1 | ||
| 61072B - PANEL SUB-ASSY, ROOF SIDE, INNER REAR LH | ||||
| 61072-31010 |
JZS171,173,175..WG |
1 | ||
| 61106A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH | ||||
| 61106-31010 |
JZS171,173,175..WG |
1 | ||
| 61107B - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH | ||||
| 61107-31010 |
JZS171,173,175..WG |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-31010 |
JZS171,173,175..WG |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-31010 |
JZS171,173,175..WG |
1 | ||
| 61141C - EXTENSION, FRONT PILLAR, UPPER INNER RH | ||||
| 61141-30140 |
GS171,JZS171,173,175,179 |
1 | ||
| 61142C - EXTENSION, FRONT PILLAR, UPPER INNER LH | ||||
| 61142-30140 |
GS171,JZS171,173,175,179 |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61145-30050 |
GS171,JZS171,173,175,179 |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61146-30050 |
GS171,JZS171,173,175,179 |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61161-31900 |
JZS171,173,175..WG |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-31900 |
JZS171,173,175..WG |
1 | ||
| 61173A - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER RH | ||||
| 61173-31900 |
JZS171,173,175..WG |
1 | ||
| 61174A - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH | ||||
| 61174-31900 |
JZS171,173,175..WG |
1 | ||
| 61182B - BRACKET, INSTRUMENT PANEL SIDE, NO.1 LH | ||||
| 61182-30060 |
GS171,JZS17#,UZS17# |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-31020 |
JZS171,173,175..WG |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-31020 |
JZS171,173,175..WG |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-31010 |
JZS171,173,175..WG |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-31010 |
JZS171,173,175..WG |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61233-31010 |
JZS171,173,175..WG |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-31010 |
JZS171,173,175..WG |
1 | ||
| 61235B - BRACKET, ASSIST GRIP | ||||
| 61235-31010 |
JZS171,173,175..WG |
1 | ||
| 61236C - BRACKET, ASSIST GRIP | ||||
| 61236-31010 |
JZS171,173,175..WG |
1 | ||
| 61238D - BRACKET, ASSIST GRIP, NO.2 LH | ||||
| 61238-31010 |
JZS171,173,175..WG |
1 | ||
| 61255 - PLATE, ROOF SIDE RAIL, OUTER RH | ||||
| 61255-31010 |
JZS171,173,175..WG |
1 | ||
| 61255 - PLATE, ROOF SIDE RAIL, OUTER RH | ||||
| 61255-31010 |
JZS171,173,175..WG |
1 | ||
| 61256A - PLATE, ROOF SIDE RAIL, OUTER LH | ||||
| 61255-31010 |
JZS171,173,175..WG |
1 | ||
| 61256A - PLATE, ROOF SIDE RAIL, OUTER LH | ||||
| 61255-31010 |
JZS171,173,175..WG |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-31010 |
JZS171,173,175..WG |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-31010 |
JZS171,173,175..WG |
1 | ||
| 61323A - REINFORCEMENT, CENTER BODY PILLAR, LOWER RH | ||||
| 61401-31020 |
JZS171,173,175..WG |
1 | ||
| 61401-31021 |
JZS171,173,175..WG |
1 | ||
| 61324A - REINFORCEMENT, CENTER BODY PILLAR, LOWER LH | ||||
| 61402-31020 |
JZS171,173,175..WG |
1 | ||
| 61402-31021 |
JZS171,173,175..WG |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-31010 |
JZS171,173,175..WG |
1 | ||
| 61343-31011 |
JZS171,173,175..WG |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-31010 |
JZS171,173,175..WG |
1 | ||
| 61344-31011 |
JZS171,173,175..WG |
1 | ||
| 61427 - REINFORCEMENT, ROCKER PANEL, NO.5 RH | ||||
| 61427-30060 |
GS171,JZS171,173,175,179 |
1 | ||
| 61428C - REINFORCEMENT, ROCKER PANEL, NO.5 LH | ||||
| 61428-30110 |
GS171,JZS171,173,175,179 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-31040 |
JZS171,173,175..WG |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-31040 |
JZS171,173,175..WG |
1 | ||
| 61613E - PANEL, QUARTER, INNER RH | ||||
| 61613-31010 |
JZS171,173,175..WG |
1 | ||
| 61614E - PANEL, QUARTER, INNER LH | ||||
| 61614-31010 |
JZS171,173,175..WG |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-31010 |
JZS171,173,175..WG |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-31010 |
JZS171,173,175..WG |
1 | ||
| 61627B - EXTENSION, QUARTER PANEL, UPPER REAR RH | ||||
| 61627-31010 |
JZS171,173,175..WG |
1 | ||
| 61628B - EXTENSION, QUARTER PANEL, UPPER REAR LH | ||||
| 61628-31010 |
JZS171,173,175..WG |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-31020 |
JZS171,173,175..WG |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-31020 |
JZS171,173,175..WG |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-31020 |
JZS171,173,175..WG |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-31010 |
JZS171,173,175..WG |
1 | ||
| 61637 - BRACE, QUARTER WHEEL HOUSE, RH | ||||
| 61637-31020 |
JZS171,173,175..WG |
1 | ||
| 61638C - BRACE, QUARTER WHEEL HOUSE, NO.2 LH | ||||
| 61638-31010 |
JZS171,173,175..WG |
1 | ||
| 61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH | ||||
| 61641-30040 |
GS171,JZS171,173,175,179 |
1 | ||
| 61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH | ||||
| 61642-30040 |
GS171,JZS171,173,175,179 |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-51010 |
GS171,JZS171,173,175,179 |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-51010 |
GS171,JZS171,173,175,179 |
1 | ||
| 61685C - BRACKET, REAR SEAT BACK STOPPER, RH | ||||
| 61685-31010 |
JZS171,173,175..WG |
1 | ||
| 61686A - BRACKET, REAR SEAT BACK STOPPER, LH | ||||
| 61686-31010 |
JZS171,173,175..WG |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-31010 |
JZS171,173,175..WG |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-31010 |
JZS171,173,175..WG |
1 | ||
| 61713B - REINFORCE, ROOF SIDE, OUTER RH | ||||
| 61713-31010 |
JZS171,173,175..WG |
1 | ||
| 61714B - REINFORCE, ROOF SIDE, OUTER LH | ||||
| 61714-31010 |
JZS171,173,175..WG |
1 | ||
| 61717A - REINFORCEMENT, QUARTER PANEL EXTENSION, RH | ||||
| 61717-31010 |
JZS171,173,175..WG |
1 | ||
| 61718A - REINFORCEMENT, QUARTER PANEL EXTENSION, LH | ||||
| 61718-31010 |
JZS171,173,175..WG |
1 | ||
| 61719D - BRACKET, ROOF SIDE, INNER RH | ||||
| 61719-31010 |
JZS171,173,175..WG |
1 | ||
| 61719E - BRACKET, ROOF SIDE, INNER LH | ||||
| 61719-31010 |
JZS171,173,175..WG |
1 | ||
| 61723A - REINFORCEMENT, QUARTER WINDOW OPENING, RH NO.1 | ||||
| 61723-31010 |
JZS171,173,175..WG |
1 | ||
| 61724A - REINFORCEMENT, QUARTER WINDOW OPENING, LH NO.1 | ||||
| 61724-31010 |
JZS171,173,175..WG |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-31010 |
JZS171,173,175..WG |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-31010 |
JZS171,173,175..WG |
1 | ||
| 61733A - PANEL, ROOF SIDE, INNER FRONT RH | ||||
| 61733-31010 |
JZS171,173,175..WG |
1 | ||
| 61734A - PANEL, ROOF SIDE, INNER FRONT LH | ||||
| 61734-31010 |
JZS171,173,175..WG |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-31010 |
JZS171,173,175..WG |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-31010 |
JZS171,173,175..WG |
1 | ||
| 61737B - PANEL, ROOF SIDE, INNER LOWER RH | ||||
| 61737-31010 |
JZS171,173,175..WG |
1 | ||
| 61738B - PANEL, ROOF SIDE, INNER LOWER LH | ||||
| 61738-31020 |
JZS171,173,175..WG |
1 | ||
| 66383 - BRACKET, ROPE HOOK BAR, NO.1 RH | ||||
| 66383-31010 |
JZS171,173,175..WG |
1 | ||
| 66383A - BRACKET, ROPE HOOK BAR, NO.1 LH | ||||
| 66383-31010 |
JZS171,173,175..WG |
1 | ||
| Common parts | ||||
| 90105-06228 | ||||
| 90119-06355 | ||||
| 90179-08200 | ||||

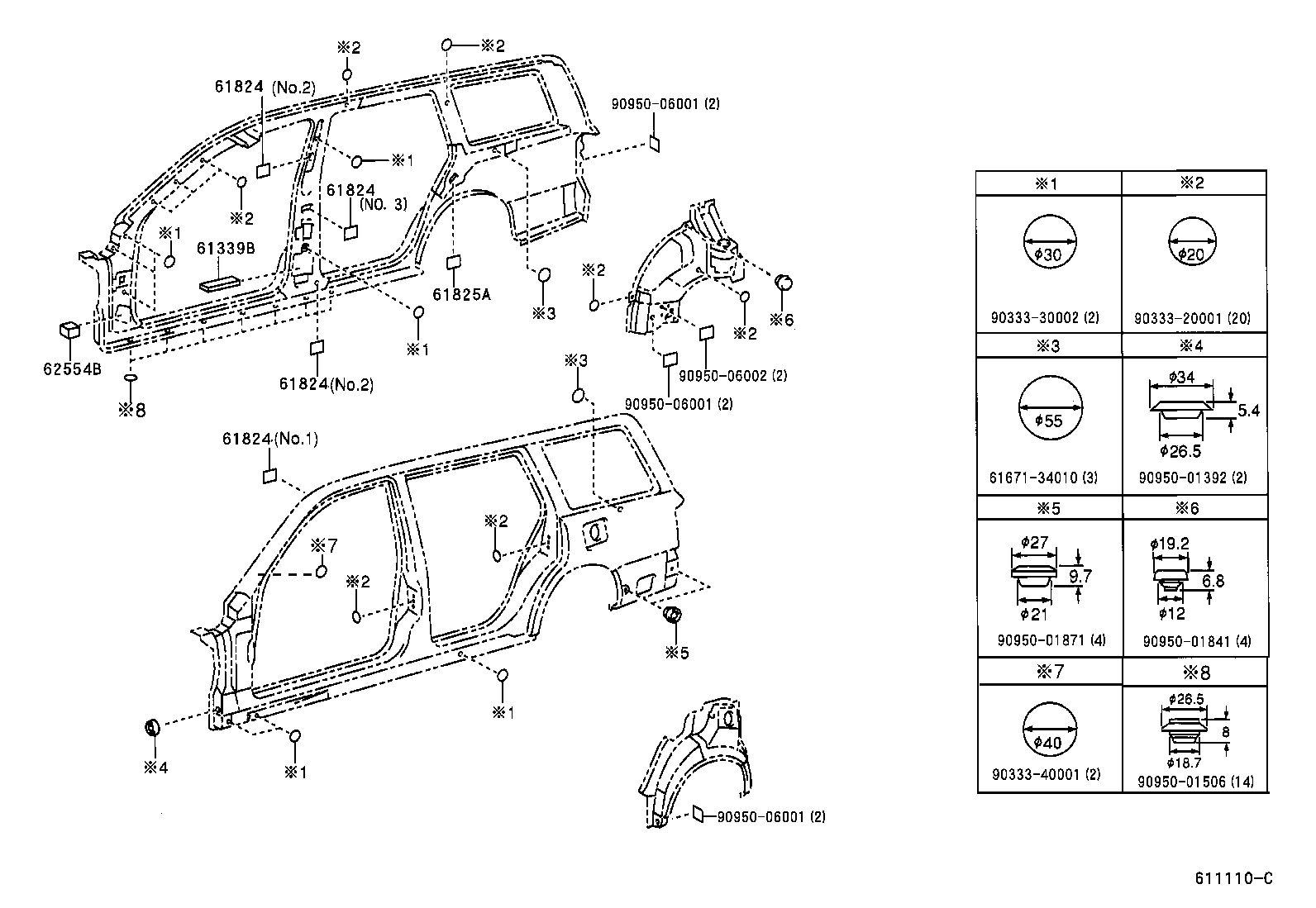

ILLUST NO. 2 OF 2(9912- )WG
ﾎｰﾙ ﾌﾟﾗｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61339B - SEAL, CENTER BODY PILLAR, INNER NO.1 | ||||
| 61339-30010 |
GS171,JZS17#,UZS17# |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-50020 |
JZS171,173,175..WG NO.3 |
2 | ||
| 61825-22020 |
JZS171,173,175..WG NO.1 |
2 | ||
| 61825-22050 |
JZS171,173,175..WG NO.2 |
4 | ||
| 61825-22050 |
JZS171,173,175..WG NO.2 |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-50020 |
JZS171,173,175..WG NO.3 |
2 | ||
| 61825-22020 |
JZS171,173,175..WG NO.1 |
2 | ||
| 61825-22050 |
JZS171,173,175..WG NO.2 |
4 | ||
| 61825-22050 |
JZS171,173,175..WG NO.2 |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-50020 |
JZS171,173,175..WG NO.3 |
2 | ||
| 61825-22020 |
JZS171,173,175..WG NO.1 |
2 | ||
| 61825-22050 |
JZS171,173,175..WG NO.2 |
4 | ||
| 61825-22050 |
JZS171,173,175..WG NO.2 |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-50020 |
JZS171,173,175..WG NO.3 |
2 | ||
| 61825-22020 |
JZS171,173,175..WG NO.1 |
2 | ||
| 61825-22050 |
JZS171,173,175..WG NO.2 |
4 | ||
| 61825-22050 |
JZS171,173,175..WG NO.2 |
2 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-22050 |
GS171,JZS17#,UZS17# |
2 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-30010 |
GS171,JZS171,173,175,179 |
6 | ||
| Common parts | ||||
| 61671-34010 | ||||
| 90333-20001 | ||||
| 90333-30002 | ||||
| 90333-40001 | ||||
| 90950-01392 | ||||
| 90950-01506 | ||||
| 90950-01841 | ||||
| 90950-01871 | ||||
| 90950-06001 | ||||
| 90950-06002 | ||||
