JZS171W-AWPQF (1999)

Toyota Crown/Crown Majesta

Production Dec 1999 - Aug 2001
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9912- )WG

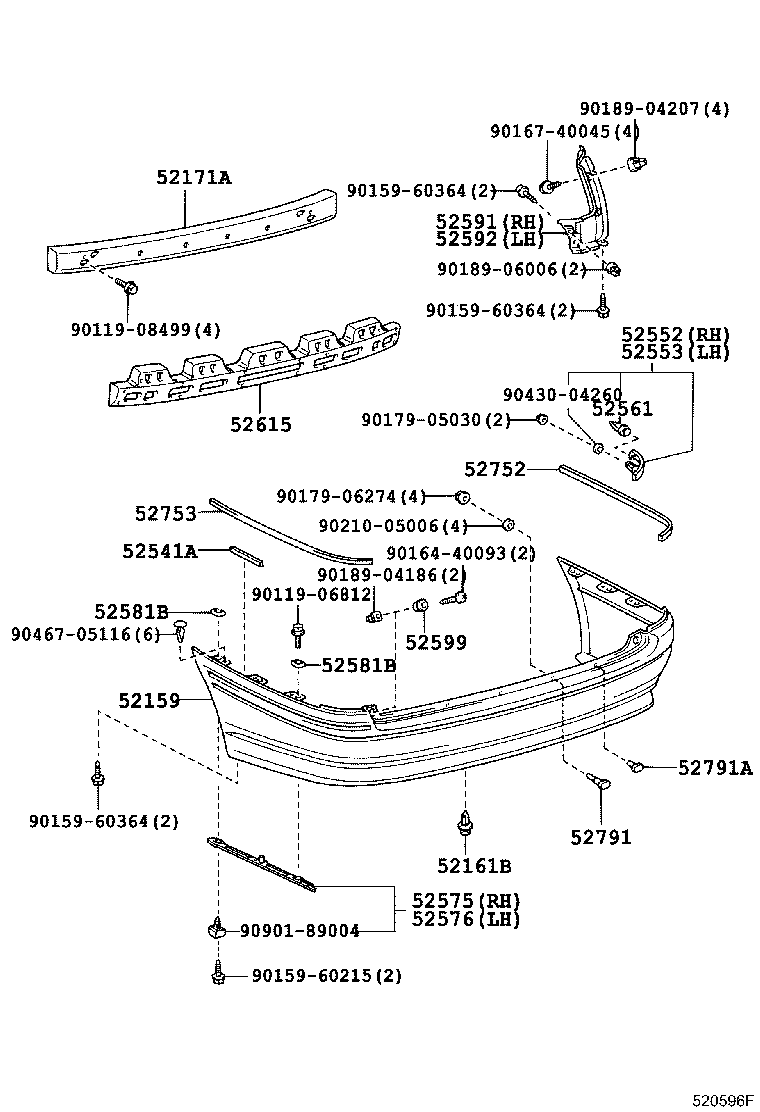

Click highlighted areas on diagram

diagram 52159 52161B 52171A 52541A 52552 52553 52561 52575 52576 52581B 52581B 52591 52592 52599 52615 52752 52753 52791 52791A 9011906812 9011908499 9015960215 9015960364 9015960364 9015960364 9016440093 9016740045 9017905030 9017906274 9018904186 9018904207 9018906006 9021005006 9043004260 9046705116 9090189004
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52159-31050D0

JZS171,175..WG..ROY

RED MC.,3N1

 1
52159-31050A0

JZS171,175..WG..ROY

WHITE PEARL CS.,062

 1
52159-31050J1

JZS171,175..WG..ROY

GRAYISH BLUE ME.,8N6

 1
52159-31050J0

JZS171,175..WG..ROY

DK.BLUE MC.,8L4

 1
52159-31050B0

JZS171,175..WG..ROY

SILVER ME.,1C0

 1
52159-31050G0

JZS171,175..WG..ROY

BLACKISH GREEN MC.CC,6R5

 1
52159-31050B1

JZS171,175..WG..ROY

SILVER ME.,2FQ

 1
52161B - PIECE, REAR BUMPER
52161-16010

GS171,JZS17#,UZS17#

 4
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52171-31020

JZS171,173,175..WG

 1
52541A - PROTECTOR, REAR BUMPER
52541-51010

GS171,JZS171,173,175,179

 2
52552 - FILLER, REAR BUMPER, RH
52552-31010B0

JZS171,173,175..WG

SILVER ME.,1C0

 1
52552-31010J1

JZS171,173,175..WG

GRAYISH BLUE ME.,8N6

 1
52552-31010D0

JZS171,173,175..WG

RED MC.,3N1

 1
52552-31010J0

JZS171,173,175..WG

DK.BLUE MC.,8L4

 1
52552-31010G0

JZS171,173,175..WG

BLACKISH GREEN MC.CC,6R5

 1
52552-31010A0

JZS171,173,175..WG

WHITE PEARL CS.,062 ,2FQ

 1
52553 - FILLER, REAR BUMPER, LH
52553-31010A0

JZS171,173,175..WG

WHITE PEARL CS.,062 ,2FQ

 1
52553-31010G0

JZS171,173,175..WG

BLACKISH GREEN MC.CC,6R5

 1
52553-31010J0

JZS171,173,175..WG

DK.BLUE MC.,8L4

 1
52553-31010D0

JZS171,173,175..WG

RED MC.,3N1

 1
52553-31010J1

JZS171,173,175..WG

GRAYISH BLUE ME.,8N6

 1
52553-31010B0

JZS171,173,175..WG

SILVER ME.,1C0

 1
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-31010

JZS171,173,175..WG

 2
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-31020

JZS171,173,175..WG

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-31020

JZS171,173,175..WG

 1
52581B - PROTECTOR, REAR BUMPER
52581-51010

GS171,JZS171,173,175,179

 6
52581B - PROTECTOR, REAR BUMPER
52581-51010

GS171,JZS171,173,175,179

 6
52591 - SEAL, REAR BUMPER SIDE, RH
52591-30010

GS171,JZS171,173,175,179

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-30010

GS171,JZS171,173,175,179

 1
52599 - STOPPER, REAR BUMPER, UPPER
52599-48010

JZS171,173,175..WG

 2
52615 - ABSORBER, REAR BUMPER ENERGY
52615-31020

JZS171,173,175..WG

 1
52752 - MOULDING, REAR BUMPER SIDE, RH
52752-31010

JZS171,173,175..WG

 1
52753 - MOULDING, REAR BUMPER SIDE, LH
52752-31010

JZS171,173,175..WG

 1
52791 - BOLT, BUMPER MOULDING SET, NO.1
52791-32010

JZS171,173,175,179

 2
52791-12040

GS171,JZS171,173,175,179

 2
52791A - BOLT, BUMPER MOULDING SET, NO.2
52791-33010

JZS171,173,175,179

 2
90109-06354

GS171,JZS171,173,175,179

 2
Common parts
90119-06812
90119-08499
90159-60215
90159-60364
90164-40093
90167-40045
90179-05030
90179-06274
90189-04186
90189-04207
90189-06006
90210-05006
90430-04260
90467-05116
90901-89004
