JZS171W-AWPQF (1999)

Toyota Crown/Crown Majesta

Production Dec 1999 - Aug 2001
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909-0108) ; (0108- )A,ATHV,C

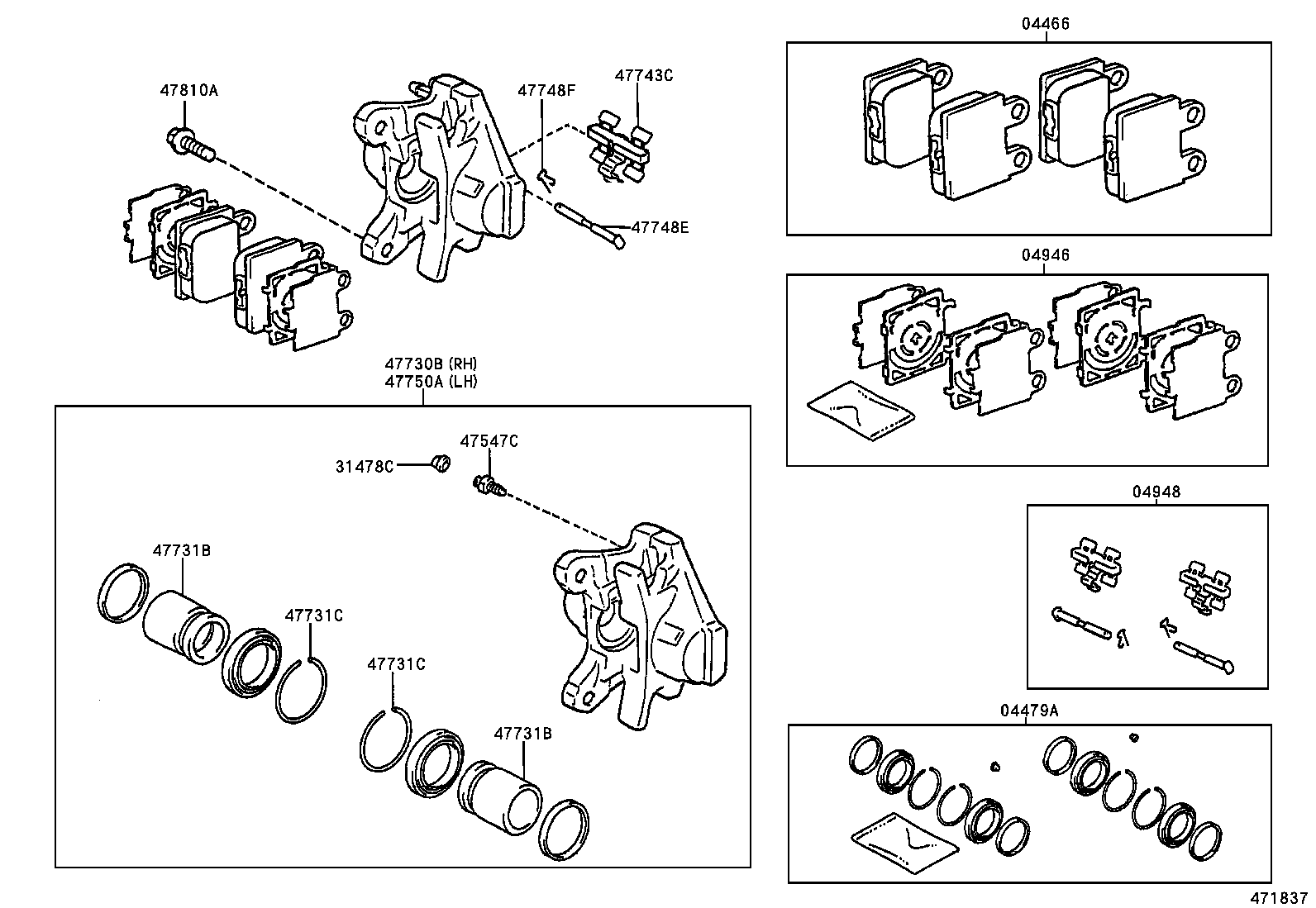

Click highlighted areas on diagram

diagram 04466 04479A 04946 04948 31478C 47547C 47730B 47731B 47731B 47731C 47731C 47743C 47748E 47748F 47750A 47810A
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-30151

GS171,JZS171,173,175,179..D4,HTWC,TWC

ﾏｰｸ AK PA544

 1
04466-30150

JZS171,173,175,179,UZS173

ﾏｰｸ AK PA544

 1
04466-30150

JZS171,173,175,179..D4,TWC

ﾏｰｸ AK PA544

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-30231

GS171,JZS171,173,175,179

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-30071

GS171,JZS171,173,175,179..D4,HTWC,TWC

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-30071

GS171,JZS17#,UZS17#

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-30010

GS171,JZS17#,UZS17#

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-27030

GS171,JZS17#,UZS17#

 2
47730B - CYLINDER ASSY, REAR DISC BRAKE, RH
47730-30480

GS171,JZS171,173,175,179..D4,HTWC,TWC

 1
47731B - PISTON, REAR DISC BRAKE
47731-30190

GS171,JZS171,173,175,179

 4
47731B - PISTON, REAR DISC BRAKE
47731-30190

GS171,JZS171,173,175,179

 4
47731C - RING, SET(FOR REAR DISC BRAKE PISTON)
90520-52006

GS171,JZS17#,UZS17#

 4
47731C - RING, SET(FOR REAR DISC BRAKE PISTON)
90520-52006

GS171,JZS17#,UZS17#

 4
47743C - SPRING, ANTI-SQUEAL(FOR REAR DISC BRAKE)
47743-30030

GS171,JZS17#,UZS17#

 2
47748E - PIN, W/HOLE(FOR REAR DISC BRAKE)
47735-30011

GS171,JZS17#,UZS17#

 2
47748F - CLIP(FOR REAR DISC BRAKE)
90468-12028

GS171,JZS17#,UZS17#

 2
47750A - CYLINDER ASSY, DISC BRAKE, REAR LH
47750-30480

GS171,JZS171,173,175,179..D4,HTWC,TWC

 1
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90105-12174

GS171,JZS17#,UZS17#

 4
