JZS171W-AWPQF (1999)

Toyota Crown/Crown Majesta

Production Dec 1999 - Aug 2001
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909-0108)JZS171..TWC

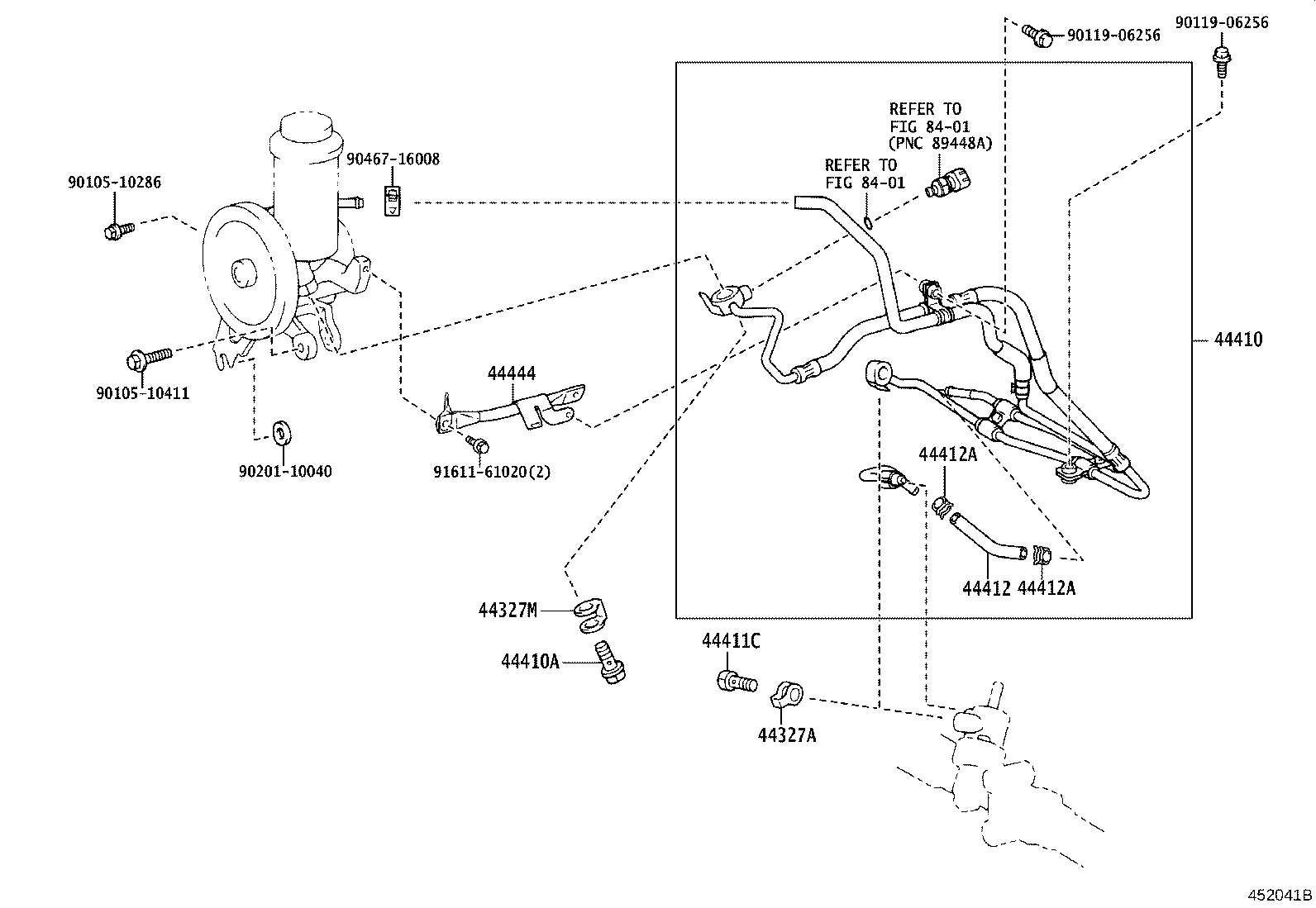

Click highlighted areas on diagram

diagram 44327A 44327M 44410 44410A 44411C 44412 44412A 44412A 44444 8401 8401 9010510286 9010510411 9011906256 9011906256 9020110040 9046716008 9161161020
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030

JZS17#

 1
44327M - GASKET, PRESSURE PORT, NO.2
44327-30040

JZS17#

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-30510

JZS171..TWC

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16034

JZS171,173,175,179

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
96341-41603

JZS171,173,175,179

 1
44412 - HOSE, RETURN
44412-30160

JZS171..TWC

 1
44412A - CLAMP, RUBBER HOSE COMPLETE (FOR RETURN HOSE)
90467-16007

JZS171..TWC

 2
44412A - CLAMP, RUBBER HOSE COMPLETE (FOR RETURN HOSE)
90467-16007

JZS171..TWC

 2
44444 - STAY, PUMP, REAR
44444-51010

JZS171,173,179..TWC

 1
Common parts
90105-10286
90105-10411
90119-06256
90201-10040
90467-16008
91611-61020
Linked diagrams
8401
