JZS171W-AWPQF (1999)

Toyota Crown/Crown Majesta

Production Dec 1999 - Aug 2001
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909-0108)JZS171,175,177..D4,TWC ; (0108- )JZS175,177

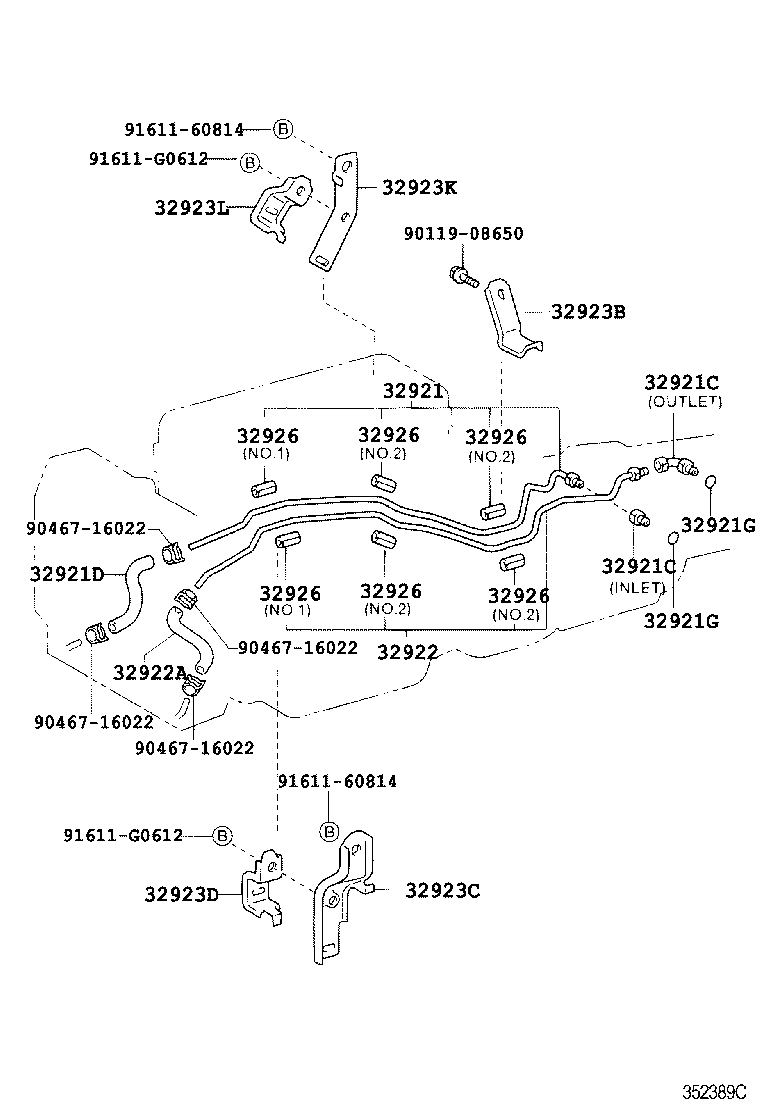

Click highlighted areas on diagram

A340E,A650E

diagram 32921 32921C 32921C 32921D 32921G 32921G 32922 32922A 32923B 32923C 32923D 32923K 32923L 32926 32926 32926 32926 32926 32926 9011908650 9046716022 9046716022 9046716022 9046716022 9161160814 9161160814 91611G0612 91611G0612
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-30750

JZS171,175..D4,TWC

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16009

JZS17#,UZS17#

ｱｳﾄﾚｯﾄ

 1
90404-16029

JZS171,175,177,UZS17#

ｲﾝﾚｯﾄ

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16009

JZS17#,UZS17#

ｱｳﾄﾚｯﾄ

 1
90404-16029

JZS171,175,177,UZS17#

ｲﾝﾚｯﾄ

 1
32921D - HOSE(FOR OIL COOLER INLET)
90445-17095

JZS17#..D4,TWC

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

JZS17#,UZS17#

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

JZS17#,UZS17#

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-30750

JZS171,175..D4,TWC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-17155

JZS171,175..D4,TWC

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32929-51010

JZS171,173,175,179..D4,TWC

 1
32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
32924-51010

JZS171,173,175,179..D4,TWC

 1
32923D - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.5
32929-50020

JZS17#,UZS17#

 1
32923K - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.2
32923-30190

JZS171,175..D4,TWC

 1
32923L - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.3
32929-50020

JZS171,175,177..D4,TWC

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30030

GS171,JZS17#

長さ=35,内径=10,NO.2

 4
32926-30020

GS171,JZS17#

長さ=35,内径=10,NO.1

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30030

GS171,JZS17#

長さ=35,内径=10,NO.2

 4
32926-30020

GS171,JZS17#

長さ=35,内径=10,NO.1

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30030

GS171,JZS17#

長さ=35,内径=10,NO.2

 4
32926-30020

GS171,JZS17#

長さ=35,内径=10,NO.1

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30030

GS171,JZS17#

長さ=35,内径=10,NO.2

 4
32926-30020

GS171,JZS17#

長さ=35,内径=10,NO.1

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30030

GS171,JZS17#

長さ=35,内径=10,NO.2

 4
32926-30020

GS171,JZS17#

長さ=35,内径=10,NO.1

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30030

GS171,JZS17#

長さ=35,内径=10,NO.2

 4
32926-30020

GS171,JZS17#

長さ=35,内径=10,NO.1

 2
Common parts
90119-08650
90467-16022
91611-60814
91611-G0612
