JZS171W-AWPQF (1999)
Toyota Crown/Crown Majesta

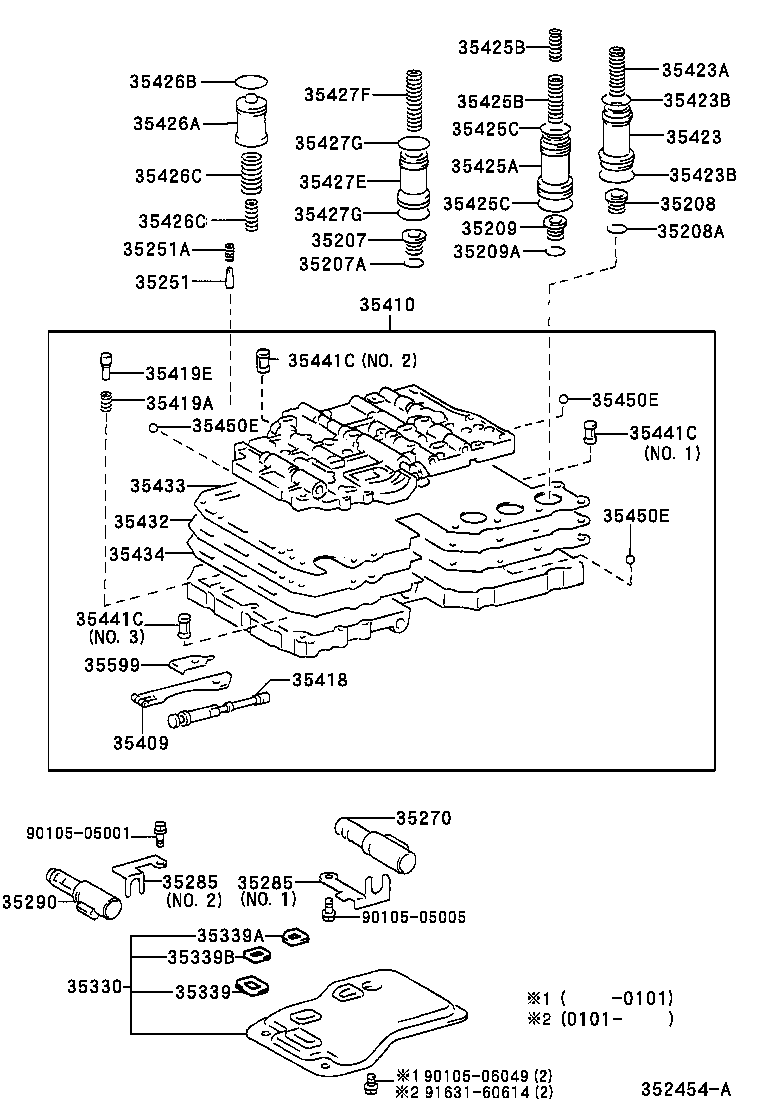

ILLUST NO. 1 OF 5(9909-0108)JZS171..TWC
A340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35207 - SPRING SUB-ASSY, B-0 ACCUMULATOR | ||||
| 35207-22010 |
JZS171,173,175,177..D4,TWC |
1 | ||
| 35207A - RING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
JZS17#,UZS17# |
1 | ||
| 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR | ||||
| 35208-30010 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
GS171,JZS17#,UZS17# |
1 | ||
| 35209 - SPRING SUB-ASSY, C-2 ACCUMULATOR | ||||
| 35209-24010 |
JZS175,177;JZS171,173..4FC..TWC |
1 | ||
| 35209A - RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
JZS17#,UZS17# |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
JZS17#,UZS17# |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
JZS17#,UZS17# |
1 | ||
| 35270 - SOLENOID ASSY, SHIFT CONTROL | ||||
| 35270-14010 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-24010 |
JZS171,173..4FC..TWC NO.1 |
1 | ||
| 35285-24020 |
JZS171,173..4FC..TWC NO.2 |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-24010 |
JZS171,173..4FC..TWC NO.1 |
1 | ||
| 35285-24020 |
JZS171,173..4FC..TWC NO.2 |
1 | ||
| 35290 - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-60020 |
JZS171,173,179..4FC |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-30060 |
JZS171..4FC..TWC |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-30080 |
JZS171,175,177,UZS171,175..D4,HTWC,TWC |
1 | ||
| 35339A - GASKET, OIL STRAINER, NO.1 | ||||
| 35339-30090 |
JZS171,175,177,UZS17#..D4,HTWC,TWC |
1 | ||
| 35339B - GASKET, OIL STRAINER, NO.2 | ||||
| 35339-30100 |
JZS171,175,177,UZS171,175..D4,HTWC,TWC |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-22020 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-3A040 |
JZS171..4FC..TWC |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-24010 |
GS171,JZS171,173..4FC..(HTWC,TWC) |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-09093 |
GS171,JZS17#,UZS17#..D4,HTWC,TWC |
1 | ||
| 35419E - VALVE, CHECK, NO.3 | ||||
| 35419-50010 |
JZS17#,UZS17# |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35423-30030 |
JZS17#,UZS17# |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-24015 |
JZS171,173..4FC..TWC |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-31010 |
JZS17#,UZS17# 下側 |
1 | ||
| 90301-23010 |
GS171,JZS17#,UZS17# 上側 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-31010 |
JZS17#,UZS17# 下側 |
1 | ||
| 90301-23010 |
GS171,JZS17#,UZS17# 上側 |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35425-40010 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C |
1 | ||
| 35425-30020 |
JZS171,173..4FC..TWC |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-22016 |
JZS171,173..4FC..TWC 外側 |
1 | ||
| 90501-25027 |
JZS171,173..4FC 内側 |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-22016 |
JZS171,173..4FC..TWC 外側 |
1 | ||
| 90501-25027 |
JZS171,173..4FC 内側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-25010 |
JZS171,173..4FC..TWC 上側 |
1 | ||
| 90903-01001 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C 上側 |
1 | ||
| 90301-31010 |
JZS171,173..4FC..TWC 下側 |
1 | ||
| 90903-01003 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C 下側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-25010 |
JZS171,173..4FC..TWC 上側 |
1 | ||
| 90903-01001 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C 上側 |
1 | ||
| 90301-31010 |
JZS171,173..4FC..TWC 下側 |
1 | ||
| 90903-01003 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C 下側 |
1 | ||
| 35426A - PISTON, C-0 ACCUMULATOR | ||||
| 35426-50010 |
JZS175;JZS171,177,UZS17#..A,ATH,ATHV,C |
1 | ||
| 35426-40010 |
JZS171,173..4FC..TWC |
1 | ||
| 35426B - RING, O (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90301-24010 |
JZS171,173,175,177,UZS171,175..D4,HTWC,TWC |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-22008 |
JZS171,173..4FC 内側 |
1 | ||
| 90501-23073 |
JZS171,173..4FC 外側 |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-22008 |
JZS171,173..4FC 内側 |
1 | ||
| 90501-23073 |
JZS171,173..4FC 外側 |
1 | ||
| 35427E - PISTON, B-0 ACCUMULATOR | ||||
| 35427-30040 |
JZS171,173,175,177,UZS17# |
1 | ||
| 35427F - SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90501-21006 |
JZS171..4FC |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-20008 |
JZS17#,UZS17# 上側 |
1 | ||
| 90301-26011 |
JZS17#,UZS17# 下側 |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-20008 |
JZS17#,UZS17# 上側 |
1 | ||
| 90301-26011 |
JZS17#,UZS17# 下側 |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-30610 |
JZS171..4FC..TWC |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-60040 |
JZS171,173..4FC..TWC |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-60040 |
JZS171,173..4FC..TWC |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-24010 |
JZS171,173..4FC..TWC NO.2 |
1 | ||
| 35441-50030 |
JZS171,173..4FC..TWC NO.1 |
1 | ||
| 35441-24020 |
JZS171,173,175,177,UZS171,175..D4,HTWC,TWC NO.3 |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-24010 |
JZS171,173..4FC..TWC NO.2 |
1 | ||
| 35441-50030 |
JZS171,173..4FC..TWC NO.1 |
1 | ||
| 35441-24020 |
JZS171,173,175,177,UZS171,175..D4,HTWC,TWC NO.3 |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-24010 |
JZS171,173..4FC..TWC NO.2 |
1 | ||
| 35441-50030 |
JZS171,173..4FC..TWC NO.1 |
1 | ||
| 35441-24020 |
JZS171,173,175,177,UZS171,175..D4,HTWC,TWC NO.3 |
1 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35495-22020 |
JZS171,173..4FC 外径=5.535,ﾗﾊﾞｰ |
10 | ||
| 35496-22030 |
JZS171,173,179,UZS173..4FC 外径=6.35,ﾗﾊﾞｰ |
2 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35495-22020 |
JZS171,173..4FC 外径=5.535,ﾗﾊﾞｰ |
10 | ||
| 35496-22030 |
JZS171,173,179,UZS173..4FC 外径=6.35,ﾗﾊﾞｰ |
2 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35495-22020 |
JZS171,173..4FC 外径=5.535,ﾗﾊﾞｰ |
10 | ||
| 35496-22030 |
JZS171,173,179,UZS173..4FC 外径=6.35,ﾗﾊﾞｰ |
2 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-22020 |
JZS17#,UZS17# |
1 | ||

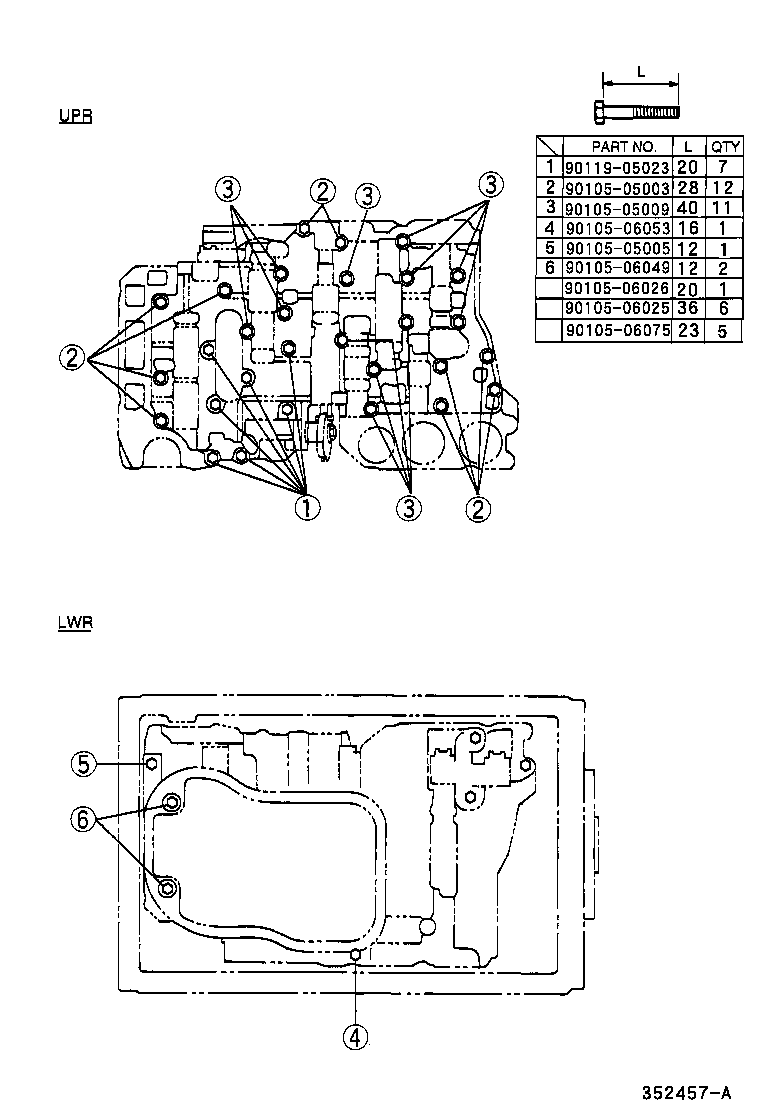

| Common parts | ||||
| 90105-05001 | ||||
| 90105-05005 | ||||
| 90105-06049 | ||||
| 91631-60614 | ||||

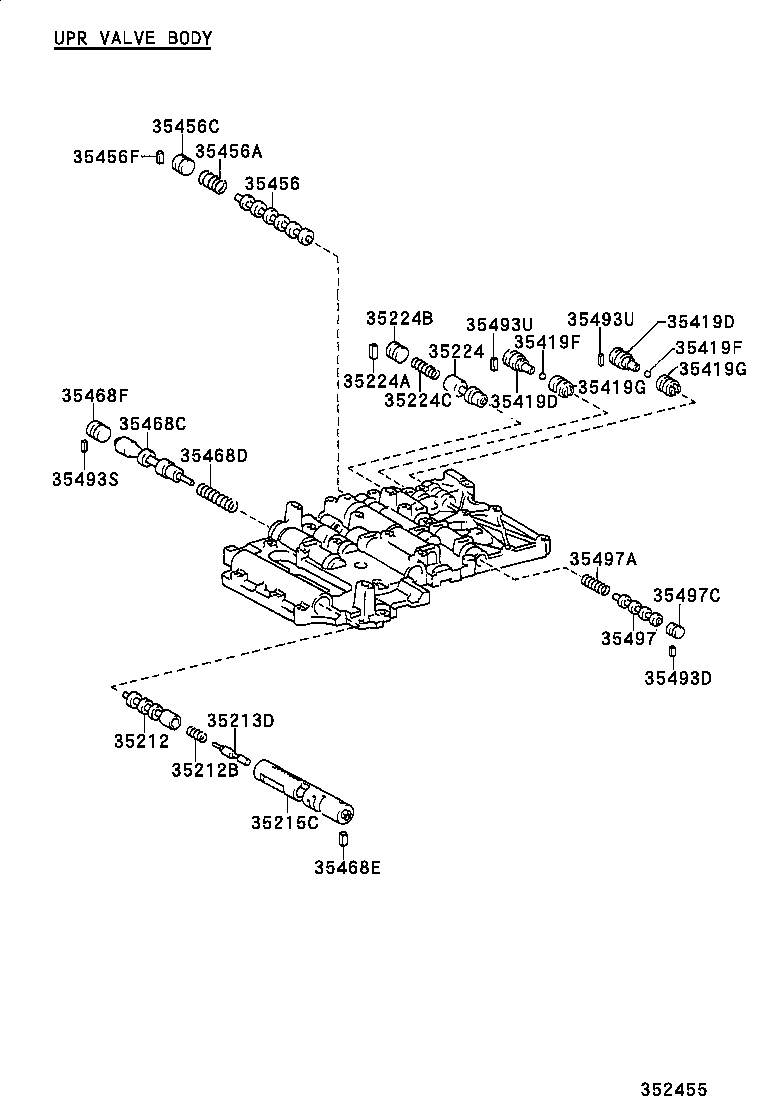

ILLUST NO. 2 OF 5(9909-0108)JZS171..TWC
A340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35212 - VALVE, LOCK UP RELAY | ||||
| 35212-24010 |
JZS171,173,175,177,UZS171,175..D4,HTWC,TWC |
1 | ||
| 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) | ||||
| 90501-06057 |
GS171,JZS17#,UZS17# |
1 | ||
| 35213D - PLUNGER, LOCK UP RELAY VALVE | ||||
| 35213-24010 |
JZS171,173,175,177,UZS171,175..D4,HTWC,TWC |
1 | ||
| 35215C - SLEEVE, LOCK UP RELAY VALVE, NO.1 | ||||
| 35215-24010 |
JZS171,173,175,177,UZS171,175..D4,HTWC,TWC |
1 | ||
| 35224 - VALVE, REVERSE CONTROL | ||||
| 35224-30010 |
GS171,JZS171,173,175,177,UZS171,175..D4,HTWC,TWC |
1 | ||
| 35224A - KEY, STRAIGHT (FOR REVERSE CONTROL VALVE) | ||||
| 90282-03010 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35224B - PLUG (FOR REVERSE CONTROL VALVE) | ||||
| 90339-05020 |
GS171,JZS17#,UZS17# |
1 | ||
| 35224C - SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE) | ||||
| 90501-06056 |
GS171,JZS171,173,179,UZS173..4FC |
1 | ||
| 35419D - VALVE, CHECK, NO.2 | ||||
| 35419-50020 |
JZS171,173,179,UZS173..4FC |
2 | ||
| 35419D - VALVE, CHECK, NO.2 | ||||
| 35419-50020 |
JZS171,173,179,UZS173..4FC |
2 | ||
| 35419F - BALL, CHECK VALVE | ||||
| 90360-06004 |
JZS171,173,179,UZS173..4FC |
2 | ||
| 35419F - BALL, CHECK VALVE | ||||
| 90360-06004 |
JZS171,173,179,UZS173..4FC |
2 | ||
| 35419G - VALVE, CHECK, NO.4 | ||||
| 35419-50030 |
JZS171,173,179,UZS173..4FC |
2 | ||
| 35419G - VALVE, CHECK, NO.4 | ||||
| 35419-50030 |
JZS171,173,179,UZS173..4FC |
2 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-30060 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-09053 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 90339-05014 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35456F - KEY, STRAIGHT (FOR 2-3 SHIFT VALVE) | ||||
| 35493-22020 |
JZS171,173..4FC..TWC |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-24010 |
GS171,JZS171,173..4FC |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-12170 |
GS171,JZS171,173..4FC |
1 | ||
| 35468E - KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE) | ||||
| 35493-22020 |
JZS171,173..4FC..TWC |
1 | ||
| 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) | ||||
| 90339-05020 |
GS171,JZS17#,UZS17# |
1 | ||
| 35493D - SEAT, 3-4 SHIFT VALVE PLUG | ||||
| 35493-30090 |
JZS171,173..4FC..TWC |
1 | ||
| 35493S - SEAT, SECONDARY REGULATOR VALVE PLUG | ||||
| 35493-30030 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35493U - SEAT, CHECK VALVE, NO.1 | ||||
| 35493-30030 |
JZS171,173..4FC..TWC |
2 | ||
| 35493U - SEAT, CHECK VALVE, NO.1 | ||||
| 35493-30030 |
JZS171,173..4FC..TWC |
2 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-30040 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-09053 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 90339-05014 |
JZS171,173,179,UZS173..4FC |
1 | ||

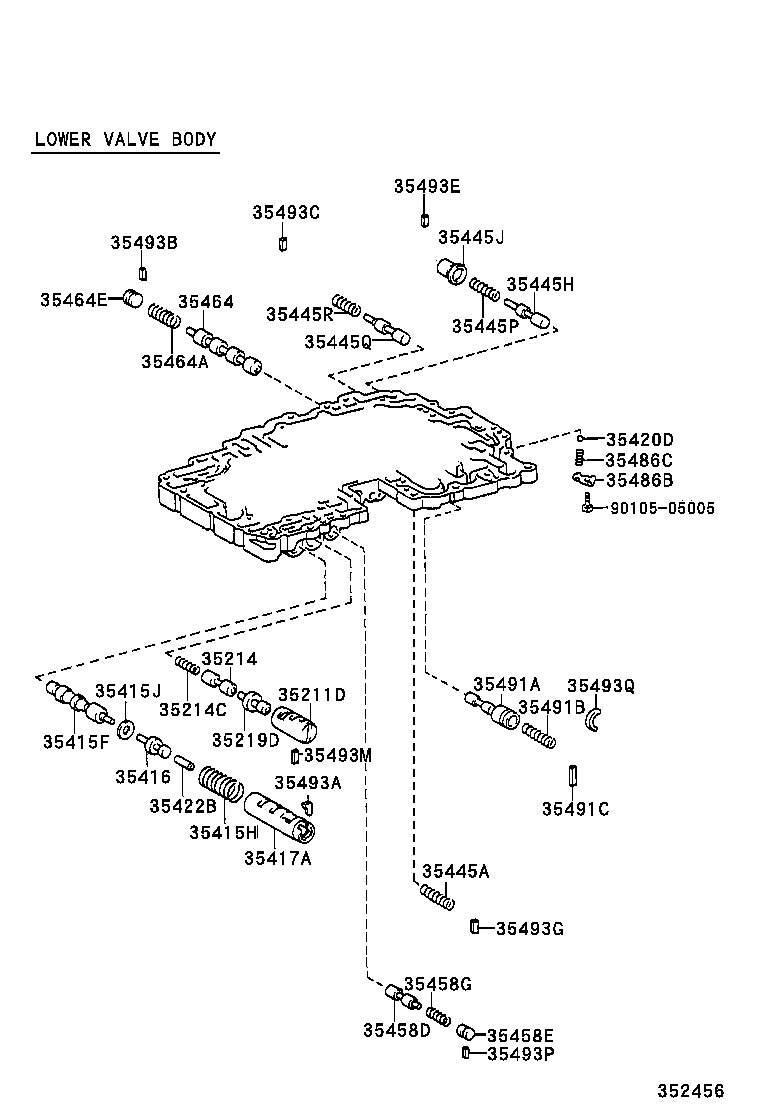

ILLUST NO. 3 OF 5(9909-0108)JZS171..TWC
A340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35211D - SLEEVE, LOCK UP CONTROL VALVE | ||||
| 35211-50010 |
JZS17#,UZS17# |
1 | ||
| 35214 - VALVE, LOCK UP CONTROL | ||||
| 35214-50010 |
GS171,JZS17#,UZS17# |
1 | ||
| 35214C - SPRING, COMPRESSION (FOR LOCK UP CONTROL VALVE) | ||||
| 90501-07111 |
GS171,JZS17#,UZS17# |
1 | ||
| 35219D - PLUNGER, LOCK UP CONTROL VALVE | ||||
| 35219-50010 |
GS171,JZS17#,UZS17# |
1 | ||
| 35415F - VALVE, PRIMARY REGULATOR | ||||
| 35415-30050 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) | ||||
| 90501-14153 |
JZS171,173..4FC |
1 | ||
| 35415J - WASHER (FOR PRIMARY REGULATOR VALVE) | ||||
| 90201-08067 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-24020 |
JZS171,173..4FC |
1 | ||
| 35417A - SLEEVE, PRIMARY REGULATOR VALVE | ||||
| 35417-24020 |
JZS171,173..4FC |
1 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 90360-08003 |
JZS17#,UZS17#..D4,HTWC,TWC 外径=8.00,ｽﾁｰﾙ |
1 | ||
| 35422B - PLUNGER, PRIMARY REGULATOR VALVE, NO.2 | ||||
| 35422-50011 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35445A - SPRING, COMPRESSION (FOR LOW MODULATOR VALVE) | ||||
| 90501-12158 |
JZS171,173..4FC..TWC |
1 | ||
| 35445H - VALVE, 2ND COAST MODULATOR | ||||
| 35445-50010 |
JZS171,173..4FC..TWC |
2 | ||
| 35445J - PLUG (FOR 2ND COAST MODULATOR VALVE) | ||||
| 90339-04002 |
JZS171,173..4FC..TWC |
1 | ||
| 35445P - SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE) | ||||
| 90501-10081 |
JZS171,173..4FC..TWC |
1 | ||
| 35445Q - VALVE, LOW COAST MODULATOR | ||||
| 35445-50010 |
GS171,JZS171,173,179,UZS173..4FC..(HTWC,TWC) |
1 | ||
| 35445R - SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE) | ||||
| 90501-08066 |
JZS171,173..4FC..TWC |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-50010 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C |
1 | ||
| 35458-24010 |
JZS171,173..4FC..TWC |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 90339-04056 |
JZS171,173..4FC..TWC |
1 | ||
| 35458G - SPRING, COMPRESSION (FOR CUT BACK VALVE) | ||||
| 90501-07113 |
JZS171,173..4FC..TWC |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-12030 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-09053 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35464E - PLUG (FOR 1-2 SHIFT VALVE) | ||||
| 90339-05014 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35486B - SEAT, PRESSURE RELIEF VALVE SPRING | ||||
| 35486-30020 |
JZS171,173..4FC..TWC |
1 | ||
| 35486C - SPRING, COMPRESSION(FOR PRESSURE RELIFE VALVE) | ||||
| 90501-12142 |
JZS171,173,175,177,UZS171,175..D4,HTWC,TWC |
1 | ||
| 35491A - VALVE, ACCUMULATOR CONTROL, NO.1 | ||||
| 35491-30030 |
JZS175;JZS171,177,UZS171,175..A,ATH,ATHV,C |
1 | ||
| 35491-60050 |
JZS171,173..4FC..TWC |
1 | ||
| 35491B - SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1 | ||||
| 90501-08197 |
JZS171,173..4FC..TWC |
1 | ||
| 35491C - KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1) | ||||
| 90282-03016 |
JZS171,173..4FC..TWC |
1 | ||
| 90282-03015 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C |
1 | ||
| 35493A - SEAT, PRIMARY REGULATOR VALVE PLUG | ||||
| 35493-50010 |
GS171,JZS17#,UZS17# |
1 | ||
| 35493B - SEAT, 1-2 SHIFT VALVE PLUG | ||||
| 35493-30090 |
JZS171,173..4FC..TWC |
1 | ||
| 35493C - SEAT, RELEASE CONTROL VALVE PLUG | ||||
| 35493-24010 |
JZS171,173..4FC..TWC |
1 | ||
| 35493E - SEAT, 2ND COAST MODULATOR VALVE PLUG | ||||
| 35493-30090 |
JZS171,173..4FC..TWC |
1 | ||
| 35493G - SEAT, LOW COAST MODULATOR VALVE PLUG | ||||
| 35493-24010 |
JZS171,173..4FC..TWC |
1 | ||
| 35493M - SEAT, LOCK UP CONTROL VALVE PLUG | ||||
| 35493-30080 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35493P - SEAT, CUT BACK VALVE PLUG | ||||
| 35493-30100 |
JZS171,173..4FC..TWC |
1 | ||
| 35493Q - SEAT, ACCUMULATOR CONTROL VALVE PLUG, NO.1 | ||||
| 35493-50020 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C |
1 | ||
| 90339-05028 |
JZS171,173..4FC..TWC |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
ILLUST NO. 4 OF 5(9909-0108)JZS171..TWC
A340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-05003 | ||||
| 90105-05005 | ||||
| 90105-05009 | ||||
| 90105-06025 | ||||
| 90105-06026 | ||||
| 90105-06049 | ||||
| 90105-06053 | ||||
| 90105-06075 | ||||
| 90119-05023 | ||||

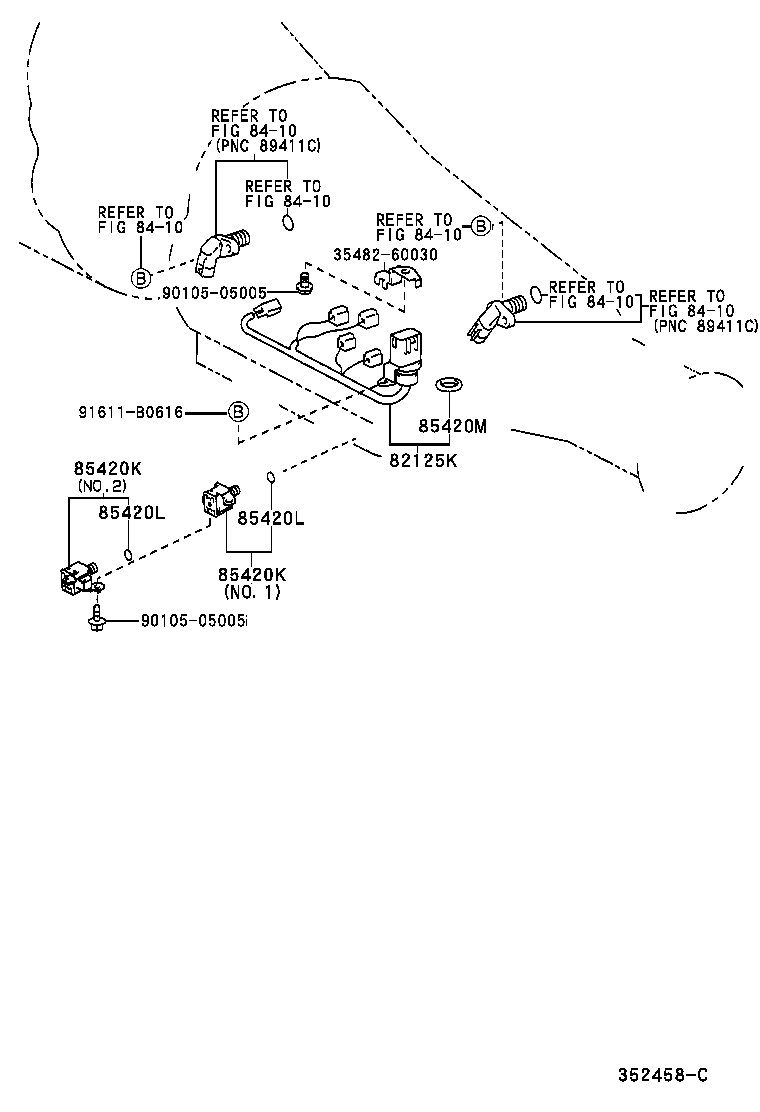

ILLUST NO. 5 OF 5(9909-0108)JZS171..TWC
A340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125K - WIRE, TRANSMISSION | ||||
| 82125-30470 |
JZS171..4FC..TWC |
1 | ||
| 85420K - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-22170 |
JZS171,173..4FC..TWC NO.2 |
1 | ||
| 85420-22150 |
JZS171,173..4FC..TWC NO.1 |
1 | ||
| 85420K - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-22170 |
JZS171,173..4FC..TWC NO.2 |
1 | ||
| 85420-22150 |
JZS171,173..4FC..TWC NO.1 |
1 | ||
| 85420L - RING, O(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
JZS173..SED;GS171,JZS171,175,177,179,UZS17#..D4,HTWC,TWC |
2 | ||
| 85420L - RING, O(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
JZS173..SED;GS171,JZS171,175,177,179,UZS17#..D4,HTWC,TWC |
2 | ||
| 85420M - RING, O(FOR SPEED SENSOR) | ||||
| 96721-24018 |
GS171,JZS17#,UZS17# |
1 | ||
| Common parts | ||||
| 35482-60030 | ||||
| 90105-05005 | ||||
| 91611-B0616 | ||||
| Linked diagrams | ||||
| 8410 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
