JZS171W-AWPQF (1999)

Toyota Crown/Crown Majesta

Production Dec 1999 - Aug 2001
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(9909-0010)1JZGE,2JZFSE..A,ATH,ATHG,C,ROY,ROYEX,ROYG ; (0010- )1JZGE

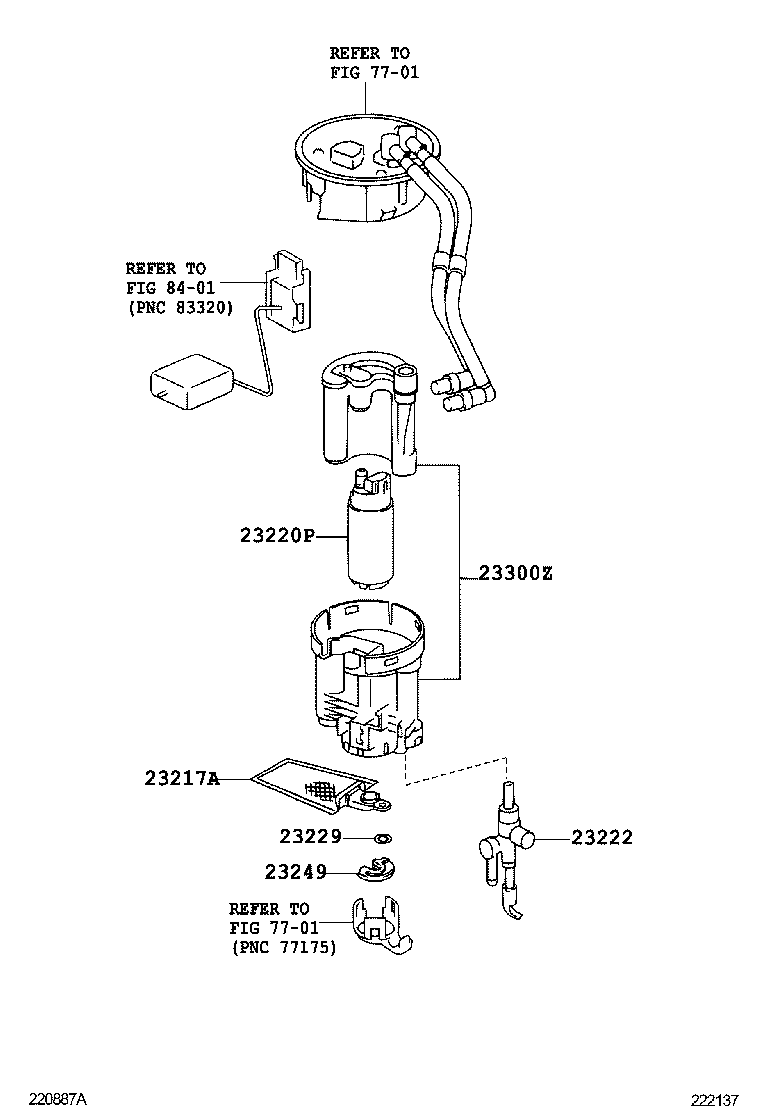

Click highlighted areas on diagram

diagram 23217A 23220P 23222 23229 23249 23300Z 7701 7701 8401
Part # Description Qty Price
23217A - FILTER, FUEL PUMP
23217-76040

1JZGE..JZS171,173

 1
23220P - PUMP ASSY, FUEL
23221-70350

1JZGE..JZS171,173

 1
23222 - TUBE, FUEL RETURN JET
23222-46040

1JZGE..JZS171,173

 1
23222-46040

1JZGE,2JZFSE..JZS171,173,175

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

1JZ#,2JZ#..JZS17#

 1
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-46180

1JZ#,2JZ#..JZS17#

 1
23300Z - FILTER, FUEL(FOR FUEL TANK)
23300-46120

1JZGE,2JZFSE..JZS171,173,175,177

 1
23300-46120

1JZGE..JZS171,173

 1
