JZS171W-AWPQF (1999)

Toyota Crown/Crown Majesta

Production Dec 1999 - Aug 2001
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909-0108)1JZGE..JZS171 ; (9909- )1JZGE,2JZGE..JZS173,179

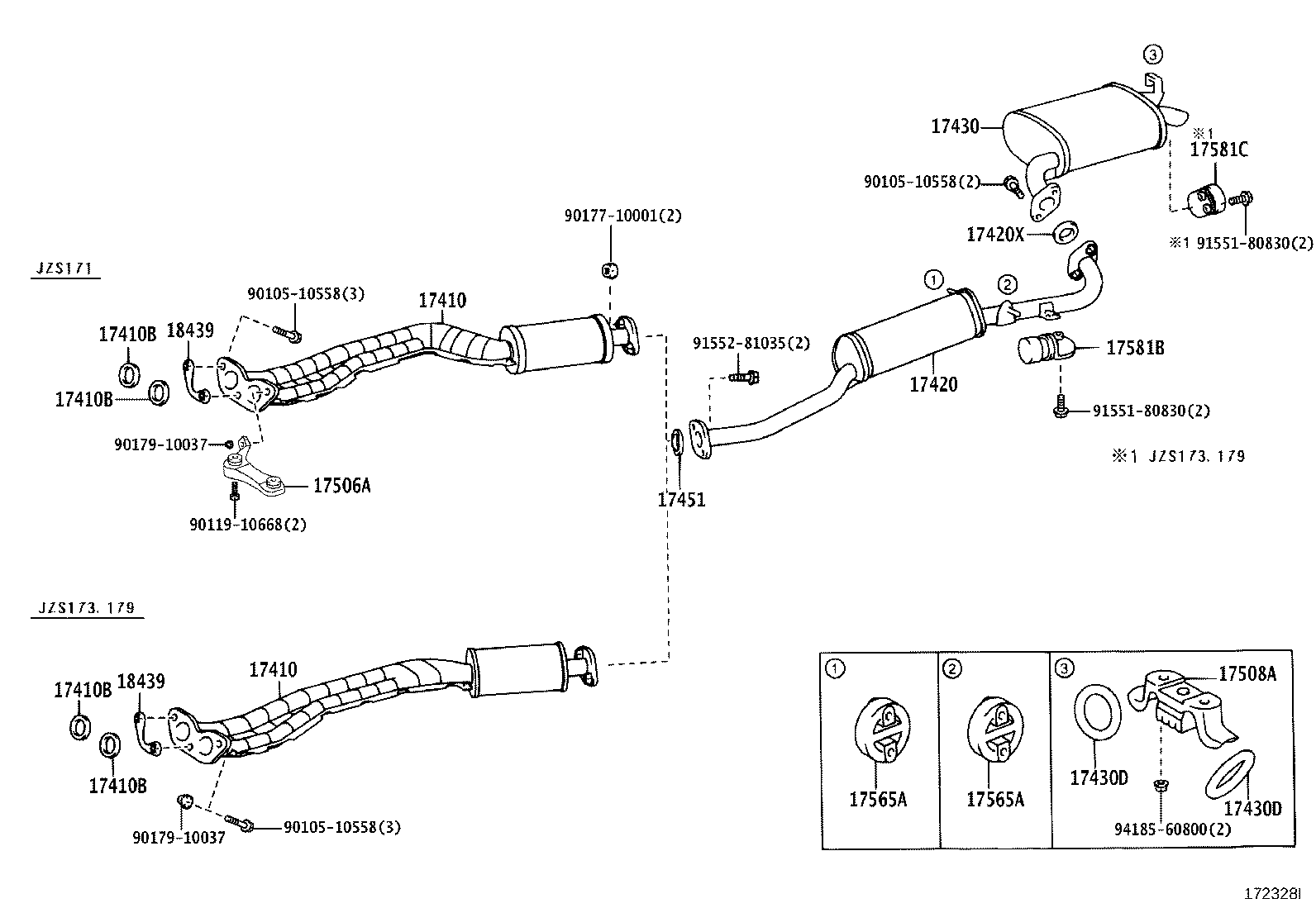

Click highlighted areas on diagram

diagram 17410 17410 17410B 17410B 17410B 17410B 17420 17420X 17430 17430D 17430D 17451 17506A 17508A 17565A 17565A 17581B 17581C 18439 18439 9010510558 9010510558 9010510558 9011910668 9017710001 9017910037 9017910037 9155180830 9155180830 9155281035 9418560800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-46540

1JZGE..JZS171

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-46540

1JZGE..JZS171

 1
17410B - GASKET, EXHAUST PIPE
90917-06046

1GFE,1JZGE,2JZ#..GS171,JZS17#

 2
17410B - GASKET, EXHAUST PIPE
90917-06046

1GFE,1JZGE,2JZ#..GS171,JZS17#

 2
17410B - GASKET, EXHAUST PIPE
90917-06046

1GFE,1JZGE,2JZ#..GS171,JZS17#

 2
17410B - GASKET, EXHAUST PIPE
90917-06046

1GFE,1JZGE,2JZ#..GS171,JZS17#

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-46460

1JZGE..JZS171

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06073

1GFE,1JZ#,2JZ#..GS171,JZS171,173,175,179

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-46520

1GFE,1JZGE..GS171,JZS171

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-36001

1GFE,1JZ#,2JZ#..GS171,JZS171,173,175,179

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-36001

1GFE,1JZ#,2JZ#..GS171,JZS171,173,175,179

 2
17451 - GASKET, EXHAUST PIPE
90917-06076

1GFE,1JZGE,2JZ#..GS171,JZS17#

 1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-46210

1JZGE,2JZFSE..JZS171,175,177

 1
17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17508-46060

1GFE,1JZ#,2JZ#..GS171,JZS171,173,175,179

 1
17508-50010

1GFE,1JZ#,2JZ#..GS171,JZS171,173,175,179

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-11160

1GFE,1JZ#,2JZ#..GS171,JZS171,173,175,179

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-11160

1GFE,1JZ#,2JZ#..GS171,JZS171,173,175,179

 2
17581B - DAMPER, EXHAUST PIPE, NO.2
17581-46010

1JZGE,2JZGE..JZS171,173,179

 1
18439 - BRACKET, CONVERTOR PROTECTOR, REAR
18495-46020

1JZGE,2JZ#..JZS17#

 1
18439 - BRACKET, CONVERTOR PROTECTOR, REAR
18495-46020

1JZGE,2JZ#..JZS17#

 1
Common parts
90105-10558
90119-10668
90177-10001
90179-10037
91551-80830
91552-81035
94185-60800
