JZS171W-AWPQF (1999)

Toyota Crown/Crown Majesta

Production Dec 1999 - Aug 2001
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

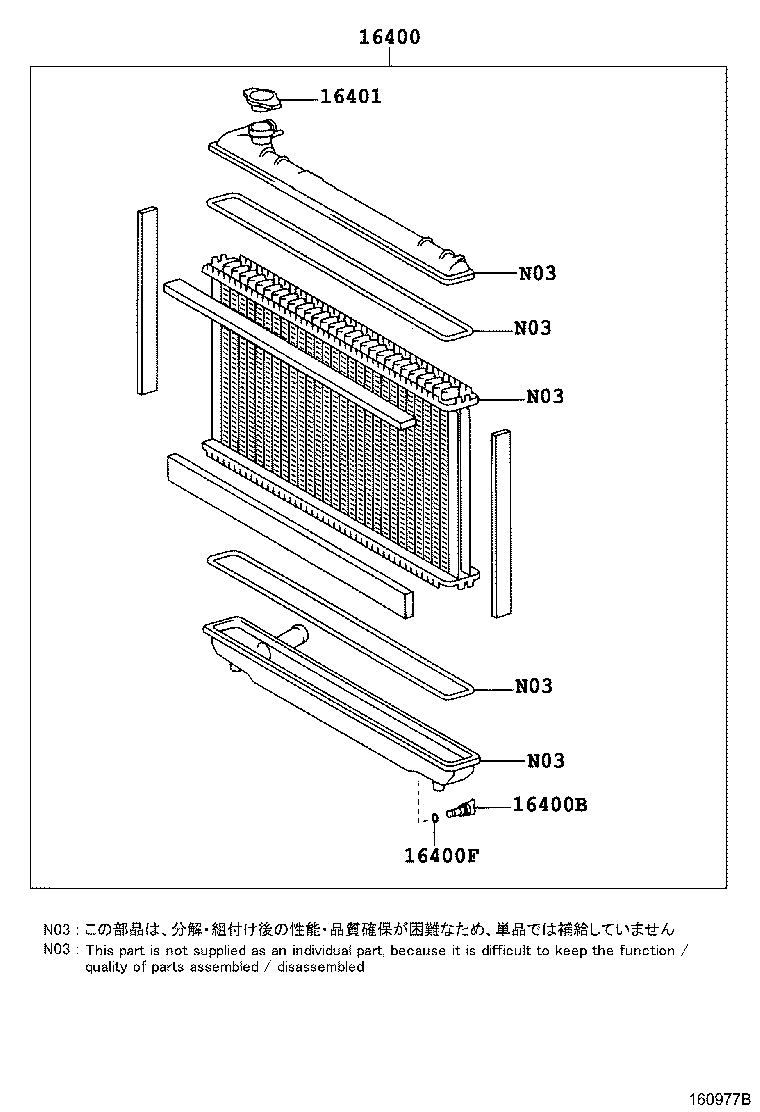

ILLUST NO. 2 OF 2(9909-0108)1JZ#,2JZ#

Click highlighted areas on diagram

diagram 16400 16400B 16400F 16401
Part # Description Qty Price
16400 - RADIATOR ASSY
16400-46640

1JZGE..JZS171

 1
16400B - PLUG, RADIATOR DRAIN COCK
23322-54010

1JZ#,2JZ#..JZS17#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050

1JZ#,2JZ#..JZS17#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-62100

1JZ#,2JZ#..JZS17#

 1
