JZS171W-AWPQF (1999)

Toyota Crown/Crown Majesta

Production Dec 1999 - Aug 2001
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909-0108)1JZGE,2JZGE

Click highlighted areas on diagram

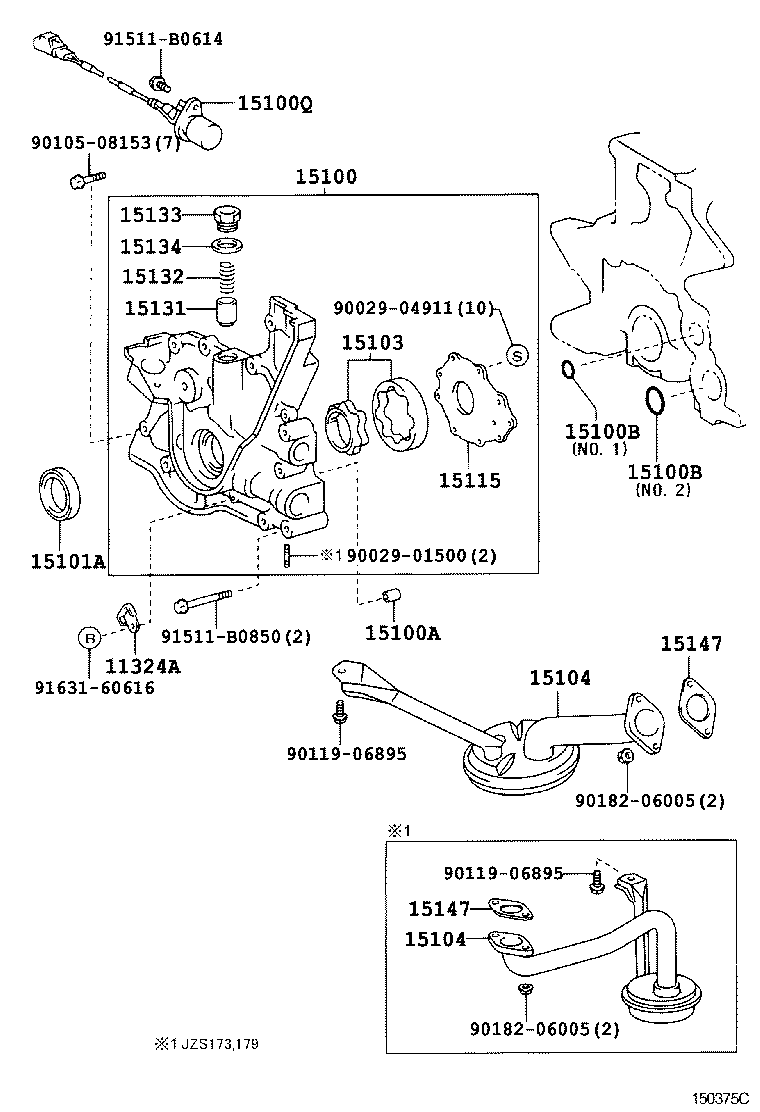

diagram 11324A 15100 15100A 15100B 15100B 15100Q 15101A 15103 15104 15104 15115 15131 15132 15133 15134 15147 15147 9002901500 9002904911 9010508153 9011906895 9011906895 9018206005 9018206005 91511B0614 91511B0850 9163160616
Part # Description Qty Price
11324A - PLATE, TIMING BELT
11324-46030

1JZGE,2JZ#..JZS17#

 1
15100 - PUMP ASSY, OIL
15100-46090

1JZGE..JZS171

 1
15100-46091

1JZGE..JZS171

 1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-11021

1JZ#,2JZ#..JZS17#

 2
15100B - RING, O(FOR OIL PUMP)
96721-24022

1JZ#,2JZ#..JZS17#

NO.1

 1
96721-24031

1JZ#,2JZ#..JZS17#

NO.2

 1
15100B - RING, O(FOR OIL PUMP)
96721-24022

1JZ#,2JZ#..JZS17#

NO.1

 1
96721-24031

1JZ#,2JZ#..JZS17#

NO.2

 1
15100Q - SENSOR, CRANK POSITION
90919-05023

1JZ#,2JZ#..JZS17#

 1
15101A - SEAL(FOR CRANKSHAFT)
90311-46001

1JZ#,2JZ#..JZS17#

 1
15103 - GEAR SET, OIL PUMP
15103-46090

1JZGE,2JZGE..JZS171,173,179

 1
15104 - STRAINER SUB-ASSY, OIL
15104-46070

1JZ#,2JZFSE..JZS171,175,177

 1
15104 - STRAINER SUB-ASSY, OIL
15104-46070

1JZ#,2JZFSE..JZS171,175,177

 1
15115 - COVER, OIL PUMP
15115-46090

1JZGE,2JZGE..JZS171,173,179

 1
15131 - VALVE, OIL PUMP RELIEF
15131-46060

1JZGE,2JZGE..JZS171,173,179

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-46060

1JZGE,2JZ#..JZS17#

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-17010

1JZGE,2JZ#..JZS17#

 1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-67020

1JZGE,2JZ#..JZS17#

 1
15147 - GASKET, OIL STRAINER
15147-46010

1JZ#,2JZFSE..JZS171,175,177

 1
15147 - GASKET, OIL STRAINER
15147-46010

1JZ#,2JZFSE..JZS171,175,177

 1
Common parts
90029-01500
90029-04911
90105-08153
90119-06895
90182-06005
91511-B0614
91511-B0850
91631-60616
