JZS171W-AWPQF (1999)
Toyota Crown/Crown Majesta
Production
Dec 1999
-
Aug 2001
Engine
1JZGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

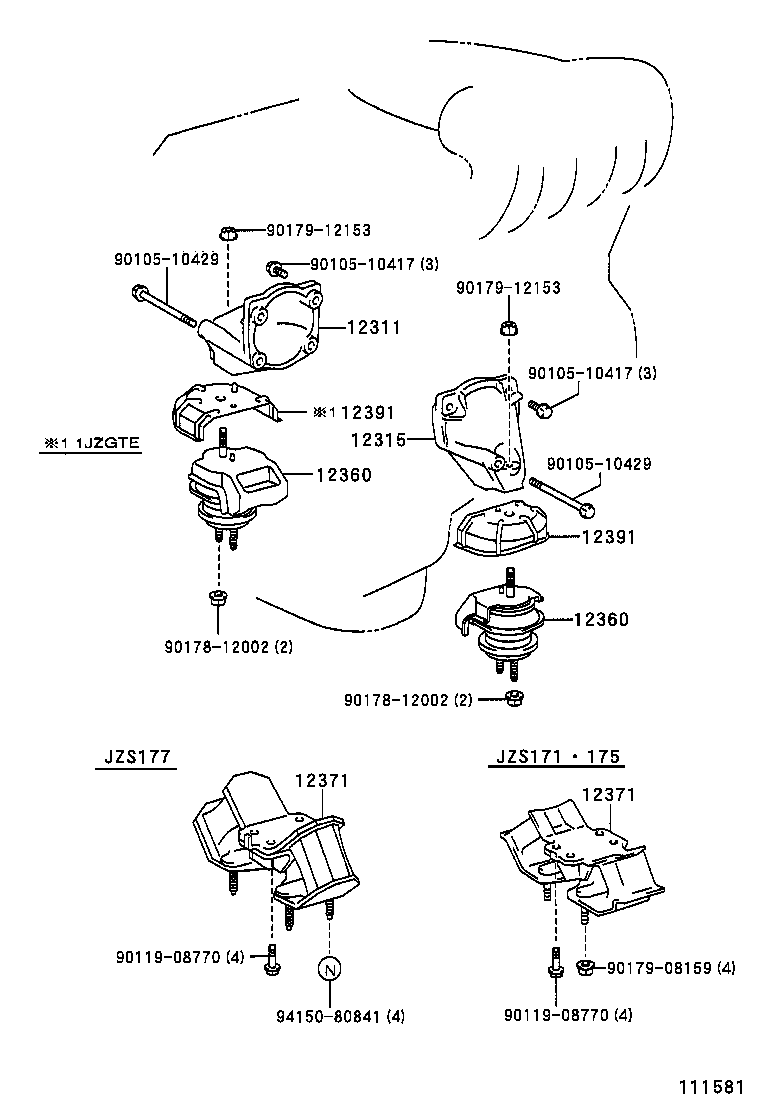

(9909-0104)1JZ#,2JZFSE..JZS171,175,177
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-46140 |
1JZ#,2JZFSE..JZS171,175,177 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-46120 |
1JZ#,2JZFSE..JZS171,175,177 |
1 | ||
| 12360 - INSULATOR ASSY, ENGINE MOUNTING, FRONT | ||||
| 12360-46180 |
1JZGE,2JZFSE..JZS171,175,177 |
2 | ||
| 12360 - INSULATOR ASSY, ENGINE MOUNTING, FRONT | ||||
| 12360-46180 |
1JZGE,2JZFSE..JZS171,175,177 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-46210 |
1JZ#,2JZFSE..JZS171,175 |
1 | ||
| 12371-46200 |
1JZ#,2JZFSE..JZS171,175,177 |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-46210 |
1JZ#,2JZFSE..JZS171,175 |
1 | ||
| 12371-46200 |
1JZ#,2JZFSE..JZS171,175,177 |
1 | ||
| 12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH | ||||
| 12391-46020 |
1JZGE..JZS171 |
1 | ||
| 12391-46040 |
1JZGE..JZS171 |
1 | ||
| 12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH | ||||
| 12391-46020 |
1JZGE..JZS171 |
1 | ||
| 12391-46040 |
1JZGE..JZS171 |
1 | ||
| Common parts | ||||
| 90105-10417 | ||||
| 90105-10429 | ||||
| 90119-08770 | ||||
| 90178-12002 | ||||
| 90179-08159 | ||||
| 90179-12153 | ||||
| 94150-80841 | ||||

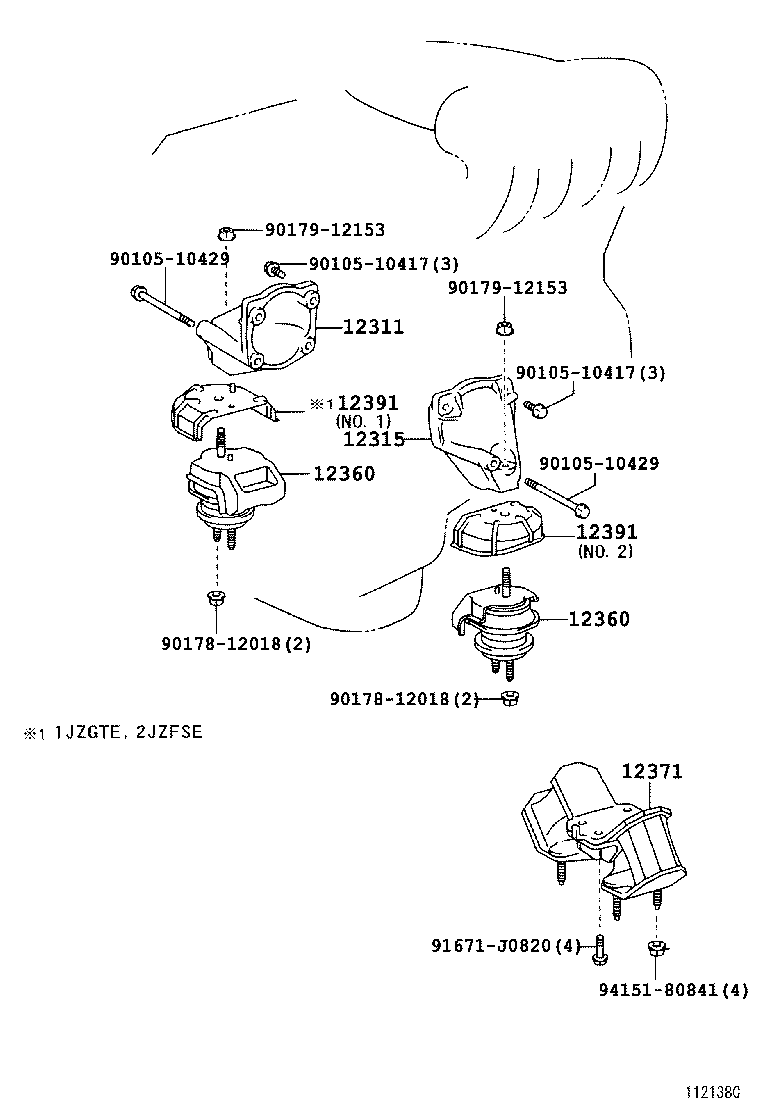

(0104- )1JZ#,2JZFSE..JKS175,JZS171,175,177
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-46140 |
1JZ#,2JZFSE..JZS171,175,177 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-46120 |
1JZ#,2JZFSE..JZS171,175,177 |
1 | ||
| 12360 - INSULATOR ASSY, ENGINE MOUNTING, FRONT | ||||
| 12360-46180 |
1JZGE,2JZFSE..JZS171,175,177 |
2 | ||
| 12360 - INSULATOR ASSY, ENGINE MOUNTING, FRONT | ||||
| 12360-46180 |
1JZGE,2JZFSE..JZS171,175,177 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-46210 |
1JZ#,2JZFSE..JZS171,175 |
1 | ||
| 12371-46200 |
1JZ#,2JZFSE..JZS171,175,177 |
1 | ||
| 12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH | ||||
| 12391-46020 |
1JZGE..JZS171 |
1 | ||
| 12391-46040 |
1JZGE..JZS171 |
1 | ||
| 12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH | ||||
| 12391-46020 |
1JZGE..JZS171 |
1 | ||
| 12391-46040 |
1JZGE..JZS171 |
1 | ||
| Common parts | ||||
| 90105-10417 | ||||
| 90105-10429 | ||||
| 90178-12018 | ||||
| 90179-12153 | ||||
| 91671-J0820 | ||||
| 94151-80841 | ||||
