JZS171W-AWPQF (1999)

Toyota Crown/Crown Majesta

Production Dec 1999 - Aug 2001
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909-0108)1JZGE..JZS171

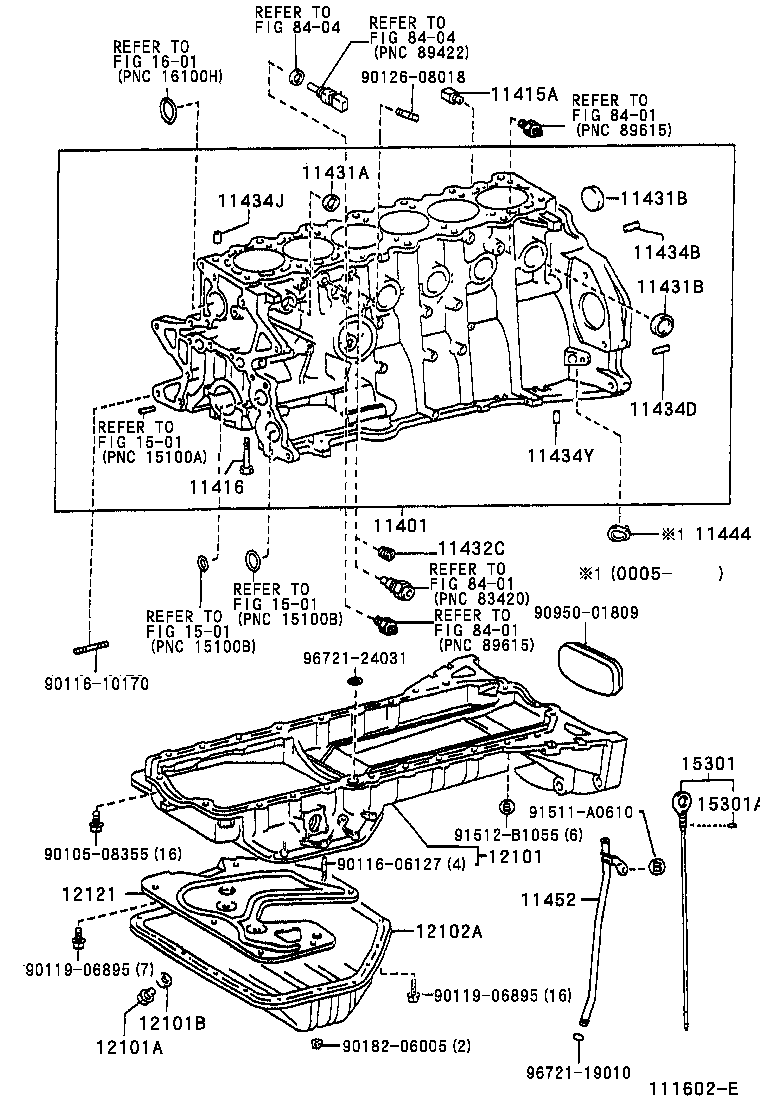

Click highlighted areas on diagram

diagram 11401 11415A 11416 11431A 11431B 11431B 11432C 11434B 11434D 11434J 11434Y 11444 11452 12101 12101A 12101B 12102A 12121 1501 1501 1501 15301 15301A 1601 8401 8401 8401 8404 8404 9010508355 9011606127 9011610170 9011906895 9011906895 9012608018 9018206005 9095001809 91511A0610 91512B1055 9672119010 9672124031
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-49648

1JZGE..JZS171

 1
11401-49647

1JZGE..JZS171

 1
11401-49725

1JZGE..JZS171

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09102

1JZ#,2JZ#..JZS17#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02104

1JZ#,2JZ#..JZS17#

 14
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-42500

1JZ#,2JZ#..JZS17#

 2
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-43500

1JZ#,2JZ#..JZS17#

 11
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-43500

1JZ#,2JZ#..JZS17#

 11
11432C - PLUG, W/HEAD TAPER SCREW, NO.3
90344-53015

1JZGE,2JZGE..JZS171,173,179

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10192

1JZGE,2JZ#..JZS17#

長さ=22,外径=10

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06003

1JZGE,2JZ#..JZS17#

長さ=14,外径=6

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-14003

1JZ#,2JZ#..JZS17#

 2
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-10192

1JZGE,2JZ#..JZS17#

 2
11444 - PLUG, HOLE
11444-46010

1JZGE..JZS171

 1
11444-46010

1JZGE..JZS171,173

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-46010

1JZGE,2JZFSE..JZS171,175,177

 1
12101 - PAN SUB-ASSY, OIL
12111-46062

1JZGE,2JZFSE..JZS171,175,177

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12026

1JZ#,2JZ#..JZS17#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

1JZ#,2JZ#..JZS17#

 1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-46040

1JZ#,2JZFSE..JZS171,175,177

 1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12121-46010

1JZ#,2JZFSE..JZS171,175,177

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-46023

1JZGE,2JZFSE..JZS171,175,177

 1
15301A - RING, O(FOR OIL LEVEL GAGE)
96741-19005

1JZ#,2JZFSE..JZS171,175,177

 1
Common parts
90105-08355
90116-06127
90116-10170
90119-06895
90126-08018
90182-06005
90950-01809
91511-A0610
91512-B1055
96721-19010
96721-24031
