Toyota Crown/crown majesta JZS171 REAR COMBINATION LAMP

JZS171W-AWAXH (2001)

Toyota Crown/Crown Majesta

Production Aug 2001 - Jun 2007

Engine 1JZFSE

Transmission 5FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

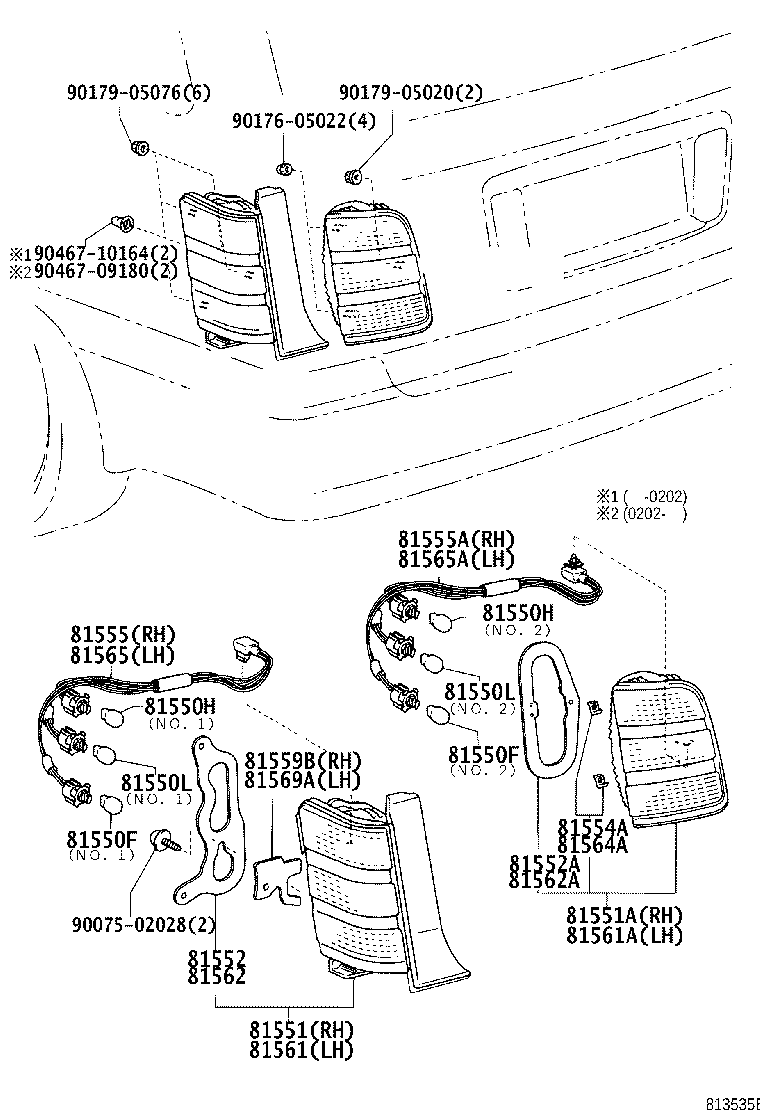

(0108-0512)WG

Click highlighted areas on diagram

Part #	Description	Period	Qty
81550F - BULB, TAIL LAMP
90981-13044	GS171,JZS171,173,175..WG	08/2001 - 12/2005	4
81550F - BULB, TAIL LAMP
90981-13044	GS171,JZS171,173,175..WG	08/2001 - 12/2005	4
81550H - BULB, TAIL & STOP LAMP
90981-13044	GS171,JZS171,173,175..WG	08/2001 - 06/2007	4
81550H - BULB, TAIL & STOP LAMP
90981-13044	GS171,JZS171,173,175..WG	08/2001 - 06/2007	4
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15021	JZS17#	12/2005 - 06/2007	4
90981-15011	GS171,JZS171,173,175..WG	08/2001 - 12/2005	4
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15021	JZS17#	12/2005 - 06/2007	4
90981-15011	GS171,JZS171,173,175..WG	08/2001 - 12/2005	4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-31150	GS171,JZS171,173,175..WG	08/2001 - 12/2005	1
81551-31160	JZS17#	12/2005 - 12/2999	1
81551A - LENS, REAR COMBINATION LAMP, RH
81581-31040	GS171,JZS171,173,175..WG	08/2001 - 12/2005	1
81581-31070	JZS17# ｶﾝﾚｲﾁｼﾖｳ	12/2005 - 12/2999	1
81581-31060	JZS17#	12/2005 - 12/2999	1
81581-31050	GS171,JZS171,173,175..WG ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	08/2001 - 12/2005	1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-31150	GS171,JZS171,173,175..WG	08/2001 - 12/2999	1
81552A - GASKET, REAR COMBINATION LAMP, RH
81584-31040	GS171,JZS171,173,175..WG	08/2001 - 09/2001	1
81584-31040	GS171,JZS171,173,175..WG	09/2001 - 06/2007	1
81554A - GASKET, REAR COMBINATION LAMP BODY, NO.1 RH
81558-24040	GS171,JZS171,173,175..WG	08/2001 - 12/2999	2
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-31160	JZS17#	12/2005 - 12/2999	1
81555-31150	GS171,JZS171,173,175..WG	08/2001 - 12/2005	1
81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81585-31040	GS171,JZS171,173,175..WG	08/2001 - 12/2005	1
81585-31050	GS171,JZS171,173,175..WG ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	08/2001 - 12/2005	1
81585-31060	JZS17#	12/2005 - 12/2999	1
81585-31070	JZS17# ｶﾝﾚｲﾁｼﾖｳ	12/2005 - 12/2999	1
81559B - BRACKET, REAR COMBINATION LAMP, RH
81559-31150	GS171,JZS171,173,175..WG	08/2001 - 10/2006	1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-31150	JZS17#	12/2005 - 12/2999	1
81561-31130	GS171,JZS171,173,175..WG	08/2001 - 12/2005	1
81561A - LENS, REAR COMBINATION LAMP, LH
81591-31040	GS171,JZS171,173,175..WG	08/2001 - 12/2005	1
81591-31060	JZS17#	12/2005 - 12/2999	1
81591-31050	GS171,JZS171,173,175..WG ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	08/2001 - 12/2005	1
81591-31070	JZS17# ｶﾝﾚｲﾁｼﾖｳ	12/2005 - 12/2999	1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81562-31150	GS171,JZS171,173,175..WG	08/2001 - 12/2999	1
81562A - GASKET, REAR COMBINATION LAMP, LH
81594-31040	GS171,JZS171,173,175..WG	08/2001 - 06/2007	1
81564A - GASKET, REAR COMBINATION LAMP BODY, NO.1 LH
81558-24040	GS171,JZS171,173,175..WG	08/2001 - 12/2999	2
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-31130	GS171,JZS171,173,175..WG	08/2001 - 12/2005	1
81565-31150	JZS17#	12/2005 - 12/2999	1
81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81585-31050	GS171,JZS171,173,175..WG ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	08/2001 - 12/2005	1
81585-31040	GS171,JZS171,173,175..WG	08/2001 - 12/2005	1
81585-31060	JZS17#	12/2005 - 12/2999	1
81585-31070	JZS17# ｶﾝﾚｲﾁｼﾖｳ	12/2005 - 12/2999	1
81569A - BRACKET, REAR COMBINATION LAMP, LH
81569-31130	GS171,JZS171,173,175..WG	08/2001 - 10/2006	1
Common parts
90075-02028
90176-05022
90179-05020
90179-05076
90467-09180
90467-10164

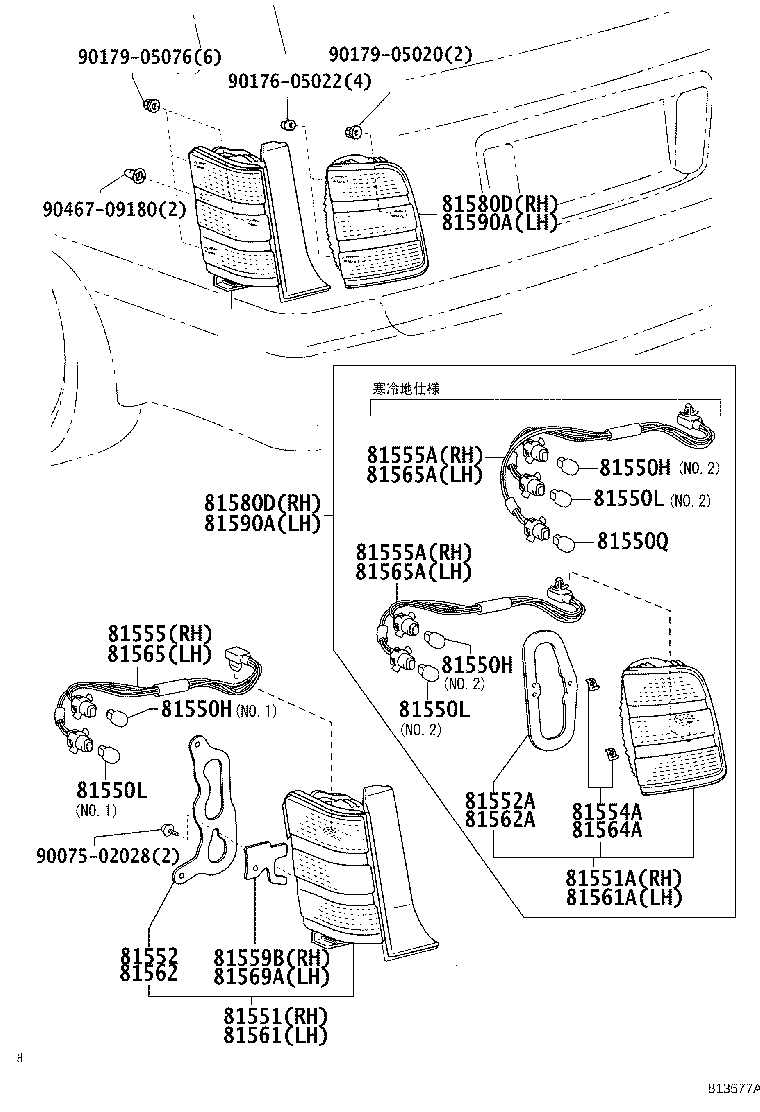

(0512- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
81550H - BULB, TAIL & STOP LAMP
90981-13044	GS171,JZS171,173,175..WG	08/2001 - 06/2007	4
81550H - BULB, TAIL & STOP LAMP
90981-13044	GS171,JZS171,173,175..WG	08/2001 - 06/2007	4
81550H - BULB, TAIL & STOP LAMP
90981-13044	GS171,JZS171,173,175..WG	08/2001 - 06/2007	4
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15021	JZS17#	12/2005 - 06/2007	4
90981-15011	GS171,JZS171,173,175..WG	08/2001 - 12/2005	4
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15021	JZS17#	12/2005 - 06/2007	4
90981-15011	GS171,JZS171,173,175..WG	08/2001 - 12/2005	4
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15021	JZS17#	12/2005 - 06/2007	4
90981-15011	GS171,JZS171,173,175..WG	08/2001 - 12/2005	4
81550Q - BULB, REAR FOG LAMP, NO.1
90981-13043	JZS17#	12/2005 - 06/2007	2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-31150	GS171,JZS171,173,175..WG	08/2001 - 12/2005	1
81551-31160	JZS17#	12/2005 - 12/2999	1
81551A - LENS, REAR COMBINATION LAMP, RH
81581-31040	GS171,JZS171,173,175..WG	08/2001 - 12/2005	1
81581-31070	JZS17# ｶﾝﾚｲﾁｼﾖｳ	12/2005 - 12/2999	1
81581-31060	JZS17#	12/2005 - 12/2999	1
81581-31050	GS171,JZS171,173,175..WG ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	08/2001 - 12/2005	1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-31150	GS171,JZS171,173,175..WG	08/2001 - 12/2999	1
81552A - GASKET, REAR COMBINATION LAMP, RH
81584-31040	GS171,JZS171,173,175..WG	08/2001 - 09/2001	1
81584-31040	GS171,JZS171,173,175..WG	09/2001 - 06/2007	1
81554A - GASKET, REAR COMBINATION LAMP BODY, NO.1 RH
81558-24040	GS171,JZS171,173,175..WG	08/2001 - 12/2999	2
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-31160	JZS17#	12/2005 - 12/2999	1
81555-31150	GS171,JZS171,173,175..WG	08/2001 - 12/2005	1
81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81585-31040	GS171,JZS171,173,175..WG	08/2001 - 12/2005	1
81585-31050	GS171,JZS171,173,175..WG ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	08/2001 - 12/2005	1
81585-31060	JZS17#	12/2005 - 12/2999	1
81585-31070	JZS17# ｶﾝﾚｲﾁｼﾖｳ	12/2005 - 12/2999	1
81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81585-31040	GS171,JZS171,173,175..WG	08/2001 - 12/2005	1
81585-31050	GS171,JZS171,173,175..WG ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	08/2001 - 12/2005	1
81585-31060	JZS17#	12/2005 - 12/2999	1
81585-31070	JZS17# ｶﾝﾚｲﾁｼﾖｳ	12/2005 - 12/2999	1
81559B - BRACKET, REAR COMBINATION LAMP, RH
81559-31150	GS171,JZS171,173,175..WG	08/2001 - 10/2006	1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-31150	JZS17#	12/2005 - 12/2999	1
81561-31130	GS171,JZS171,173,175..WG	08/2001 - 12/2005	1
81561A - LENS, REAR COMBINATION LAMP, LH
81591-31040	GS171,JZS171,173,175..WG	08/2001 - 12/2005	1
81591-31060	JZS17#	12/2005 - 12/2999	1
81591-31050	GS171,JZS171,173,175..WG ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	08/2001 - 12/2005	1
81591-31070	JZS17# ｶﾝﾚｲﾁｼﾖｳ	12/2005 - 12/2999	1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81562-31150	GS171,JZS171,173,175..WG	08/2001 - 12/2999	1
81562A - GASKET, REAR COMBINATION LAMP, LH
81594-31040	GS171,JZS171,173,175..WG	08/2001 - 06/2007	1
81564A - GASKET, REAR COMBINATION LAMP BODY, NO.1 LH
81558-24040	GS171,JZS171,173,175..WG	08/2001 - 12/2999	2
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-31130	GS171,JZS171,173,175..WG	08/2001 - 12/2005	1
81565-31150	JZS17#	12/2005 - 12/2999	1
81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81585-31050	GS171,JZS171,173,175..WG ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	08/2001 - 12/2005	1
81585-31040	GS171,JZS171,173,175..WG	08/2001 - 12/2005	1
81585-31060	JZS17#	12/2005 - 12/2999	1
81585-31070	JZS17# ｶﾝﾚｲﾁｼﾖｳ	12/2005 - 12/2999	1
81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81585-31050	GS171,JZS171,173,175..WG ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ)	08/2001 - 12/2005	1
81585-31040	GS171,JZS171,173,175..WG	08/2001 - 12/2005	1
81585-31060	JZS17#	12/2005 - 12/2999	1
81585-31070	JZS17# ｶﾝﾚｲﾁｼﾖｳ	12/2005 - 12/2999	1
81569A - BRACKET, REAR COMBINATION LAMP, LH
81569-31130	GS171,JZS171,173,175..WG	08/2001 - 10/2006	1
81580D - LAMP ASSY, REAR, RH
81580-31060	JZS17#	12/2005 - 06/2007	1
81580-31070	JZS17# ｶﾝﾚｲﾁｼﾖｳ	12/2005 - 06/2007	1
81580D - LAMP ASSY, REAR, RH
81580-31060	JZS17#	12/2005 - 06/2007	1
81580-31070	JZS17# ｶﾝﾚｲﾁｼﾖｳ	12/2005 - 06/2007	1
81590A - LAMP ASSY, REAR, LH
81590-31060	JZS17#	12/2005 - 06/2007	1
81590-31070	JZS17# ｶﾝﾚｲﾁｼﾖｳ	12/2005 - 06/2007	1
81590A - LAMP ASSY, REAR, LH
81590-31060	JZS17#	12/2005 - 06/2007	1
81590-31070	JZS17# ｶﾝﾚｲﾁｼﾖｳ	12/2005 - 06/2007	1
Common parts
90075-02028
90176-05022
90179-05020
90179-05076
90467-09180
