JZS171W-AWAXF (1999)

Toyota Crown/Crown Majesta

Production Dec 1999 - Aug 2001
Engine 1JZGE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9912- )WG

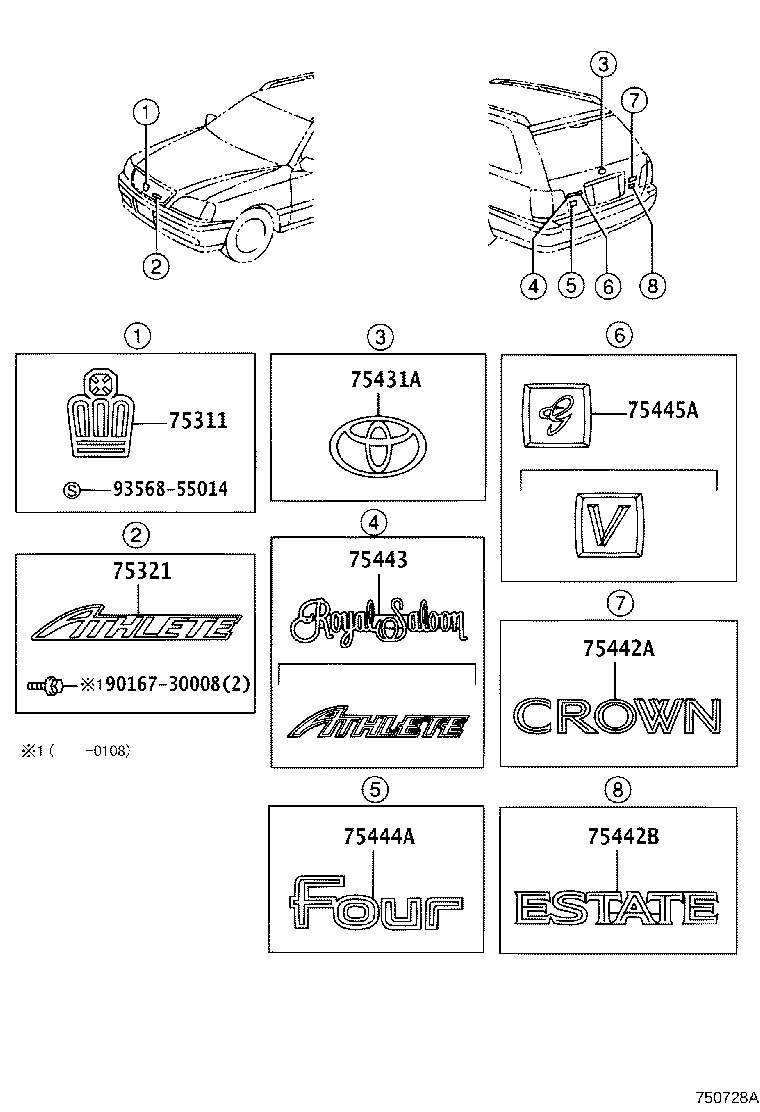

Click highlighted areas on diagram

diagram 75311 75321 75431A 75442A 75442B 75443 75444A 75445A 9016730008 9356855014
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-30340

JZS171,173,175..ATH,ATHE,ATHG,ATHV

 1
75311-30330

GS171,JZS17#,UZS17#..A,C,ROY,ROYEX,ROYG

 1
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-30730

JZS171,173,175..ATH,ATHE,ATHG,ATHV

ATHLETE

 1
75431A - EMBLEM, BACK DOOR, NO.1
75431-12010

JZS171,173,175..WG

 1
75442A - PLATE, BACK DOOR NAME, NO.2
75442-30120

JZS171,173,175..WG

CROWN

 1
75442B - PLATE, BACK DOOR NAME, NO.2
75442-31010

JZS171,173,175..WG

ESTATE

 1
75443 - PLATE, BACK DOOR NAME, NO.3
75443-31010

JZS171,173,175..WG..(ATH,ATHG,ATHV)

ATHLETE

 1
Common parts
90167-30008
93568-55014
