JZS171-AEPVZ (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Dec 2003
Engine 1JZGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )GS171,JKS175,JZS171,173,175,179

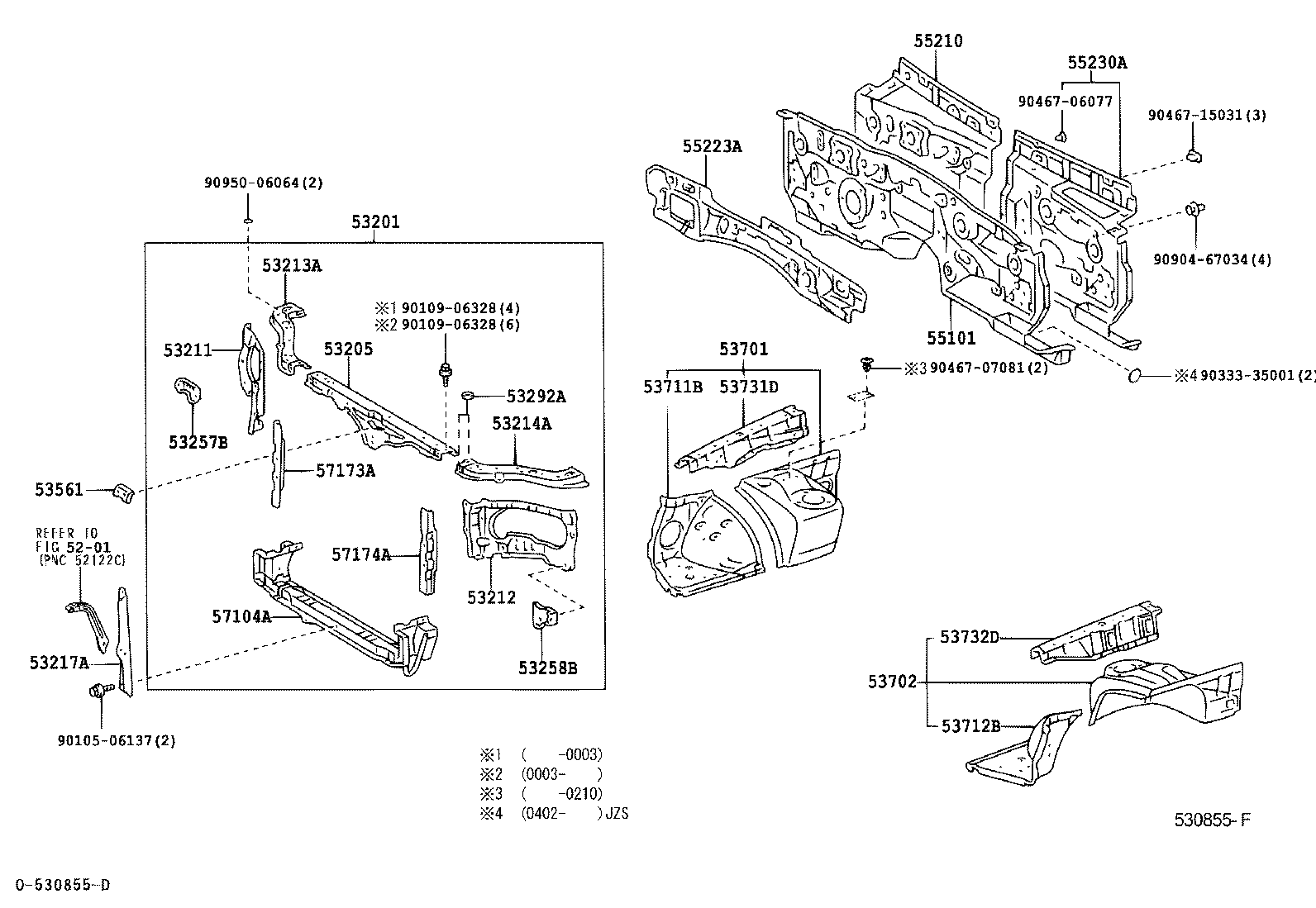

Click highlighted areas on diagram

diagram 5201 53201 53205 53211 53212 53213A 53214A 53217A 53257B 53258B 53292A 53561 53701 53702 53711B 53712B 53731D 53732D 55101 55210 55223A 55230A 57104A 57173A 57174A 9010506137 9010906328 9010906328 9033335001 9046706077 9046707081 9046715031 9090467034 9095006064
Part # Description Qty Price
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-30500

GS171,JZS171,173,175,179

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-30901

GS171,JKS175,JZS171,173,175,179

 1
53205-30900

GS171,JZS171,173,175,179

 1
53211 - SUPPORT, RADIATOR, RH
53211-30907

GS171,JZS171,173,175,179

 1
53211-30907

GS171,JKS175,JZS171,173,175,179

 1
53212 - SUPPORT, RADIATOR, LH
53212-30905

GS171,JZS171,173,175,179

 1
53212-30906

GS171,JKS175,JZS171,173,175,179

 1
53213A - SUPPORT, RADIATOR, UPPER RH
53213-30900

GS171,JZS171,173,175,179

 1
53213-30900

GS171,JKS175,JZS171,173,175,179

 1
53214A - SUPPORT, RADIATOR, UPPER LH
53214-30900

GS171,JZS171,173,175,179

 1
53214-30901

GS171,JKS175,JZS171,173,175,179

 1
53217A - BRACE, HOOD LOCK SUPPORT
53217-30170

GS171,JZS171,173,175,179

 1
53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER
53257-30040

GS171,JZS171,173,175,179

 1
53257-30040

GS171,JKS175,JZS171,173,175,179

 1
53258B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH
53258-30020

GS171,JZS171,173,175,179

 1
53258-30020

GS171,JKS175,JZS171,173,175,179

 1
53292A - SEAL, RADIATOR SUPPORT, UPPER
53882-30040

GS171,JKS175,JZS171,173,175,179

 4
53882-30040

GS171,JZS171,173,175,179

 4
53561 - GUIDE, HOOD AUXILIARY CATCH HOOK
53561-30010

GS171,JKS175,JZS17#,UZS17#

 1
53561-30010

GS171,JZS17#,UZS17#

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-3A170

JZS171..TWT

 1
53701-3A172

JZS171..TWT

 1
53701-3A172

JZS171..TWT

 1
53701-3A171

JZS171..TWT

 1
53701-3A173

JZS171..TWT

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-30721

GS171,JZS171,175

 1
53702-30720

GS171,JZS171,175

 1
53702-30722

GS171,JZS171,175

 1
53702-30723

GS171,JZS171,175

 1
53702-30723

GS171,JKS175,JZS171,175

 1
53702-30724

GS171,JKS175,JZS171,175

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-3A010

JZS171..TWT

 1
53711-3A010

JZS171..TWT

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-30601

GS171,JKS175,JZS171,173,175,179

 1
53712-30600

GS171,JZS171,173,175,179

 1
53712-30601

GS171,JZS171,173,175,179

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53705-30030

GS171,JZS171,173,175,179

 1
53705-30030

GS171,JKS175,JZS171,173,175,179

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53706-30041

GS171,JKS175,JZS171,173,175,179

 1
53706-30040

GS171,JZS171,173,175,179

 1
53706-30041

GS171,JZS171,173,175,179

 1
55101 - PANEL SUB-ASSY, DASH
55101-3A430

GS171,JZS171,175

 1
55101-3A430

GS171,JZS171..HTWC,TWT

 1
55101-3A450

GS171,JZS171..HTWC,TWT

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
55101-3A450

GS171,JZS171,175

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-30340

GS171,JZS171,173,175,179

 1
55210-30340

GS171,JKS175,JZS171,173,175,179

 1
55223A - INSULATOR, DASH PANEL, OUTER
55223-30170

GS171,JKS175,JZS171,173,175,179

 1
55223-30170

GS171,JZS171,173,175,179

 1
55230A - INSULATOR ASSY, DASH PANEL, NO.4
55230-30120

GS171,JZS171,175

 1
55230-30120

GS171,JKS175,JZS171,175

 1
57104A - MEMBER SUB-ASSY, FRONT CROSS
57104-30050

GS171,JZS171,173,175,179

 1
57104-30050

GS171,JKS175,JZS171,173,175,179

 1
57173A - REINFORCEMENT, FRONT CROSSMEMBER, NO.3 RH
57173-30040

GS171,JZS171,173,175,179

 1
57173-30040

GS171,JKS175,JZS171,173,175,179

 1
57174A - REINFORCEMENT, FRONT CROSSMEMBER, NO.3 LH
57174-30040

GS171,JKS175,JZS171,173,175,179

 1
57174-30040

GS171,JZS171,173,175,179

 1
Common parts
90105-06137
90109-06328
90333-35001
90467-06077
90467-07081
90467-15031
90904-67034
90950-06064
Linked diagrams
5201
