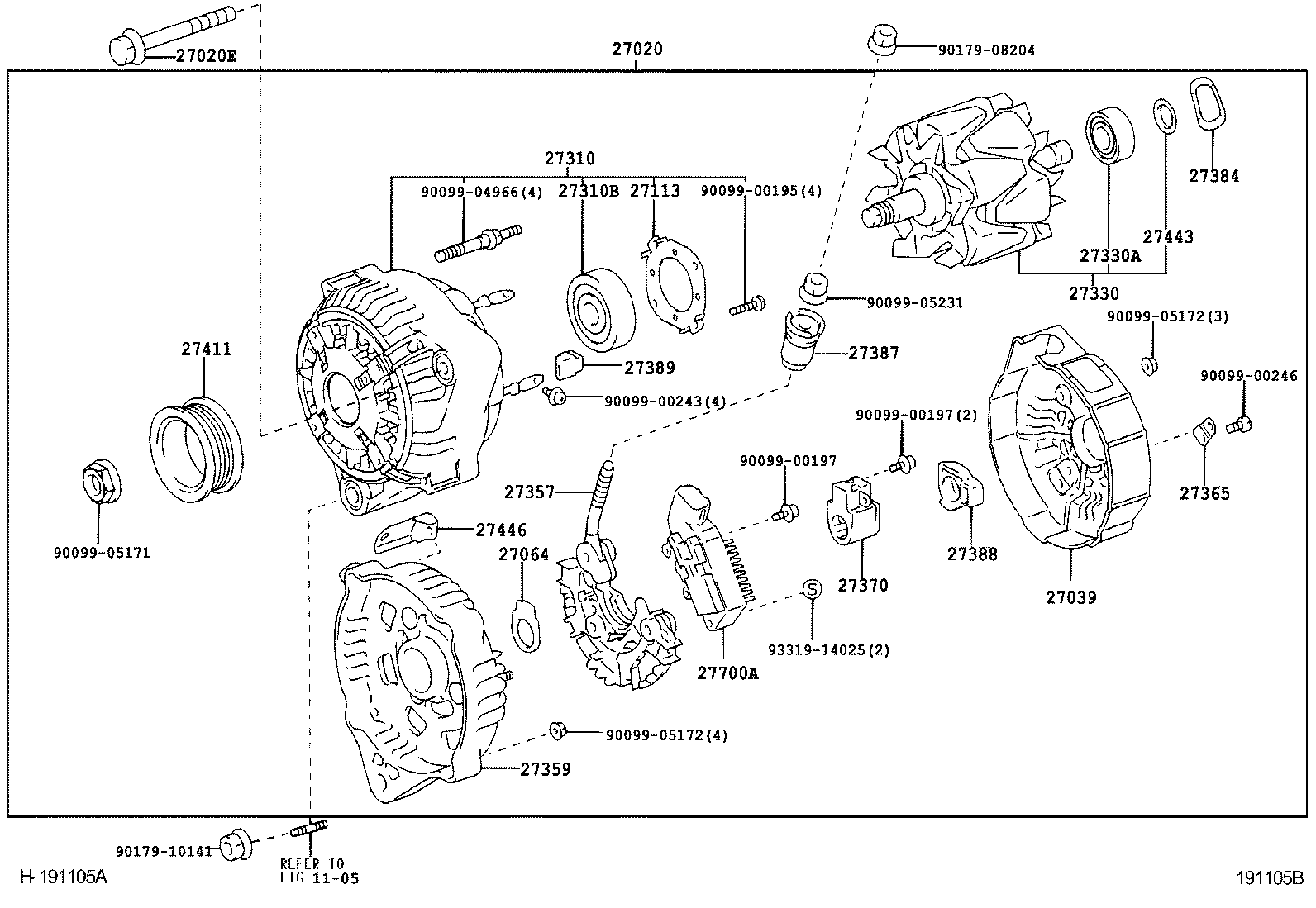

JZS171-AEPVZ (1999)
Toyota Crown/Crown Majesta
(9909-0108)1JZ#,2JZ#
12V 100A, 120A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-46310 |
1JZGTE..JZS171 12V 120A |
1 | ||
| 27060-46340 |
1JZGTE..JZS171 12V 120A |
1 | ||
| 27060-46340 |
1JZGTE..JZS171 12V 120A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 91512-61050 |
1JZ#,2JZ#..JZS17# |
1 | ||
| 91512-61050 |
1JZ#,2JZ#..JKS175,JZS17# |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-46170 |
1JZ#,2JZ#..JZS17# |
1 | ||
| 27039-46310 |
1JZ#,2JZ#..JZS17# |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
1GFE,1JZ#,2JZ#,1UZFE..GS171,JZS17#,UZS17# |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-42010 |
1GFE,1JZ#,2JZ#,1UZFE..GS171,JZS17#,UZS17# |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-46280 |
1JZGTE..JZS171 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
1GFE,1JZ#,2JZ#,1UZFE..GS171,JZS17#,UZS17# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-50070 |
1JZGTE,2JZFSE..JZS171,175,177 |
1 | ||
| 27330-62180 |
1JZGE,1JZGTE,2JZ#..JZS17# |
1 | ||
| 27330-62180 |
1JZ#,2JZ#..JZS17# |
1 | ||
| 27330-62180 |
1JZGTE,2JZFSE..JZS171,175,177 |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10194 |
1JZ#,2JZ#,1UZFE..JZS17#,UZS17# |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-46310 |
1JZ#,2JZ#..JZS17# |
1 | ||
| 27357-46180 |
1JZGE,1JZGTE,2JZ#..JZS17# |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-46100 |
1JZ#,2JZ#..JZS17# |
1 | ||
| 27365 - PLATE, TERMINAL | ||||
| 27365-55080 |
1GFE,1JZ#,2JZ#,1UZFE..GS171,JZS17#,UZS17# |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
1GFE,1JZ#,2JZ#,1UZFE..GS171,JZS17#,UZS17# |
1 | ||
| 27370-75060 |
1GFE,1JZGE,1JZGTE,2JZ#,1UZFE..GS171,JZS17#,UZS17# |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
1GFE,1JZ#,2JZ#,1UZFE..GS171,JZS17#,UZS17# |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42040 |
1JZ#,2JZ#,1UZFE..JZS17#,UZS17# |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
1GFE,1JZ#,2JZ#,1UZFE..GS171,JZS17#,UZS17# |
1 | ||
| 27389 - INSULATOR, TERMINAL | ||||
| 27389-42010 |
1GFE,1JZ#,2JZ#,1UZFE..GS171,JZS17#,UZS17# |
4 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-46080 |
1JZ#,2JZ#,1UZFE..JZS17#,UZS17# |
1 | ||
| 27411-46080 |
1JZ#,2JZ#,1UZFE..JZS17#,UZS17# |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1GFE,1JZ#,2JZ#,1UZFE..GS171,JZS17#,UZS17# |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-46330 |
1JZ#,2JZ#..JZS17# |
1 | ||
| 27446-46330 |
1JZGTE,2JZFSE..JZS171,175,177 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-20050 |
1JZ#,2JZGE..JZS171,173,179 |
1 | ||
| 27700-20050 |
1JZ#,2JZ#..JZS17# |
1 | ||
| 27700-20050 |
1JZGTE..JZS171 |
1 | ||
| 27700-20050 |
1JZGTE..JZS171 |
1 | ||
| Common parts | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05231 | ||||
| 90179-08204 | ||||
| 90179-10141 | ||||
| 93319-14025 | ||||
| Linked diagrams | ||||
| 1105 | ||||

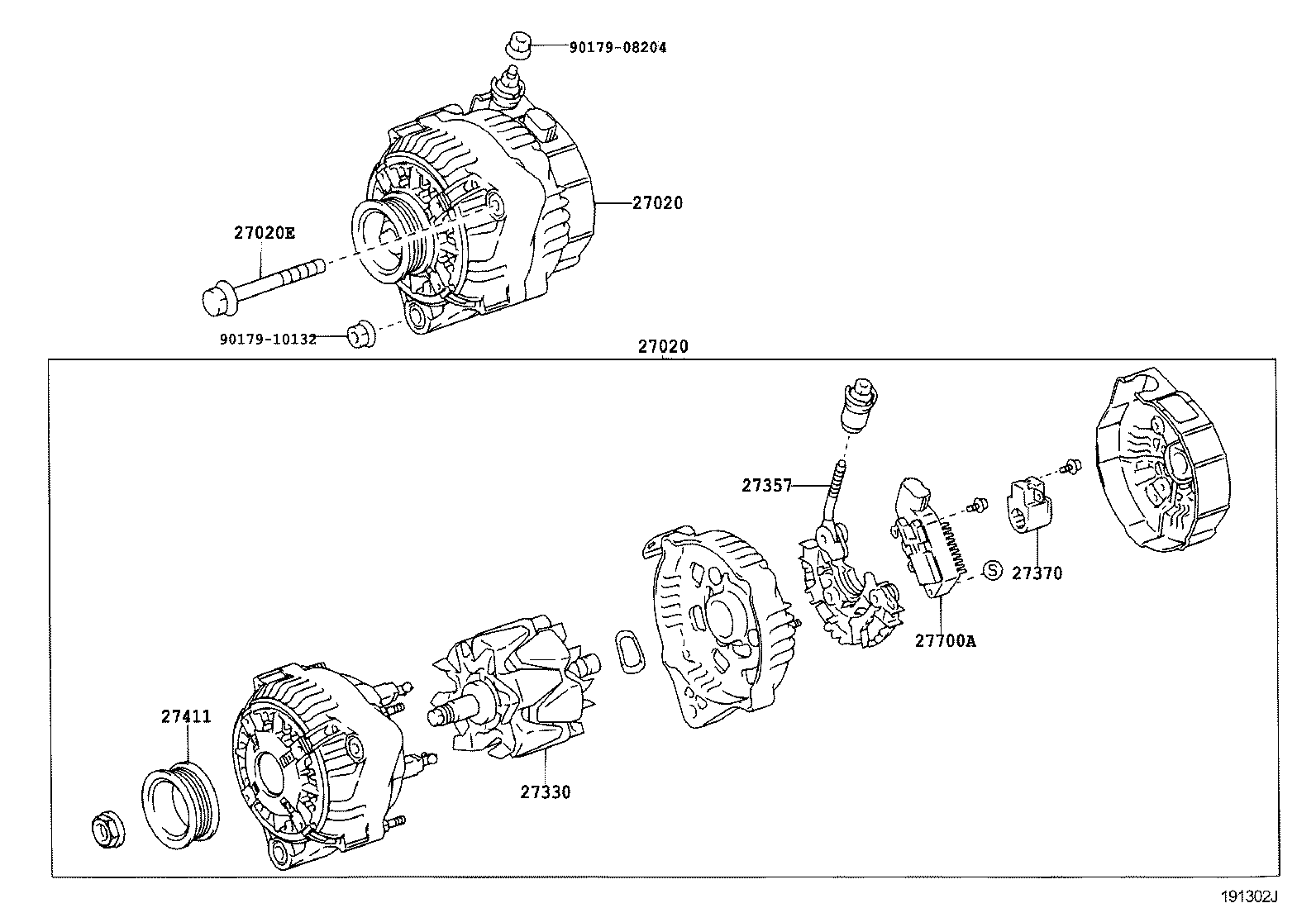

(0108- )1JZGE,1JZGTE,2JZ#
12V 100A,120A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-46310 |
1JZGTE..JZS171 12V 120A |
1 | ||
| 27060-46340 |
1JZGTE..JZS171 12V 120A |
1 | ||
| 27060-46340 |
1JZGTE..JZS171 12V 120A |
1 | ||
| 27020 - ALTERNATOR ASSY | ||||
| 27060-46310 |
1JZGTE..JZS171 12V 120A |
1 | ||
| 27060-46340 |
1JZGTE..JZS171 12V 120A |
1 | ||
| 27060-46340 |
1JZGTE..JZS171 12V 120A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 91512-61050 |
1JZ#,2JZ#..JZS17# |
1 | ||
| 91512-61050 |
1JZ#,2JZ#..JKS175,JZS17# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-50070 |
1JZGTE,2JZFSE..JZS171,175,177 |
1 | ||
| 27330-62180 |
1JZGE,1JZGTE,2JZ#..JZS17# |
1 | ||
| 27330-62180 |
1JZ#,2JZ#..JZS17# |
1 | ||
| 27330-62180 |
1JZGTE,2JZFSE..JZS171,175,177 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-46310 |
1JZ#,2JZ#..JZS17# |
1 | ||
| 27357-46180 |
1JZGE,1JZGTE,2JZ#..JZS17# |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
1GFE,1JZ#,2JZ#,1UZFE..GS171,JZS17#,UZS17# |
1 | ||
| 27370-75060 |
1GFE,1JZGE,1JZGTE,2JZ#,1UZFE..GS171,JZS17#,UZS17# |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-46080 |
1JZ#,2JZ#,1UZFE..JZS17#,UZS17# |
1 | ||
| 27411-46080 |
1JZ#,2JZ#,1UZFE..JZS17#,UZS17# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-20050 |
1JZ#,2JZGE..JZS171,173,179 |
1 | ||
| 27700-20050 |
1JZ#,2JZ#..JZS17# |
1 | ||
| 27700-20050 |
1JZGTE..JZS171 |
1 | ||
| 27700-20050 |
1JZGTE..JZS171 |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| 90179-10132 | ||||
