JZS171-AEPVZ (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Dec 2003
Engine 1JZGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )1JZGTE

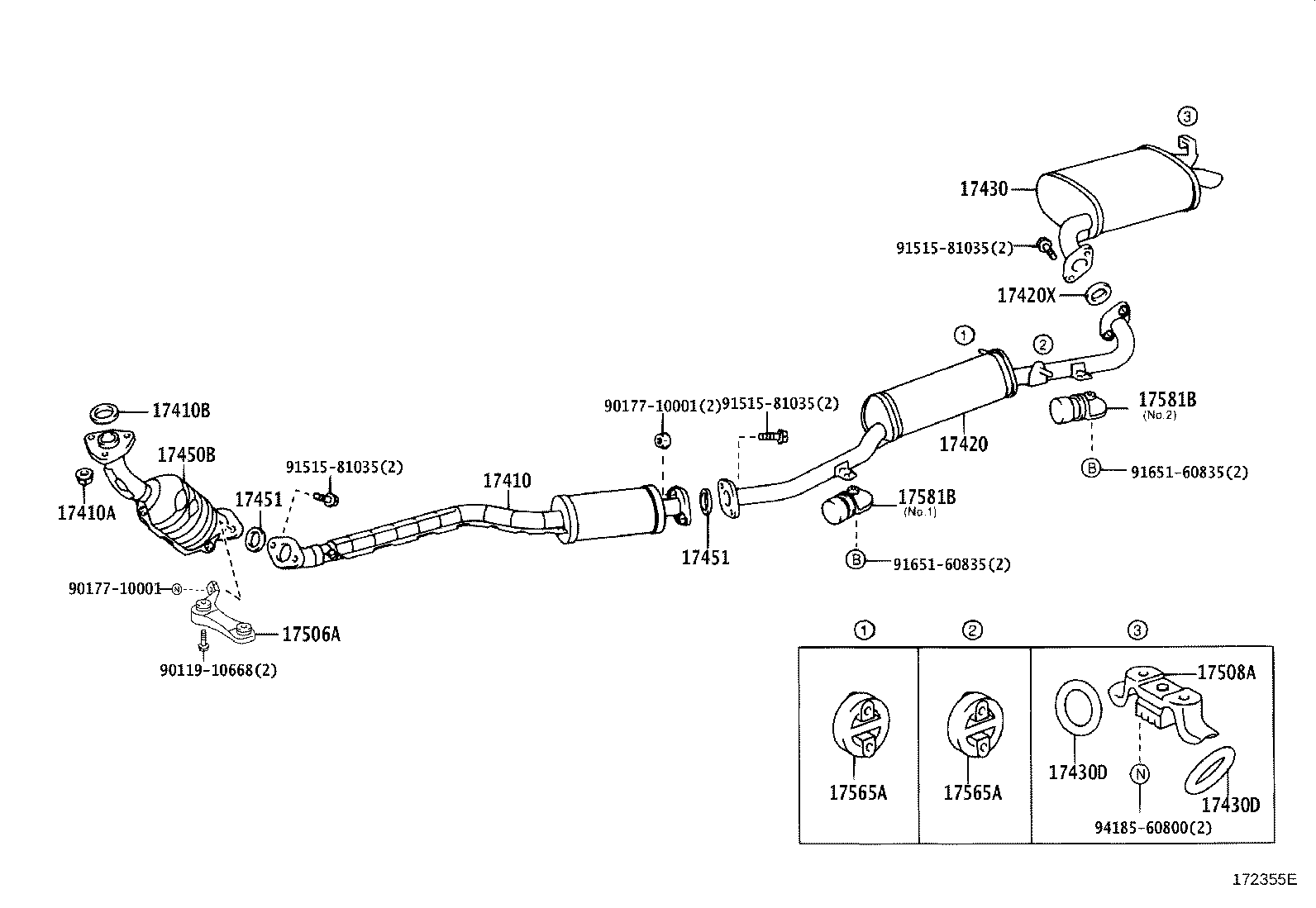

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17420 17420X 17430 17430D 17430D 17450B 17451 17451 17506A 17508A 17565A 17565A 17581B 17581B 9011910668 9017710001 9017710001 9151581035 9151581035 9151581035 9165160835 9165160835 9418560800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-46560

1JZGTE..JZS171

 1
17410-46560

1JZGTE..JZS171

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1JZGTE..JZS171

 3
90179-10070

1JZGTE..JZS171

 3
17410B - GASKET, EXHAUST PIPE
90917-06068

1JZGTE..JZS171

 1
90917-06068

1JZGTE..JZS171

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-46480

1JZGTE..JZS171

 1
17420-46480

1JZGTE..JZS171

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06073

1GFE,1JZ#,2JZ#..GS171,JZS171,173,175,179

 1
90917-06073

1GFE,1JZGE,1JZGTE,2JZ#..GS171,JKS175,JZS171,173,175,179

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-46540

1JZGTE..JZS171

 1
17430-46540

1JZGTE..JZS171

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-36001

1GFE,1JZ#,2JZ#..GS171,JZS171,173,175,179

 2
90301-36001

1GFE,1JZ#,2JZ#..GS171,JKS175,JZS171,173,175,179

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-36001

1GFE,1JZ#,2JZ#..GS171,JZS171,173,175,179

 2
90301-36001

1GFE,1JZ#,2JZ#..GS171,JKS175,JZS171,173,175,179

 2
17450B - PIPE ASSY, EXHAUST, FRONT NO.2
17450-46240

1JZGTE..JZS171

 1
17450-46240

1JZGTE..JZS171

 1
17451 - GASKET, EXHAUST PIPE
90917-06076

1JZGTE..JZS171

 2
90917-06076

1JZGTE..JZS171

 2
17451 - GASKET, EXHAUST PIPE
90917-06076

1JZGTE..JZS171

 2
90917-06076

1JZGTE..JZS171

 2
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-46170

1JZGTE..JZS171

 1
17506-46170

1JZGTE..JZS171

 1
17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17508-46060

1GFE,1JZ#,2JZ#..GS171,JZS171,173,175,179

 1
17508-50010

1GFE,1JZ#,2JZ#..GS171,JZS171,173,175,179

 1
17508-46060

1GFE,1JZ#,2JZ#..GS171,JKS175,JZS171,173,175,179

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-11160

1GFE,1JZ#,2JZ#..GS171,JZS171,173,175,179

 2
17565-11160

1GFE,1JZ#,2JZ#..GS171,JKS175,JZS171,173,175,179

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-11160

1GFE,1JZ#,2JZ#..GS171,JZS171,173,175,179

 2
17565-11160

1GFE,1JZ#,2JZ#..GS171,JKS175,JZS171,173,175,179

 2
17581B - DAMPER, EXHAUST PIPE, NO.2
17581-46010

1JZGTE..JZS171

NO.2

 1
17581-46070

1JZGTE,2JZFSE..JZS171,175

NO.1

 1
17581-46010

1JZGTE..JZS171

NO.2

 1
17581B - DAMPER, EXHAUST PIPE, NO.2
17581-46010

1JZGTE..JZS171

NO.2

 1
17581-46070

1JZGTE,2JZFSE..JZS171,175

NO.1

 1
17581-46010

1JZGTE..JZS171

NO.2

 1
Common parts
90119-10668
90177-10001
91515-81035
91651-60835
94185-60800
