JZS171-AEPQH (2001)

Toyota Crown/Crown Majesta

Production Aug 2001 - Dec 2003
Engine 1JZFSE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )JKS175,JZS171,175..D4

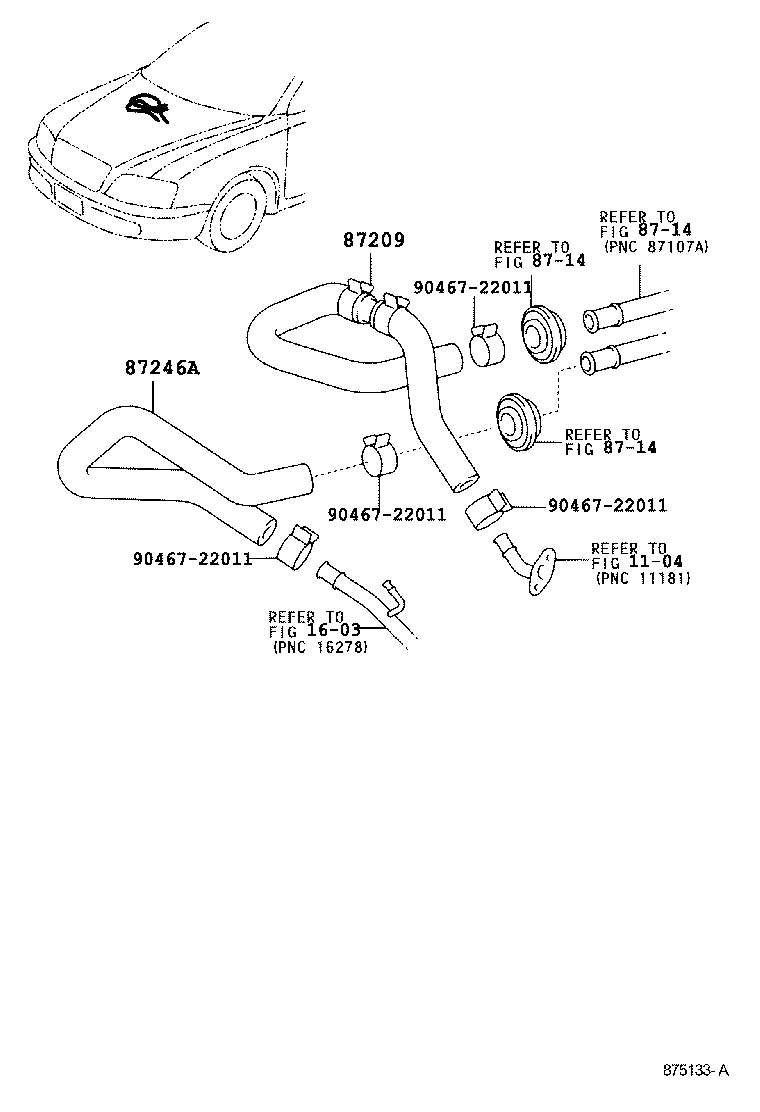

Click highlighted areas on diagram

diagram 1104 1603 8714 8714 8714 87209 87246A 9046722011 9046722011 9046722011 9046722011
Part # Description Qty Price
87246A - HOSE, HEATER WATER, OUTLET A
87245-51060

JZS171,173,175,179..D4,TWC

ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ)

 1
87245-51020

JZS171,175..D4,TWC

 1
87245-2A740

JZS171..D4

 1
87245-51140

JKS175,JZS171,175..D4

ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ)

 1
Common parts
90467-22011
Linked diagrams
1104
1603
8714
