JZS171-AEPQH (2001)

Toyota Crown/Crown Majesta

Production Aug 2001 - Dec 2003
Engine 1JZFSE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

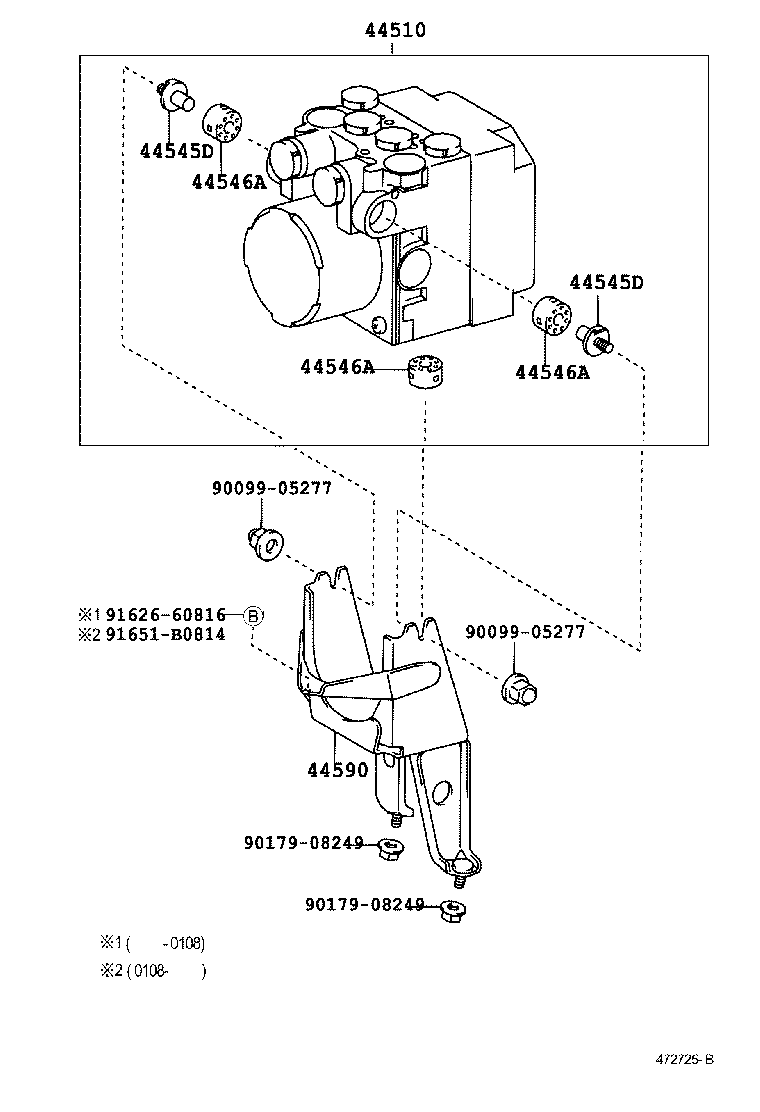

ILLUST NO. 2 OF 2(0108- )GS171,JZS171,173..D4,HTWC,TWC

Click highlighted areas on diagram

diagram 44510 44545D 44545D 44546A 44546A 44546A 44590 9009905277 9009905277 9017908249 9017908249 9162660816 91651B0814
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-30090

GS171,JZS171..D4,HTWC

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42090

GS171,JKS175,JZS171,175,179

 2
44545-42020

GS171,JZS171,173,175,179

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42090

GS171,JKS175,JZS171,175,179

 2
44545-42020

GS171,JZS171,173,175,179

 2
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

GS171,JKS175,JZS171,175,179

 3
44546-42020

GS171,JZS171,173,175,179

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

GS171,JKS175,JZS171,175,179

 3
44546-42020

GS171,JZS171,173,175,179

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

GS171,JKS175,JZS171,175,179

 3
44546-42020

GS171,JZS171,173,175,179

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-53020

GS171,JZS171,173,175,179

 1
44590-22050

GS171,JZS171..D4,HTWC

 1
44590-30090

JKS175,JZS171,175,179

ｱﾘ(VSC)

 1
Common parts
90099-05277
90179-08249
91626-60816
91651-B0814

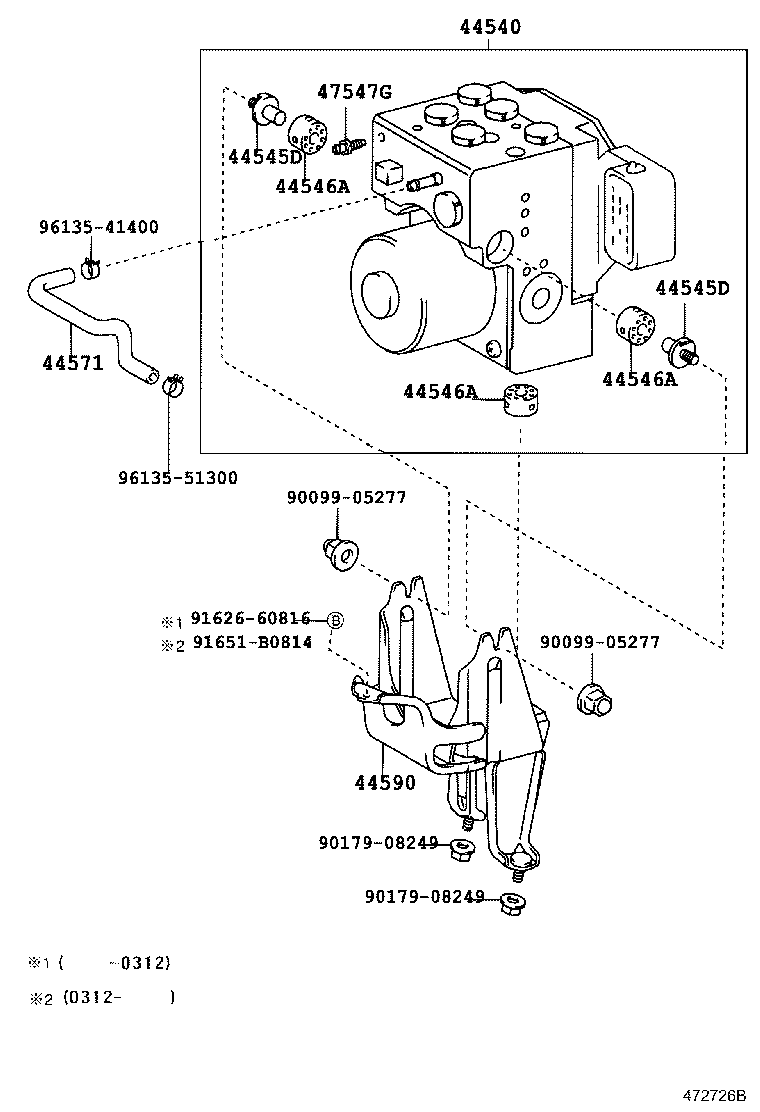

ILLUST NO. 2 OF 2(0108- )JKS175,JZS171,175,179

Click highlighted areas on diagram

ｱﾘ(VSC)

diagram 44540 44545D 44545D 44546A 44546A 44546A 44571 44590 47547G 9009905277 9009905277 9017908249 9017908249 9162660816 91651B0814 9613541400 9613551300
Part # Description Qty Price
44540 - ACTUATOR ASSY, ABS & TRACTION
44050-30100

JKS175,JZS171,175,179

 1
44050-30081

JZS171,175..ATH,ATHG,ATHV,ROY,ROYEX,ROYG

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42090

GS171,JKS175,JZS171,175,179

 2
44545-42020

GS171,JZS171,173,175,179

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42090

GS171,JKS175,JZS171,175,179

 2
44545-42020

GS171,JZS171,173,175,179

 2
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

GS171,JKS175,JZS171,175,179

 3
44546-42020

GS171,JZS171,173,175,179

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

GS171,JKS175,JZS171,175,179

 3
44546-42020

GS171,JZS171,173,175,179

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

GS171,JKS175,JZS171,175,179

 3
44546-42020

GS171,JZS171,173,175,179

 3
44571 - HOSE, BRAKE ACTUATOR
44571-30090

JZS171,175..ATH,ATHG,ATHV,ROY,ROYEX,ROYG

 1
44571-30100

JKS175,JZS171,175,179

 1
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-53020

GS171,JZS171,173,175,179

 1
44590-22050

GS171,JZS171..D4,HTWC

 1
44590-30090

JKS175,JZS171,175,179

ｱﾘ(VSC)

 1
47547G - PLUG, BLEEDER(FOR BRAKE TRACTION ACTUATOR)
47547-27030

JZS171,175..ATH,ATHG,ATHV,ROY,ROYEX,ROYG

 1
Common parts
90099-05277
90179-08249
91626-60816
91651-B0814
96135-41400
96135-51300
