JZS171-AEPQF (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Aug 2001
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )GS171,JKS175,JZS171,173,175,179

Click highlighted areas on diagram

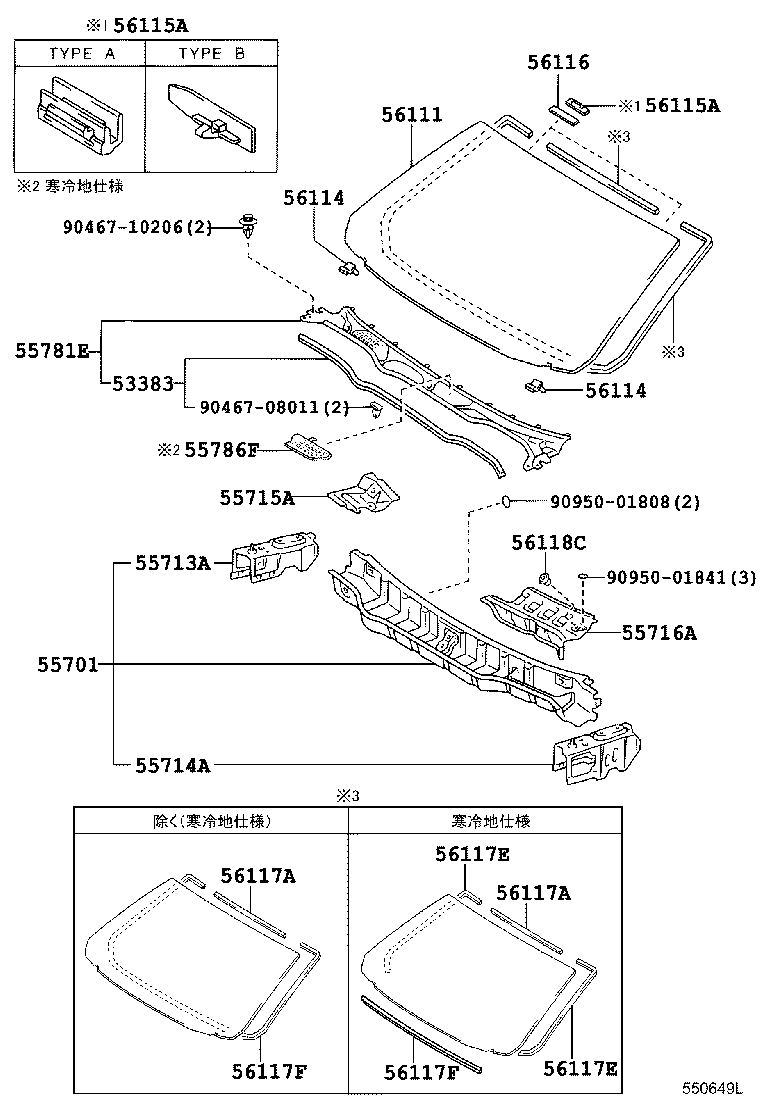

diagram 53383 55701 55713A 55714A 55715A 55716A 55781E 55786F 56111 56114 56114 56115A 56115A 56116 56117A 56117A 56117E 56117E 56117F 56117F 56118C 9046708011 9046710206 9095001808 9095001841
Part # Description Qty Price
53383 - SEAL, HOOD TO COWL TOP
53383-30160

GS171,JZS171,173,175,179

 1
55701 - PANEL SUB-ASSY, COWL
55700-3A120

GS171,JZS171,173,175,179

ｱﾘ(ｳｲﾝﾄﾞｼ-ﾙﾄﾞ ﾃﾞｱｲｻ = ﾎﾂﾄﾊﾟﾈﾙ ﾋ-ﾀ)

 1
55700-3A110

GS171,JZS171,173,175,179

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-30906

GS171,JZS171,173,175,179

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-30906

GS171,JZS171,173,175,179

 1
55715A - BRACE, COWL TOP TO APRON, RH
55715-30090

GS171,JZS171,173,175,179

 1
55716A - BRACE, COWL TOP TO APRON, LH
55716-30110

GS171,JZS171,173,175,179

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-30050

GS171,JZS171,173,175,179

 1
55708-30060

GS171,JZS171,173,175,179

ｶﾝﾚｲﾁ ｼﾖｳ

 1
55786F - NET, COWL TOP VENTILATOR LOUVER
55786-30050

GS171,JZS171,173,175,179

 1
56111 - GLASS, WINDSHIELD
56101-30680

GS171,JZS171,173,175,179..ATHG,ATHV,ROY,ROYEX,ROYG

*TL,T=5.3,ｸﾞﾘｰﾝ,ﾘﾐﾃｯﾄﾞ *(L) & ｱﾘ(ｳｲﾝﾄﾞｼ-ﾙﾄﾞ ﾃﾞｱｲｻ = ｵﾝｽｲﾊﾟﾈﾙ ﾋ-ﾀ)

 1
56111-3A440

GS171,JZS171,173,175,179..ATHG,ATHV,ROY,ROYEX,ROYG

*TL,T=5.3,ｸﾞﾘｰﾝ,ﾘﾐﾃｯﾄﾞ *(L) & ｱﾘ(ﾄｯﾌﾟｼｪｰﾄﾞ)

 1
56111-3A440

GS171,JZS171,173,175,179..ATHG,ATHV,ROY,ROYEX,ROYG

*TL,T=5.3,ｸﾞﾘｰﾝ,ｱﾘ(ﾄﾂﾌﾟ ｼｴ-ﾄﾞ)

 1
56101-30680

GS171,JZS171,173,175,179..ATHG,ATHV,ROY,ROYEX,ROYG

*TL,T=5.3,ｸﾞﾘｰﾝ,ｱﾘ(ｳｲﾝﾄﾞｼ-ﾙﾄﾞ ﾃﾞｱｲｻ = ｵﾝｽｲﾊﾟﾈﾙ ﾋ-ﾀ)

 1
56114 - RETAINER, WINDSHIELD GLASS
56114-50020

GS171,JZS17#,UZS17#

 2
56114 - RETAINER, WINDSHIELD GLASS
56114-50020

GS171,JZS17#,UZS17#

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30100

GS171,JZS171,173,175,179

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
56115-33040

JZS171,173,175,179

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30100

GS171,JZS171,173,175,179

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
56115-33040

JZS171,173,175,179

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 2
56116 - SPACER, WINDSHIELD GLASS
56116-22050

GS171,JZS17#,UZS17#

 2
56117A - DAM, WINDOW GLASS ADHESIVE
64813-52010

GS171,JZS17#,UZS17#

*H,L=650

 1
56117A - DAM, WINDOW GLASS ADHESIVE
64813-52010

GS171,JZS17#,UZS17#

*H,L=650

 1
56117E - DAM, WINDOW GLASS ADHESIVE
56117-30300

GS171,JZS17#,UZS17#

*D,L=900,ｶﾝﾚｲﾁ ｼﾖｳ

 2
56117E - DAM, WINDOW GLASS ADHESIVE
56117-30300

GS171,JZS17#,UZS17#

*D,L=900,ｶﾝﾚｲﾁ ｼﾖｳ

 2
56117F - DAM, WINDOW GLASS ADHESIVE
56117-44030

GS171,JZS17#,UZS17#

*D,L=1405,ｶﾝﾚｲﾁ ｼﾖｳ

 1
56117-30320

GS171,JZS17#,UZS17#

*D,L=3235

 1
56117F - DAM, WINDOW GLASS ADHESIVE
56117-44030

GS171,JZS17#,UZS17#

*D,L=1405,ｶﾝﾚｲﾁ ｼﾖｳ

 1
56117-30320

GS171,JZS17#,UZS17#

*D,L=3235

 1
56118C - RETAINER, WINDSHIELD GLASS, NO.2
56118-30080

GS171,JZS171,173,175,179

 1
Common parts
90467-08011
90467-10206
90950-01808
90950-01841
