JZS171-AEPQF (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Aug 2001
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909-0108)D4,TWC

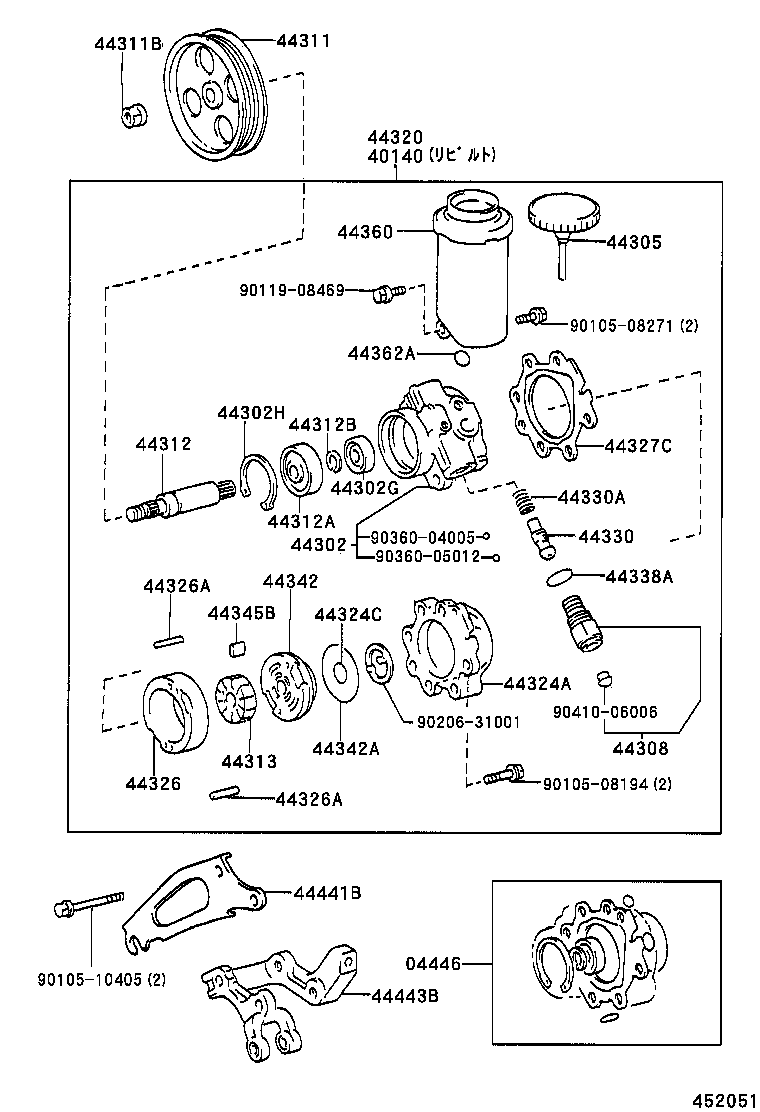

Click highlighted areas on diagram

diagram 04446 40140 44302 44302G 44302H 44305 44308 44311 44311B 44312 44312A 44312B 44313 44320 44324A 44324C 44326 44326A 44326A 44327C 44330 44330A 44338A 44342 44342A 44345B 44360 44362A 44441B 44443B 9010508194 9010508271 9010510405 9011908469 9020631001 9036004005 9036005012 9041006006
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-30120

JZS17#

 1
40140 - PUMP ASSY,VANE REBUILT
40140-51010

JZS171..TWC

TOYODA KOKI

 1
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-30120

JZS17#

 1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90311-17007

JZS17#

 1
44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING)
90521-44002

JZS17#

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-50010

JZS17#..D4,TWC

 1
44308 - UNION SUB-ASSY, PRESSURE PORT
44308-51010

JZS171..TWC

 1
44311 - PULLEY, VANE PUMP
44311-22091

JZS17#

 1
44311B - NUT(FOR VANE PUMP PULLEY)
90178-12003

GS171,JZS17#,UZS17#

 1
44312 - SHAFT, VANE PUMP
44312-26020

JZS17#

 1
44312A - BEARING(FOR VANE PUMP SHAFT)
90363-17008

JZS17#

 1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90520-15001

JZS17#

 1
44313 - ROTOR, VANE PUMP
44313-26080

JZS17#

ﾏｰｸ 2

 1
44313-26090

JZS17#

ﾏｰｸ 3

 1
44313-26070

JZS17#

ﾏｰｸ 1

 1
44313-26060

JZS17#

ﾏｰｸ無し

 1
44313-26100

JZS17#

ﾏｰｸ 4

 1
44320 - PUMP ASSY, VANE
44320-51010

JZS171..TWC

 1
44324A - HOUSING, PUMP, REAR
44324-30130

JZS17#

 1
44324C - RING, O(FOR PUMP HOUSING REAR)
90301-18007

JZS17#

 1
44326 - RING, CAM(FOR VANE PUMP)
44325-32290

JZS17#

ﾏｰｸ 2

 1
44325-32270

JZS17#

ﾏｰｸ無し

 1
44325-32280

JZS17#

ﾏｰｸ 1

 1
44325-32300

JZS17#

ﾏｰｸ 3

 1
44325-32310

JZS17#

ﾏｰｸ 4

 1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-04071

JZS17#

長さ=23.3,外径=4.0

 2
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-04071

JZS17#

長さ=23.3,外径=4.0

 2
44327C - GASKET, VANE PUMP HOUSING
44327-26010

JZS17#

 1
44330 - VALVE ASSY, FLOW CONTROL
44330-22301

JZS171..TWC

ﾏｰｸ C

 1
44330-22321

JZS171..TWC

ﾏｰｸ E

 1
44330-22331

JZS171..TWC

ﾏｰｸ F

 1
44330-22311

JZS171..TWC

ﾏｰｸ D

 1
44330-22291

JZS171..TWC

ﾏｰｸ B

 1
44330-22281

JZS171..TWC

ﾏｰｸ A

 1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-13034

JZS17#

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-19013

GS171,JZS17#

内径=19.2,外径=22.3

 1
90301-19013

GS171,JZS17#,UZS17#

内径=19.2,外径=22.3

 1
44342 - PLATE, VANE PUMP SIDE, REAR
44342-26020

JZS17#

 1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
90301-47001

JZS17#

 1
44345B - PLATE, VANE PUMP
44345-26020

JZS17#

長さ=14.998

 10
44345-26030

JZS17#

長さ=14.996

 10
44345-26040

JZS17#

長さ=14.994

 10
44345-26010

JZS17#

長さ=15.000

 10
44345-26050

JZS17#

長さ=14.992

 10
44360 - RESERVOIR ASSY, VANE PUMP OIL
44306-30280

JZS171,173,175,179..D4,TWC

 1
44362A - RING, O(FOR VANE PUMP OIL RESERVOIR)
90301-11016

GS171,JZS17#,UZS17#

 1
44441B - BRACKET, PUMP, FRONT
44441-30080

JZS17#

 1
44443B - BRACKET, VANE PUMP
44443-22130

JZS17#

 1
Common parts
